ZZT221L-AEPEKW (2000)
Toyota Avensis
(0007- )AZT220,ZZT221

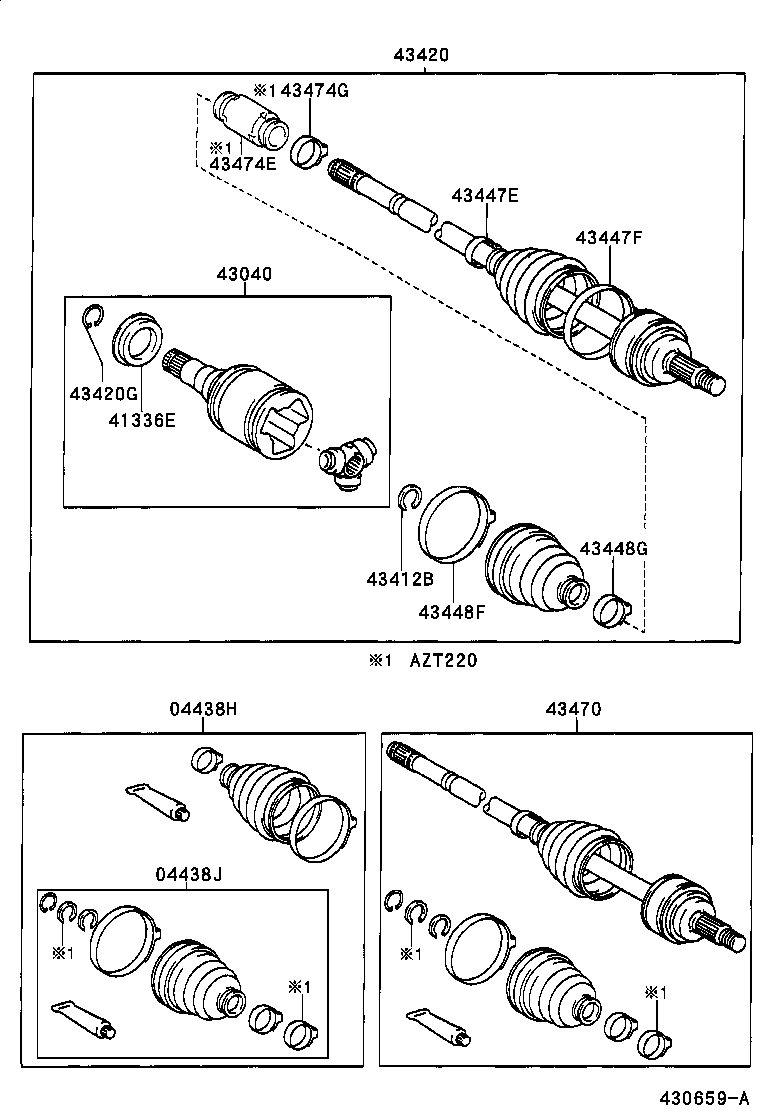

LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-05230 |
ZZT221..ATM |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-05220 |
ZZT221..ATM |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-05010 |
ZZT221..ATM;AT22#,ZZT220 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-05090 |
ZZT221..ATM |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-05010 |
ZZT221 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-05160 |
ZZT221..ATM |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90080-52056 |
ZZT221..ATM;AT22#,ZZT220 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-05070 |
CT220,ST220,ZZT22# ID=29.5 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-05080 |
CT220,ST220,ZZT22# ID=87.5 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-05120 |
ZZT221 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-05170 |
ZZT221 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-09750 |
ZZT221..ATM |
1 | ||
(0007- )AZT220,ZZT221

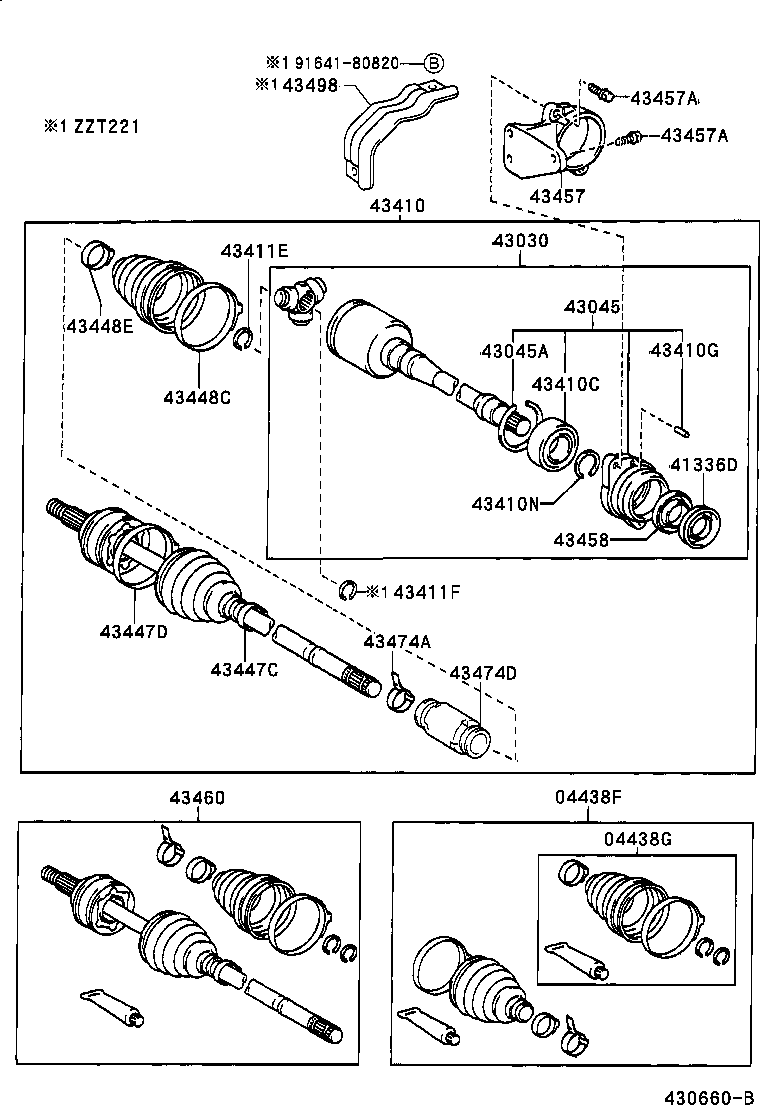

RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-05230 |
ZZT221..ATM |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-05220 |
ZZT221..ATM |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-05070 |
ZZT221..ATM |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-05080 |
ZZT221..ATM |
1 | ||
| 43045 - CASE SUB ASSY, DRIVE SHAFT BEARING | ||||
| 43045-20010 |
AZT220,ZZT221 |
1 | ||
| 43045A - RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING) | ||||
| 96153-00680 |
AZT220,CT220,ST220,ZZT221 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-05170 |
ZZT221..ATM |
1 | ||
| 43410G - PIN, STRAIGHT (FOR FRONT DRIVE SHAFT) | ||||
| 90250-06003 |
AZT220,CDT220,CT220,ST220,ZZT221 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90080-52054 |
AZT220,CT220,ST220,ZZT221 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-05010 |
ZZT221 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-05070 |
CT220,ST220,ZZT22# ID=29.5 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-05080 |
CT220,ST220,ZZT22# ID=87.5 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-05120 |
ZZT221 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-05170 |
ZZT221 |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-20100 |
ZZT221..ATM |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10285 |
AZT220,ZZT221 *10-1.25PX22-19.5 |
2 | ||
| 90105-10381 |
AZT220,ZZT221 *10-1.25PX32-30 |
3 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10285 |
AZT220,ZZT221 *10-1.25PX22-19.5 |
2 | ||
| 90105-10381 |
AZT220,ZZT221 *10-1.25PX32-30 |
3 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-05010 |
AZT220,CT220,ST220,ZZT221 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-09500 |
ZZT221..ATM |
1 | ||
| 43498 - INSULATOR, DRIVE SHAFT HEAT | ||||
| 43498-20020 |
ZZT221 |
1 | ||
| Common parts | ||||
| 91641-80820 | ||||
