ZZT221L-AEMNKW (2000)

Toyota Avensis

Production Jul 2000 - Jan 2003
Engine 1ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

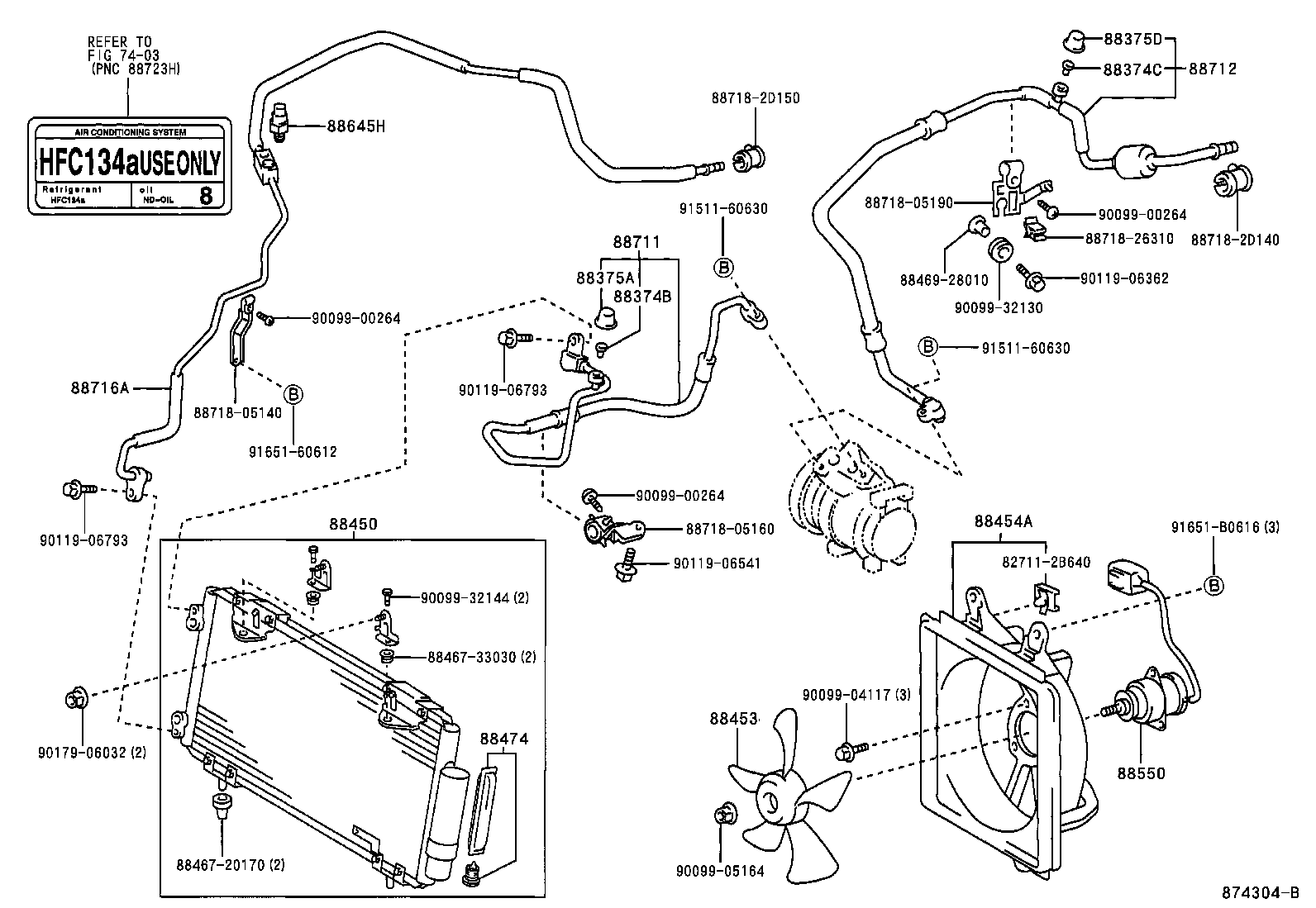

ILLUST NO. 1 OF 2(0007- )ZZT22#..LHD

Click highlighted areas on diagram

MAKER OPTION

diagram 7403 827112B640 88374B 88374C 88375A 88375D 88450 88453 88454A 8846720170 8846733030 8846928010 88474 88550 88645H 88711 88712 88716A 8871805140 8871805160 8871805190 8871826310 887182D140 887182D150 9009900264 9009900264 9009900264 9009904117 9009905164 9009932130 9009932144 9011906362 9011906541 9011906793 9011906793 9017906032 9151160630 9151160630 9165160612 91651B0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

AZT220,CDT220,ST220,ZZT22#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-05070

AZT220,CDT220,ST220,ZZT22#..LHD

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-02110

AT220..RHD;AT221,ST220,ZZT22#

 1
88454A - SHROUD, FAN
16711-02070

AT220..RHD;AT221,ST220,ZZT22#

 1
88474 - DRYER, COOLER
88474-47010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-22070

ZZT22#

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-05090

ZZT22#..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-05170

ZZT22#..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-05220

ZZT22#..LHD

 1
88716-05320

ZZT22#..LHD

DEALER OPTION

 1
Common parts
82711-2B640
88467-20170
88467-33030
88469-28010
88718-05140
88718-05160
88718-05190
88718-26310
88718-2D140
88718-2D150
90099-00264
90099-04117
90099-05164
90099-32130
90099-32144
90119-06362
90119-06541
90119-06793
90179-06032
91511-60630
91651-60612
91651-B0616
Linked diagrams
7403

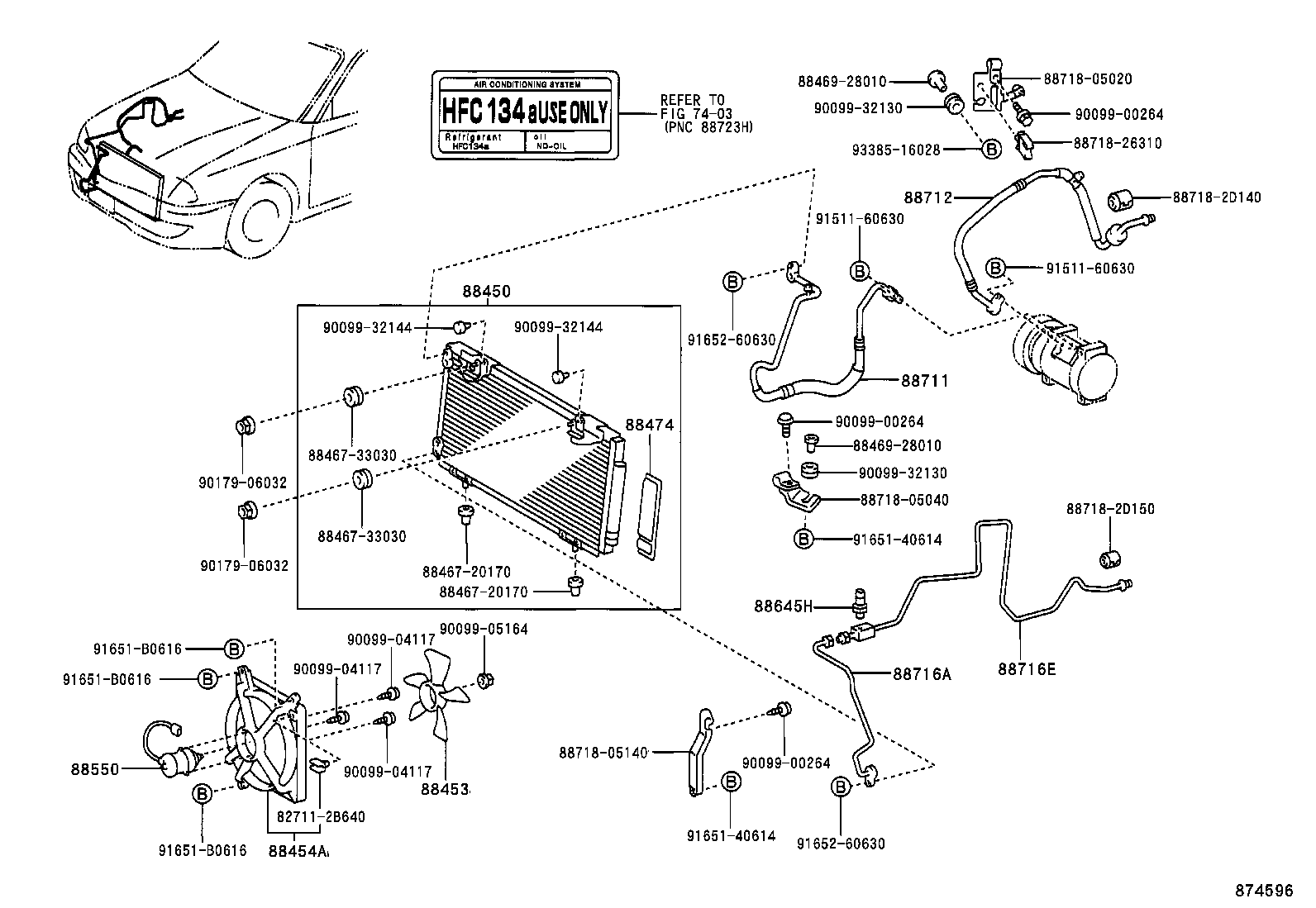

ILLUST NO. 1 OF 2(0007- )ZZT22#..LHD

Click highlighted areas on diagram

DEALER OPTION

diagram 7403 827112B640 88450 88453 88454A 8846720170 8846720170 8846733030 8846733030 8846928010 8846928010 88474 88550 88645H 88711 88712 88716A 88716E 8871805020 8871805040 8871805140 8871826310 887182D140 887182D150 9009900264 9009900264 9009900264 9009904117 9009904117 9009904117 9009905164 9009932130 9009932130 9009932144 9009932144 9017906032 9017906032 9151160630 9151160630 9165140614 9165140614 91651B0616 91651B0616 91651B0616 9165260630 9165260630 9338516028
Part # Description Qty Price
88450 - CONDENSER ASSY, W/RECEIVER
88450-05070

AZT220,CDT220,ST220,ZZT22#..LHD

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-02110

AT220..RHD;AT221,ST220,ZZT22#

 1
88454A - SHROUD, FAN
16711-02070

AT220..RHD;AT221,ST220,ZZT22#

 1
88474 - DRYER, COOLER
88474-47010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-22070

ZZT22#

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-05090

ZZT22#..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-05170

ZZT22#..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-05220

ZZT22#..LHD

 1
88716-05320

ZZT22#..LHD

DEALER OPTION

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-05310

ZZT22#..LHD

DEALER OPTION

 1
Common parts
82711-2B640
88467-20170
88467-33030
88469-28010
88718-05020
88718-05040
88718-05140
88718-26310
88718-2D140
88718-2D150
90099-00264
90099-04117
90099-05164
90099-32130
90099-32144
90179-06032
91511-60630
91651-40614
91651-B0616
91652-60630
93385-16028
Linked diagrams
7403
