ZZT220R-ALMNKW (2000)

Toyota Avensis

Production Jul 2000 - Jan 2003
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0007- )1ZZFE,3ZZFE

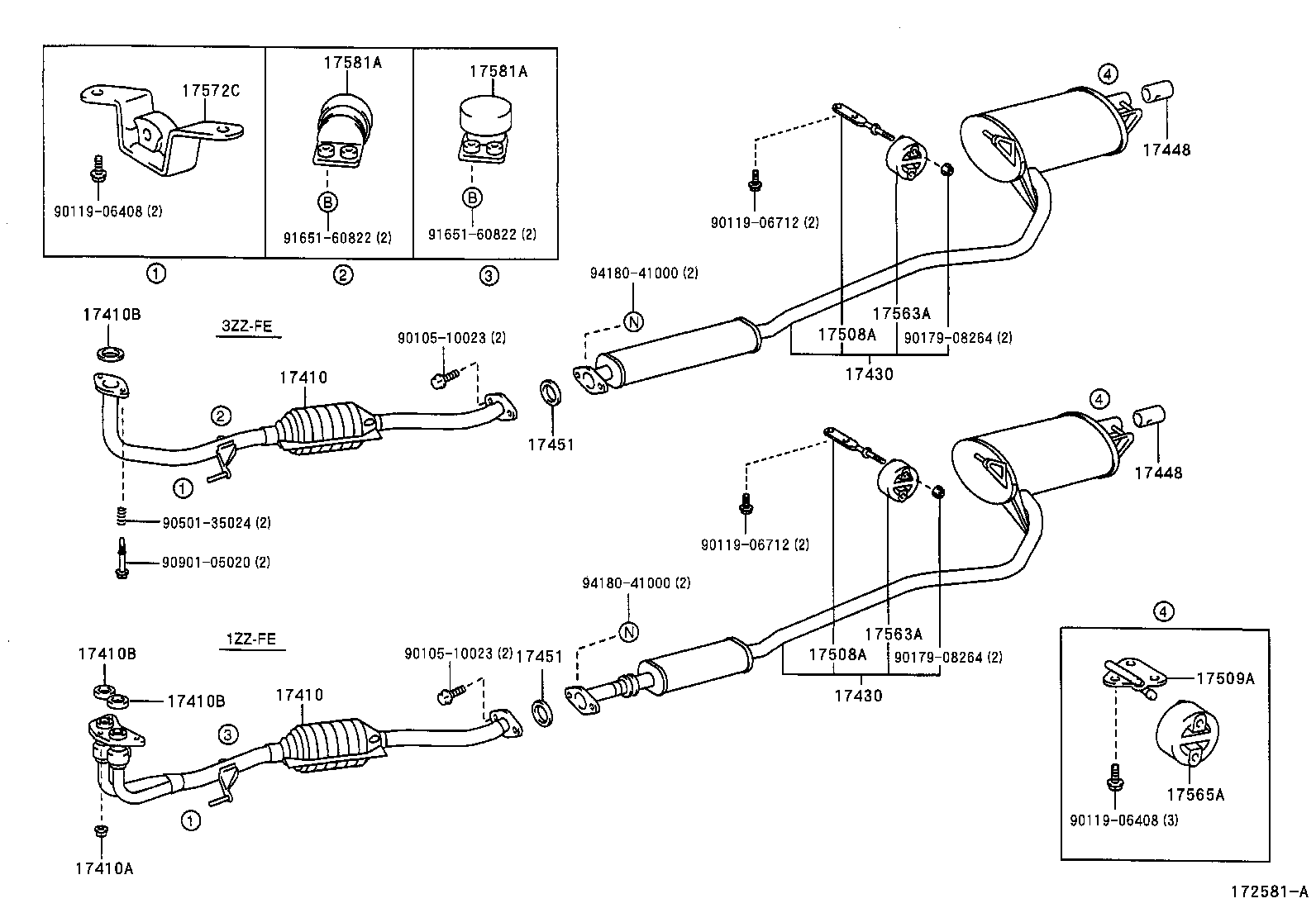

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410B 17410B 17410B 17430 17430 17448 17448 17451 17451 17508A 17508A 17509A 17563A 17563A 17565A 17572C 17581A 17581A 9010510023 9010510023 9011906408 9011906408 9011906712 9011906712 9017908264 9017908264 9050135024 9090105020 9165160822 9165160822 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0D030

3ZZFE..ZZT220

*115=TOYOTA/00-03/Y

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0D030

3ZZFE..ZZT220

*115=TOYOTA/00-03/Y

 1
17410B - GASKET, EXHAUST PIPE
17451-21030

3ZZFE..ZZT220

 1
17410B - GASKET, EXHAUST PIPE
17451-21030

3ZZFE..ZZT220

 1
17410B - GASKET, EXHAUST PIPE
17451-21030

3ZZFE..ZZT220

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0D060

3ZZFE..ZZT220

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0D060

3ZZFE..ZZT220

 1
17448 - BAFFLE, TAIL PIPE
17448-22020

1AZFSE,1CDFTV,3SFE,1ZZFE,3ZZFE..AZT220,CDT220,ST220,ZZT22#..LB,SED

 1
17448 - BAFFLE, TAIL PIPE
17448-22020

1AZFSE,1CDFTV,3SFE,1ZZFE,3ZZFE..AZT220,CDT220,ST220,ZZT22#..LB,SED

 1
17451 - GASKET, EXHAUST PIPE
90917-06046

1AZFSE,1CDFTV,2CT#,1ZZFE,3ZZFE..AZT220,CDT220,CT220,ZZT22#

 1
17451 - GASKET, EXHAUST PIPE
90917-06046

1AZFSE,1CDFTV,2CT#,1ZZFE,3ZZFE..AZT220,CDT220,CT220,ZZT22#

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-02050

1AZFSE,1CDFTV,1ZZFE,3ZZFE..AZT220,CDT220,ZZT22#

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-02050

1AZFSE,1CDFTV,1ZZFE,3ZZFE..AZT220,CDT220,ZZT22#

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-02020

1AZFSE,4AFE,7AFE,1CDFTV,2CT#,3SFE,1ZZFE,3ZZFE..AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-16270

1AZFSE,1CDFTV,1ZZFE,3ZZFE..AZT220,CDT220,ZZT22#

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-16270

1AZFSE,1CDFTV,1ZZFE,3ZZFE..AZT220,CDT220,ZZT22#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-16270

1AZFSE,3SFE,1ZZFE,3ZZFE..AZT220,ST220,ZZT22#

 1
17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-74430

1AZFSE,4AFE,7AFE,3SFE,1ZZFE,3ZZFE..AT22#,AZT220,ST220,ZZT22#

 1
17581A - DAMPER, EXHAUST PIPE
17581-16020

1AZFSE,3SFE,3ZZFE..AZT220,ST220,ZZT220

 1
17581A - DAMPER, EXHAUST PIPE
17581-16020

1AZFSE,3SFE,3ZZFE..AZT220,ST220,ZZT220

 1
Common parts
90105-10023
90119-06408
90119-06712
90179-08264
90501-35024
90901-05020
91651-60822
94180-41000
