ZZT220L-AWMNKW (2000)

Toyota Avensis

Production Jul 2000 - Jan 2003
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0007- )ZZT22#..LHD

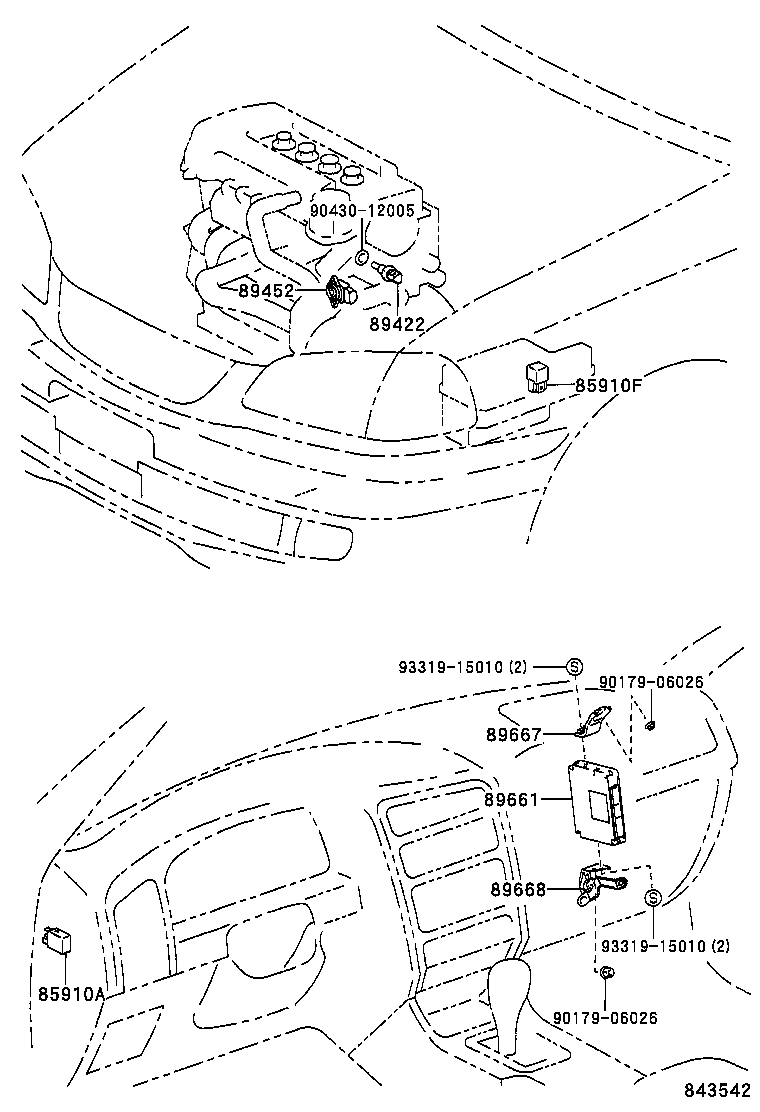

Click highlighted areas on diagram

diagram 85910A 85910F 89422 89452 89661 89667 89668 9017906026 9017906026 9043012005 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90080-87013

AT22#,AZT220,ST220,ZZT22#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90080-87013

AT22#,AZT220,ST220,ZZT22#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

AT220..RHD;AT221,AZT220,ST220,ZZT22#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20130

AT220..RHD;AT221,ST220,ZZT22#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-05450

ZZT220

PART NUMBER LABEL=89661-05450

 1
89661-05480

ZZT220

PART NUMBER LABEL=89661-05480

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-05030

ST220,ZZT22#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-05050

ST220,ZZT22#..LHD

 1
Common parts
90179-06026
90430-12005
93319-15010
