ZZT220L-AWMNKW (2000)

Toyota Avensis

Production Jul 2000 - Jan 2003
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0007- )ZZT22#..LHD

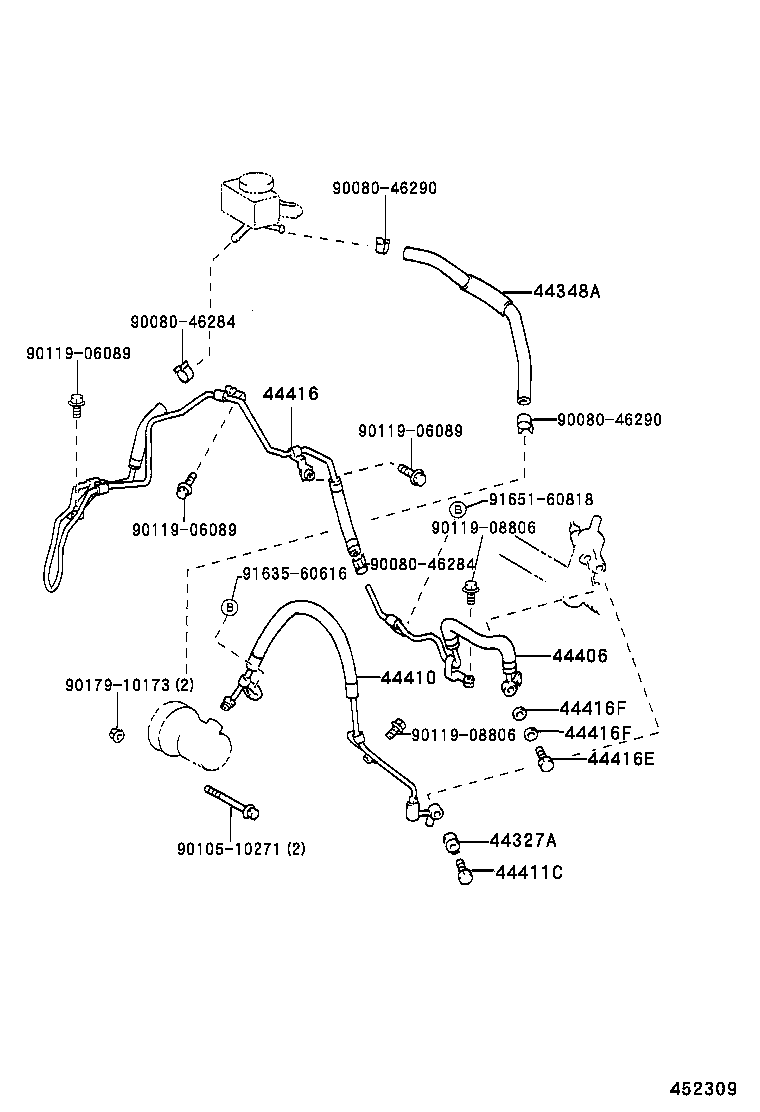

Click highlighted areas on diagram

diagram 44327A 44348A 44406 44410 44411C 44416 44416E 44416F 44416F 9008046284 9008046284 9008046290 9008046290 9010510271 9011906089 9011906089 9011906089 9011908806 9011908806 9017910173 9163560616 9165160818
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

ZZT22#..LHD;AT22#,AZT220,CDT220,CT220,ST220..RHD

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-05050

ZZT22#

 1
44406 - TUBE SUB-ASSY, RETURN
44406-05170

ZZT22#..LHD

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-05190

ZZT22#..LHD

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
96341-41603

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44406-05160

ZZT22#..LHD

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
96341-11703

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 1
90401-17005

AZT220,CDT220,ST220,ZZT22#..LHD

 1
44416F - GASKET(FOR RETURN TUBE)
90430-17005

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 2
44416F - GASKET(FOR RETURN TUBE)
90430-17005

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD

 2
Common parts
90080-46284
90080-46290
90105-10271
90119-06089
90119-08806
90179-10173
91635-60616
91651-60818
