ZZT220L-ALMEKW (2000)

Toyota Avensis

Production Jul 2000 - Jan 2003
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

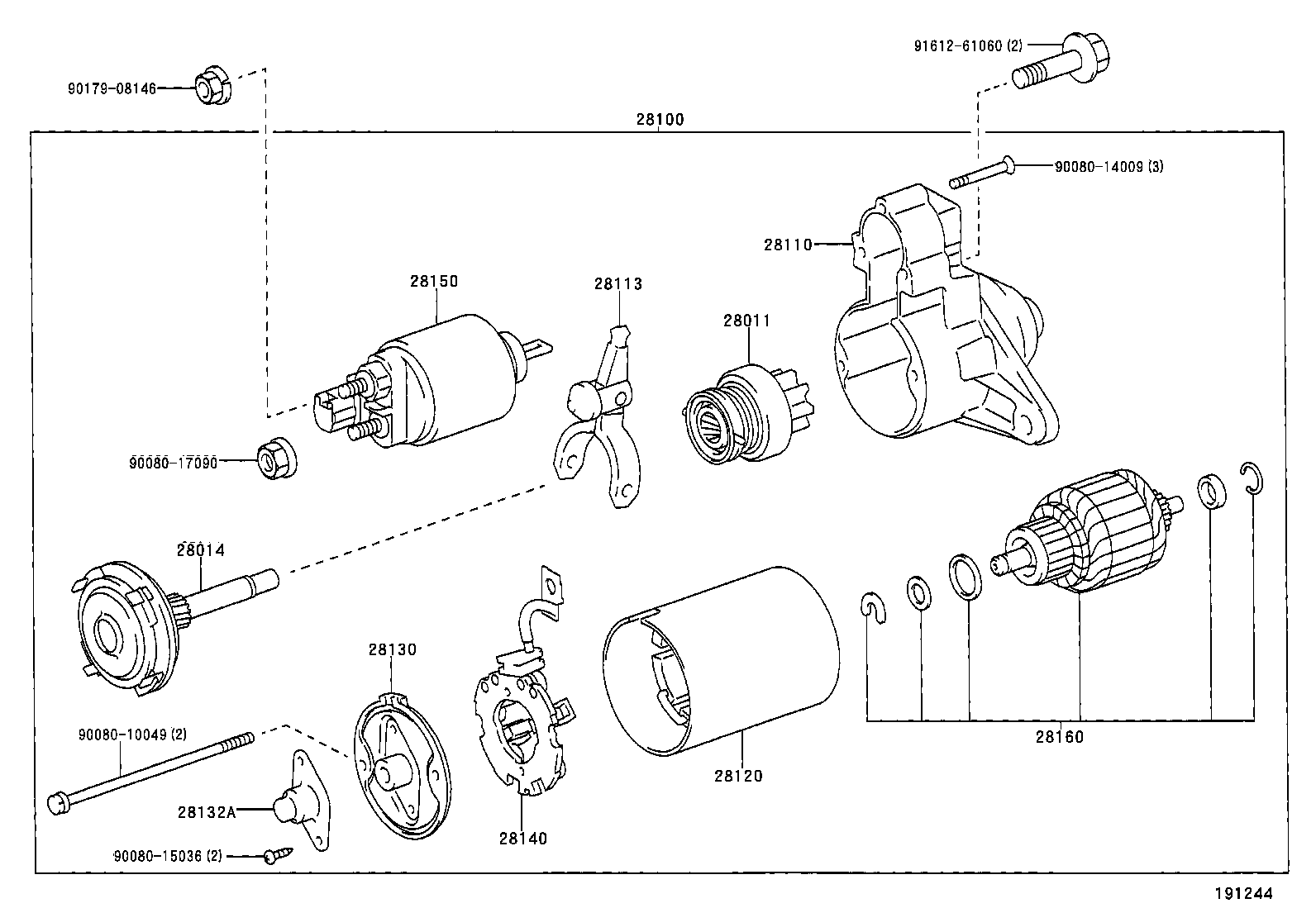

(0007- )1ZZFE,3ZZFE

Click highlighted areas on diagram

12V 1.1KW,BOSCH

diagram 28011 28014 28100 28110 28113 28120 28130 28132A 28140 28150 28160 9008010049 9008014009 9008015036 9008017090 9017908146 9161261060
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-70020

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28011-0D030

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28011-70020

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28014 - SHAFT SUB-ASSY, PLANET CARRIER
28014-0D030

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28014-70020

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28014-70020

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28100 - STARTER ASSY
28100-22040

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28100-0D030

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28100-22040

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-22030

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28110-22030

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28110-0D030

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28113 - LEVER, STARTER PINION DRIVE
28113-70020

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28113-0D030

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28113-70020

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28120 - YOKE ASSY, STARTER
28120-70050

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28120-02020

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28120-70050

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-02050

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28130-15190

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28130-15190

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28132A - COVER, STARTER COMMUTATOR END FRAME
28132-04010

1CDFTV,1ZZFE,3ZZFE..CDT220,ZZT22#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-70020

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28140-70020

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28140-02020

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-70030

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28150-70030

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28150-0D030

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28160 - ARMATURE ASSY, STARTER
28160-70050

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28160-70050

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28160-02080

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
Common parts
90080-10049
90080-14009
90080-15036
90080-17090
90179-08146
91612-61060

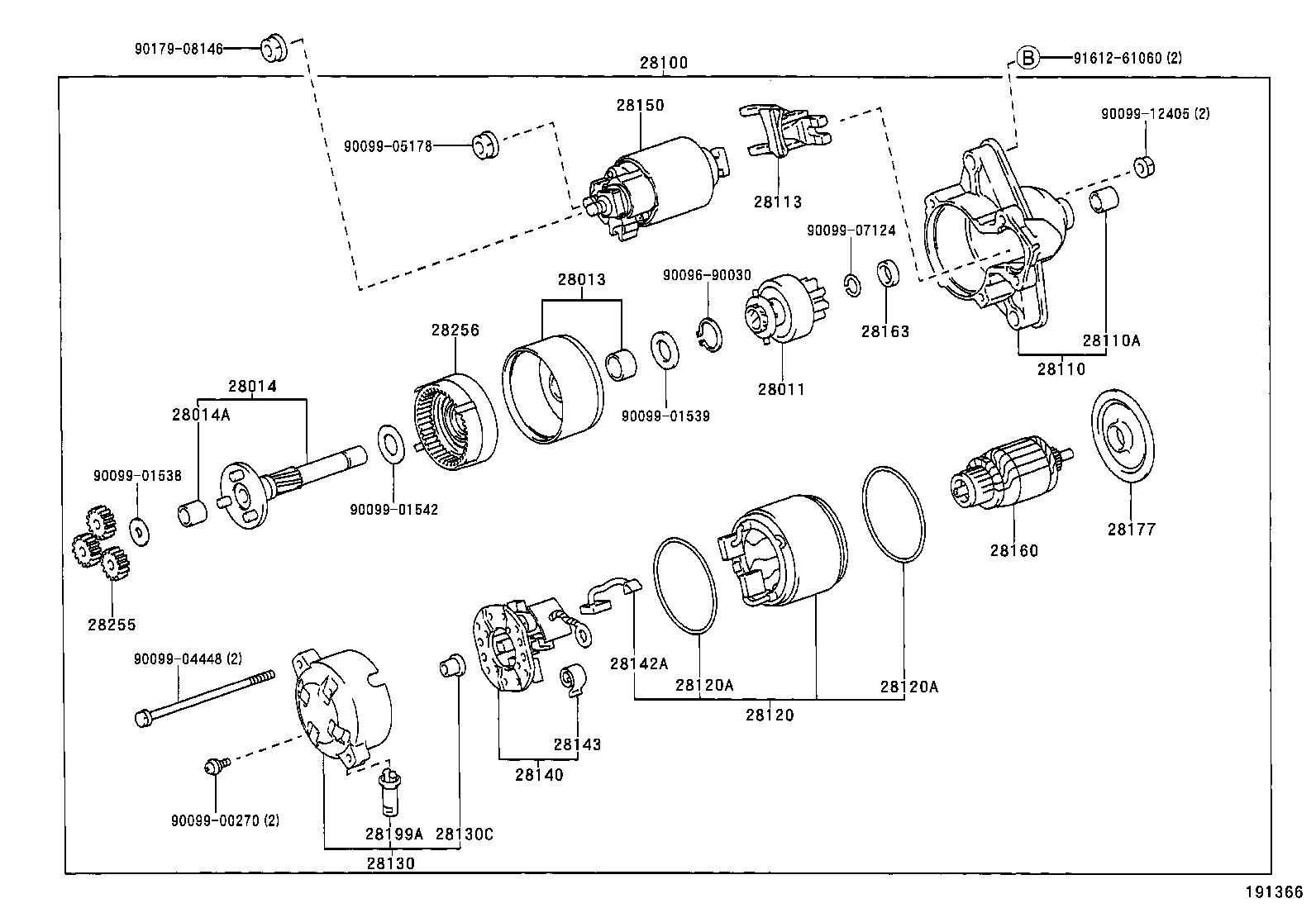

(0007- )1ZZFE,3ZZFE

Click highlighted areas on diagram

12V 1.0KW,DENSO

diagram 28011 28013 28014 28014A 28100 28110 28110A 28113 28120 28120A 28120A 28130 28130C 28140 28142A 28143 28150 28160 28163 28177 28199A 28255 28256 9009690030 9009900270 9009901538 9009901539 9009901542 9009904448 9009905178 9009907124 9009912405 9017908146 9161261060
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-70020

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28011-0D030

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28011-70020

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28013 - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1
28013-70030

1ZZFE,3ZZFE..ZZT22#

 1
28014 - SHAFT SUB-ASSY, PLANET CARRIER
28014-0D030

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28014-70020

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28014-70020

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28014A - BUSH OR BEARING, PLANET CARRIER SHAFT
90099-10180

1ZZFE,3ZZFE..ZZT22#

 1
28100 - STARTER ASSY
28100-22040

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28100-0D030

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28100-22040

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-22030

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28110-22030

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28110-0D030

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28110A - BEARING(FOR STARTER HOUSING)
90099-10171

1ZZFE,3ZZFE..ZZT22#

 1
28113 - LEVER, STARTER PINION DRIVE
28113-70020

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28113-0D030

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28113-70020

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28120 - YOKE ASSY, STARTER
28120-70050

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28120-02020

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28120-70050

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28120A - RING, O(FOR STARTER YOKE)
90099-14092

1ZZFE,3ZZFE..ZZT22#

 2
28120A - RING, O(FOR STARTER YOKE)
90099-14092

1ZZFE,3ZZFE..ZZT22#

 2
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-02050

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28130-15190

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28130-15190

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28130C - BEARING, STARTER FLANGE
90099-10183

1ZZFE,3ZZFE..ZZT22#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-70020

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28140-70020

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28140-02020

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28142A - STARTER KIT
28142-70020

1ZZFE,3ZZFE..ZZT22#

 2
28143 - SPRING, STARTER BRUSH
28143-70020

1ZZFE,3ZZFE..ZZT22#

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-70030

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28150-70030

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28150-0D030

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28160 - ARMATURE ASSY, STARTER
28160-70050

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW

 1
28160-70050

1ZZFE,3ZZFE..ZZT22#

12V 1.0KW,DENSO

 1
28160-02080

1ZZFE,3ZZFE..ZZT22#

12V 1.1KW,BOSCH

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-70020

1ZZFE,3ZZFE..ZZT22#

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-70020

1ZZFE,3ZZFE..ZZT22#

 1
28199A - PROTECTOR, DUST STARTER
28199-46080

1ZZFE,3ZZFE..ZZT22#

 1
28255 - GEAR, PLANET
28255-70020

1ZZFE,3ZZFE..ZZT22#

 3
28256 - GEAR, STARTER INTERNAL
28256-70020

1ZZFE,3ZZFE..ZZT22#

 1
Common parts
90096-90030
90099-00270
90099-01538
90099-01539
90099-01542
90099-04448
90099-05178
90099-07124
90099-12405
90179-08146
91612-61060
