ZZT220L-ALMEKW (2000)

Toyota Avensis

Production Jul 2000 - Jan 2003
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0007- )3ZZFE

Click highlighted areas on diagram

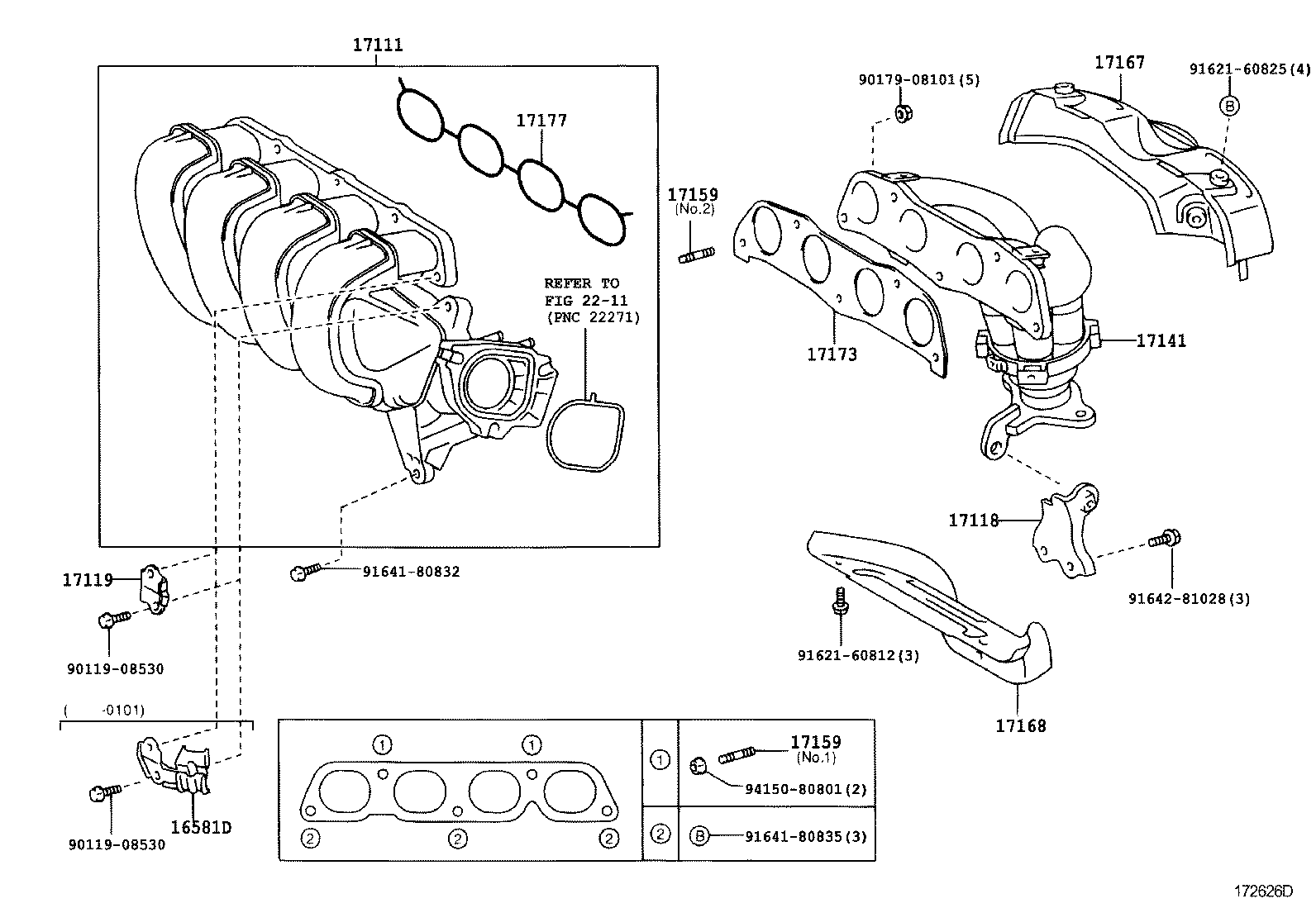

diagram 16581D 17111 17118 17119 17141 17159 17159 17167 17168 17173 17177 2211 9011908530 9011908530 9017908101 9162160812 9162160825 9164180832 9164180835 9164281028 9415080801
Part # Description Qty Price
16581D - CLAMP, HOSE(FOR WATER HOSE)
16581-22020

3ZZFE..ZZT220

 1
17111 - MANIFOLD, INTAKE
17120-22020

3ZZFE..ZZT220

(J)

 1
17120-0D010

3ZZFE..ZZT220

(L)

 1
17120-0D060

3ZZFE..ZZT220

(L)

 1
17118 - STAY, MANIFOLD
17118-22030

3ZZFE..ZZT220

(J)

 1
17118-0D020

3ZZFE..ZZT220

(L)

 1
17119 - STAY, MANIFOLD, NO.2
17139-22050

3ZZFE..ZZT220

 1
17141 - MANIFOLD, EXHAUST
17104-0D010

3ZZFE..ZZT220

(L)

 1
17104-22040

3ZZFE..ZZT220

(J)

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08037

1ZZFE,3ZZFE..ZZT22#

NO.2

 5
90126-08043

1ZZFE,3ZZFE..ZZT22#

NO.2

 5
90126-08026

1ZZFE,3ZZFE..ZZT22#

NO.1

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08037

1ZZFE,3ZZFE..ZZT22#

NO.2

 5
90126-08043

1ZZFE,3ZZFE..ZZT22#

NO.2

 5
90126-08026

1ZZFE,3ZZFE..ZZT22#

NO.1

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-22030

3ZZFE..ZZT220

(J)

 1
17167-0D010

3ZZFE..ZZT220

(L)

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-22030

3ZZFE..ZZT220

(J)

 1
17168-0D010

3ZZFE..ZZT220

(L)

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0D010

1ZZFE,3ZZFE..ZZT22#

(L)

 1
17173-22010

1ZZFE,3ZZFE..ZZT22#

(J)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-22030

1ZZFE,3ZZFE..ZZT22#

 1
Common parts
90119-08530
90179-08101
91621-60812
91621-60825
91641-80832
91641-80835
91642-81028
94150-80801
Linked diagrams
2211
