ZRT271R-AWFEPW (2015)
Toyota Avensis

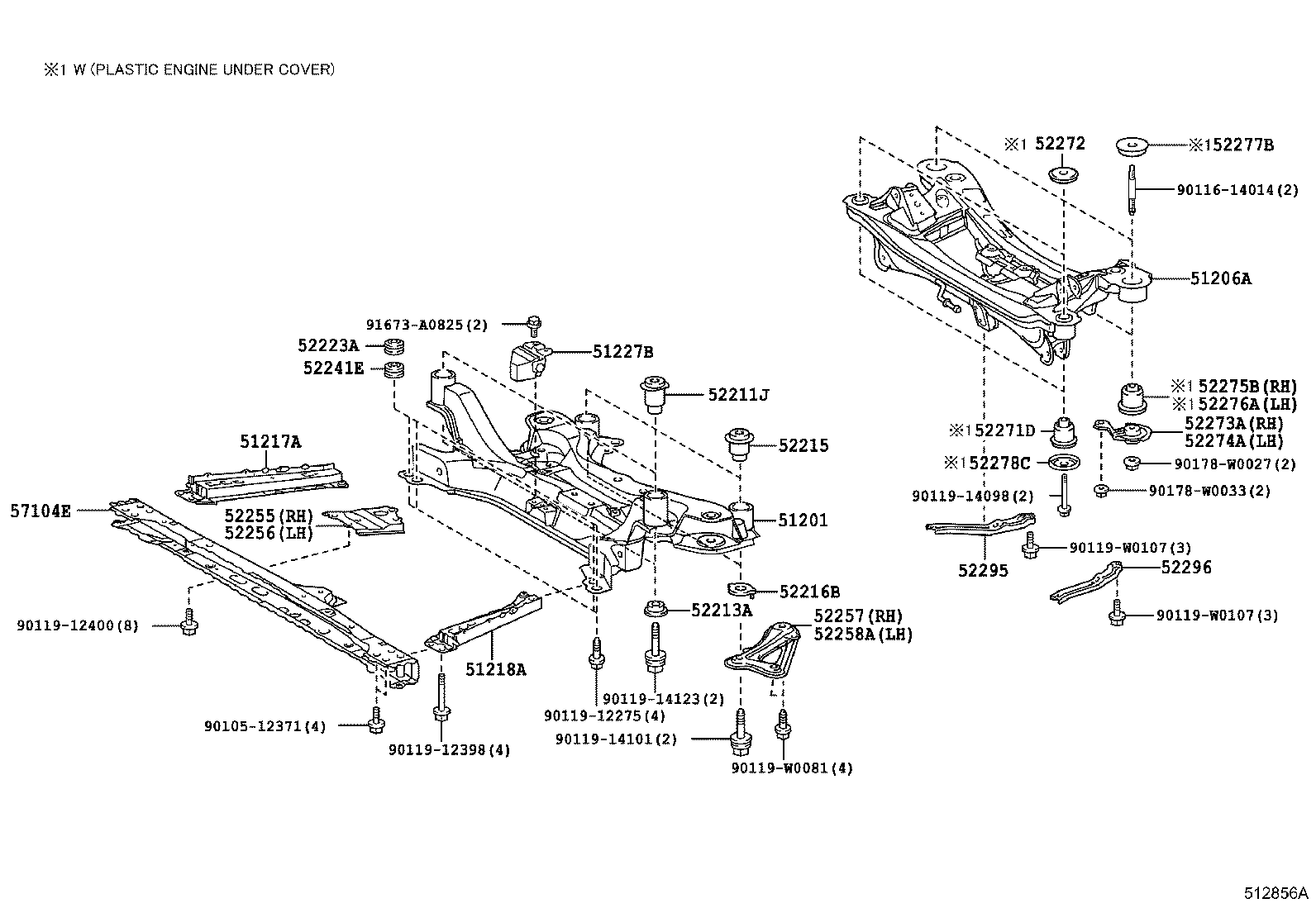

ILLUST NO. 1 OF 2(1505- )
SUSPENSION CROSSMEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-05100 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 51201-05101 |
WWT27#,ZRT27# |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-05091 |
WWT27#,ZRT27# |
1 | ||
| 51206-05070 |
ADT27#,ZRT27# |
1 | ||
| 51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH | ||||
| 51107-05020 |
WWT27#,ZRT27# |
1 | ||
| 51107-05020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH | ||||
| 51108-05010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 51108-05010 |
WWT27#,ZRT27# |
1 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-05020 |
WWT27#,ZRT27# |
2 | ||
| 52211-05020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-05020 |
WWT27#,ZRT27# |
2 | ||
| 52213-05020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-05020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 52215-05020 |
WWT27#,ZRT27# |
2 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-05020 |
WWT27#,ZRT27# |
2 | ||
| 52216-05020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 52223A - SPACER, CAB REAR MOUNTING, LOWER | ||||
| 52223-05010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
4 | ||
| 52223-05010 |
WWT27#,ZRT27# |
4 | ||
| 52241E - CUSHION, CAB REAR MOUNTING | ||||
| 52241-05010 |
WWT27#,ZRT27# |
4 | ||
| 52241-05010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
4 | ||
| 52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH | ||||
| 52255-02010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 52255-02010 |
WWT27#,ZRT27# |
1 | ||
| 52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH | ||||
| 52256-02010 |
WWT27#,ZRT27# |
1 | ||
| 52256-02010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-05031 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 52257-05040 |
WWT27#,ZRT27# |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-05031 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 52258-05040 |
WWT27#,ZRT27# |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-05020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 52271-05020 |
WWT27#,ZRT27# |
2 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-05030 |
WWT27#,ZRT27# |
2 | ||
| 52272-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52203-02010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 52203-02010 |
WWT27#,ZRT27# |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52203-02010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 52203-02010 |
WWT27#,ZRT27# |
1 | ||
| 52275B - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH | ||||
| 52275-05030 |
WWT27#,ZRT27# |
1 | ||
| 52275-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 52276A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH | ||||
| 52276-05030 |
WWT27#,ZRT27# |
1 | ||
| 52276-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52277-05030 |
WWT27#,ZRT27# |
2 | ||
| 52277-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER | ||||
| 52278-05010 |
WWT27#,ZRT27# |
2 | ||
| 52278-05010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-05030 |
WWT27#,ZRT27# |
1 | ||
| 52295-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 52296 - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52295-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 52295-05030 |
WWT27#,ZRT27# |
1 | ||
| 57104E - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-02160 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 57104-02160 |
WWT27#,ZRT27# |
1 | ||
| Common parts | ||||
| 90105-12371 | ||||
| 90116-14014 | ||||
| 90119-12275 | ||||
| 90119-12398 | ||||
| 90119-12400 | ||||
| 90119-14098 | ||||
| 90119-14101 | ||||
| 90119-14123 | ||||
| 90119-W0081 | ||||
| 90119-W0107 | ||||
| 90178-W0027 | ||||
| 90178-W0033 | ||||
| 91673-A0825 | ||||

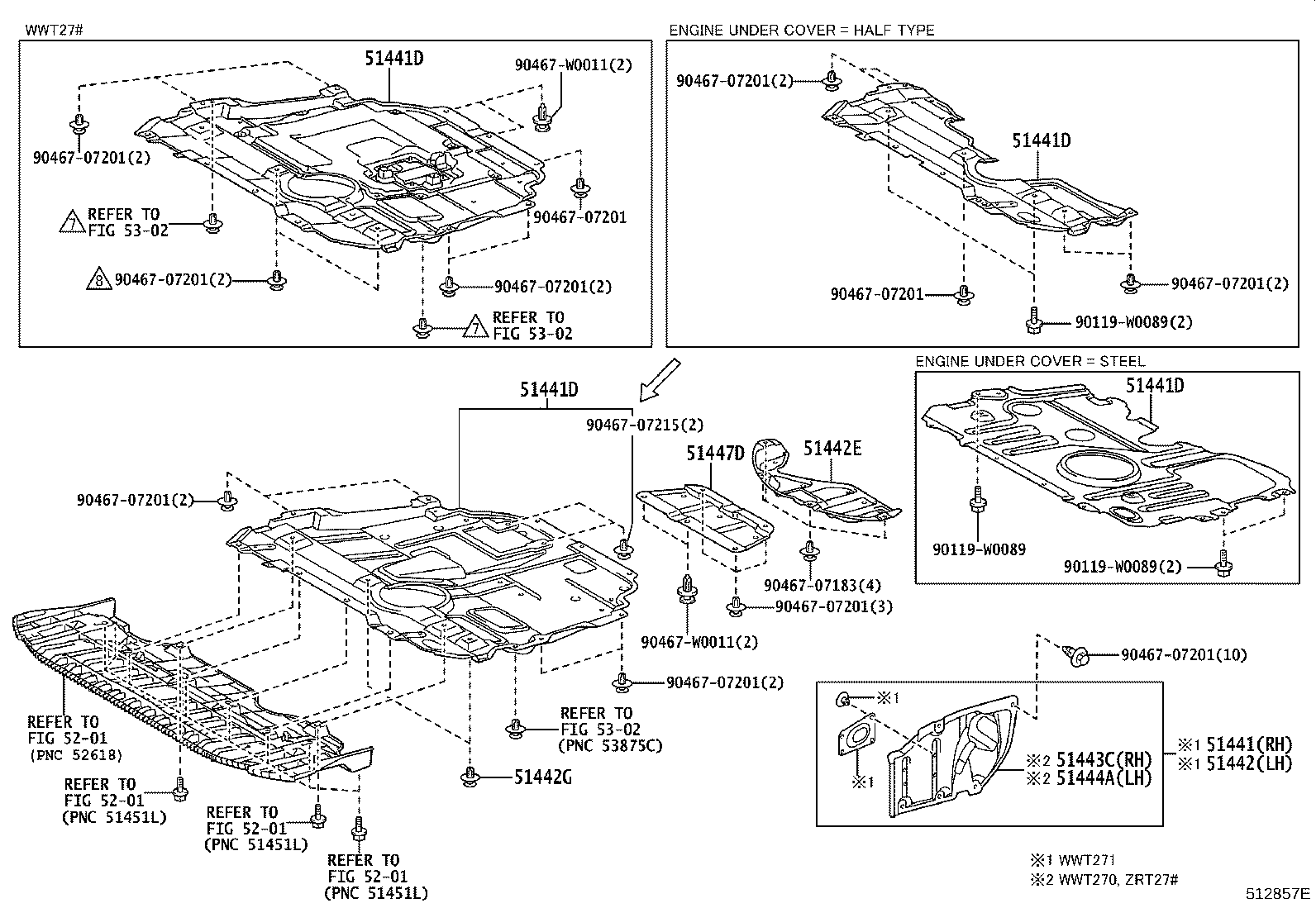

ILLUST NO. 2 OF 2(1505- )
ENGINE UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441D - COVER, ENGINE UNDER | ||||
| 51410-02170 |
ZRT270,271 |
1 | ||
| 51410-02220 |
ZRT270,271 |
1 | ||
| 51441D - COVER, ENGINE UNDER | ||||
| 51410-02170 |
ZRT270,271 |
1 | ||
| 51410-02220 |
ZRT270,271 |
1 | ||
| 51441D - COVER, ENGINE UNDER | ||||
| 51410-02170 |
ZRT270,271 |
1 | ||
| 51410-02220 |
ZRT270,271 |
1 | ||
| 51441D - COVER, ENGINE UNDER | ||||
| 51410-02170 |
ZRT270,271 |
1 | ||
| 51410-02220 |
ZRT270,271 |
1 | ||
| 51442E - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-02230 |
WWT27#,ZRT27# |
1 | ||
| 51442-02230 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 51442G - CLIP, ENGINE UNDER COVER, NO.1 | ||||
| 90467-07201 |
ADT27#,ZRT27# |
19 | ||
| 90467-07201 |
WWT27#,ZRT27# |
3 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-02050 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 51443-05030 |
WWT270,ZRT27# |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-02041 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 51444-05020 |
WWT270,ZRT27# |
1 | ||
| 51447D - COVER, ENGINE UNDER, NO.4 CENTER | ||||
| 51447-02010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 51447-02010 |
WWT27#,ZRT27# |
1 | ||
| Common parts | ||||
| 90119-W0089 | ||||
| 90467-07183 | ||||
| 90467-07201 | ||||
| 90467-07215 | ||||
| 90467-W0011 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5302 | ||||
