ZRT271R-AEXNPW (2015)

Toyota Avensis

Production May 2015 - Jul 2018
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )ZRT27#

Click highlighted areas on diagram

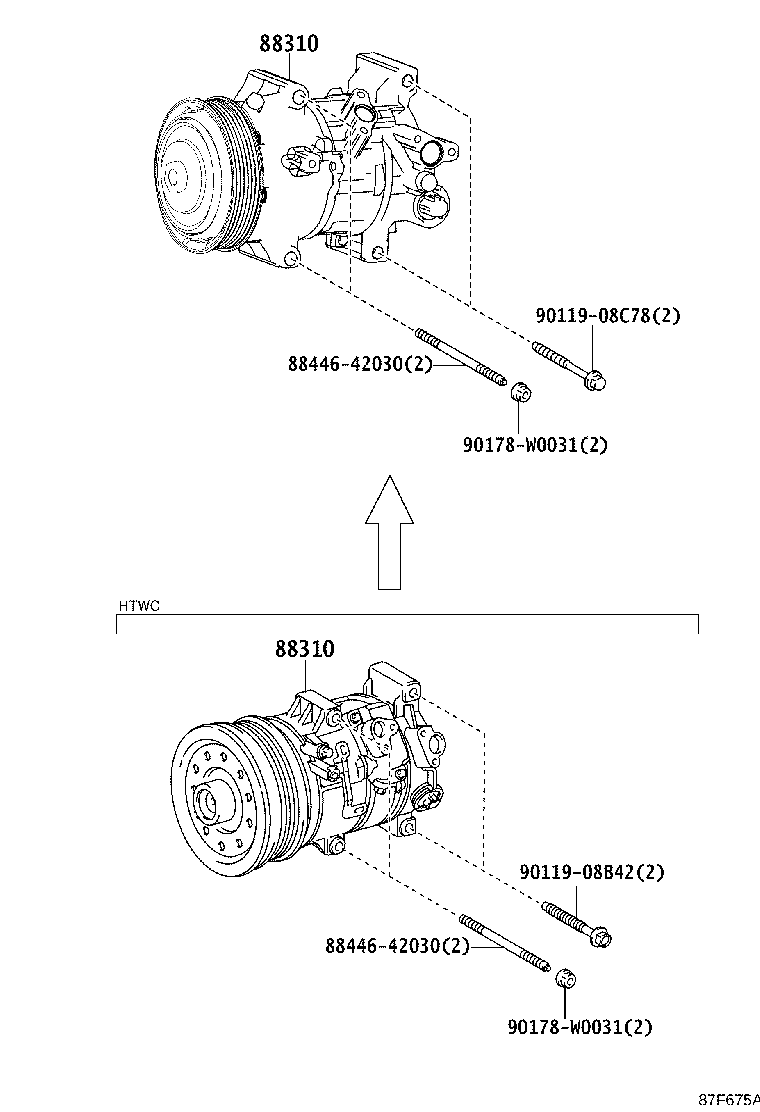

diagram 88310 88310 8844642030 8844642030 9011908B42 9011908C78 90178W0031 90178W0031
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-05140

ZRT271,272..CVT

 1
88310-02790

ZRT270,271..E,G

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)

 1
88310-02780

ZRT27#..HTWVM

 1
88310-02780

ZRT270,271..N

BASE PACKAGE

 1
88310-02790

ZRT27#..HTWVM

 1
88310-02790

ZRT270,271

BASE PACKAGE

 1
88310-02790

ZRT27#..HTWVM

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE

 1
88310-02780

ZRT270,271..E,G

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)

 1
88310 - COMPRESSOR ASSY, W/PULLEY
88310-05140

ZRT271,272..CVT

 1
88310-02790

ZRT270,271..E,G

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)

 1
88310-02780

ZRT27#..HTWVM

 1
88310-02780

ZRT270,271..N

BASE PACKAGE

 1
88310-02790

ZRT27#..HTWVM

 1
88310-02790

ZRT270,271

BASE PACKAGE

 1
88310-02790

ZRT27#..HTWVM

REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE

 1
88310-02780

ZRT270,271..E,G

BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER)

 1
Common parts
88446-42030
90119-08B42
90119-08C78
90178-W0031
