ZRT271L-AWXNPW (2009)

Toyota Avensis

Production May 2009 - Nov 2011
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

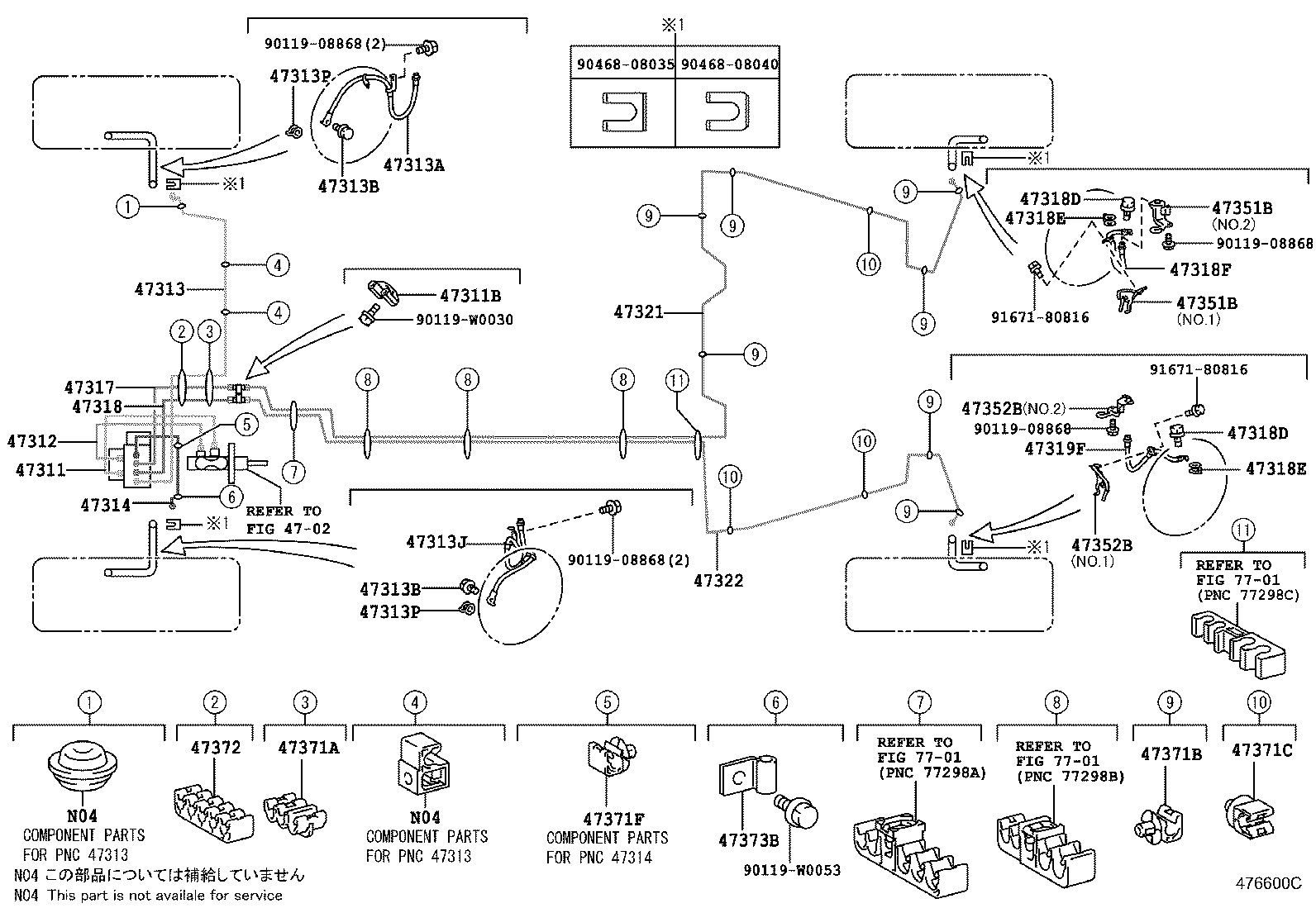

ILLUST NO. 1 OF 2(0811-1505)LHD..CVT

Click highlighted areas on diagram

BRAKE TUBE

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47351B 47351B 47352B 47352B 47371A 47371B 47371C 47371F 47372 47373B 7701 7701 7701 9011908868 9011908868 9011908868 9011908868 90119W0030 90119W0053 9046808035 9046808040 9167180816 9167180816
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-05280

ZRT271,272..LHD..CVT

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10255

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-05140

ZRT271,272..LHD..CVT

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-05260

ZRT271,272..LHD..CVT

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-W2022

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-W2023

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-05150

ZRT271,272..LHD..CVT

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-05230

ZRT271,272..LHD..CVT

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-05230

ZRT271,272..LHD..CVT

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-W2017

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-W2018

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-05090

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-05090

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-05060

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

NO.2

 1
47351-05050

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

NO.1

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-05060

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

NO.2

 1
47351-05050

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

NO.1

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-05060

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

NO.2

 1
47352-05050

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

NO.1

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-05060

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

NO.2

 1
47352-05050

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

NO.1

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00868

ZRT271,272..LHD..CVT

 2
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D17

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 7
47371C - CLAMP, BRAKE TUBE, NO.7
90949-01D29

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 3
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01D17

ADT27#,ZRT27#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00898

ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..(E,G,N,V)

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90461-10781

ADT27#,ZRT27#..LHD..(E,G,N,V)

 1
Common parts
90119-08868
90119-W0030
90119-W0053
90468-08035
90468-08040
91671-80816
Linked diagrams
4702
7701

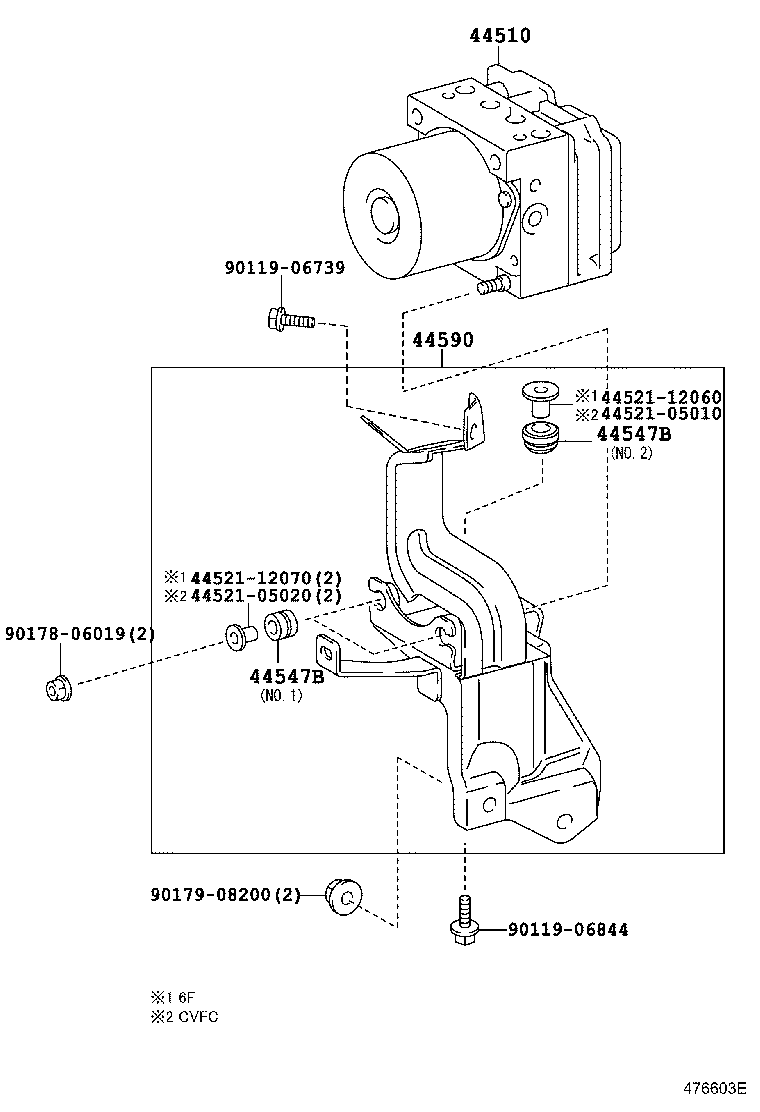

ILLUST NO. 2 OF 2(0811-1505)CVT

Click highlighted areas on diagram

BRAKE ACTUATOR

diagram 44510 4452105010 4452105020 4452112060 4452112070 44547B 44547B 44590 9011906739 9011906844 9017806019 9017908200
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-05130

ZRT270..E;ADT27#,ZRT271,272

 1
44050-05131

ZRT270..E;ADT27#,ZRT271,272

 1
44050-05170

ZRT271;ADT270..RHD;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC);ADT271,ZRT270,272..(E,G,V)..(DCR,DCRL,HTWVM)

 1
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-12010

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

NO.2

 1
44547-02030

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

NO.1

 2
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-12010

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

NO.2

 1
44547-02030

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

NO.1

 2
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-05060

ZRT271,272..CVT

 1
Common parts
44521-05010
44521-05020
44521-12060
44521-12070
90119-06739
90119-06844
90178-06019
90179-08200
