ZRT271L-AWXGPW (2015)

Toyota Avensis

Production May 2015 - Jul 2018
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )2ZRFAE

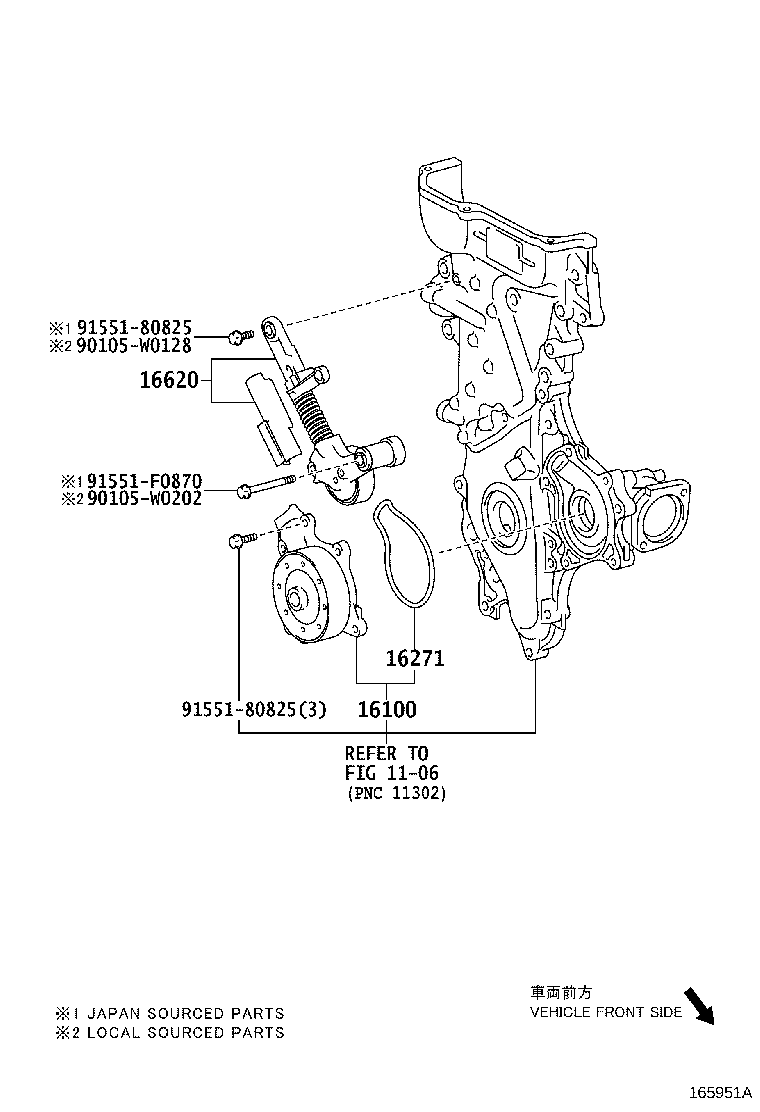

Click highlighted areas on diagram

diagram 1106 16100 16271 16620 90105W0128 90105W0202 9155180825 9155180825 91551F0870
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39465

1ZRFAE,2ZRFAE..ZRT270,271

(J)

 1
16100-09500

1ZRFAE,2ZRFAE..ZRT270,271

(L)

 1
16100-09670

2ZRFAE..ZRT271

MADE IN EUROPE

 1
16100-39565

2ZRFAE..ZRT271

MADE IN JAPAN

 1
16271 - GASKET, WATER PUMP
16271-37030

2ZRFAE,3ZRFAE..ZRT271,272

 1
16271-37010

3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27#

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-37030

2ZRFAE..ZRT271

 1
Common parts
90105-W0128
90105-W0202
91551-80825
91551-F0870
Linked diagrams
1106
