ZRT271L-AWFGPW (2015)

Toyota Avensis

Production May 2015 - Jul 2018
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )

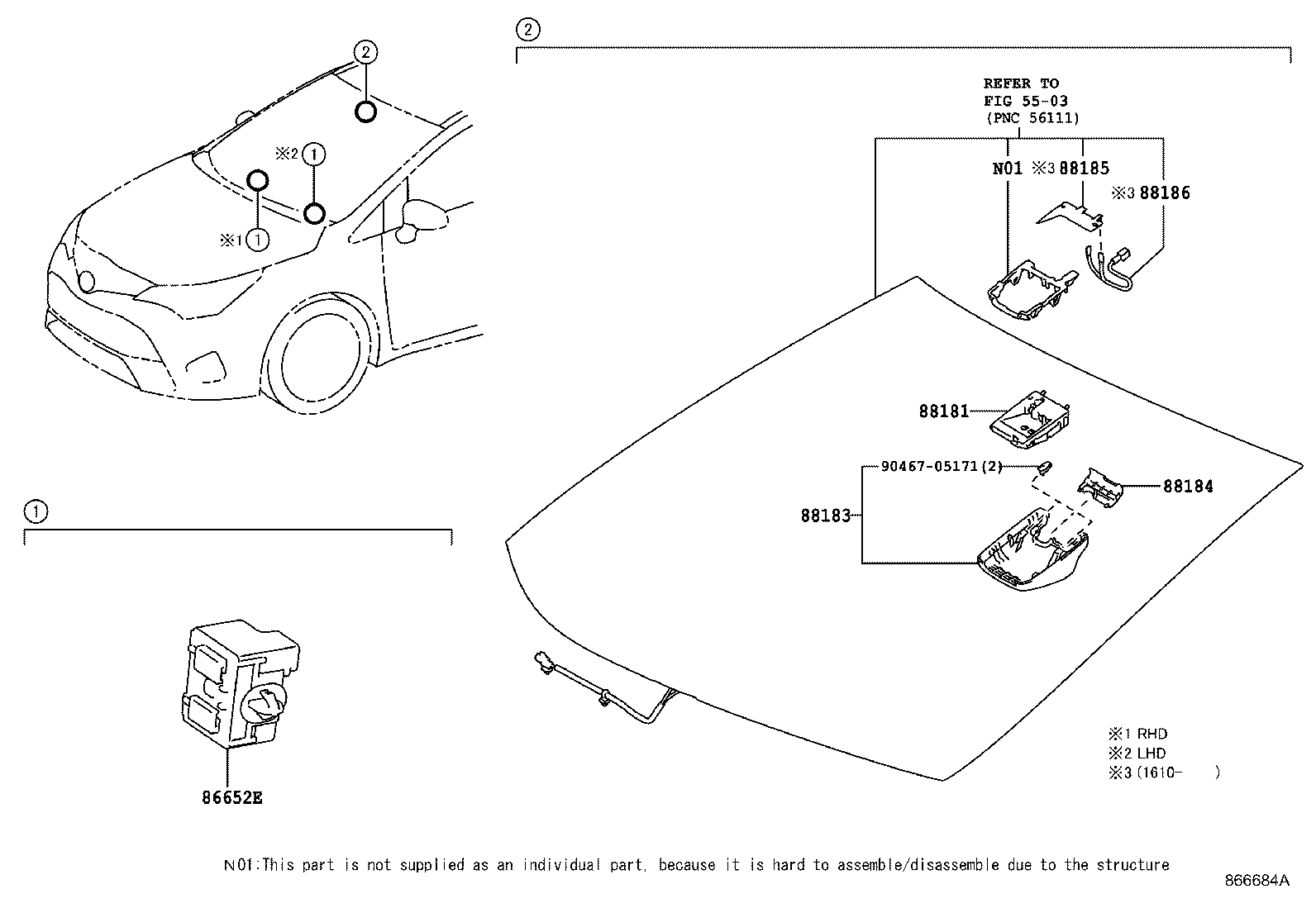

Click highlighted areas on diagram

diagram 5503 86652E 88181 88183 88184 88185 88186 9046705171
Part # Description Qty Price
86652E - BUZZER, PRE-COLLISION CITY
86652-50010

WWT27#,ZRT27#..DCR,HTWVM

PRE-COLLISION SYSTEM-WITHOUT

 1
86652-50010

WWT27#,ZRT27#..DCR,HTWVM

 1
88181 - SENSOR, PRE-COLLISION CITY
88181-05020

WWT27#,ZRT27#..(E,G)..(DCR,HTWVM)

LABEL=-05010,-05020

 1
88181-05010

WWT27#,ZRT27#..(E,G)..(DCR,HTWVM)

LANE KEEPING SYSTEM-WITHOUT

 1
88181-05030

WWT27#,ZRT27#..(E,G)..(DCR,HTWVM)

LANE KEEPING SYSTEM-WITHOUT

 1
88181-05040

WWT27#,ZRT27#..(E,G)..(DCR,HTWVM)

PRE-COLLISION SYSTEM-WITHOUT&LANE KEEPING SYSTEM-WITHOUT,LABEL=-05030,-05040

 1
88181-05040

WWT27#,ZRT27#..(E,G)..(DCR,HTWVM)

LABEL=-05030,-05040

 1
88181-05060

WWT27#,ZRT27#..(E,G)..(DCR,HTWVM)

 1
88181-05060

WWT27#,ZRT27#..(E,G)..(DCR,HTWVM)

PRE-COLLISION SYSTEM-WITHOUT&LANE KEEPING SYSTEM-WITHOUT

 1
88181-05020

WWT27#,ZRT27#..(E,G)..(DCR,HTWVM)

PRE-COLLISION SYSTEM-WITHOUT&LANE KEEPING SYSTEM-WITHOUT,LABEL=-05010,-05020

 1
88181-05050

WWT27#,ZRT27#..(E,G)..(DCR,HTWVM)

LANE KEEPING SYSTEM-WITHOUT

 1
88183 - COVER, PRE-COLLISION CITY
88183-20010

WWT27#,ZRT27#..DCR,HTWVM

 1
88183-20010

WWT27#,ZRT27#..DCR,HTWVM

PRE-COLLISION SYSTEM-WITHOUT

 1
88184 - COVER, PRE-COLLISION CITY, 2ND
88184-20010

WWT27#,ZRT27#..DCR,HTWVM

PRE-COLLISION SYSTEM-WITHOUT

 1
88184-20010

WWT27#,ZRT27#..DCR,HTWVM

 1
88185 - HEATER, PRE-COLLISION CITY
88185-05020

WWT27#,ZRT27#..DCR,HTWVM

 1
88185-05020

WWT27#,ZRT27#..DCR,HTWVM

PRE-COLLISION SYSTEM-WITHOUT

 1
88186 - WIRE, PRE-COLLISION CITY HEATER
88186-05020

WWT27#,ZRT27#..DCR,HTWVM

PRE-COLLISION SYSTEM-WITHOUT

 1
88186-05020

WWT27#,ZRT27#..DCR,HTWVM

 1
Common parts
90467-05171
Linked diagrams
5503
