ZRT271L-AWFGPW (2011)
Toyota Avensis
ILLUST NO. 2 OF 2(1111- )
SEAT SIDE & SEAT CUSHION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-05090 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 71015-05090 |
ADT27#,ZRT27# |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-05600C1 |
ADT27#,ZRT27#..E,F BLACK,TRIM2# |
1 | ||
| 71075-05610C0 |
ADT270,ZRT271..LHD..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2# |
1 | ||
| 71075-05610E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 71075-05610E0 |
ADT270,ZRT271..LHD..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 71075-05620C0 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71075-05620C0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM;ADT271,ZRT272..G,V SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71075-05620E2 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM;ADT271,ZRT272..G,V SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71075-05610C0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2# |
1 | ||
| 71075-05620E2 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71075-05670C1 |
ADT27#,ZRT27#..E BLACK,TRIM2# |
1 | ||
| 71075-05680C3 |
ADT27#,ZRT271,272..G BLACK,TRIM2# |
1 | ||
| 71075-05680C3 |
ADT27#,ZRT27#..LHD..E..(DCR,HTWVM) WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 71075-05680E1 |
ADT27#,ZRT271,272..G GREGE,TRIM4# |
1 | ||
| 71075-05680C3 |
ADT27#,ZRT27#..E SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 71075-05690B3 |
ADT27#,ZRT271,272..LHD..G WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),LT. GRAY,TRIM1# |
1 | ||
| 71075-05690B2 |
ADT27#,ZRT271,272..LHD..G WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),WARM GRAY,TRIM4# |
1 | ||
| 71075-05690B3 |
ADT27#,ZRT271,272..G SEAT COVER MATERIAL-LEATHER(PERFORATED),LT. GRAY,TRIM1# |
1 | ||
| 71075-05690B2 |
ADT27#,ZRT271,272..G SEAT COVER MATERIAL-LEATHER(PERFORATED),WARM GRAY,TRIM4# |
1 | ||
| 71075-05690C1 |
ADT27#,ZRT271,272..LHD..G WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM2# |
1 | ||
| 71075-05690C1 |
ADT27#,ZRT271,272..G SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM2# |
1 | ||
| 71088A - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71088-05180C2 |
ADT27#,ZRT27#..WG..E BLACK,TRIM2# |
1 | ||
| 71088-05200C1 |
ADT270,ZRT271..LHD..WG..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2# |
1 | ||
| 71088-05200E1 |
ADT270,ZRT271..LHD..WG..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 71088-05200E1 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 71088-05200C1 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2# |
1 | ||
| 71088-05210E3 |
ADT270,ZRT271..LHD..WG..E;ADT271,ZRT272..LHD..WG..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71088-05210E3 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E;ADT271,ZRT272..WG..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71088-05210C2 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E;ADT271,ZRT272..WG..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71088-05210C2 |
ADT270,ZRT271..LHD..WG..E;ADT271,ZRT272..LHD..WG..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71088-05270C4 |
ADT27#,ZRT27#..WG..E SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 71088-05260C1 |
ADT27#,ZRT27#..WG..(E,N) BLACK,TRIM2# |
1 | ||
| 71088-05270B3 |
ADT27#,ZRT271,272..WG..G LT. GRAY,TRIM1# |
1 | ||
| 71088-05270C4 |
ADT27#,ZRT271,272..WG..G BLACK,TRIM2# |
1 | ||
| 71088-05270B2 |
ADT27#,ZRT271,272..WG..G WARM GRAY,TRIM41 |
1 | ||
| 71088-05270C4 |
ADT27#,ZRT27#..LHD..WG..E WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 71088-05270E2 |
ADT27#,ZRT271,272..WG..G GREGE,TRIM40 |
1 | ||
| 71089A - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH | ||||
| 71089-05180C2 |
ADT27#,ZRT27#..WG..E BLACK,TRIM2# |
1 | ||
| 71089-05200C1 |
ADT270,ZRT271..LHD..WG..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2# |
1 | ||
| 71089-05200E1 |
ADT270,ZRT271..LHD..WG..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 71089-05200E1 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 71089-05210C2 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E;ADT271,ZRT272..WG..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71089-05210C2 |
ADT270,ZRT271..LHD..WG..E;ADT271,ZRT272..LHD..WG..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71089-05200C1 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2# |
1 | ||
| 71089-05210E3 |
ADT270,ZRT271..LHD..WG..E;ADT271,ZRT272..LHD..WG..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71089-05210E3 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E;ADT271,ZRT272..WG..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71089-05270B3 |
ADT27#,ZRT271,272..WG..G LT. GRAY,TRIM1# |
1 | ||
| 71089-05260C1 |
ADT27#,ZRT27#..WG..(E,N) BLACK,TRIM2# |
1 | ||
| 71089-05270B2 |
ADT27#,ZRT271,272..WG..G WARM GRAY,TRIM41 |
1 | ||
| 71089-05270E2 |
ADT27#,ZRT271,272..WG..G GREGE,TRIM40 |
1 | ||
| 71089-05270C4 |
ADT27#,ZRT271,272..WG..G BLACK,TRIM2# |
1 | ||
| 71089-05270C4 |
ADT27#,ZRT27#..LHD..WG..E WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 71089-05270C4 |
ADT27#,ZRT27#..WG..E SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-05660C3 |
ADT27#,ZRT27#..E SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 71460-05650C1 |
ADT27#,ZRT27#..E BLACK,TRIM2# |
1 | ||
| 71460-05660C3 |
ADT27#,ZRT27#..LHD..E..(DCR,HTWVM) WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 71460-05660E1 |
ADT27#,ZRT271,272..G GREGE,TRIM4# |
1 | ||
| 71460-05660C3 |
ADT27#,ZRT271,272..G BLACK,TRIM2# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-05300C1 |
ADT27#,ZRT27#..WG..(E,N) BLACK,TRIM2# |
1 | ||
| 71540-05330B1 |
ADT27#,ZRT271,272..WG..G SEAT COVER MATERIAL-LEATHER(PERFORATED),LT.GRAY,TRIM1# |
1 | ||
| 71540-05330C4 |
ADT27#,ZRT27#..LHD..WG..E WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 71540-05330C4 |
ADT27#,ZRT27#..WG..E SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 71540-05330E3 |
ADT27#,ZRT271,272..WG..G GREGE,TRIM4# |
1 | ||
| 71540-05330B1 |
ADT27#,ZRT271,272..LHD..WG..G WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),LT.GRAY,TRIM1# |
1 | ||
| 71540-05330C4 |
ADT27#,ZRT271,272..WG..G BLACK,TRIM2# |
1 | ||
| 71540-05330E4 |
ADT27#,ZRT271,272..LHD..WG..G WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),ASH GRAY,TRIM4# |
1 | ||
| 71540-05330E4 |
ADT27#,ZRT271,272..WG..G SEAT COVER MATERIAL-LEATHER(PERFORATED),ASH GRAY,TRIM4# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-05320C1 |
ADT27#,ZRT27#..WG..(E,N) BLACK,TRIM2# |
1 | ||
| 71550-05330B1 |
ADT27#,ZRT271,272..WG..G SEAT COVER MATERIAL-LEATHER(PERFORATED),LT.GRAY,TRIM1# |
1 | ||
| 71550-05330B1 |
ADT27#,ZRT271,272..LHD..WG..G WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),LT.GRAY,TRIM1# |
1 | ||
| 71550-05330C4 |
ADT27#,ZRT27#..LHD..WG..E WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 71550-05330C4 |
ADT27#,ZRT271,272..WG..G BLACK,TRIM2# |
1 | ||
| 71550-05330E3 |
ADT27#,ZRT271,272..WG..G GREGE,TRIM4# |
1 | ||
| 71550-05330C4 |
ADT27#,ZRT27#..WG..E SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 71550-05330E4 |
ADT27#,ZRT271,272..WG..G SEAT COVER MATERIAL-LEATHER(PERFORATED),ASH GRAY,TRIM4# |
1 | ||
| 71550-05330E4 |
ADT27#,ZRT271,272..LHD..WG..G WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),ASH GRAY,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-05050 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 71503-05050 |
ADT27#,ZRT27# |
1 | ||
| 71665 - PAD, REAR SEAT BACK SIDE, RH | ||||
| 71665-05040 |
ADT27#,ZRT27#..WG |
1 | ||
| 71665-05040 |
ADT27#,ZRT27#..WG |
1 | ||
| 71666 - PAD, REAR SEAT BACK SIDE, LH | ||||
| 71666-05040 |
ADT27#,ZRT27#..WG |
1 | ||
| 71666-05040 |
ADT27#,ZRT27#..WG |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-05010C0 |
ADT27#,ZRT27#..WG..(E,G) BLACK,TRIM1#,2#,4# |
1 | ||
| 71833-05010C0 |
ADT27#,ZRT27#..WG BLACK,TRIM2# |
1 | ||
| 71833-05010E0 |
ADT27#,ZRT27#..WG..(E,G,V) GREGE,TRIM4# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-05010C0 |
ADT27#,ZRT27#..WG BLACK,TRIM2# |
1 | ||
| 71834-05010C0 |
ADT27#,ZRT27#..WG..(E,G) BLACK,TRIM1#,2#,4# |
1 | ||
| 71834-05010E0 |
ADT27#,ZRT27#..WG..(E,G,V) GREGE,TRIM4# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ADT27#,ZRT27# |
2 | ||
| 72693-12080 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 73735A - CUP, CHILD RESTRAINT SEAT GUIDE | ||||
| 73735-05010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
4 | ||
| 73735-05010 |
ADT27#,ZRT27# |
4 | ||
| Common parts | ||||
| 90119-W0037 | ||||
| Linked diagrams | ||||
| 7104 | ||||

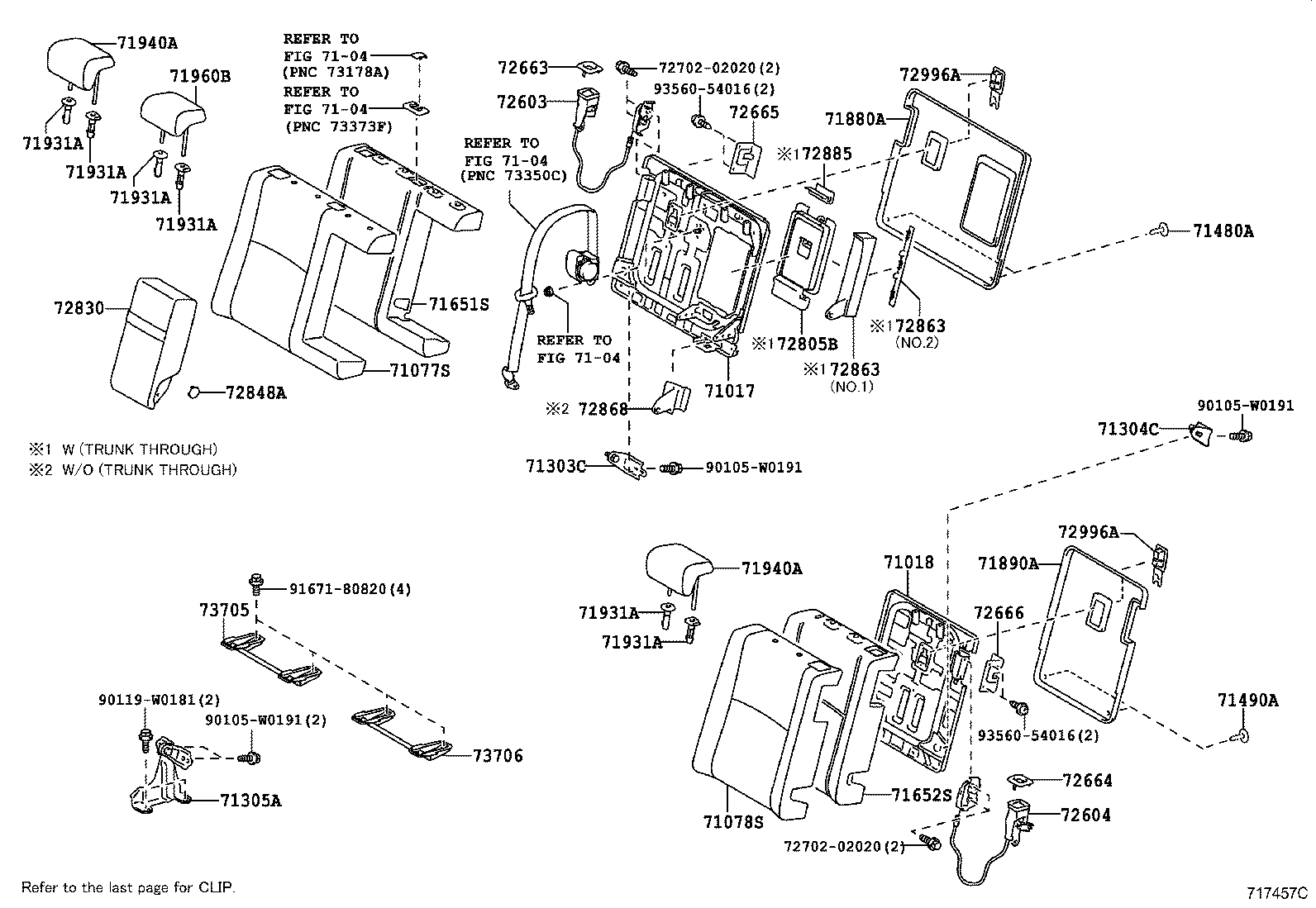

ILLUST NO. 1 OF 2(1111- )WG
SEAT BACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-05100 |
ADT27#,ZRT27#..WG..(E,G) |
1 | ||
| 71017-05100 |
ADT27#,ZRT27#..WG..(E,G,V) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-05070 |
ADT27#,ZRT27#..WG |
1 | ||
| 71018-05070 |
ADT27#,ZRT27#..WG |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-05590C3 |
ADT27#,ZRT27#..WG..E BLACK,TRIM2# |
1 | ||
| 71077-05600C1 |
ADT270,ZRT271..LHD..WG..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2# |
1 | ||
| 71077-05600C1 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2# |
1 | ||
| 71077-05610C2 |
ADT270,ZRT271..LHD..WG..E;ADT271,ZRT272..LHD..WG..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71077-05600E1 |
ADT270,ZRT271..LHD..WG..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 71077-05600E1 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 71077-05610E3 |
ADT270,ZRT271..LHD..WG..E;ADT271,ZRT272..LHD..WG..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71077-05610C2 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E;ADT271,ZRT272..WG..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71077-05610E3 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E;ADT271,ZRT272..WG..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71077-05661E1 |
ADT27#,ZRT271,272..WG..G GREGE,TRIM4# |
1 | ||
| 71077-05651C2 |
ADT27#,ZRT27#..WG..E BLACK,TRIM2# |
1 | ||
| 71077-05671B3 |
ADT27#,ZRT271,272..LHD..WG..G WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),WARM GRAY,TRIM4# |
1 | ||
| 71077-05661C3 |
ADT27#,ZRT27#..WG..E SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 71077-05671B3 |
ADT27#,ZRT271,272..WG..G SEAT COVER MATERIAL-LEATHER(PERFORATED),WARM GRAY,TRIM4# |
1 | ||
| 71077-05661C3 |
ADT27#,ZRT271,272..WG..G BLACK,TRIM2# |
1 | ||
| 71077-05671B4 |
ADT27#,ZRT271,272..LHD..WG..G WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),LT. GRAY,TRIM1# |
1 | ||
| 71077-05661C3 |
ADT27#,ZRT27#..LHD..WG..E WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 71077-05671B4 |
ADT27#,ZRT271,272..WG..G SEAT COVER MATERIAL-LEATHER(PERFORATED),LT. GRAY,TRIM1# |
1 | ||
| 71077-05671C0 |
ADT27#,ZRT271,272..LHD..WG..G WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM2# |
1 | ||
| 71077-05671C0 |
ADT27#,ZRT271,272..WG..G SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-05460C3 |
ADT27#,ZRT27#..WG..E BLACK,TRIM2# |
1 | ||
| 71078-05480C2 |
ADT270,ZRT271..LHD..WG..E;ADT271,ZRT272..LHD..WG..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71078-05470E1 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 71078-05470E1 |
ADT270,ZRT271..LHD..WG..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 71078-05480C2 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E;ADT271,ZRT272..WG..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71078-05470C1 |
ADT270,ZRT271..LHD..WG..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2# |
1 | ||
| 71078-05470C1 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2# |
1 | ||
| 71078-05480E3 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E;ADT271,ZRT272..WG..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71078-05480E3 |
ADT270,ZRT271..LHD..WG..E;ADT271,ZRT272..LHD..WG..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71078-05560C2 |
ADT27#,ZRT27#..WG..E BLACK,TRIM2# |
1 | ||
| 71078-05570C3 |
ADT27#,ZRT27#..LHD..WG..E WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 71078-05570C3 |
ADT27#,ZRT271,272..WG..G BLACK,TRIM2# |
1 | ||
| 71078-05570C3 |
ADT27#,ZRT27#..WG..E SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 71078-05570E1 |
ADT27#,ZRT271,272..WG..G GREGE,TRIM4# |
1 | ||
| 71078-05580B4 |
ADT27#,ZRT271,272..LHD..WG..G WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),LT. GRAY,TRIM1# |
1 | ||
| 71078-05580B3 |
ADT27#,ZRT271,272..WG..G SEAT COVER MATERIAL-LEATHER(PERFORATED),WARM GRAY,TRIM4# |
1 | ||
| 71078-05580B4 |
ADT27#,ZRT271,272..WG..G SEAT COVER MATERIAL-LEATHER(PERFORATED),LT. GRAY,TRIM1# |
1 | ||
| 71078-05580B3 |
ADT27#,ZRT271,272..LHD..WG..G WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),WARM GRAY,TRIM4# |
1 | ||
| 71078-05580C0 |
ADT27#,ZRT271,272..LHD..WG..G WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM2# |
1 | ||
| 71078-05580C0 |
ADT27#,ZRT271,272..WG..G SEAT COVER MATERIAL-LEATHER(PERFORATED),BLACK,TRIM2# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-05040 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 71303-05040 |
ADT27#,ZRT27# |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71303-05040 |
ADT27#,ZRT27# |
1 | ||
| 71303-05040 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-05050 |
ADT27#,ZRT27# |
1 | ||
| 71305-05050 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-W0001C0 |
ADT270,ZRT270,271..N;ADT27#,ZRT27#..WG..(E,G,V) BLACK,TRIM2# |
2 | ||
| 90467-W0001C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
2 | ||
| 90467-W0001E0 |
ADT27#,ZRT27#..WG..(E,G,V) GREGE,TRIM4# |
2 | ||
| 71490A - CLIP, REAR SEAT BACK, LH | ||||
| 90467-W0001C0 |
ADT270,ZRT270,271..N;ADT27#,ZRT27#..WG..(E,G,V) BLACK,TRIM2# |
2 | ||
| 90467-W0001C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
2 | ||
| 90467-W0001E0 |
ADT27#,ZRT27#..WG..(E,G,V) GREGE,TRIM4# |
2 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-05100 |
ADT27#,ZRT27#..WG..(E,G,V) |
1 | ||
| 71651-05100 |
ADT27#,ZRT27#..WG..(E,G) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-05080 |
ADT27#,ZRT27#..WG |
1 | ||
| 71652-05080 |
ADT27#,ZRT27#..WG |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71885-05060C1 |
ADT27#,ZRT27#..WG..(E,G,V) BLACK,TRIM2# |
1 | ||
| 71885-05060E0 |
ADT270,ZRT271..LHD..WG..E SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71885-05060E0 |
ADT270,ZRT271..LHD..WG..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 71885-05060E0 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 71885-05060E0 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71885-05060C1 |
ADT27#,ZRT27#..WG..E BLACK,TRIM1#,2# |
1 | ||
| 71885-05060C1 |
ADT27#,ZRT271,272..WG..G BLACK,TRIM2#,4# |
1 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71886-05050E0 |
ADT270,ZRT271..LHD..WG..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 71886-05050E0 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71886-05050E0 |
ADT270,ZRT271..LHD..WG..E SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71886-05050C0 |
ADT27#,ZRT271,272..WG..G BLACK,TRIM2#,4# |
1 | ||
| 71886-05050C0 |
ADT27#,ZRT27#..WG BLACK,TRIM2# |
1 | ||
| 71886-05050C0 |
ADT27#,ZRT27#..WG..E BLACK,TRIM1#,2# |
1 | ||
| 71886-05050E0 |
ZRT272..RHD..WG;ADT270,ZRT271..WG..E SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-02060E0 |
ADT270,ZRT271..LHD..E W/O(LOCK),SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71955-02060E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W/O(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W(LOCK),SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71955-02060C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71955-02060E0 |
ADT270,ZRT271..LHD..E W/O(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..LHD..E W(LOCK),SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71990-02010C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71955-02060E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W/O(LOCK),SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..LHD..E W(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVERMATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71955-02060C0 |
ADT27#,ZRT27#..E W/O(LOCK),BLACK,TRIM1#,2# |
3 | ||
| 71955-02060B1 |
ADT27#,ZRT271,272..G W/O(LOCK),LT.GRAY,TRIM11 |
3 | ||
| 71955-02060E0 |
ADT27#,ZRT271,272..G W/O(LOCK),GREGE,TRIM40 |
3 | ||
| 71955-02060C0 |
ADT27#,ZRT271,272..G W/O(LOCK),BLACK,TRIM11,2#,40,41 |
3 | ||
| 71990-02010B1 |
ADT27#,ZRT271,272..G W(LOCK),LT.GRAY,TRIM11 |
3 | ||
| 71990-02010C0 |
ADT27#,ZRT271,272..G W(LOCK),BLACK,TRIM11,2#,40,41 |
3 | ||
| 71990-02010E0 |
ADT27#,ZRT271,272..G W(LOCK),GREGE,TRIM40 |
3 | ||
| 71990-02010C0 |
ADT27#,ZRT27#..E W(LOCK),BLACK,TRIM1#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-02060E0 |
ADT270,ZRT271..LHD..E W/O(LOCK),SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71955-02060E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W/O(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W(LOCK),SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71955-02060C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71955-02060E0 |
ADT270,ZRT271..LHD..E W/O(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..LHD..E W(LOCK),SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71990-02010C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71955-02060E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W/O(LOCK),SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..LHD..E W(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVERMATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71955-02060C0 |
ADT27#,ZRT27#..E W/O(LOCK),BLACK,TRIM1#,2# |
3 | ||
| 71955-02060B1 |
ADT27#,ZRT271,272..G W/O(LOCK),LT.GRAY,TRIM11 |
3 | ||
| 71955-02060E0 |
ADT27#,ZRT271,272..G W/O(LOCK),GREGE,TRIM40 |
3 | ||
| 71955-02060C0 |
ADT27#,ZRT271,272..G W/O(LOCK),BLACK,TRIM11,2#,40,41 |
3 | ||
| 71990-02010B1 |
ADT27#,ZRT271,272..G W(LOCK),LT.GRAY,TRIM11 |
3 | ||
| 71990-02010C0 |
ADT27#,ZRT271,272..G W(LOCK),BLACK,TRIM11,2#,40,41 |
3 | ||
| 71990-02010E0 |
ADT27#,ZRT271,272..G W(LOCK),GREGE,TRIM40 |
3 | ||
| 71990-02010C0 |
ADT27#,ZRT27#..E W(LOCK),BLACK,TRIM1#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-02060E0 |
ADT270,ZRT271..LHD..E W/O(LOCK),SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71955-02060E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W/O(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W(LOCK),SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71955-02060C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71955-02060E0 |
ADT270,ZRT271..LHD..E W/O(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..LHD..E W(LOCK),SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71990-02010C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71955-02060E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W/O(LOCK),SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..LHD..E W(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVERMATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71955-02060C0 |
ADT27#,ZRT27#..E W/O(LOCK),BLACK,TRIM1#,2# |
3 | ||
| 71955-02060B1 |
ADT27#,ZRT271,272..G W/O(LOCK),LT.GRAY,TRIM11 |
3 | ||
| 71955-02060E0 |
ADT27#,ZRT271,272..G W/O(LOCK),GREGE,TRIM40 |
3 | ||
| 71955-02060C0 |
ADT27#,ZRT271,272..G W/O(LOCK),BLACK,TRIM11,2#,40,41 |
3 | ||
| 71990-02010B1 |
ADT27#,ZRT271,272..G W(LOCK),LT.GRAY,TRIM11 |
3 | ||
| 71990-02010C0 |
ADT27#,ZRT271,272..G W(LOCK),BLACK,TRIM11,2#,40,41 |
3 | ||
| 71990-02010E0 |
ADT27#,ZRT271,272..G W(LOCK),GREGE,TRIM40 |
3 | ||
| 71990-02010C0 |
ADT27#,ZRT27#..E W(LOCK),BLACK,TRIM1#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-02060E0 |
ADT270,ZRT271..LHD..E W/O(LOCK),SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71955-02060E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W/O(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W(LOCK),SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71955-02060C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71955-02060E0 |
ADT270,ZRT271..LHD..E W/O(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..LHD..E W(LOCK),SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71990-02010C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71955-02060E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W/O(LOCK),SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..LHD..E W(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVERMATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71955-02060C0 |
ADT27#,ZRT27#..E W/O(LOCK),BLACK,TRIM1#,2# |
3 | ||
| 71955-02060B1 |
ADT27#,ZRT271,272..G W/O(LOCK),LT.GRAY,TRIM11 |
3 | ||
| 71955-02060E0 |
ADT27#,ZRT271,272..G W/O(LOCK),GREGE,TRIM40 |
3 | ||
| 71955-02060C0 |
ADT27#,ZRT271,272..G W/O(LOCK),BLACK,TRIM11,2#,40,41 |
3 | ||
| 71990-02010B1 |
ADT27#,ZRT271,272..G W(LOCK),LT.GRAY,TRIM11 |
3 | ||
| 71990-02010C0 |
ADT27#,ZRT271,272..G W(LOCK),BLACK,TRIM11,2#,40,41 |
3 | ||
| 71990-02010E0 |
ADT27#,ZRT271,272..G W(LOCK),GREGE,TRIM40 |
3 | ||
| 71990-02010C0 |
ADT27#,ZRT27#..E W(LOCK),BLACK,TRIM1#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-02060E0 |
ADT270,ZRT271..LHD..E W/O(LOCK),SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71955-02060E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W/O(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W(LOCK),SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71955-02060C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71955-02060E0 |
ADT270,ZRT271..LHD..E W/O(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..LHD..E W(LOCK),SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71990-02010C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71955-02060E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W/O(LOCK),SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..LHD..E W(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVERMATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71955-02060C0 |
ADT27#,ZRT27#..E W/O(LOCK),BLACK,TRIM1#,2# |
3 | ||
| 71955-02060B1 |
ADT27#,ZRT271,272..G W/O(LOCK),LT.GRAY,TRIM11 |
3 | ||
| 71955-02060E0 |
ADT27#,ZRT271,272..G W/O(LOCK),GREGE,TRIM40 |
3 | ||
| 71955-02060C0 |
ADT27#,ZRT271,272..G W/O(LOCK),BLACK,TRIM11,2#,40,41 |
3 | ||
| 71990-02010B1 |
ADT27#,ZRT271,272..G W(LOCK),LT.GRAY,TRIM11 |
3 | ||
| 71990-02010C0 |
ADT27#,ZRT271,272..G W(LOCK),BLACK,TRIM11,2#,40,41 |
3 | ||
| 71990-02010E0 |
ADT27#,ZRT271,272..G W(LOCK),GREGE,TRIM40 |
3 | ||
| 71990-02010C0 |
ADT27#,ZRT27#..E W(LOCK),BLACK,TRIM1#,2# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-02060E0 |
ADT270,ZRT271..LHD..E W/O(LOCK),SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71955-02060E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W/O(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W(LOCK),SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71955-02060C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71955-02060E0 |
ADT270,ZRT271..LHD..E W/O(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..LHD..E W(LOCK),SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71990-02010C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71955-02060E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM W/O(LOCK),SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71990-02010E0 |
ADT270,ZRT271..LHD..E W(LOCK),SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVERMATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71955-02060C0 |
ADT27#,ZRT27#..E W/O(LOCK),BLACK,TRIM1#,2# |
3 | ||
| 71955-02060B1 |
ADT27#,ZRT271,272..G W/O(LOCK),LT.GRAY,TRIM11 |
3 | ||
| 71955-02060E0 |
ADT27#,ZRT271,272..G W/O(LOCK),GREGE,TRIM40 |
3 | ||
| 71955-02060C0 |
ADT27#,ZRT271,272..G W/O(LOCK),BLACK,TRIM11,2#,40,41 |
3 | ||
| 71990-02010B1 |
ADT27#,ZRT271,272..G W(LOCK),LT.GRAY,TRIM11 |
3 | ||
| 71990-02010C0 |
ADT27#,ZRT271,272..G W(LOCK),BLACK,TRIM11,2#,40,41 |
3 | ||
| 71990-02010E0 |
ADT27#,ZRT271,272..G W(LOCK),GREGE,TRIM40 |
3 | ||
| 71990-02010C0 |
ADT27#,ZRT27#..E W(LOCK),BLACK,TRIM1#,2# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-05230C2 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-05230E3 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71940-05230E3 |
ZRT272..RHD;ADT270,ZRT271..E;ZRT272..LHD..HTWC;ADT271,ZRT272..G,V SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71940-05200C1 |
ADT27#,ZRT27#..E,F BLACK,TRIM2# |
2 | ||
| 71940-05230C2 |
ZRT272..RHD;ADT270,ZRT271..E;ZRT272..LHD..HTWC;ADT271,ZRT272..G,V SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-05220C1 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2# |
2 | ||
| 71940-05220E1 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71940-05220E1 |
ADT270,ZRT271..LHD..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71940-05220C1 |
ADT270,ZRT271..LHD..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2# |
2 | ||
| 71940-05250C2 |
ADT27#,ZRT27#..E,N BLACK,TRIM2# |
2 | ||
| 71940-05260B4 |
ADT27#,ZRT271,272..G WARM GRAY,TRIM41 |
2 | ||
| 71940-05260B5 |
ADT27#,ZRT271,272..G LT. GRAY,TRIM1# |
2 | ||
| 71940-05260C4 |
ADT27#,ZRT271,272..G BLACK,TRIM2# |
2 | ||
| 71940-05260C4 |
ADT27#,ZRT27#..LHD..E..(DCR,HTWVM) WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
2 | ||
| 71940-05260C4 |
ADT27#,ZRT27#..E SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
2 | ||
| 71940-05260E2 |
ADT27#,ZRT271,272..G GREGE,TRIM40 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-05230C2 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-05230E3 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71940-05230E3 |
ZRT272..RHD;ADT270,ZRT271..E;ZRT272..LHD..HTWC;ADT271,ZRT272..G,V SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71940-05200C1 |
ADT27#,ZRT27#..E,F BLACK,TRIM2# |
2 | ||
| 71940-05230C2 |
ZRT272..RHD;ADT270,ZRT271..E;ZRT272..LHD..HTWC;ADT271,ZRT272..G,V SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-05220C1 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2# |
2 | ||
| 71940-05220E1 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71940-05220E1 |
ADT270,ZRT271..LHD..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
2 | ||
| 71940-05220C1 |
ADT270,ZRT271..LHD..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2# |
2 | ||
| 71940-05250C2 |
ADT27#,ZRT27#..E,N BLACK,TRIM2# |
2 | ||
| 71940-05260B4 |
ADT27#,ZRT271,272..G WARM GRAY,TRIM41 |
2 | ||
| 71940-05260B5 |
ADT27#,ZRT271,272..G LT. GRAY,TRIM1# |
2 | ||
| 71940-05260C4 |
ADT27#,ZRT271,272..G BLACK,TRIM2# |
2 | ||
| 71940-05260C4 |
ADT27#,ZRT27#..LHD..E..(DCR,HTWVM) WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
2 | ||
| 71940-05260C4 |
ADT27#,ZRT27#..E SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
2 | ||
| 71940-05260E2 |
ADT27#,ZRT271,272..G GREGE,TRIM40 |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-05180C2 |
ZRT272..RHD;ADT270,ZRT271..E;ZRT272..LHD..HTWC;ADT271,ZRT272..G,V SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71960-05180C2 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71960-05150C1 |
ADT27#,ZRT27#..E,F BLACK,TRIM2# |
1 | ||
| 71960-05180E3 |
ZRT272..RHD;ADT270,ZRT271..E;ZRT272..LHD..HTWC;ADT271,ZRT272..G,V SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71960-05180E3 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71960-05170C1 |
ADT270,ZRT271..LHD..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2# |
1 | ||
| 71960-05170E1 |
ADT270,ZRT271..LHD..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 71960-05170E1 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 71960-05170C1 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2# |
1 | ||
| 71960-05210B4 |
ADT27#,ZRT271,272..G WARM GRAY,TRIM41 |
1 | ||
| 71960-05200C2 |
ADT27#,ZRT27#..E,N BLACK,TRIM2# |
1 | ||
| 71960-05210B5 |
ADT27#,ZRT271,272..G LT. GRAY,TRIM1# |
1 | ||
| 71960-05210C4 |
ADT27#,ZRT271,272..G BLACK,TRIM2# |
1 | ||
| 71960-05210C4 |
ADT27#,ZRT27#..E SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 71960-05210C4 |
ADT27#,ZRT27#..LHD..E..(DCR,HTWVM) WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 71960-05210E2 |
ADT27#,ZRT271,272..G GREGE,TRIM40 |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-05010B0 |
ZRT270..WG..E;ADT27#,ZRT271,272..WG..G LT.GRAY,TRIM11 |
1 | ||
| 72603-05010C0 |
ADT27#,ZRT27#..WG BLACK,TRIM2# |
1 | ||
| 72603-05010C0 |
ADT27#,ZRT271,272..WG..(CVT,MTM)..G BLACK,TRIM11,2#,40,41 |
1 | ||
| 72603-05010C0 |
ADT27#,ZRT271,272..WG..E BLACK,TRIM1#,2#,4# |
1 | ||
| 72603-05010E0 |
ADT27#,ZRT27#..WG..(E,G,V) GREGE,TRIM4# |
1 | ||
| 72603-05010E0 |
ZRT270..WG..E;ADT27#,ZRT271,272..WG..G GREGE,TRIM40 |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-05010C0 |
ADT27#,ZRT271,272..WG..(CVT,MTM)..G BLACK,TRIM11,2#,40,41 |
1 | ||
| 72604-05010C0 |
ADT27#,ZRT271,272..WG..E BLACK,TRIM1#,2#,4# |
1 | ||
| 72604-05010C0 |
ADT27#,ZRT27#..WG BLACK,TRIM2# |
1 | ||
| 72604-05010E0 |
ADT27#,ZRT27#..WG..(E,G,V) GREGE,TRIM4# |
1 | ||
| 72604-05010E0 |
ZRT270..WG..E;ADT27#,ZRT271,272..WG..G GREGE,TRIM40 |
1 | ||
| 72604-05010B0 |
ZRT270..WG..E;ADT27#,ZRT271,272..WG..G LT.GRAY,TRIM11 |
1 | ||
| 72663 - LEVER, REAR SEAT LOCK CONTROL, NO.1 | ||||
| 72663-05010B0 |
ZRT270..E;ADT27#,ZRT271,272..G LT.GRAY,TRIM11 |
1 | ||
| 72663-05010C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) BLACK,TRIM2# |
1 | ||
| 72663-05010E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 72663-05010C0 |
ADT27#,ZRT271,272..(CVT,MTM)..G BLACK,TRIM11,2#,40,41 |
1 | ||
| 72663-05010C0 |
ADT27#,ZRT271,272..E BLACK,TRIM1#,2#,4# |
1 | ||
| 72663-05010E0 |
ZRT270..E;ADT27#,ZRT271,272..G GREGE,TRIM40 |
1 | ||
| 72664 - LEVER, REAR SEAT LOCK CONTROL, LH | ||||
| 72663-05010C0 |
ADT27#,ZRT271,272..(CVT,MTM)..G BLACK,TRIM11,2#,40,41 |
1 | ||
| 72663-05010C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) BLACK,TRIM2# |
1 | ||
| 72663-05010C0 |
ADT27#,ZRT271,272..E BLACK,TRIM1#,2#,4# |
1 | ||
| 72663-05010E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 72663-05010B0 |
ZRT270..E;ADT27#,ZRT271,272..G LT.GRAY,TRIM11 |
1 | ||
| 72663-05010E0 |
ZRT270..E;ADT27#,ZRT271,272..G GREGE,TRIM40 |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-05030C0 |
ZRT272..RHD..WG;ADT271,ZRT272..WG..G;ZRT271..LHD..WG..CVT..E;ADT270,ZRT271..WG..6F..E BLACK,TRIM2#,40 |
1 | ||
| 72665-05030E0 |
ZRT272..RHD..WG;ADT271,ZRT272..WG..G;ZRT271..LHD..WG..CVT..E;ADT270,ZRT271..WG..6F..E GREGE,TRIM40 |
1 | ||
| 72665-05030C0 |
ADT27#,ZRT27#..WG..(E,G) BLACK,TRIM1#,2#,4# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-05010C0 |
ADT27#,ZRT27#..WG..(E,G) BLACK,TRIM1#,2#,4# |
1 | ||
| 72666-05010C0 |
ZRT272..RHD..WG;ADT271,ZRT272..WG..G;ZRT271..LHD..WG..CVT..E;ADT270,ZRT271..WG..6F..E BLACK,TRIM2#,40 |
1 | ||
| 72666-05010E0 |
ZRT272..RHD..WG;ADT271,ZRT272..WG..G;ZRT271..LHD..WG..CVT..E;ADT270,ZRT271..WG..6F..E GREGE,TRIM40 |
1 | ||
| 72805B - DOOR SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72805-05010C0 |
ZRT272..RHD..WG;ADT271,ZRT272..WG..G;ZRT271..LHD..WG..CVT..E;ADT270,ZRT271..WG..6F..E BLACK,TRIM2#,40 |
1 | ||
| 72805-05010E0 |
ZRT272..RHD..WG;ADT271,ZRT272..WG..G;ZRT271..LHD..WG..CVT..E;ADT270,ZRT271..WG..6F..E GREGE,TRIM40 |
1 | ||
| 72805-05010C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-05190C1 |
ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM);ADT270,ZRT272..LHD..E..(DCR,HTWC) BLACK,TRIM2# |
1 | ||
| 72830-05200C0 |
ADT270,ZRT271..LHD..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2# |
1 | ||
| 72830-05200E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 72830-05200E0 |
ADT270,ZRT271..LHD..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 72830-05210E2 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 72830-05210C0 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 72830-05200C0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,BLACK,TRIM2# |
1 | ||
| 72830-05210C0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM;ADT271,ZRT272..G,V SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 72830-05210E2 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM;ADT271,ZRT272..G,V SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 72830-05240B1 |
ADT27#,ZRT271,272..G LT.GRAY,TRIM1# |
1 | ||
| 72830-05230C1 |
ADT27#,ZRT27#..E BLACK,TRIM2# |
1 | ||
| 72830-05240E2 |
ADT27#,ZRT271,272..G GREGE,TRIM40 |
1 | ||
| 72830-05240C1 |
ADT27#,ZRT27#..LHD..E..(DCR,HTWVM) WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 72830-05240C1 |
ADT27#,ZRT271,272..G BLACK,TRIM2# |
1 | ||
| 72830-05240C1 |
ADT27#,ZRT27#..E SEAT COVER MATERIAL-LEATHER(ALCANTARA),BLACK,TRIM2# |
1 | ||
| 72830-05240E3 |
ADT27#,ZRT271,272..G ASH GRAY,TRIM41 |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-05010E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM SOL-PLUS GRADE&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 72848-05010E0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 72848-05010E0 |
ADT270,ZRT271..LHD..E SOL-PLUS GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE,GREGE,TRIM4# |
1 | ||
| 72848-05010C0 |
ADT27#,ZRT27#..E..(DCR,HTWVM) BLACK,TRIM1#,2# |
1 | ||
| 72848-05010E0 |
ADT270,ZRT271..LHD..E SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 72848-05010C0 |
ZRT272..HTWC;ADT27#,ZRT271,272..G BLACK,TRIM1#,2#,4# |
1 | ||
| 72848-05010C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) BLACK,TRIM2# |
1 | ||
| 72863 - BOX, REAR SEAT CENTER ARMREST | ||||
| 72863-05020E0 |
ZRT272..RHD..WG;ADT271,ZRT272..WG..G;ZRT271..LHD..WG..CVT..E;ADT270,ZRT271..WG..6F..E GREGE,TRIM40,NO.2 |
1 | ||
| 72863-05020C0 |
ZRT272..RHD..WG;ADT271,ZRT272..WG..G;ZRT271..LHD..WG..CVT..E;ADT270,ZRT271..WG..6F..E BLACK,TRIM2#,40,NO.2 |
1 | ||
| 72863-05010C0 |
ZRT272..RHD..WG;ADT271,ZRT272..WG..G;ZRT271..LHD..WG..CVT..E;ADT270,ZRT271..WG..6F..E BLACK,TRIM2#,40,NO.1 |
1 | ||
| 72863-05010C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4#,NO.1 |
1 | ||
| 72863-05010E0 |
ZRT272..RHD..WG;ADT271,ZRT272..WG..G;ZRT271..LHD..WG..CVT..E;ADT270,ZRT271..WG..6F..E GREGE,TRIM40,NO.1 |
1 | ||
| 72863-05020C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4#,NO.2 |
1 | ||
| 72863 - BOX, REAR SEAT CENTER ARMREST | ||||
| 72863-05020E0 |
ZRT272..RHD..WG;ADT271,ZRT272..WG..G;ZRT271..LHD..WG..CVT..E;ADT270,ZRT271..WG..6F..E GREGE,TRIM40,NO.2 |
1 | ||
| 72863-05020C0 |
ZRT272..RHD..WG;ADT271,ZRT272..WG..G;ZRT271..LHD..WG..CVT..E;ADT270,ZRT271..WG..6F..E BLACK,TRIM2#,40,NO.2 |
1 | ||
| 72863-05010C0 |
ZRT272..RHD..WG;ADT271,ZRT272..WG..G;ZRT271..LHD..WG..CVT..E;ADT270,ZRT271..WG..6F..E BLACK,TRIM2#,40,NO.1 |
1 | ||
| 72863-05010C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4#,NO.1 |
1 | ||
| 72863-05010E0 |
ZRT272..RHD..WG;ADT271,ZRT272..WG..G;ZRT271..LHD..WG..CVT..E;ADT270,ZRT271..WG..6F..E GREGE,TRIM40,NO.1 |
1 | ||
| 72863-05020C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4#,NO.2 |
1 | ||
| 72885 - HANDLE, REAR SEAT ARMREST | ||||
| 72885-05010C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
1 | ||
| 72885-05010E0 |
ADT27#,ZRT27#..WG..(E,G,V) GREGE,TRIM4# |
1 | ||
| 72885-05010C0 |
ADT27#,ZRT27#..WG..(E,G,V) BLACK,TRIM2# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-02050C0 |
ADT27#,ZRT27#..WG BLACK,TRIM2# |
2 | ||
| 72996-02050E0 |
ADT27#,ZRT27#..WG..(E,G,V) GREGE,TRIM4# |
2 | ||
| 72996-02050C0 |
ADT27#,ZRT27#..WG..(E,G) BLACK,TRIM1#,2#,4# |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-02050C0 |
ADT27#,ZRT27#..WG BLACK,TRIM2# |
2 | ||
| 72996-02050E0 |
ADT27#,ZRT27#..WG..(E,G,V) GREGE,TRIM4# |
2 | ||
| 72996-02050C0 |
ADT27#,ZRT27#..WG..(E,G) BLACK,TRIM1#,2#,4# |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-05030 |
ADT27#,ZRT27# |
1 | ||
| 73705-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73705-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 73705-05030 |
ADT27#,ZRT27# |
1 | ||
| Common parts | ||||
| 72702-02020 | ||||
| 90105-W0191 | ||||
| 90119-W0181 | ||||
| 91671-80820 | ||||
| 93560-54016 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
