ZRT271L-AWFEPW (2015)
Toyota Avensis
(1505- )

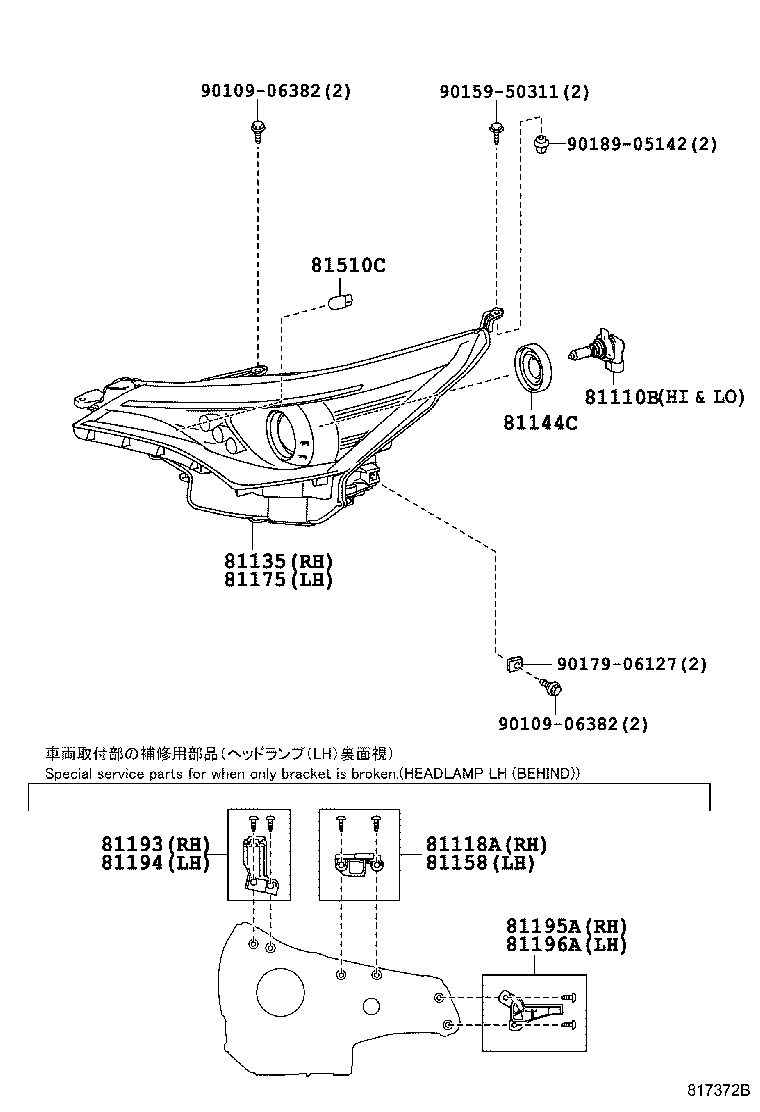

HALOGEN HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13091 |
WWT27#,ZRT27#..(E,G)..(DCR,HTWVM) 12V 55W,HALOGEN,HEADLAMP-HALOGEN & WITH(*AHB) |
2 | ||
| 90981-13046 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) 12V65W(SAE),60W(ECE) |
2 | ||
| 90981-13091 |
ZRT272..E;WWT27#,ZRT270,271..E,G 12V 55W,HALOGEN,HEADLAMP-HALOGEN |
2 | ||
| 81118A - BRACKET, HEADLAMP, RH | ||||
| 81118-05351 |
WWT27#,ZRT27# |
1 | ||
| 81118-05310 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81140-05330 |
ADT27#,ZRT27#..LHD..(E,F,G,V) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81130-05310 |
ADT27#,ZRT27#..LHD |
1 | ||
| 81130-05420 |
WWT27#,ZRT271,272..LHD..G HEADLAMP-LED & WITH(AFS),MARK:KOITO 05-40 |
1 | ||
| 81130-05380 |
WWT27#,ZRT27#..LHD..(E,G)..(DCR,HTWVM) HEADLAMP-HALOGEN & WITH(*AHB) |
1 | ||
| 81130-05400 |
WWT27#,ZRT27#..LHD..(E,G) MARK:KOITO 05-38 |
1 | ||
| 81130-05380 |
ZRT272..LHD..E;WWT27#,ZRT270,271..LHD..(E,G) HEADLAMP-HALOGEN |
1 | ||
| 81130-05420 |
WWT27#,ZRT271,272..LHD..G HEADLAMP-LED & WITH(AFS & *AHB),MARK:KOITO 05-40 |
1 | ||
| 81130-05450 |
WWT27#,ZRT27#..LHD..(E,G) MARK:KOITO 05-47 |
1 | ||
| 81130-05470 |
WWT27#,ZRT271,272..LHD..G HEADLAMP-LED & WITH(AFS & *AHB),MARK:KOITO 05-49 |
1 | ||
| 81130-05470 |
WWT27#,ZRT271,272..LHD..G HEADLAMP-LED & WITH(AFS),MARK:KOITO 05-49 |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
ZRT272..E;WWT27#,ZRT270,271..E,G HEADLAMP-HALOGEN |
2 | ||
| 90075-65006 |
WWT27#,ZRT27#..(E,G)..(DCR,HTWVM) HEADLAMP-HALOGEN & WITH(*AHB) |
2 | ||
| 81158 - BRACKET, HEADLAMP, LH | ||||
| 81158-05310 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81158-05351 |
WWT27#,ZRT27# |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81070-05330 |
ADT27#,ZRT27#..LHD..(E,F,G,V) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81170-05310 |
ADT27#,ZRT27#..LHD |
1 | ||
| 81170-05400 |
WWT27#,ZRT27#..LHD..(E,G) MARK:KOITO 05-38 |
1 | ||
| 81170-05380 |
WWT27#,ZRT27#..LHD..(E,G)..(DCR,HTWVM) HEADLAMP-HALOGEN & WITH(*AHB) |
1 | ||
| 81170-05420 |
WWT27#,ZRT271,272..LHD..G HEADLAMP-LED & WITH(AFS & *AHB),MARK:KOITO 05-40 |
1 | ||
| 81170-05450 |
WWT27#,ZRT27#..LHD..(E,G) MARK:KOITO 05-47 |
1 | ||
| 81170-05380 |
ZRT272..LHD..E;WWT27#,ZRT270,271..LHD..(E,G) HEADLAMP-HALOGEN |
1 | ||
| 81170-05420 |
WWT27#,ZRT271,272..LHD..G HEADLAMP-LED & WITH(AFS),MARK:KOITO 05-40 |
1 | ||
| 81170-05470 |
WWT27#,ZRT271,272..LHD..G HEADLAMP-LED & WITH(AFS),MARK:KOITO 05-49 |
1 | ||
| 81170-05470 |
WWT27#,ZRT271,272..LHD..G HEADLAMP-LED & WITH(AFS & *AHB),MARK:KOITO 05-49 |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-05060 |
WWT27#,ZRT27# |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-05050 |
WWT27#,ZRT27# |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81193-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81195-05040 |
WWT27#,ZRT27# |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81194-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81196-05050 |
WWT27#,ZRT27# |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) 12V 21W,AMBER |
2 | ||
| 90981-15021 |
WWT27#,ZRT27# 12V 21W,AMBER |
2 | ||
| Common parts | ||||
| 90109-06382 | ||||
| 90159-50311 | ||||
| 90179-06127 | ||||
| 90189-05142 | ||||
(1505- )

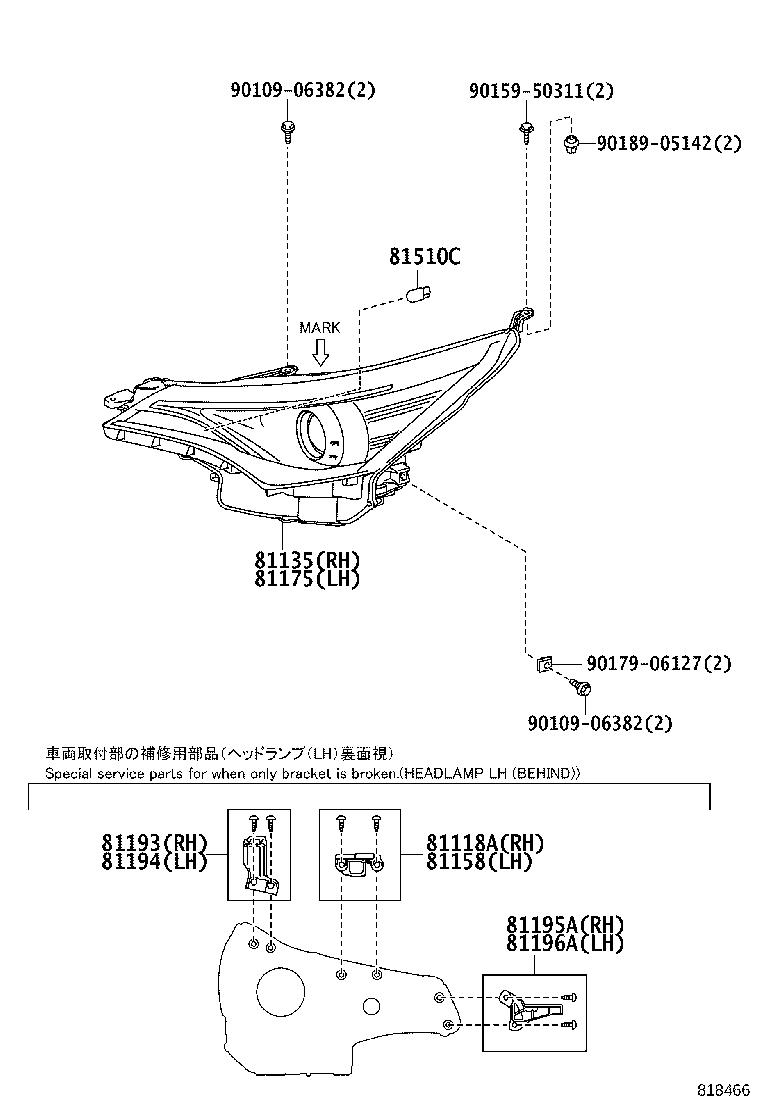

LED HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81118A - BRACKET, HEADLAMP, RH | ||||
| 81118-05351 |
WWT27#,ZRT27# |
1 | ||
| 81118-05310 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81140-05330 |
ADT27#,ZRT27#..LHD..(E,F,G,V) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81130-05310 |
ADT27#,ZRT27#..LHD |
1 | ||
| 81130-05420 |
WWT27#,ZRT271,272..LHD..G HEADLAMP-LED & WITH(AFS),MARK:KOITO 05-40 |
1 | ||
| 81130-05380 |
WWT27#,ZRT27#..LHD..(E,G)..(DCR,HTWVM) HEADLAMP-HALOGEN & WITH(*AHB) |
1 | ||
| 81130-05400 |
WWT27#,ZRT27#..LHD..(E,G) MARK:KOITO 05-38 |
1 | ||
| 81130-05380 |
ZRT272..LHD..E;WWT27#,ZRT270,271..LHD..(E,G) HEADLAMP-HALOGEN |
1 | ||
| 81130-05420 |
WWT27#,ZRT271,272..LHD..G HEADLAMP-LED & WITH(AFS & *AHB),MARK:KOITO 05-40 |
1 | ||
| 81130-05450 |
WWT27#,ZRT27#..LHD..(E,G) MARK:KOITO 05-47 |
1 | ||
| 81130-05470 |
WWT27#,ZRT271,272..LHD..G HEADLAMP-LED & WITH(AFS & *AHB),MARK:KOITO 05-49 |
1 | ||
| 81130-05470 |
WWT27#,ZRT271,272..LHD..G HEADLAMP-LED & WITH(AFS),MARK:KOITO 05-49 |
1 | ||
| 81158 - BRACKET, HEADLAMP, LH | ||||
| 81158-05310 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81158-05351 |
WWT27#,ZRT27# |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81070-05330 |
ADT27#,ZRT27#..LHD..(E,F,G,V) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81170-05310 |
ADT27#,ZRT27#..LHD |
1 | ||
| 81170-05400 |
WWT27#,ZRT27#..LHD..(E,G) MARK:KOITO 05-38 |
1 | ||
| 81170-05380 |
WWT27#,ZRT27#..LHD..(E,G)..(DCR,HTWVM) HEADLAMP-HALOGEN & WITH(*AHB) |
1 | ||
| 81170-05420 |
WWT27#,ZRT271,272..LHD..G HEADLAMP-LED & WITH(AFS & *AHB),MARK:KOITO 05-40 |
1 | ||
| 81170-05450 |
WWT27#,ZRT27#..LHD..(E,G) MARK:KOITO 05-47 |
1 | ||
| 81170-05380 |
ZRT272..LHD..E;WWT27#,ZRT270,271..LHD..(E,G) HEADLAMP-HALOGEN |
1 | ||
| 81170-05420 |
WWT27#,ZRT271,272..LHD..G HEADLAMP-LED & WITH(AFS),MARK:KOITO 05-40 |
1 | ||
| 81170-05470 |
WWT27#,ZRT271,272..LHD..G HEADLAMP-LED & WITH(AFS),MARK:KOITO 05-49 |
1 | ||
| 81170-05470 |
WWT27#,ZRT271,272..LHD..G HEADLAMP-LED & WITH(AFS & *AHB),MARK:KOITO 05-49 |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-05060 |
WWT27#,ZRT27# |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-05050 |
WWT27#,ZRT27# |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81193-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81195-05040 |
WWT27#,ZRT27# |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81194-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81196-05050 |
WWT27#,ZRT27# |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) 12V 21W,AMBER |
2 | ||
| 90981-15021 |
WWT27#,ZRT27# 12V 21W,AMBER |
2 | ||
| Common parts | ||||
| 90109-06382 | ||||
| 90159-50311 | ||||
| 90179-06127 | ||||
| 90189-05142 | ||||
