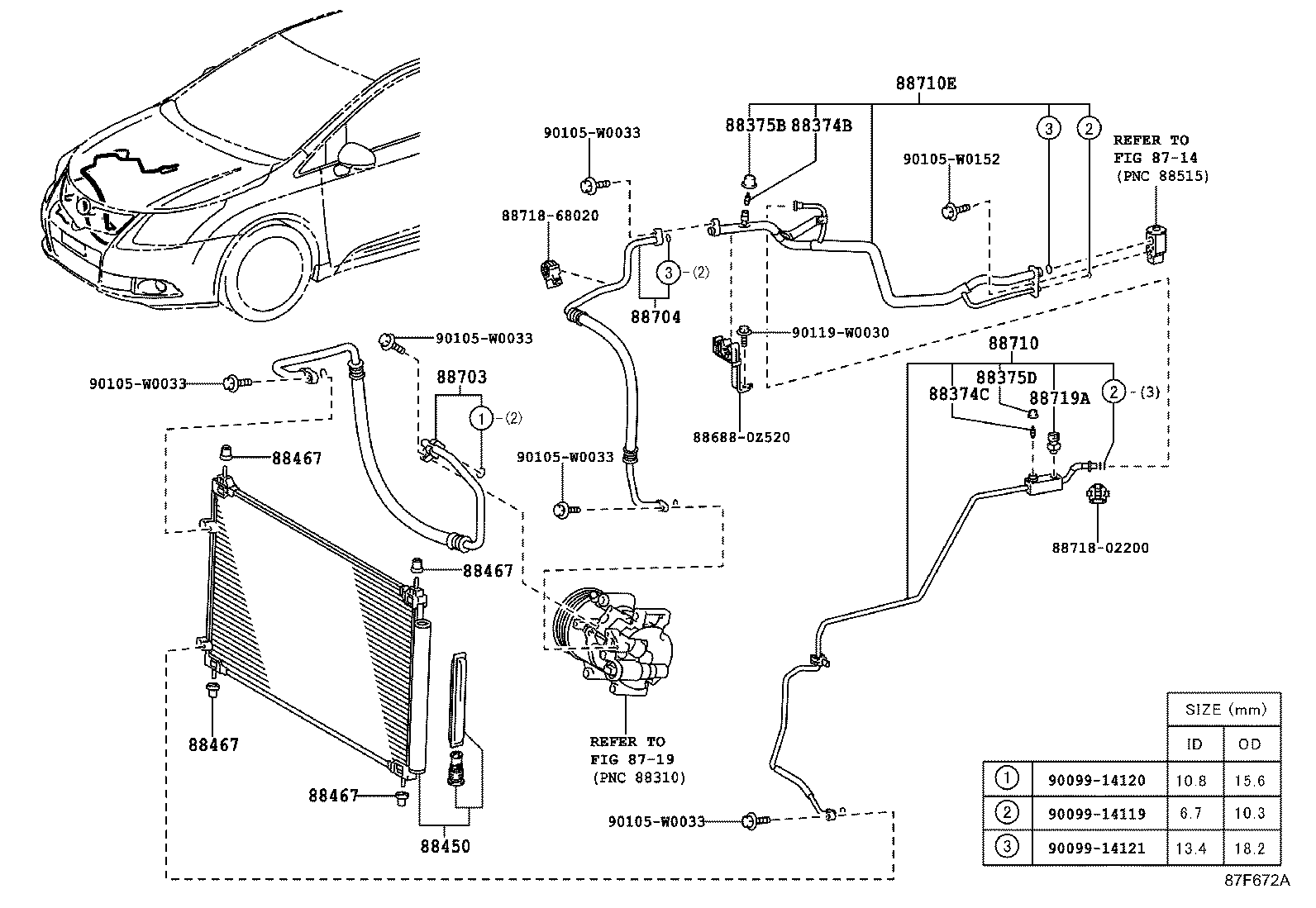

ZRT271L-AEXEPW (2015)
Toyota Avensis
(1505- )ZRT27#
W(REFRIGERANT:R-134A)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
WWT27#,ZRT27# |
1 | ||
| 88374-30010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 88374-30010 |
WWT27#,ZRT270,271 BASE PACKAGE |
1 | ||
| 88374-30010 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-33070 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 88374-30010 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88374-30010 |
WWT27#,ZRT27# |
1 | ||
| 88374-30010 |
WWT27#,ZRT270,271 BASE PACKAGE |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
WWT27#,ZRT27#..DCR,HTWVM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE |
1 | ||
| 88375-30290 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 88375-30290 |
WWT27#,ZRT27#..DCR,HTWVM |
1 | ||
| 88375-30310 |
WWT27#,ZRT270,271 BASE PACKAGE |
1 | ||
| 88375-30310 |
WWT27#,ZRT27#..DCR,HTWVM |
1 | ||
| 88375-30290 |
WWT27#,ZRT270,271 BASE PACKAGE |
1 | ||
| 88375-30290 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88375-30310 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
WWT27#,ZRT27#..DCR,HTWVM |
1 | ||
| 88375-30280 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 88375-30320 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88375-30280 |
WWT27#,ZRT270,271 BASE PACKAGE |
1 | ||
| 88375-30280 |
WWT27#,ZRT27#..DCR,HTWVM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE |
1 | ||
| 88375-30280 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88375-30320 |
WWT27#,ZRT270,271 BASE PACKAGE |
1 | ||
| 88375-30320 |
WWT27#,ZRT27#..DCR,HTWVM |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-02280 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 88450-02520 |
ZRT270,271 BASE PACKAGE |
1 | ||
| 88450-05220 |
ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88450-05220 |
ZRT27#..HTWVM |
1 | ||
| 88450-02520 |
ZRT27#..HTWVM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE |
1 | ||
| 88450-02520 |
ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88450-02520 |
ZRT27#..HTWVM |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
4 | ||
| 16716-28010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
4 | ||
| 16716-28010 |
WWT27#,ZRT27# |
4 | ||
| 16716-28010 |
WWT27#,ZRT270,271 BASE PACKAGE |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
4 | ||
| 16716-28010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
4 | ||
| 16716-28010 |
WWT27#,ZRT27# |
4 | ||
| 16716-28010 |
WWT27#,ZRT270,271 BASE PACKAGE |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
4 | ||
| 16716-28010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
4 | ||
| 16716-28010 |
WWT27#,ZRT27# |
4 | ||
| 16716-28010 |
WWT27#,ZRT270,271 BASE PACKAGE |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
4 | ||
| 16716-28010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
4 | ||
| 16716-28010 |
WWT27#,ZRT27# |
4 | ||
| 16716-28010 |
WWT27#,ZRT270,271 BASE PACKAGE |
4 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12010 |
ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88474-12010 |
ZRT270,271 BASE PACKAGE |
1 | ||
| 88474-12010 |
ZRT27#..HTWVM |
1 | ||
| 88474-17010 |
ADT27#,ZRT27# |
1 | ||
| 88474-17010 |
ADT271..6F;ZRT271..6F..N;ZRT271..SED..E;ADT271..6FC..G;ADT270,ZRT270,272;ZRT271..WG..6F..E;ZRT271..LHD..WG..CVT..E BASE PACKAGE |
1 | ||
| 88474-12010 |
ZRT27#..HTWVM |
1 | ||
| 88474-12010 |
ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-05360 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 88703-05390 |
ZRT270,271 BASE PACKAGE |
1 | ||
| 88703-05390 |
ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88703-05390 |
ZRT27#..HTWVM |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-05390 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 88704-0Z130 |
ZRT270,271 BASE PACKAGE |
1 | ||
| 88704-0Z130 |
ZRT27#..HTWVM |
1 | ||
| 88704-0Z130 |
ZRT27#..HTWVM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE |
1 | ||
| 88704-0Z130 |
ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88704-0F120 |
ZRT27#..HTWVM |
1 | ||
| 88704-0F120 |
ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88704-0F120 |
ZRT270,271 BASE PACKAGE |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-02200 |
WWT27#,ZRT270,271 BASE PACKAGE |
1 | ||
| 88707-05070 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 88707-02200 |
WWT27#,ZRT27#..DCR,HTWVM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE |
1 | ||
| 88707-02200 |
WWT27#,ZRT27#..DCR,HTWVM |
1 | ||
| 88707-02200 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-05420 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 88710-05510 |
ZRT27#..HTWVM |
1 | ||
| 88710-05510 |
ZRT27#..HTWVM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE |
1 | ||
| 88710-05510 |
ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88710-05540 |
ZRT270,271 BASE PACKAGE |
1 | ||
| 88710-05510 |
ZRT270,271 BASE PACKAGE |
1 | ||
| 88710-05540 |
ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88710-05540 |
ZRT27#..HTWVM |
1 | ||
| 88718M - CLAMP, PIPING | ||||
| 88718-52260 |
ZRT27#..HTWVM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE |
1 | ||
| 88718-52260 |
ZRT270,271 BASE PACKAGE |
1 | ||
| 88718-52260 |
ZRT27#..HTWVM |
1 | ||
| 88718-52260 |
ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 88719-33020 |
WWT27#,ZRT27# |
1 | ||
| 88719-33020 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88719-33020 |
WWT27#,ZRT270,271 BASE PACKAGE |
1 | ||
| Common parts | ||||
| 88688-0Z520 | ||||
| 88718-02890 | ||||
| 88718-68020 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-W0033 | ||||
| 90105-W0152 | ||||
| 90119-W0030 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

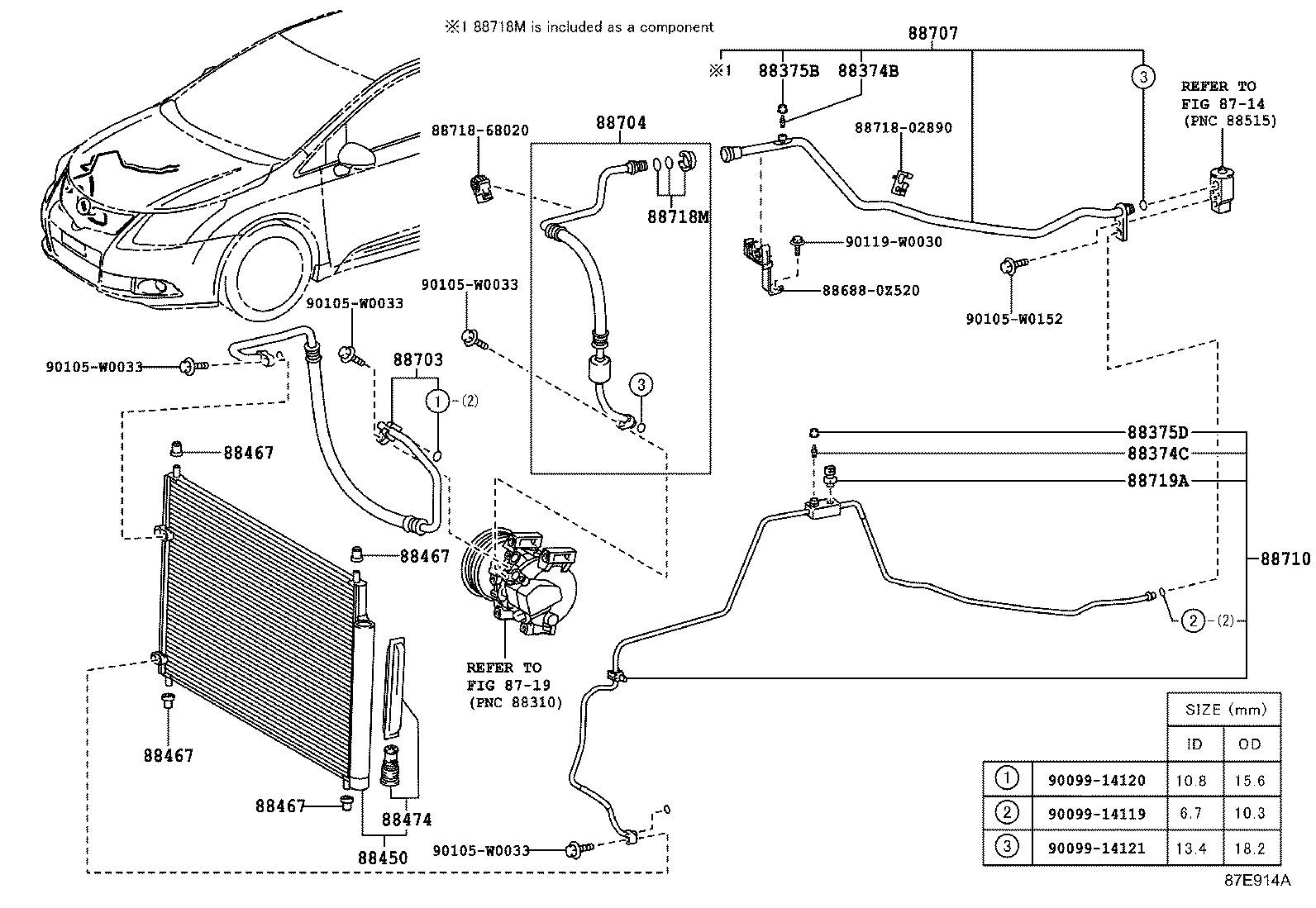

(1607- )HTWVM
W(REFRIGERANT:R-1234YF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
WWT27#,ZRT27# |
1 | ||
| 88374-30010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 88374-30010 |
WWT27#,ZRT270,271 BASE PACKAGE |
1 | ||
| 88374-30010 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-33070 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 88374-30010 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88374-30010 |
WWT27#,ZRT27# |
1 | ||
| 88374-30010 |
WWT27#,ZRT270,271 BASE PACKAGE |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
WWT27#,ZRT27#..DCR,HTWVM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE |
1 | ||
| 88375-30290 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 88375-30290 |
WWT27#,ZRT27#..DCR,HTWVM |
1 | ||
| 88375-30310 |
WWT27#,ZRT270,271 BASE PACKAGE |
1 | ||
| 88375-30310 |
WWT27#,ZRT27#..DCR,HTWVM |
1 | ||
| 88375-30290 |
WWT27#,ZRT270,271 BASE PACKAGE |
1 | ||
| 88375-30290 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88375-30310 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
WWT27#,ZRT27#..DCR,HTWVM |
1 | ||
| 88375-30280 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 88375-30320 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88375-30280 |
WWT27#,ZRT270,271 BASE PACKAGE |
1 | ||
| 88375-30280 |
WWT27#,ZRT27#..DCR,HTWVM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE |
1 | ||
| 88375-30280 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88375-30320 |
WWT27#,ZRT270,271 BASE PACKAGE |
1 | ||
| 88375-30320 |
WWT27#,ZRT27#..DCR,HTWVM |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-02280 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 88450-02520 |
ZRT270,271 BASE PACKAGE |
1 | ||
| 88450-05220 |
ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88450-05220 |
ZRT27#..HTWVM |
1 | ||
| 88450-02520 |
ZRT27#..HTWVM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE |
1 | ||
| 88450-02520 |
ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88450-02520 |
ZRT27#..HTWVM |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
4 | ||
| 16716-28010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
4 | ||
| 16716-28010 |
WWT27#,ZRT27# |
4 | ||
| 16716-28010 |
WWT27#,ZRT270,271 BASE PACKAGE |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
4 | ||
| 16716-28010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
4 | ||
| 16716-28010 |
WWT27#,ZRT27# |
4 | ||
| 16716-28010 |
WWT27#,ZRT270,271 BASE PACKAGE |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
4 | ||
| 16716-28010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
4 | ||
| 16716-28010 |
WWT27#,ZRT27# |
4 | ||
| 16716-28010 |
WWT27#,ZRT270,271 BASE PACKAGE |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
4 | ||
| 16716-28010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
4 | ||
| 16716-28010 |
WWT27#,ZRT27# |
4 | ||
| 16716-28010 |
WWT27#,ZRT270,271 BASE PACKAGE |
4 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-05360 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 88703-05390 |
ZRT270,271 BASE PACKAGE |
1 | ||
| 88703-05390 |
ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88703-05390 |
ZRT27#..HTWVM |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-05390 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 88704-0Z130 |
ZRT270,271 BASE PACKAGE |
1 | ||
| 88704-0Z130 |
ZRT27#..HTWVM |
1 | ||
| 88704-0Z130 |
ZRT27#..HTWVM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE |
1 | ||
| 88704-0Z130 |
ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88704-0F120 |
ZRT27#..HTWVM |
1 | ||
| 88704-0F120 |
ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88704-0F120 |
ZRT270,271 BASE PACKAGE |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-05420 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 88710-05510 |
ZRT27#..HTWVM |
1 | ||
| 88710-05510 |
ZRT27#..HTWVM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE |
1 | ||
| 88710-05510 |
ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88710-05540 |
ZRT270,271 BASE PACKAGE |
1 | ||
| 88710-05510 |
ZRT270,271 BASE PACKAGE |
1 | ||
| 88710-05540 |
ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88710-05540 |
ZRT27#..HTWVM |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0F080 |
ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88710-0F080 |
ZRT27#..HTWVM |
1 | ||
| 88710-0F080 |
ZRT270,271 BASE PACKAGE |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 88719-33020 |
WWT27#,ZRT27# |
1 | ||
| 88719-33020 |
WWT27#,ZRT270,271..E,G BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&AUDIO-6PEAKER & WITH(AUDIO LESS COVER) |
1 | ||
| 88719-33020 |
WWT27#,ZRT270,271 BASE PACKAGE |
1 | ||
| Common parts | ||||
| 88688-0Z520 | ||||
| 88718-02200 | ||||
| 88718-68020 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-W0033 | ||||
| 90105-W0152 | ||||
| 90119-W0030 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
