ZRT271L-AEXEPW (2008)

Toyota Avensis

Production Nov 2008 - Nov 2011
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0811- )ZRT271..CVT

Click highlighted areas on diagram

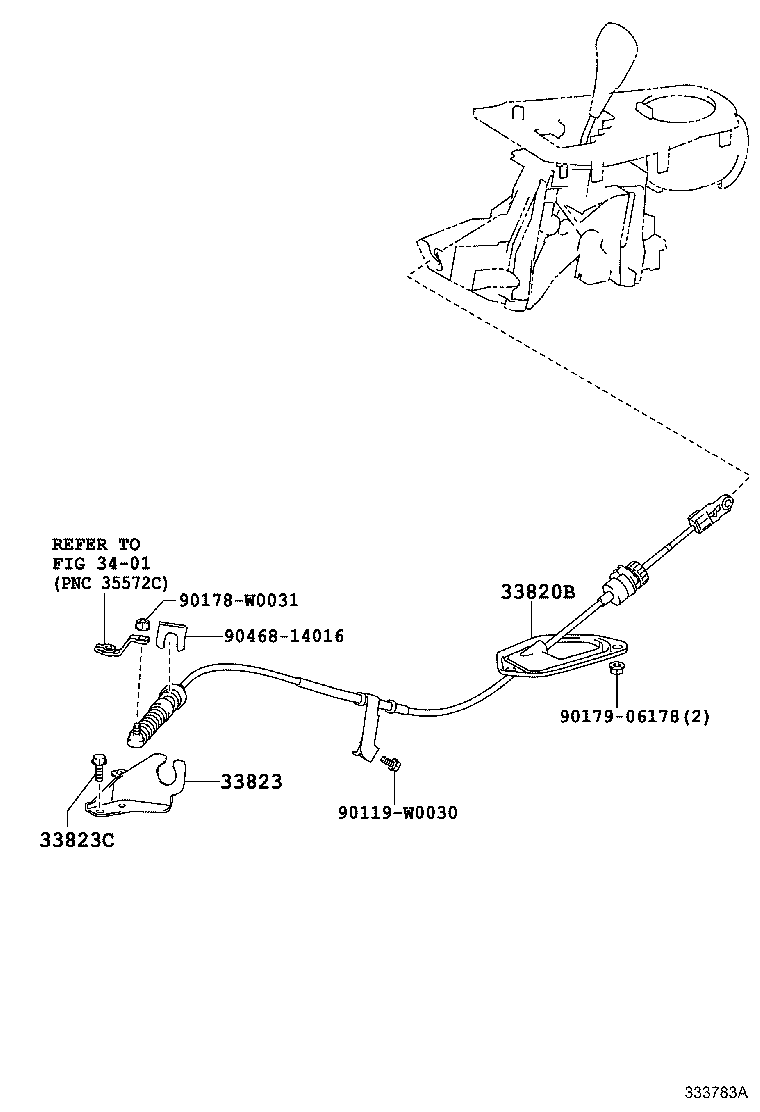

diagram 33820B 33823 33823C 3401 90119W0030 90178W0031 9017906178 9046814016
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-20A50

ZRT271..CVT

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-12190

ZRT271..CVT

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-W0027

ZRT272..LHD..4FC;ADT271,ZRT271,272..(ATM,CVT)..(DCRL,HTWVM)

 2
Common parts
90119-W0030
90178-W0031
90179-06178
90468-14016
Linked diagrams
3401

ILLUST NO. 1 OF 2(0811- )ATM,CVT

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33560 33563 33866 35906 35907 35971E 35974 35975 35976 5806 8401 90119W0104 90119W0128 9356054012
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-20290C0

ADT271,ZRT271,272..(ATM,CVT)..(E,G,V)

BLACK,TRIM2#,4#

 1
33504-20290C1

ZRT272..CVT..G;ZRT272..RHD..CVT;ZRT272..LHD..4FC;ADT271,ZRT271..(ATM,CVT)..(E,G,V)

BLACK & GRAY,TRIM2#,4#

 1
33550D - BULB, POSITION INDICATOR LAMP
35955-20010

ZRT272..LHD..4FC;ADT271,ZRT271,272..(ATM,CVT)..(DCRL,HTWVM)

12V 2.0W

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-20010

ZRT272..LHD..4FC;ADT271,ZRT271,272..(ATM,CVT)..(DCRL,HTWVM)

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-20180

ADT271,ZRT271,272..LHD..(ATM,CVT)

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-20230

ADT271,ZRT271,272..LHD..(ATM,CVT)

 1
33866 - SPRING, SHIFT LOCK RELEASE
33866-33010

ZRT272..LHD..4FC;ADT271,ZRT271,272..(ATM,CVT)..(DCRL,HTWVM)

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-20170

ZRT272..LHD..4FC;ADT271,ZRT271,272..(ATM,CVT)..(DCRL,HTWVM)

 1
35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35907-20320

ADT271,ZRT271,272..LHD..(ATM,CVT)

 1
35971E - HOUSING, POSITION INDICATOR
35974-20360

ADT271,ZRT271,272..LHD..(ATM,CVT)..(DCRL,HTWVM)

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-20300

ADT271,ZRT271,272..LHD..(ATM,CVT)

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-20260

ZRT272..LHD..4FC;ADT271,ZRT271,272..(ATM,CVT)..(DCRL,HTWVM)

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-20180

ZRT272..LHD..4FC;ADT271,ZRT271,272..(ATM,CVT)..(DCRL,HTWVM)

 1
Common parts
90119-W0104
90119-W0128
93560-54012
Linked diagrams
5806
8401
