ZRT271L-AEXEPW (2008)
Toyota Avensis

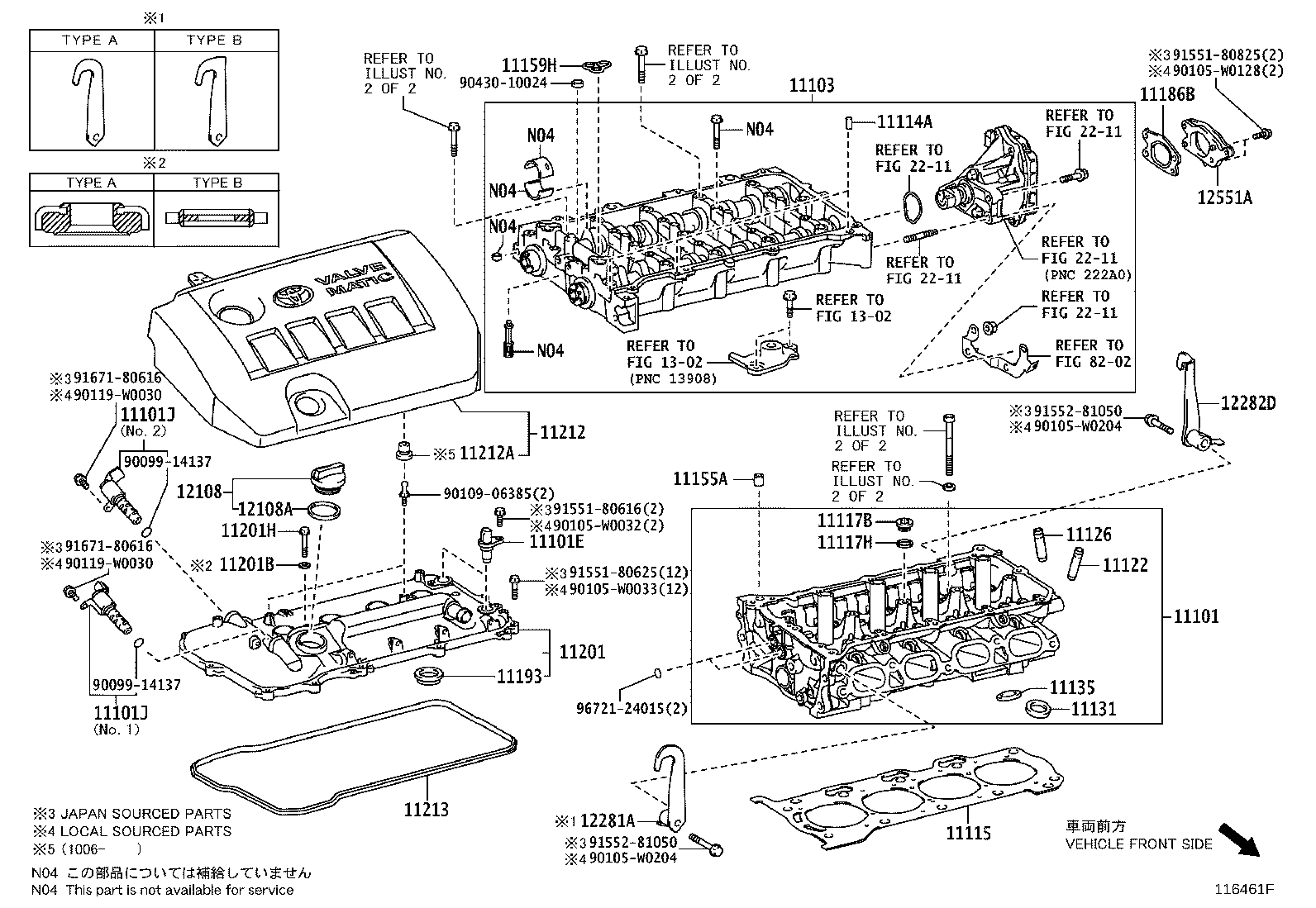

ILLUST NO. 1 OF 2(0811- )1ZRFAE,2ZRFAE,3ZRFAE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-09300 |
1ZRFAE,2ZRFAE..ZRT270,271 (L) |
1 | ||
| 11101-39686 |
1ZRFAE,2ZRFAE..ZRT270,271 (J) |
1 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05060 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
2 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-0T050 |
1ZRFAE,2ZRFAE..ZRT270,271 (L),NO.1 |
1 | ||
| 15330-37020 |
1ZRFAE,2ZRFAE..ZRT270,271 (J),NO.2 |
1 | ||
| 15330-37010 |
1ZRFAE,2ZRFAE..ZRT270,271 (J),NO.1 |
1 | ||
| 15330-0T060 |
1ZRFAE,2ZRFAE..ZRT270,271 (L),NO.2 |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-0T050 |
1ZRFAE,2ZRFAE..ZRT270,271 (L),NO.1 |
1 | ||
| 15330-37020 |
1ZRFAE,2ZRFAE..ZRT270,271 (J),NO.2 |
1 | ||
| 15330-37010 |
1ZRFAE,2ZRFAE..ZRT270,271 (J),NO.1 |
1 | ||
| 15330-0T060 |
1ZRFAE,2ZRFAE..ZRT270,271 (L),NO.2 |
1 | ||
| 11103 - HOUSING SUB-ASSY, CAMSHAFT | ||||
| 11107-37013 |
1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 11107-37012 |
1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 11107-37014 |
1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-06001 |
1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# L=14,OD=6 |
3 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-37050 |
1ZRFAE,2ZRFAE..ZRT270,271 |
1 | ||
| 11115-37060 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 11115-37051 |
1ZRFAE..ZRT270..SED;2ZRFAE..ZRT271..6F..N;2ZRFAE..ZRT271..SED..E;2ZRFAE..ZRT271..WG..6F..E;1ZRFAE..ZRT270..LHD..WG..N;2ZRFAE..ZRT271..LHD..WG..CVT..E |
1 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90341-20002 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
3 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-31050 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# O/S 0.05 |
8 | ||
| 11122-31050 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-31030 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# STD |
8 | ||
| 11127-31030 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# O/S 0.05 |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-37020 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# O/S 0.03 |
8 | ||
| 11131-37020 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-37020 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# O/S 0.03 |
8 | ||
| 11135-37020 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# STD |
8 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-12002 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
2 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-37010 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
2 | ||
| 11186B - GASKET, CAMSHAFT HOUSING REAR COVER | ||||
| 11186-37010 |
1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-0T010 |
1ZRFAE,2ZRFAE..ZRT270,271 (L) |
4 | ||
| 11193-37020 |
1ZRFAE,2ZRFAE..ZRT270,271 (J) |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0T050 |
1ZRFAE,2ZRFAE..ZRT270,271 (L) |
1 | ||
| 11201-37010 |
1ZRFAE,2ZRFAE..ZRT270,271 (J) |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 16258-37010 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# TYPE B:REFER ILLUST. |
1 | ||
| 90210-06013 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# TYPE A:REFER ILLUST. |
1 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 91551-80670 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 11212 - COVER, CYLINDER HEAD, NO.2 | ||||
| 11212-37031 |
1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 11212-37030 |
1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 11212A - CUSHION, CYLINDER HEAD COVER | ||||
| 90480-16049 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
4 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-37020 |
1ZRFAE,2ZRFAE..ZRT270,271 (J) |
1 | ||
| 11213-0T020 |
1ZRFAE,2ZRFAE..ZRT270,271 (L) |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-38010 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-37021 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-37011 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 12551A - BRACKET, VACUUM PUMP, NO.1 | ||||
| 12551-37010 |
1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| Common parts | ||||
| 90099-14137 | ||||
| 90105-W0032 | ||||
| 90105-W0033 | ||||
| 90105-W0128 | ||||
| 90105-W0204 | ||||
| 90109-06385 | ||||
| 90119-W0030 | ||||
| 90430-10024 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91551-80825 | ||||
| 91552-81050 | ||||
| 91671-80616 | ||||
| 96721-24015 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 2211 | ||||
| 8202 | ||||

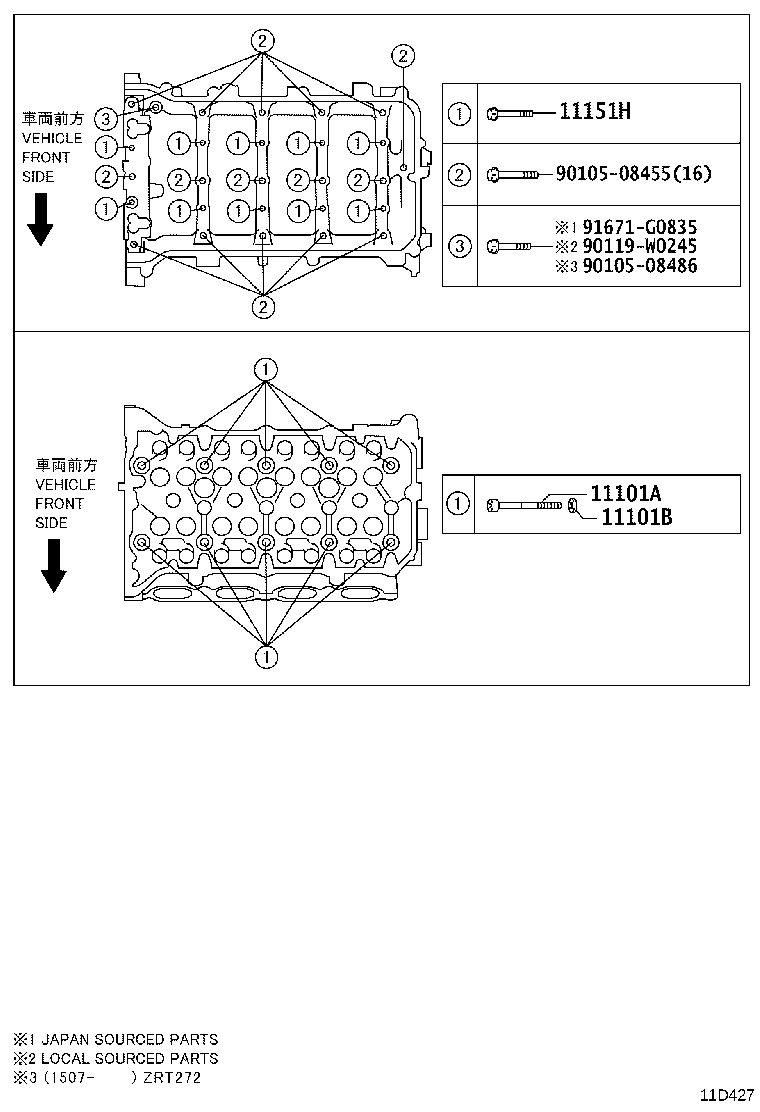

ILLUST NO. 2 OF 2(0811- )1ZRFAE,2ZRFAE,3ZR#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02166 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
10 | ||
| Common parts | ||||
| 90105-08455 | ||||
| 90105-08486 | ||||
| 90119-W0245 | ||||
| 91671-G0835 | ||||
