ZRT270R-AEFEPW (2008)
Toyota Avensis

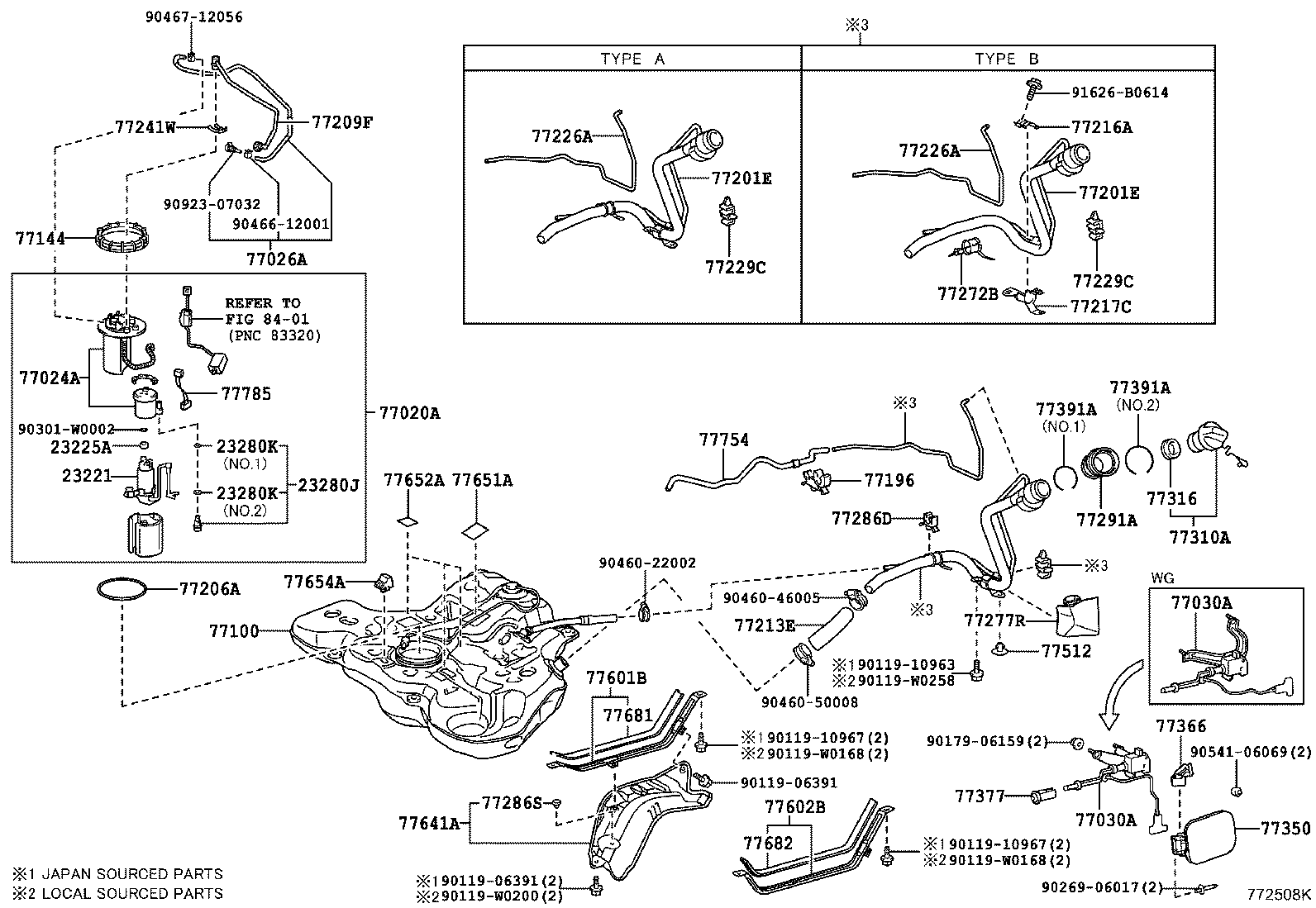

ILLUST NO. 1 OF 2(0811- )ZRT27#
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-0T060 |
1ZRFAE..ZRT270 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-0T010 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# NO.2 |
1 | ||
| 90301-04013 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# NO.1 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# NO.2 |
1 | ||
| 90301-04013 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# NO.1 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-05130 |
ZRT270 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-05010 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-02030 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-05020 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-05020 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-05050 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0H010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-02050 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-20660 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-20660 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-0D030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02090 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-20190 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-20060 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-20060 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-12070 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-12070 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12180 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-42060 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 77286S - CUSHION, FUEL TANK PROTECTOR | ||||
| 77286-12110 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-05040 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-05030 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-33030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-05020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) NO.1 |
1 | ||
| 77391-20040 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) NO.2 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) NO.1 |
1 | ||
| 77391-20040 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) NO.2 |
1 | ||
| 77512 - BRACKET, FUEL TANK, REAR | ||||
| 77512-35140 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-05050 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-05040 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-02070 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-45020 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
3 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77654-12090 |
ZRT27# |
1 | ||
| 77654-02020 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-05010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-05020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-02060 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-12020 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| Common parts | ||||
| 90119-06391 | ||||
| 90119-10963 | ||||
| 90119-10967 | ||||
| 90119-W0168 | ||||
| 90119-W0200 | ||||
| 90119-W0258 | ||||
| 90179-06159 | ||||
| 90269-06017 | ||||
| 90301-W0002 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90466-12001 | ||||
| 90467-12056 | ||||
| 90541-06069 | ||||
| 90923-07032 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

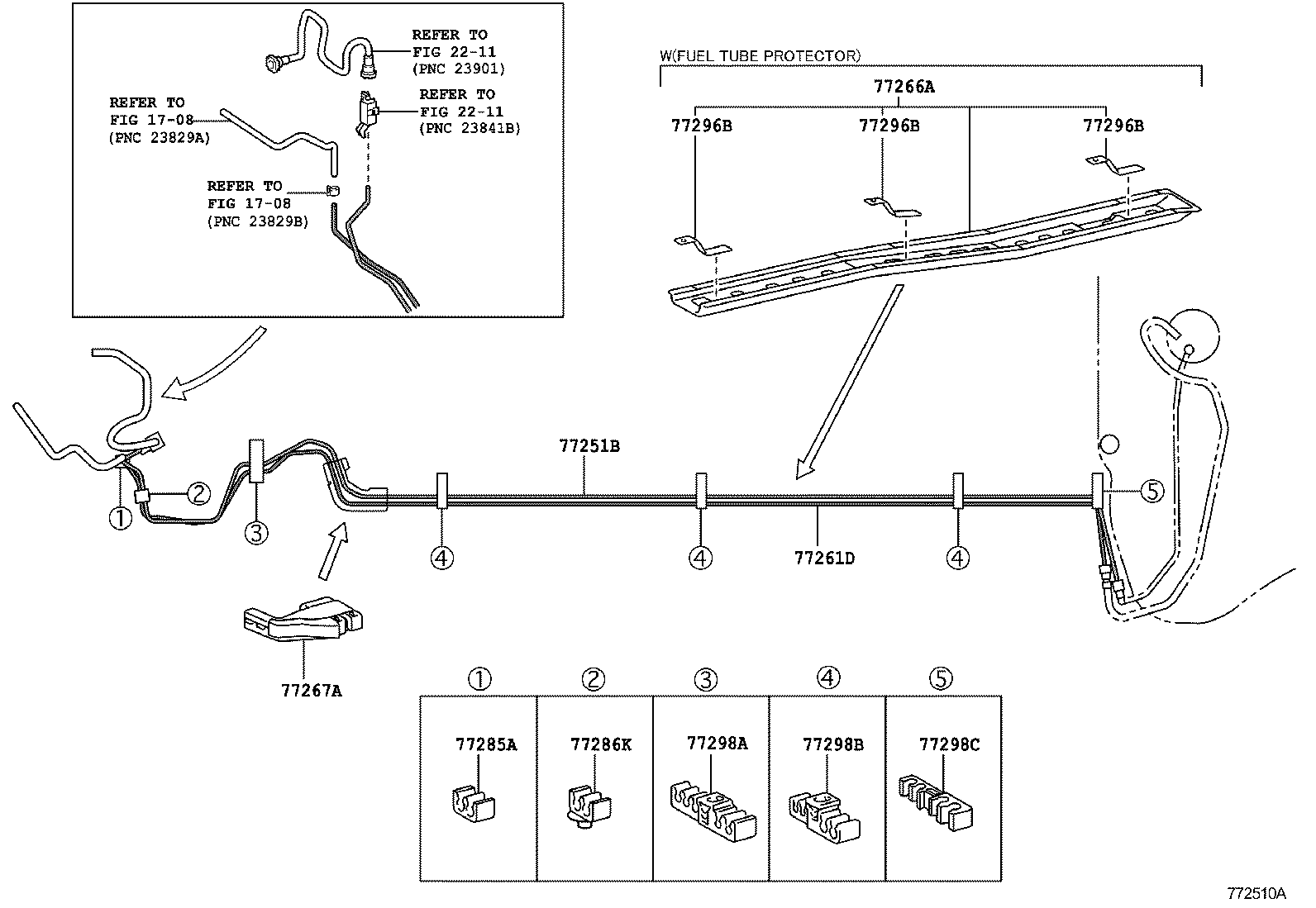

ILLUST NO. 2 OF 2(0811- )ZRT27#
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-05240 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-05111 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-05040 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-42110 |
ZRT27#..HTWVM;ZRT272..LHD..HTWC |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-20190 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52070 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
3 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-12120 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
