ZRT270R-AEFEPW (2011)
Toyota Avensis
(1111-1301)1ZRFAE,2ZRFAE,3ZR#
12V 100A

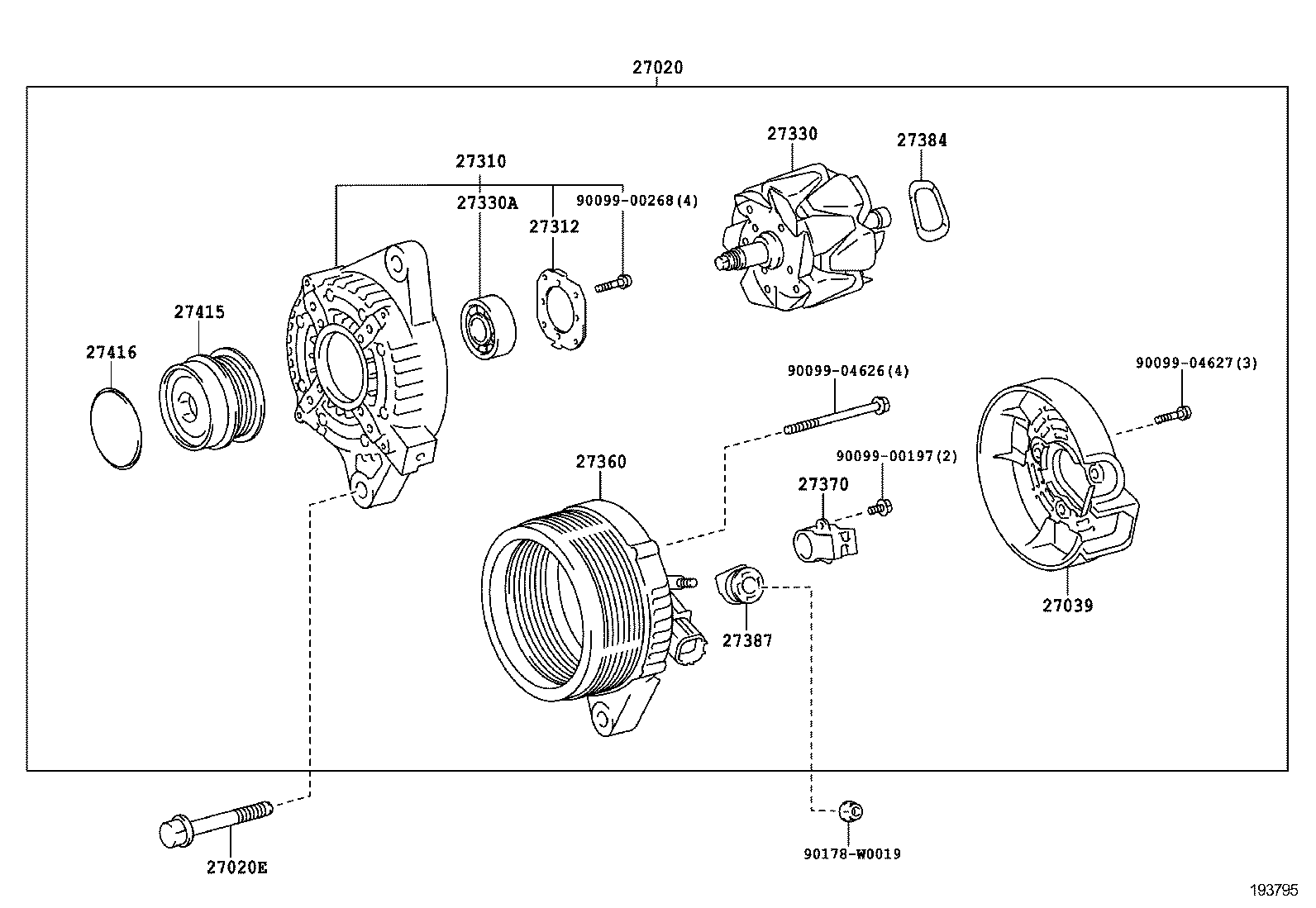

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0T050 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# 12V 100A |
1 | ||
| 27060-0T181 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# 12V 100A |
1 | ||
| 27060-0T180 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10307 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 90105-10307 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-26170 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27039-0N060 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27039-0Y150 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-37030 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 27310-0T180 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27310-0T050 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1ADFTV..ADT270..RHD;1ADFTV,3ZRFE..ADT270,ZRT272..LHD..(E,N);2AD#,1ZRFAE,2ZRFAE,3ZRFAE..ADT271,ZRT27# |
1 | ||
| 27312-72100 |
1ADFTV,2AD#,1ZRFAE,2ZRFAE,3ZR#..ADT27#,ZRT27# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-30070 |
1ADFTV..ADT270..RHD;1ADFTV,3ZRFE..ADT270,ZRT272..LHD..(E,N);2AD#,1ZRFAE,2ZRFAE,3ZRFAE..ADT271,ZRT27#..CVT,MTM |
1 | ||
| 27330-0N060 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27330-0Y150 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10223 |
1ADFTV,2AD#,1ZRFAE,2ZRFAE,3ZR#..ADT27#,ZRT27# |
1 | ||
| 90099-10223 |
1ADFTV..ADT270..RHD;1ADFTV,3ZRFE..ADT270,ZRT272..LHD..(E,N);2AD#,1ZRFAE,2ZRFAE,3ZRFAE..ADT271,ZRT27# |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0T050 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27360-0T051 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27360-37060 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 27370-0Y150 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27370-31220 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27384 - WASHER | ||||
| 27384-38130 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27384-50030 |
1ADFTV..ADT270..RHD;1ADFTV,3ZRFE..ADT270,ZRT272..LHD..(E,N);2AD#,1ZRFAE,2ZRFAE,3ZRFAE..ADT271,ZRT27# |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27387-0Y150 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27387-20130 |
1ADFTV..ADT270..RHD;1ADFTV,3ZRFE..ADT270,ZRT272..LHD..(E,N);2AD#,1ZRFAE,2ZRFAE,3ZRFAE..ADT271,ZRT27# |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0T010 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27415-0T011 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27415-0T060 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W020 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27416-0W020 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 27416-0W050 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04626 | ||||
| 90099-04627 | ||||
| 90178-W0019 | ||||

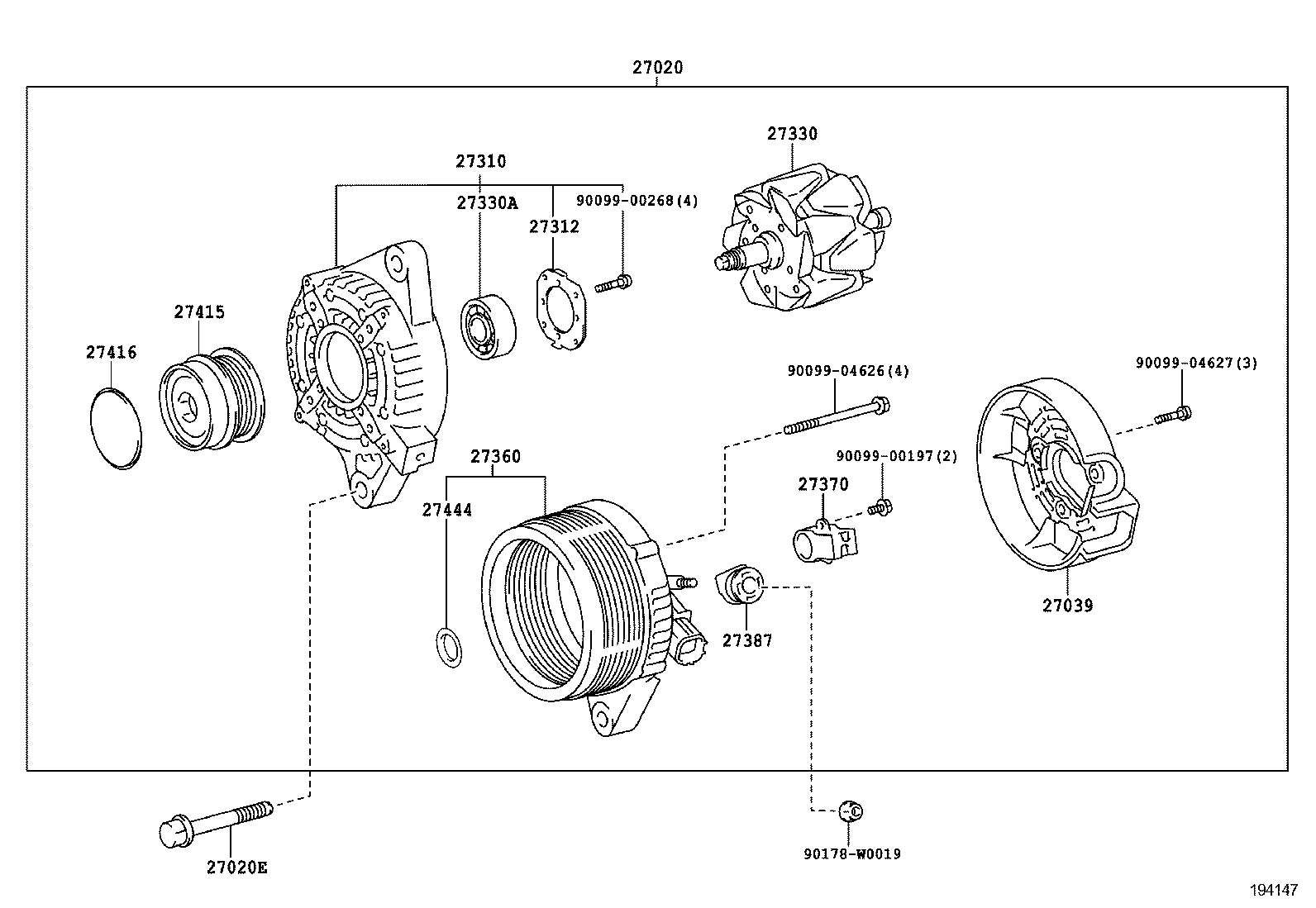

(1301-1505)1ZRFAE,2ZRFAE,3ZR# ; (1505- )3ZRFE
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-0T050 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# 12V 100A |
1 | ||
| 27060-0T181 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# 12V 100A |
1 | ||
| 27060-0T180 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10307 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 90105-10307 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-26170 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27039-0N060 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27039-0Y150 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-37030 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 27310-0T180 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27310-0T050 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1ADFTV..ADT270..RHD;1ADFTV,3ZRFE..ADT270,ZRT272..LHD..(E,N);2AD#,1ZRFAE,2ZRFAE,3ZRFAE..ADT271,ZRT27# |
1 | ||
| 27312-72100 |
1ADFTV,2AD#,1ZRFAE,2ZRFAE,3ZR#..ADT27#,ZRT27# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-30070 |
1ADFTV..ADT270..RHD;1ADFTV,3ZRFE..ADT270,ZRT272..LHD..(E,N);2AD#,1ZRFAE,2ZRFAE,3ZRFAE..ADT271,ZRT27#..CVT,MTM |
1 | ||
| 27330-0N060 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27330-0Y150 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10223 |
1ADFTV,2AD#,1ZRFAE,2ZRFAE,3ZR#..ADT27#,ZRT27# |
1 | ||
| 90099-10223 |
1ADFTV..ADT270..RHD;1ADFTV,3ZRFE..ADT270,ZRT272..LHD..(E,N);2AD#,1ZRFAE,2ZRFAE,3ZRFAE..ADT271,ZRT27# |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-0T050 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27360-0T051 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27360-37060 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31220 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 27370-0Y150 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27370-31220 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27387-0Y150 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27387-20130 |
1ADFTV..ADT270..RHD;1ADFTV,3ZRFE..ADT270,ZRT272..LHD..(E,N);2AD#,1ZRFAE,2ZRFAE,3ZRFAE..ADT271,ZRT27# |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0T010 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27415-0T011 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27415-0T060 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W020 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27416-0W020 |
3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27# |
1 | ||
| 27416-0W050 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| 27444 - PACKING, ALTERNATOR BEARING COVER | ||||
| 27444-21190 |
1ZRFAE,2ZRFAE,3ZR#..ZRT27# |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04626 | ||||
| 90099-04627 | ||||
| 90178-W0019 | ||||
