ZRT270R-AEFEPW (2011)

Toyota Avensis

Production Nov 2011 - May 2015
Engine 1ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811-1505)1ZRFAE,2ZRFAE,3ZR#

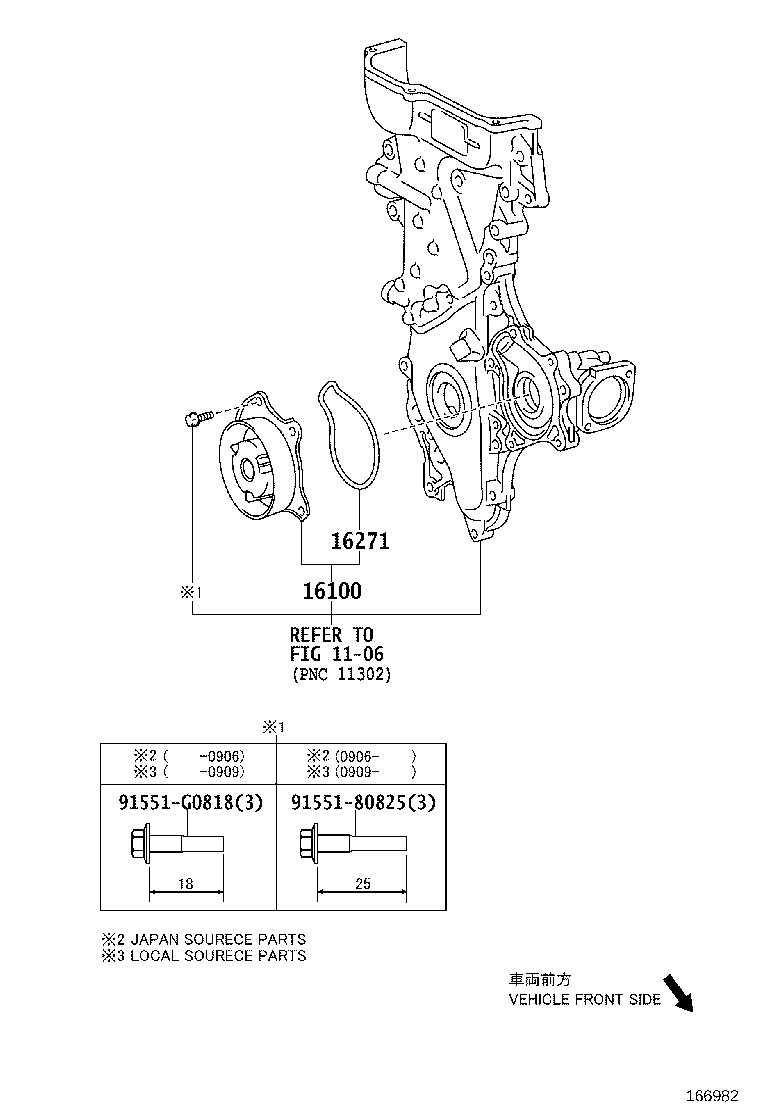

Click highlighted areas on diagram

diagram 1106 16100 16271 9155180825 91551G0818
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39465

1ZRFAE,2ZRFAE..ZRT270,271

(J)

 1
16100-09500

1ZRFAE,2ZRFAE..ZRT270,271

(L)

 1
16100-39466

1ZRFAE,2ZRFAE..ZRT270,271

(J)

 1
16100-09501

1ZRFAE,2ZRFAE..ZRT270,271

(L)

 1
16271 - GASKET, WATER PUMP
16271-37010

3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27#

 1
16271-37010

1ZRFAE,2ZRFAE,3ZR#..ZRT27#

 1
Common parts
91551-80825
91551-G0818
Linked diagrams
1106
