WWT271R-AWFEYW (2015)

Toyota Avensis

Production May 2015 - May 2018
Engine 2WW
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )WWT27#

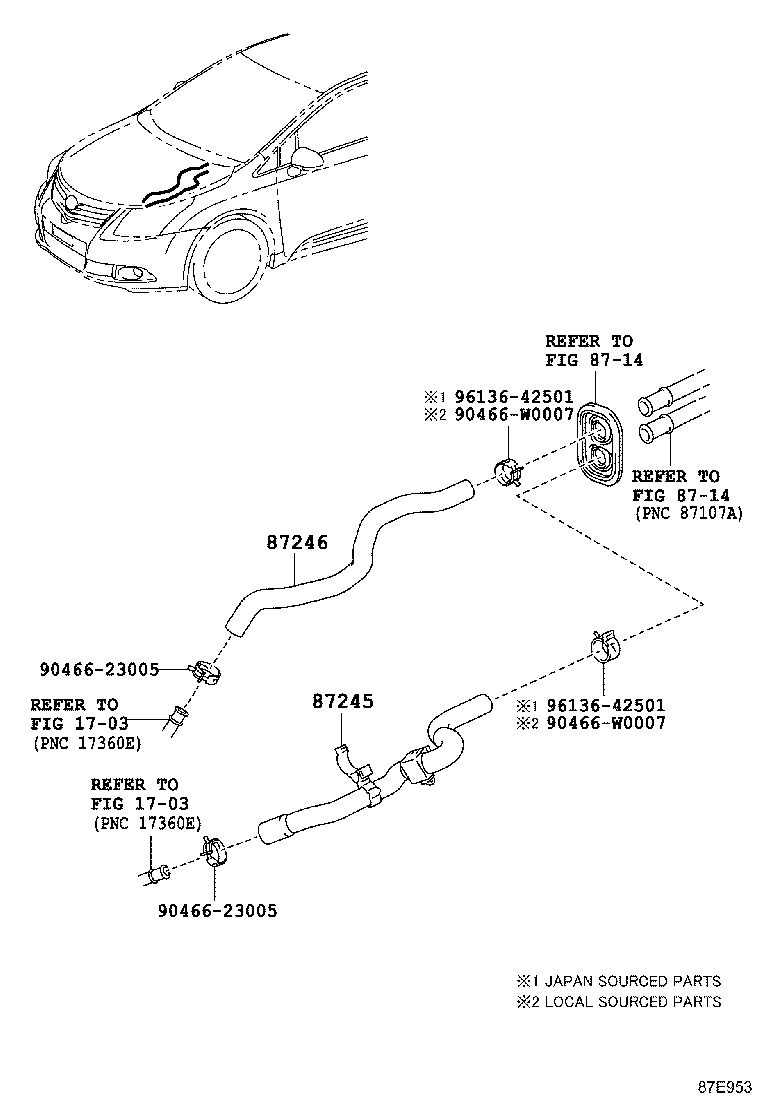

Click highlighted areas on diagram

diagram 1703 1703 8714 8714 87245 87246 9046623005 9046623005 90466W0007 90466W0007 9613642501 9613642501
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-02A10

ZRT270,271

 1
87209-05070

WWT27#

 1
87245-02P00

ZRT270,271

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-02A20

ZRT270,271..6F

 1
87245-05730

WWT27#

 1
87245-02A20

ZRT270,271..6F

 1
Common parts
90466-23005
90466-W0007
96136-42501
Linked diagrams
1703
8714
