WWT271R-AWFEYW (2015)
Toyota Avensis
(1505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

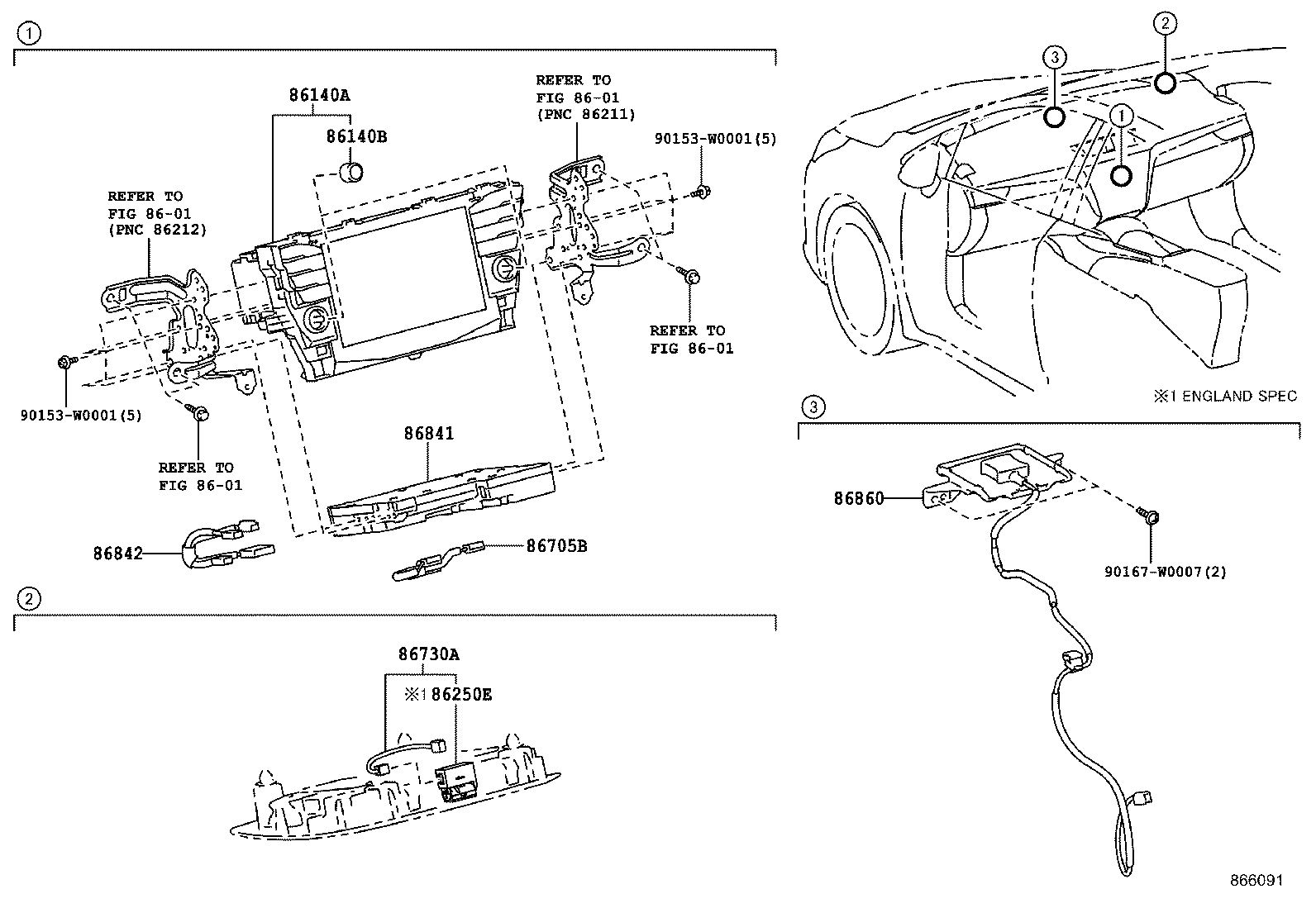

| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-05200 |
WWT27#,ZRT27#..(E,G)..(DCR,HTWVM) PANASONIC,EMV & NAVIGATION SYSTEM-WITHOUT |
1 | ||
| 86140-05210 |
WWT27#,ZRT27#..(E,G)..(DCR,HTWVM) PANASONIC |
1 | ||
| 86140-05230 |
WWT27#,ZRT271,272..G PANASONIC,AUDIO-DISPLAY AUDIO & 10SPEAKER |
1 | ||
| 86140-05240 |
WWT27#,ZRT27#..(E,G)..(DCR,HTWVM) PANASONIC,AUDIO-DISPLAY AUDIO & DAB & 6SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT |
1 | ||
| 86140-05260 |
WWT27#,ZRT271,272..G PANASONIC,AUDIO-DISPLAY AUDIO & DAB & 10SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT |
1 | ||
| 86140-05270 |
WWT27#,ZRT271,272..G PANASONIC,AUDIO-DISPLAY AUDIO & DAB & 10SPEAKER |
1 | ||
| 86140-05250 |
WWT27#,ZRT27#..(E,G)..(DCR,HTWVM) PANASONIC,AUDIO-DISPLAY AUDIO & DAB & 6SPEAKER |
1 | ||
| 86140-05210 |
ZRT272..E..HTWVM;WWT27#,ZRT270,271..E,G PANASONIC,AUDIO-6PEAKER & WITH(AUDIO LESS COVER)&EMV & NAVIGATION SYSTEM-WITHOUT |
1 | ||
| 86140-05220 |
WWT27#,ZRT271,272..G PANASONIC,AUDIO-DISPLAY AUDIO & 10SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT |
1 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90011-25262 |
ZRT272..E..HTWVM;WWT27#,ZRT270,271..E,G AUDIO-6PEAKER & WITH(AUDIO LESS COVER)&EMV & NAVIGATION SYSTEM-WITHOUT |
2 | ||
| 90011-25262 |
WWT27#,ZRT27#..E,G |
2 | ||
| 86250E - MICROPHONE ASSY, AMPLIFIER | ||||
| 86250-52020 |
WWT27#,ZRT27#..RHD..(E,G) ENGLAND SPEC |
1 | ||
| 86705B - CORD SUB-ASSY, TELEPHONE ANTENNA | ||||
| 86705-02070 |
WWT27#,ZRT27#..(E,G)..(DCR,HTWVM) EMV & NAVIGATION SYSTEM-WITHOUT |
1 | ||
| 86705-02070 |
WWT27#,ZRT27#..(E,G)..(DCR,HTWVM) |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-05020 |
WWT27#,ZRT27#..RHD..(E,G) |
1 | ||
| 86730-05020 |
WWT27#,ZRT27#..RHD..E AUDIO-FM & CD & 6SPEAKER |
1 | ||
| 86730-05020 |
WWT27#,ZRT27#..RHD..E ENGLAND SPEC&AUDIO-FM & CD & 6SPEAKER |
1 | ||
| 86730-20060 |
WWT27#,ZRT27#..RHD..(E,G) ENGLAND SPEC |
1 | ||
| 86841 - COMPUTER, NAVIGATION | ||||
| 86840-02014 |
WWT27#,ZRT27#..(E,G)..(DCR,HTWVM) EMV & NAVIGATION SYSTEM-EXTENSION BOX(EASTERN EUROPE) |
1 | ||
| 86840-05011 |
WWT27#,ZRT271,272..G EMV & NAVIGATION SYSTEM-EXTENSION BOX(*VCS & WESTERN EUROPE) |
1 | ||
| 86840-0F020 |
WWT27#,ZRT27#..(E,G)..(DCR,HTWVM) |
1 | ||
| 86840-05021 |
WWT27#,ZRT271,272..G EMV & NAVIGATION SYSTEM-EXTENSION BOX(*VCS & EASTERN EUROPE) |
1 | ||
| 86840-0W013 |
WWT27#,ZRT27#..(E,G)..(DCR,HTWVM) EMV & NAVIGATION SYSTEM-WITHOUT |
1 | ||
| 86840-0W013 |
WWT27#,ZRT27#..(E,G)..(DCR,HTWVM) |
1 | ||
| 86840-0F030 |
WWT27#,ZRT271,272..G EMV & NAVIGATION SYSTEM-EXTENSION BOX(*VCS & WESTERN EUROPE) |
1 | ||
| 86840-0F040 |
WWT27#,ZRT27#..(E,G)..(DCR,HTWVM) EMV & NAVIGATION SYSTEM-EXTENSION BOX(EASTERN EUROPE) |
1 | ||
| 86840-0F050 |
WWT27#,ZRT271,272..G EMV & NAVIGATION SYSTEM-EXTENSION BOX(*VCS & EASTERN EUROPE) |
1 | ||
| 86840-0F020 |
WWT27#,ZRT27#..(E,G)..(DCR,HTWVM) EMV & NAVIGATION SYSTEM-WITHOUT |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-12010 |
WWT27#,ZRT27#..(E,G)..(DCR,HTWVM) |
1 | ||
| 86842-12010 |
WWT27#,ZRT27#..(E,G)..(DCR,HTWVM) EMV & NAVIGATION SYSTEM-WITHOUT |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-05040 |
WWT27#,ZRT27#..RHD..(E,G) EMV & NAVIGATION SYSTEM-WITHOUT |
1 | ||
| 86860-05040 |
WWT27#,ZRT27#..RHD..(E,G) |
1 | ||
| Common parts | ||||
| 90153-W0001 | ||||
| 90167-W0007 | ||||
| Linked diagrams | ||||
| 8601 | ||||
