WWT271R-AWFEYW (2015)

Toyota Avensis

Production May 2015 - May 2018
Engine 2WW
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )1WW,2WW

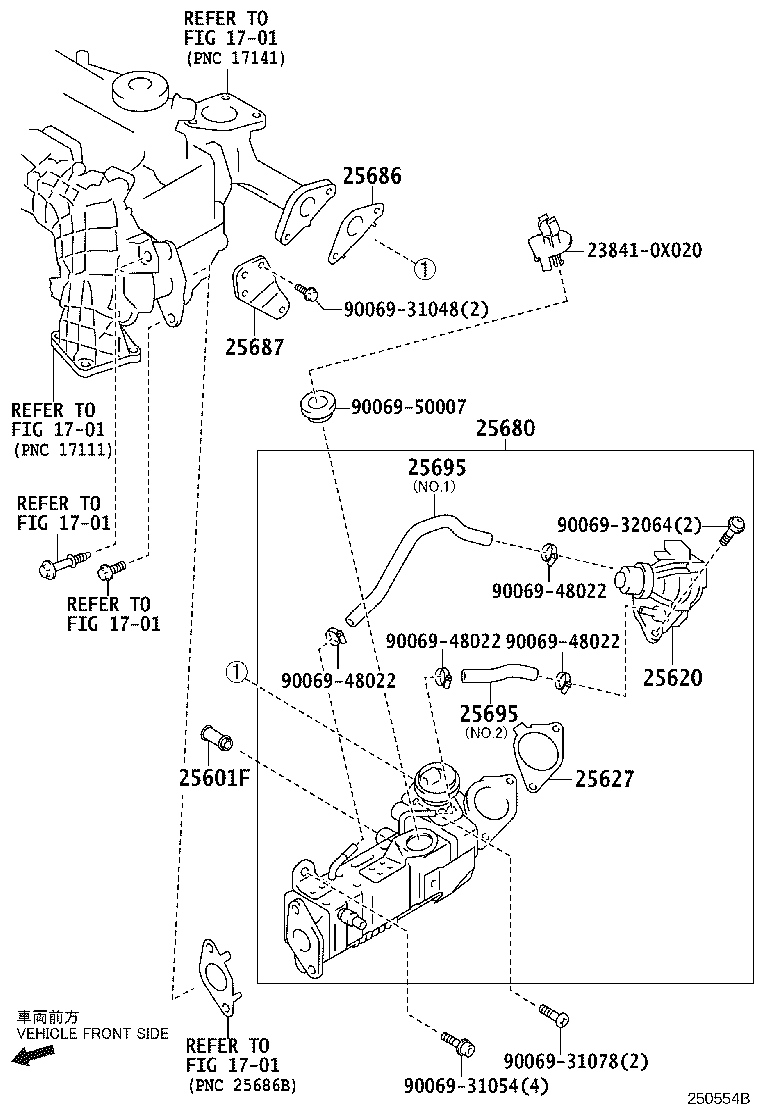

Click highlighted areas on diagram

diagram 1701 1701 1701 1701 1701 238410X020 25601F 25620 25627 25680 25686 25687 25695 25695 9006931048 9006931054 9006931078 9006932064 9006948022 9006948022 9006948022 9006948022 9006950007
Part # Description Qty Price
25601F - UNION(FOR EGR PIPE, NO.1)
90069-42001

1WW,2WW..WWT27#

 1
25620 - VALVE ASSY, EGR
25620-WA020

1WW,2WW..WWT27#

 1
25627 - GASKET, EGR VALVE
25685-WA020

1WW,2WW..WWT27#

 1
25680 - COOLER ASSY, EGR
25680-WA020

1WW,2WW..WWT27#

 1
25686 - GASKET, EGR COOLER, NO.2
25686-WA020

1WW,2WW..WWT27#

 1
25687 - BRACKET, EGR COOLER, NO.1
25687-WA020

1WW,2WW..WWT27#

 1
25695 - HOSE, EGR VACUUM MODULATOR
25695-WA010

1WW,2WW..WWT27#

NO.1

 1
25696-WA010

1WW,2WW..WWT27#

NO.2

 1
25695 - HOSE, EGR VACUUM MODULATOR
25695-WA010

1WW,2WW..WWT27#

NO.1

 1
25696-WA010

1WW,2WW..WWT27#

NO.2

 1
Common parts
23841-0X020
90069-31048
90069-31054
90069-31078
90069-32064
90069-48022
90069-50007
Linked diagrams
1701
