WWT271R-AWFEYW (2015)

Toyota Avensis

Production May 2015 - May 2018
Engine 2WW
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

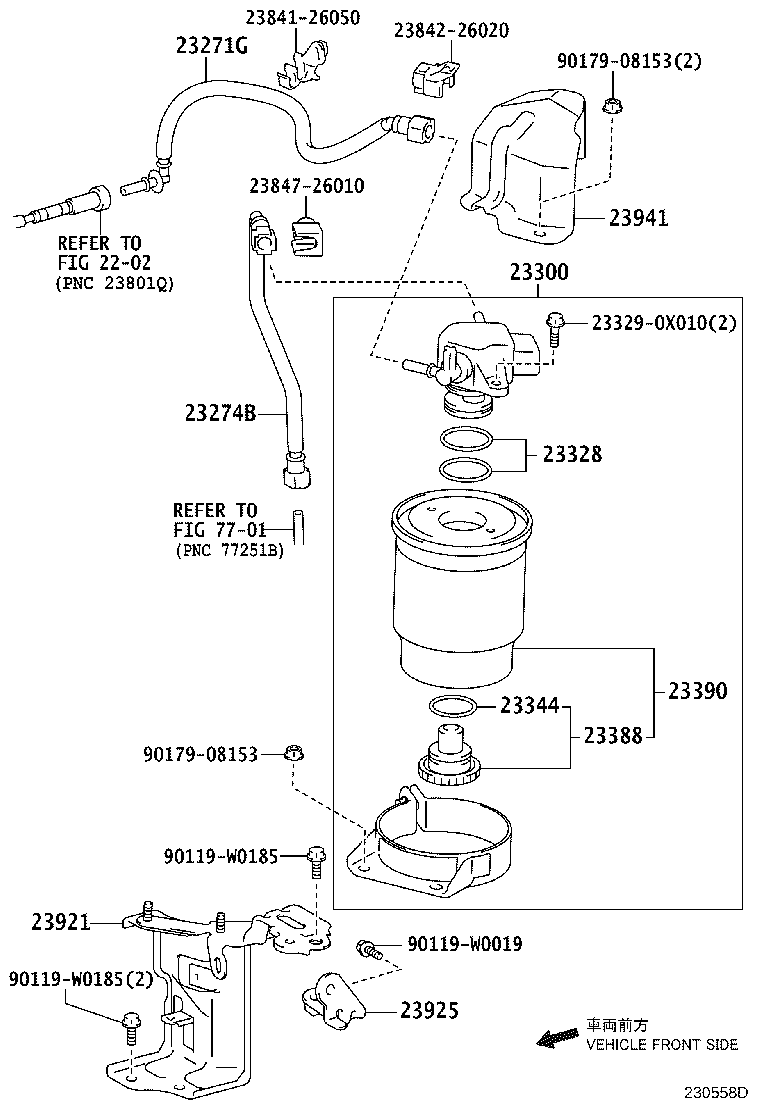

(1505-1708)1WW,2WW

Click highlighted areas on diagram

diagram 2202 23271G 23274B 23300 23328 233290X010 23344 23388 23390 2384126050 2384226020 2384726010 23921 23925 23941 7701 90119W0019 90119W0185 90119W0185 9017908153 9017908153
Part # Description Qty Price
23271G - HOSE, FUEL
23271-0X011

1WW,2WW..WWT27#

 1
23271-0X012

1WW,2WW..WWT27#

 1
23274B - HOSE, FUEL, NO.3
23274-0X011

1WW,2WW..WWT27#

 1
23274-0X010

1WW,2WW..WWT27#

 1
23300 - FILTER ASSY, FUEL
23300-0X010

1WW,2WW..WWT27#

 1
23300-53030

1WW,2WW..WWT27#

 1
23328 - GASKET(FOR FUEL FILTER)
23385-0X010

1WW,2WW..WWT27#

 1
23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER)
23387-0X010

1WW,2WW..WWT27#

 1
23388 - PLUG, FUEL FILTER DRAIN
23388-0X010

1WW,2WW..WWT27#

 1
23388-53020

1WW,2WW..WWT27#

 1
23390 - ELEMENT ASSY, FUEL FILTER
23390-0X010

1WW,2WW..WWT27#

 1
23390-53021

1WW,2WW..WWT27#

 1
23921 - SUPPORT, FUEL FILTER
23921-0X010

1WW,2WW..WWT27#

 1
23925 - STAY, FUEL FILTER SUPPORT
23925-0R010

1WW,2WW..WWT27#

 1
23941 - PROTECTOR, FUEL FILTER, NO.1
23941-0X020

1WW,2WW..WWT27#

 1
23941-0X010

1WW,2WW..WWT27#

 1
Common parts
23329-0X010
23841-26050
23842-26020
23847-26010
90119-W0019
90119-W0185
90179-08153
Linked diagrams
2202
7701

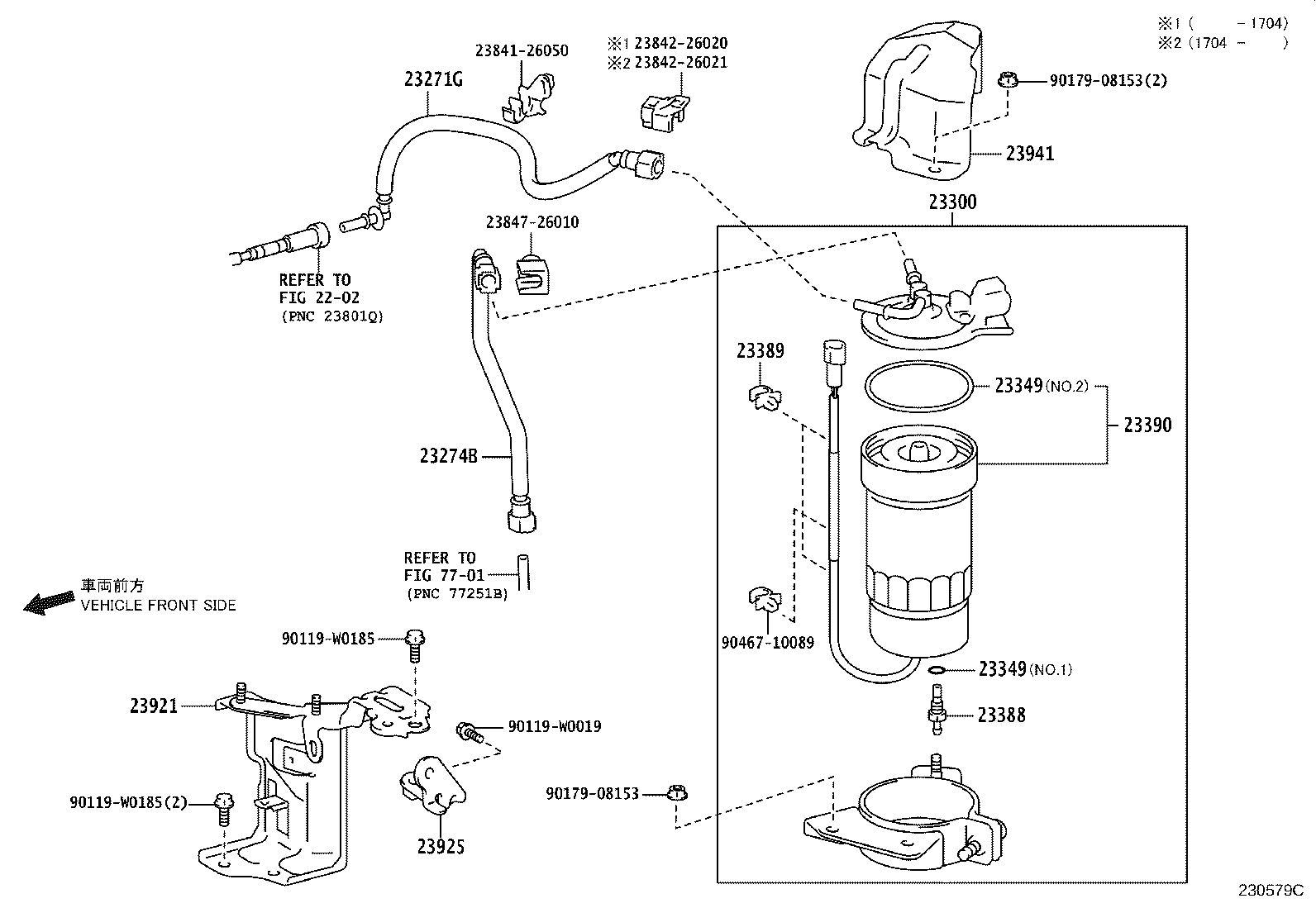

(1708- )1WW,2WW

Click highlighted areas on diagram

diagram 2202 23271G 23274B 23300 23349 23349 23388 23389 23390 2384126050 2384226020 2384226021 2384726010 23921 23925 23941 7701 90119W0019 90119W0185 90119W0185 9017908153 9017908153 9046710089
Part # Description Qty Price
23271G - HOSE, FUEL
23271-0X011

1WW,2WW..WWT27#

 1
23271-0X012

1WW,2WW..WWT27#

 1
23274B - HOSE, FUEL, NO.3
23274-0X011

1WW,2WW..WWT27#

 1
23274-0X010

1WW,2WW..WWT27#

 1
23300 - FILTER ASSY, FUEL
23300-0X010

1WW,2WW..WWT27#

 1
23300-53030

1WW,2WW..WWT27#

 1
23349 - GASKET, FUEL SEDIMENTOR
23349-53020

1WW,2WW..WWT27#

NO.1

 1
23349-53010

1WW,2WW..WWT27#

NO.2

 1
23349 - GASKET, FUEL SEDIMENTOR
23349-53020

1WW,2WW..WWT27#

NO.1

 1
23349-53010

1WW,2WW..WWT27#

NO.2

 1
23388 - PLUG, FUEL FILTER DRAIN
23388-0X010

1WW,2WW..WWT27#

 1
23388-53020

1WW,2WW..WWT27#

 1
23389 - CLAMP, FUEL FILTER
23389-17530

1WW,2WW..WWT27#

 2
23390 - ELEMENT ASSY, FUEL FILTER
23390-0X010

1WW,2WW..WWT27#

 1
23390-53021

1WW,2WW..WWT27#

 1
23921 - SUPPORT, FUEL FILTER
23921-0X010

1WW,2WW..WWT27#

 1
23925 - STAY, FUEL FILTER SUPPORT
23925-0R010

1WW,2WW..WWT27#

 1
23941 - PROTECTOR, FUEL FILTER, NO.1
23941-0X020

1WW,2WW..WWT27#

 1
23941-0X010

1WW,2WW..WWT27#

 1
Common parts
23841-26050
23842-26020
23842-26021
23847-26010
90119-W0019
90119-W0185
90179-08153
90467-10089
Linked diagrams
2202
7701
