WWT271R-AWFEYW (2015)

Toyota Avensis

Production May 2015 - May 2018
Engine 2WW
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )2WW

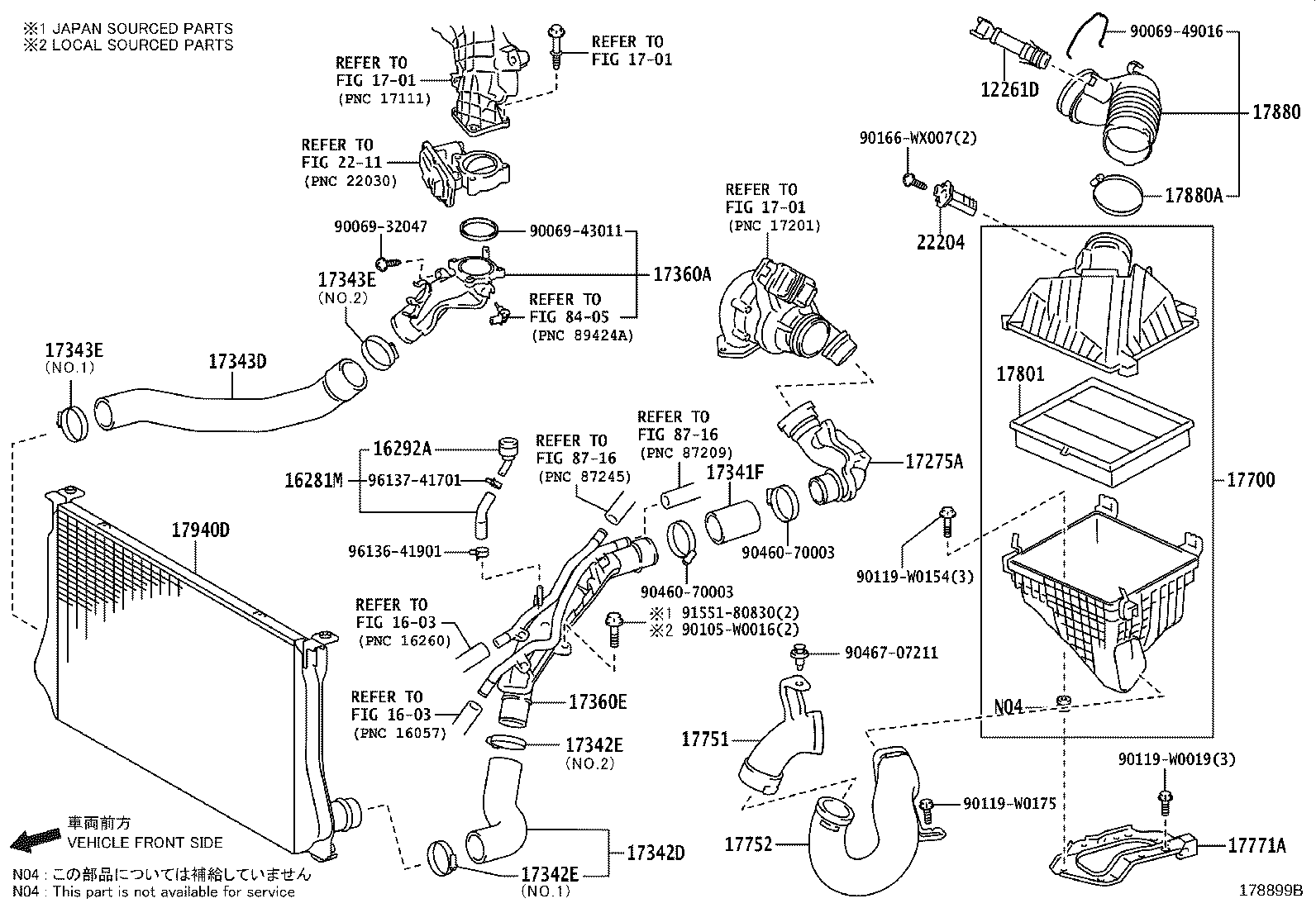

Click highlighted areas on diagram

diagram 12261D 1603 1603 16281M 16292A 1701 1701 1701 17275A 17341F 17342D 17342E 17342E 17343D 17343E 17343E 17360A 17360E 17700 17751 17752 17771A 17801 17880 17880A 17940D 2211 22204 8405 8716 8716 9006932047 9006943011 9006949016 90105W0016 90119W0019 90119W0154 90119W0175 90166WX007 9046070003 9046070003 9046707211 9155180830 9613641901 9613741701
Part # Description Qty Price
12261D - HOSE, VENTILATION
12262-YV010

1WW,2WW..WWT27#

 1
16281M - HOSE, WATER BY-PASS, NO.4
16281-0X020

1WW,2WW..WWT27#

 1
16292A - CONNECTOR, WATER BY-PASS HOSE
16292-0X030

1WW,2WW..WWT27#

 1
17275A - ELBOW, COMPRESSOR OUTLET
17275-0X011

1WW,2WW..WWT27#

 1
17275-0X020

1WW,2WW..WWT27#

 1
17341F - HOSE, AIR, NO.1
17341-0X020

1WW,2WW..WWT27#

 1
17342D - HOSE, AIR, NO.2
17342-0X020

1WW,2WW..WWT27#

 1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-73012

1WW,2WW..WWT27#

NO.2

 1
90460-66001

1WW,2WW..WWT27#

NO.1

 1
17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2)
90460-73012

1WW,2WW..WWT27#

NO.2

 1
90460-66001

1WW,2WW..WWT27#

NO.1

 1
17343D - HOSE, AIR, NO.3
17343-0X010

1WW,2WW..WWT27#

 1
17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3)
90460-66001

1WW,2WW..WWT27#

NO.1

 1
90460-73012

1WW,2WW..WWT27#

NO.2

 1
17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3)
90460-66001

1WW,2WW..WWT27#

NO.1

 1
90460-73012

1WW,2WW..WWT27#

NO.2

 1
17360A - TUBE ASSY, AIR
17360-YV010

1WW,2WW..WWT27#

 1
17360E - TUBE ASSY, AIR, NO.1
17360-0X010

1WW,2WW..WWT27#

 1
17700 - CLEANER ASSY, AIR
17700-YV020

1WW,2WW..WWT27#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-0R040

2WW..WWT271

 1
17752 - INLET, AIR CLEANER, NO.2
17752-0R010

2WW..WWT271

 1
17771A - BRACKET, AIR CLEANER
17771-0R020

1WW,2WW..WWT27#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-YV020

1WW,2WW..WWT27#

 1
17880 - HOSE ASSY, AIR CLEANER
17880-YV010

1WW,2WW..WWT27#

 1
17880A - CLAMP, HOSE
90069-48020

1WW,2WW..WWT27#

 1
17940D - INTERCOOLER ASSY
17940-0X020

1WW,2WW..WWT27#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-YV010

1WW,2WW..WWT27#

MARK 22204-0V010

 1
Common parts
90069-32047
90069-43011
90069-49016
90105-W0016
90119-W0019
90119-W0154
90119-W0175
90166-WX007
90460-70003
90467-07211
91551-80830
96136-41901
96137-41701
Linked diagrams
1603
1701
2211
8405
8716
