WWT271R-AWFEYW (2015)

Toyota Avensis

Production May 2015 - May 2018
Engine 2WW
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )1WW,2WW

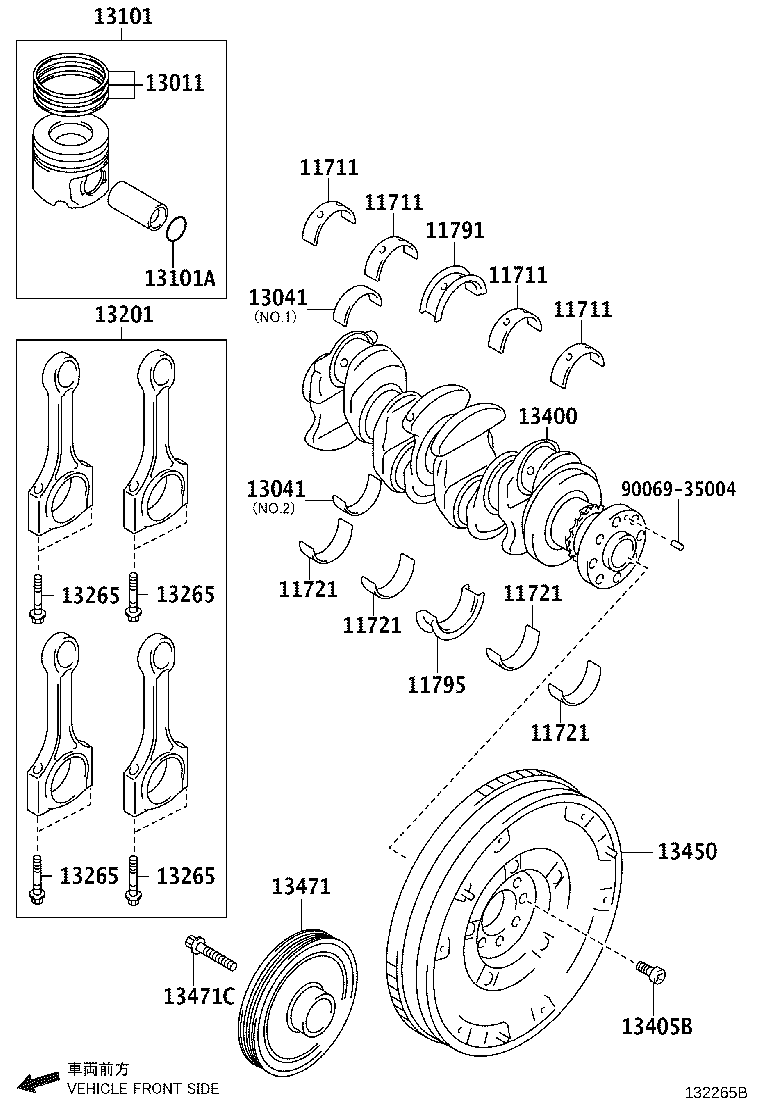

Click highlighted areas on diagram

diagram 11711 11711 11711 11711 11721 11721 11721 11721 11791 11795 13011 13041 13041 13101 13101A 13201 13265 13265 13265 13265 13400 13405B 13450 13471 13471C 9006935004
Part # Description Qty Price
11711 - BEARING, CRANKSHAFT
11711-WA010A0

1WW,2WW..WWT27#

MARK YELLO,STD

 4
11714-WA010A0

1WW,2WW..WWT27#

MARK YELLO,U/S 0.25

 4
11711-WA010C0

1WW,2WW..WWT27#

MARK WHITE,STD

 4
11715-WA010A0

1WW,2WW..WWT27#

MARK YELLO,U/S 0.50

 4
11714-WA010C0

1WW,2WW..WWT27#

MARK WHITE,U/S 0.25

 4
11714-WA010B0

1WW,2WW..WWT27#

MARK GREEN,U/S 0.25

 4
11711-WA010B0

1WW,2WW..WWT27#

MARK GREEN,STD

 4
11711-WA011C0

1WW,2WW..WWT27#

MARK WHITE,STD

 4
11711-WA011B0

1WW,2WW..WWT27#

MARK GREEN,STD

 4
11715-WA010B0

1WW,2WW..WWT27#

MARK GREEN,U/S 0.50

 4
11715-WA010C0

1WW,2WW..WWT27#

MARK WHITE,U/S 0.50

 4
11711-WA011A0

1WW,2WW..WWT27#

MARK YELLO,STD

 4
11711 - BEARING, CRANKSHAFT
11711-WA010A0

1WW,2WW..WWT27#

MARK YELLO,STD

 4
11714-WA010A0

1WW,2WW..WWT27#

MARK YELLO,U/S 0.25

 4
11711-WA010C0

1WW,2WW..WWT27#

MARK WHITE,STD

 4
11715-WA010A0

1WW,2WW..WWT27#

MARK YELLO,U/S 0.50

 4
11714-WA010C0

1WW,2WW..WWT27#

MARK WHITE,U/S 0.25

 4
11714-WA010B0

1WW,2WW..WWT27#

MARK GREEN,U/S 0.25

 4
11711-WA010B0

1WW,2WW..WWT27#

MARK GREEN,STD

 4
11711-WA011C0

1WW,2WW..WWT27#

MARK WHITE,STD

 4
11711-WA011B0

1WW,2WW..WWT27#

MARK GREEN,STD

 4
11715-WA010B0

1WW,2WW..WWT27#

MARK GREEN,U/S 0.50

 4
11715-WA010C0

1WW,2WW..WWT27#

MARK WHITE,U/S 0.50

 4
11711-WA011A0

1WW,2WW..WWT27#

MARK YELLO,STD

 4
11711 - BEARING, CRANKSHAFT
11711-WA010A0

1WW,2WW..WWT27#

MARK YELLO,STD

 4
11714-WA010A0

1WW,2WW..WWT27#

MARK YELLO,U/S 0.25

 4
11711-WA010C0

1WW,2WW..WWT27#

MARK WHITE,STD

 4
11715-WA010A0

1WW,2WW..WWT27#

MARK YELLO,U/S 0.50

 4
11714-WA010C0

1WW,2WW..WWT27#

MARK WHITE,U/S 0.25

 4
11714-WA010B0

1WW,2WW..WWT27#

MARK GREEN,U/S 0.25

 4
11711-WA010B0

1WW,2WW..WWT27#

MARK GREEN,STD

 4
11711-WA011C0

1WW,2WW..WWT27#

MARK WHITE,STD

 4
11711-WA011B0

1WW,2WW..WWT27#

MARK GREEN,STD

 4
11715-WA010B0

1WW,2WW..WWT27#

MARK GREEN,U/S 0.50

 4
11715-WA010C0

1WW,2WW..WWT27#

MARK WHITE,U/S 0.50

 4
11711-WA011A0

1WW,2WW..WWT27#

MARK YELLO,STD

 4
11711 - BEARING, CRANKSHAFT
11711-WA010A0

1WW,2WW..WWT27#

MARK YELLO,STD

 4
11714-WA010A0

1WW,2WW..WWT27#

MARK YELLO,U/S 0.25

 4
11711-WA010C0

1WW,2WW..WWT27#

MARK WHITE,STD

 4
11715-WA010A0

1WW,2WW..WWT27#

MARK YELLO,U/S 0.50

 4
11714-WA010C0

1WW,2WW..WWT27#

MARK WHITE,U/S 0.25

 4
11714-WA010B0

1WW,2WW..WWT27#

MARK GREEN,U/S 0.25

 4
11711-WA010B0

1WW,2WW..WWT27#

MARK GREEN,STD

 4
11711-WA011C0

1WW,2WW..WWT27#

MARK WHITE,STD

 4
11711-WA011B0

1WW,2WW..WWT27#

MARK GREEN,STD

 4
11715-WA010B0

1WW,2WW..WWT27#

MARK GREEN,U/S 0.50

 4
11715-WA010C0

1WW,2WW..WWT27#

MARK WHITE,U/S 0.50

 4
11711-WA011A0

1WW,2WW..WWT27#

MARK YELLO,STD

 4
11721 - BEARING, CRANKSHAFT, NO.2
11724-WA010B0

1WW,2WW..WWT27#

MARK GREEN,U/S 0.25

 4
11721-WA010C0

1WW,2WW..WWT27#

MARK WHITE,STD

 4
11721-WA010A0

1WW,2WW..WWT27#

MARK YELLO,STD

 4
11721-WA011C0

1WW,2WW..WWT27#

MARK WHITE,STD

 4
11721-WA011B0

1WW,2WW..WWT27#

MARK GREEN,STD

 4
11725-WA010B0

1WW,2WW..WWT27#

MARK GREEN,U/S 0.50

 4
11721-WA010B0

1WW,2WW..WWT27#

MARK GREEN,STD

 4
11725-WA010A0

1WW,2WW..WWT27#

MARK YELLO,U/S 0.50

 4
11725-WA010C0

1WW,2WW..WWT27#

MARK WHITE,U/S 0.50

 4
11721-WA011A0

1WW,2WW..WWT27#

MARK YELLO,STD

 4
11724-WA010A0

1WW,2WW..WWT27#

MARK YELLO,U/S 0.25

 4
11724-WA010C0

1WW,2WW..WWT27#

MARK WHITE,U/S 0.25

 4
11721 - BEARING, CRANKSHAFT, NO.2
11724-WA010B0

1WW,2WW..WWT27#

MARK GREEN,U/S 0.25

 4
11721-WA010C0

1WW,2WW..WWT27#

MARK WHITE,STD

 4
11721-WA010A0

1WW,2WW..WWT27#

MARK YELLO,STD

 4
11721-WA011C0

1WW,2WW..WWT27#

MARK WHITE,STD

 4
11721-WA011B0

1WW,2WW..WWT27#

MARK GREEN,STD

 4
11725-WA010B0

1WW,2WW..WWT27#

MARK GREEN,U/S 0.50

 4
11721-WA010B0

1WW,2WW..WWT27#

MARK GREEN,STD

 4
11725-WA010A0

1WW,2WW..WWT27#

MARK YELLO,U/S 0.50

 4
11725-WA010C0

1WW,2WW..WWT27#

MARK WHITE,U/S 0.50

 4
11721-WA011A0

1WW,2WW..WWT27#

MARK YELLO,STD

 4
11724-WA010A0

1WW,2WW..WWT27#

MARK YELLO,U/S 0.25

 4
11724-WA010C0

1WW,2WW..WWT27#

MARK WHITE,U/S 0.25

 4
11721 - BEARING, CRANKSHAFT, NO.2
11724-WA010B0

1WW,2WW..WWT27#

MARK GREEN,U/S 0.25

 4
11721-WA010C0

1WW,2WW..WWT27#

MARK WHITE,STD

 4
11721-WA010A0

1WW,2WW..WWT27#

MARK YELLO,STD

 4
11721-WA011C0

1WW,2WW..WWT27#

MARK WHITE,STD

 4
11721-WA011B0

1WW,2WW..WWT27#

MARK GREEN,STD

 4
11725-WA010B0

1WW,2WW..WWT27#

MARK GREEN,U/S 0.50

 4
11721-WA010B0

1WW,2WW..WWT27#

MARK GREEN,STD

 4
11725-WA010A0

1WW,2WW..WWT27#

MARK YELLO,U/S 0.50

 4
11725-WA010C0

1WW,2WW..WWT27#

MARK WHITE,U/S 0.50

 4
11721-WA011A0

1WW,2WW..WWT27#

MARK YELLO,STD

 4
11724-WA010A0

1WW,2WW..WWT27#

MARK YELLO,U/S 0.25

 4
11724-WA010C0

1WW,2WW..WWT27#

MARK WHITE,U/S 0.25

 4
11721 - BEARING, CRANKSHAFT, NO.2
11724-WA010B0

1WW,2WW..WWT27#

MARK GREEN,U/S 0.25

 4
11721-WA010C0

1WW,2WW..WWT27#

MARK WHITE,STD

 4
11721-WA010A0

1WW,2WW..WWT27#

MARK YELLO,STD

 4
11721-WA011C0

1WW,2WW..WWT27#

MARK WHITE,STD

 4
11721-WA011B0

1WW,2WW..WWT27#

MARK GREEN,STD

 4
11725-WA010B0

1WW,2WW..WWT27#

MARK GREEN,U/S 0.50

 4
11721-WA010B0

1WW,2WW..WWT27#

MARK GREEN,STD

 4
11725-WA010A0

1WW,2WW..WWT27#

MARK YELLO,U/S 0.50

 4
11725-WA010C0

1WW,2WW..WWT27#

MARK WHITE,U/S 0.50

 4
11721-WA011A0

1WW,2WW..WWT27#

MARK YELLO,STD

 4
11724-WA010A0

1WW,2WW..WWT27#

MARK YELLO,U/S 0.25

 4
11724-WA010C0

1WW,2WW..WWT27#

MARK WHITE,U/S 0.25

 4
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-WA010A0

1WW,2WW..WWT27#

STD,MARK YELLO

 1
11793-WA010A0

1WW,2WW..WWT27#

O/S 0.25,MARK YELLO

 1
11791-WA010B0

1WW,2WW..WWT27#

STD,MARK GREEN

 1
11793-WA010B0

1WW,2WW..WWT27#

O/S 0.25,MARK GREEN

 1
11791-WA010A0

1WW,2WW..WWT27#

STD,MARK YELLO

 3
11791-WA010C0

1WW,2WW..WWT27#

STD,MARK WHITE

 1
11794-WA010B0

1WW,2WW..WWT27#

O/S 0.50,MARK GREEN

 1
11794-WA010C0

1WW,2WW..WWT27#

O/S 0.50,MARK WHITE

 1
11793-WA010C0

1WW,2WW..WWT27#

O/S 0.25,MARK WHITE

 1
11793-WA010B0

1WW,2WW..WWT27#

O/S 0.25,MARK GREEN

 2
11794-WA010A0

1WW,2WW..WWT27#

O/S 0.50,MARK YELLO

 1
11791-WA011C0

1WW,2WW..WWT27#

STD,MARK WHITE

 1
11793-WA010C0

1WW,2WW..WWT27#

O/S 0.25,MARK WHITE

 2
11791-WA010B0

1WW,2WW..WWT27#

STD,MARK GREEN

 3
11791-WA011B0

1WW,2WW..WWT27#

STD,MARK GREEN

 1
11793-WA010A0

1WW,2WW..WWT27#

O/S 0.25,MARK YELLO

 2
11791-WA011A0

1WW,2WW..WWT27#

STD,MARK YELLO

 1
11791-WA010C0

1WW,2WW..WWT27#

STD,MARK WHITE

 3
11795 - WASHER, CRANKSHAFT THRUST, LOWER
11797-WA010A0

1WW,2WW..WWT27#

MARK YELLO,O/S 0.25

 1
11795-WA010C0

1WW,2WW..WWT27#

MARK WHITE,STD

 1
11798-WA010A0

1WW,2WW..WWT27#

MARK YELLO,O/S 0.50

 1
11797-WA010C0

1WW,2WW..WWT27#

MARK WHITE,O/S 0.25

 1
11795-WA010A0

1WW,2WW..WWT27#

MARK YELLO,STD

 1
11798-WA010B0

1WW,2WW..WWT27#

MARK GREEN,O/S 0.50

 1
11795-WA010B0

1WW,2WW..WWT27#

MARK GREEN,STD

 1
11795-WA011C0

1WW,2WW..WWT27#

MARK WHITE,STD

 1
11798-WA010C0

1WW,2WW..WWT27#

MARK WHITE,O/S 0.50

 1
11795-WA011A0

1WW,2WW..WWT27#

MARK YELLO,STD

 1
11797-WA010B0

1WW,2WW..WWT27#

MARK GREEN,O/S 0.25

 1
11795-WA011B0

1WW,2WW..WWT27#

MARK GREEN,STD

 1
13011 - RING SET, PISTON
13011-WA020

2WW..WWT271

STD

 4
13012-WA010

1WW,2WW..WWT27#

O/S 0.25

 4
13041 - BEARING, CONNECTING ROD
13284-WA020

2WW..WWT271

NO.1,BLUE,U/S 0.25

 4
13281-WA020

2WW..WWT271

NO.1,BLUE,STD

 4
13291-WA020

2WW..WWT271

NO.2,STD

 4
13285-WA020

2WW..WWT271

NO.1,BLUE,U/S 0.50

 4
13294-WA020

2WW..WWT271

NO.2,U/S 0.25

 4
13295-WA020

2WW..WWT271

NO.2,U/S 0.50

 4
13041 - BEARING, CONNECTING ROD
13284-WA020

2WW..WWT271

NO.1,BLUE,U/S 0.25

 4
13281-WA020

2WW..WWT271

NO.1,BLUE,STD

 4
13291-WA020

2WW..WWT271

NO.2,STD

 4
13285-WA020

2WW..WWT271

NO.1,BLUE,U/S 0.50

 4
13294-WA020

2WW..WWT271

NO.2,U/S 0.25

 4
13295-WA020

2WW..WWT271

NO.2,U/S 0.50

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-WA030

2WW..WWT271

STD

 4
13102-WA020

2WW..WWT271

0/S 0.25

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90069-52043

2WW..WWT271

 8
90069-52042

2WW..WWT271

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-WA020

2WW..WWT271

 1
13265 - BOLT, CONNECTING ROD
13265-WA010

1WW,2WW..WWT27#

 8
13265 - BOLT, CONNECTING ROD
13265-WA010

1WW,2WW..WWT27#

 8
13265 - BOLT, CONNECTING ROD
13265-WA010

1WW,2WW..WWT27#

 8
13265 - BOLT, CONNECTING ROD
13265-WA010

1WW,2WW..WWT27#

 8
13400 - CRANKSHAFT ASSY
13400-WA021

2WW..WWT271

 1
13400-WA020

2WW..WWT271

 1
13405B - BOLT, FLYWHEEL SETTING
90148-WX005

1WW,2WW..WWT27#

 8
13450 - FLYWHEEL ASSY, W/DAMPER
13450-0X021

1WW,2WW..WWT27#

 1
13450-0X020

1WW,2WW..WWT27#

 1
13471 - PULLEY, CRANKSHAFT
13470-WA010

1WW,2WW..WWT27#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90069-31411

1WW,2WW..WWT27#

 4
90069-31085

1WW,2WW..WWT27#

 4
Common parts
90069-35004
