WWT271R-AWFEYW (2015)

Toyota Avensis

Production May 2015 - May 2018
Engine 2WW
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )1WW,2WW

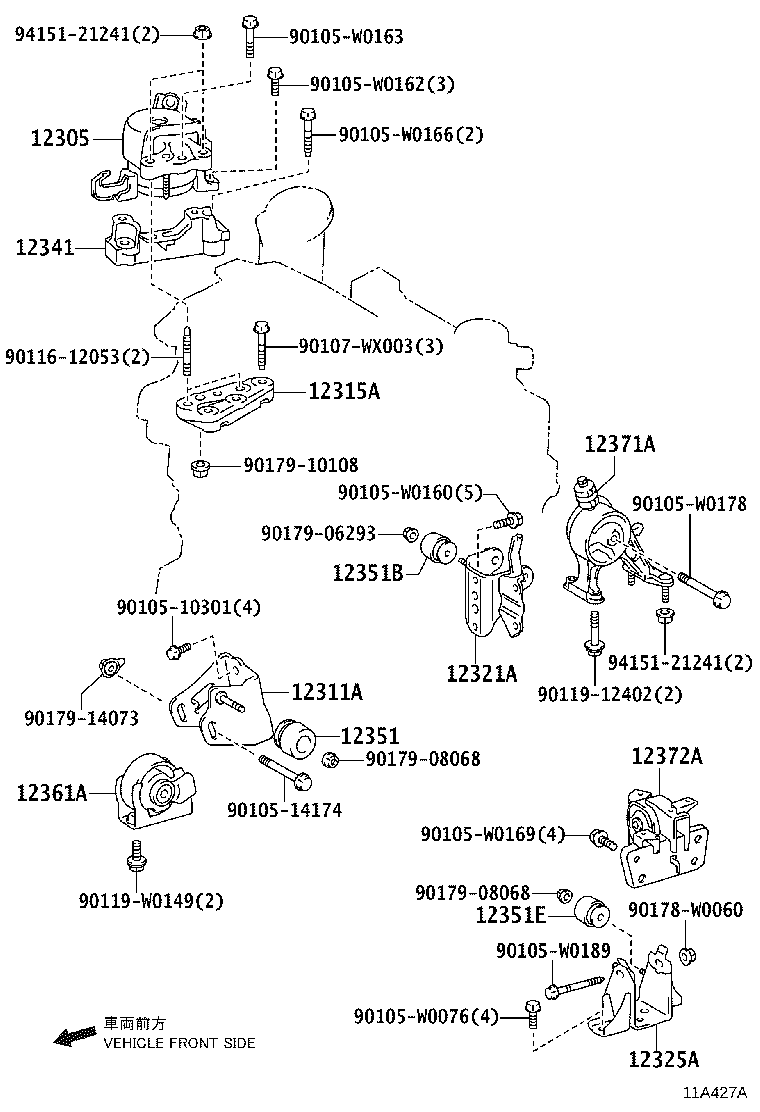

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12325A 12341 12351 12351B 12351E 12361A 12371A 12372A 9010510301 9010514174 90105W0076 90105W0160 90105W0162 90105W0163 90105W0166 90105W0169 90105W0178 90105W0189 90107WX003 9011612053 9011912402 90119W0149 90178W0060 9017906293 9017908068 9017908068 9017910108 9017914073 9415121241 9415121241
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0X010

1WW,2WW..WWT27#

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0X050

1WW,2WW..WWT27#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-53010

1WW,2WW..WWT27#

 1
12315-0X030

1WW,2WW..WWT27#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-0R010

1WW,2WW..WWT27#

 1
12321-0X010

1WW,2WW..WWT27#

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0X010

1WW,2WW..WWT27#

 1
12341 - SPACER, ENGINE MOUNTING
12341-26011

1WW,2WW..WWT27#

 1
12351 - DAMPER, ENGINE MOUNTING
12351-63010

1WW,2WW..WWT27#

 1
12351B - DAMPER, ENGINE MOUNTING
12351-0R010

1WW,2WW..WWT27#

 1
12351-0X010

1WW,2WW..WWT27#

 1
12351E - DAMPER, ENGINE MOUNTING
12351-0R010

1WW,2WW..WWT27#

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-0X020

1WW,2WW..WWT27#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0X020

1WW,2WW..WWT27#

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0X010

1WW,2WW..WWT27#

 1
Common parts
90105-10301
90105-14174
90105-W0076
90105-W0160
90105-W0162
90105-W0163
90105-W0166
90105-W0169
90105-W0178
90105-W0189
90107-WX003
90116-12053
90119-12402
90119-W0149
90178-W0060
90179-06293
90179-08068
90179-10108
90179-14073
94151-21241
