WWT271R-AWFEYW (2015)

Toyota Avensis

Production May 2015 - May 2018
Engine 2WW
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )1WW,2WW

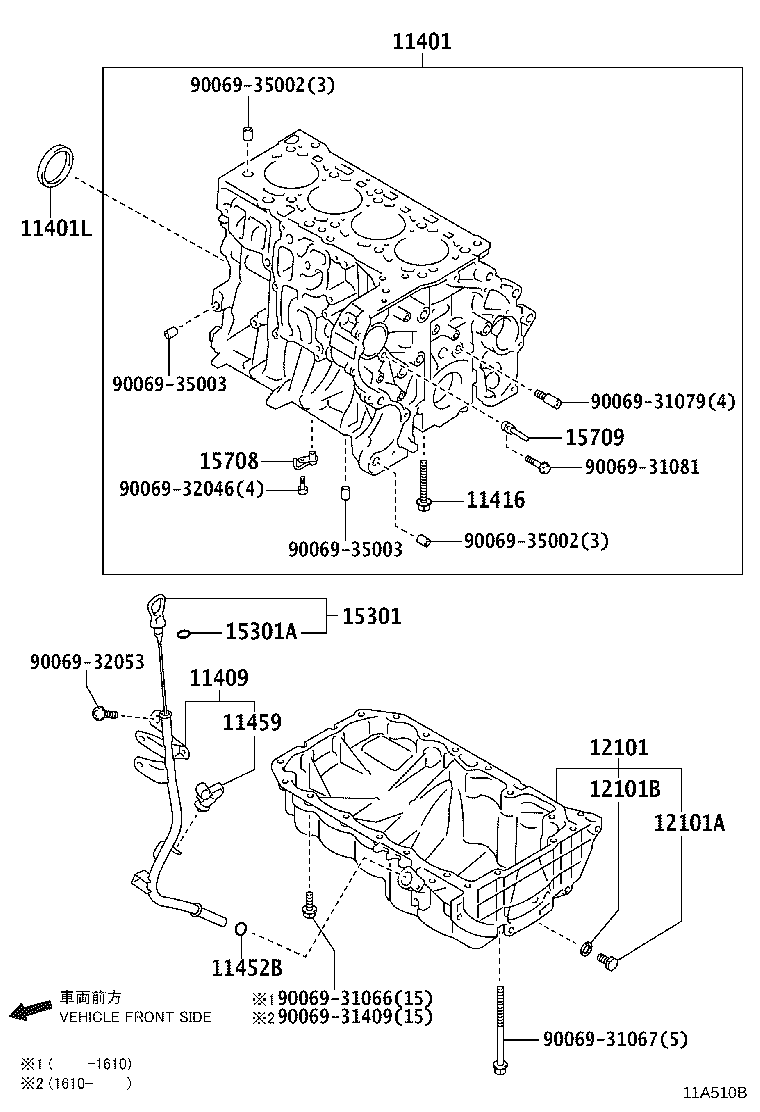

Click highlighted areas on diagram

diagram 11401 11401L 11409 11416 11452B 11459 12101 12101A 12101B 15301 15301A 15708 15709 9006931066 9006931067 9006931079 9006931081 9006931409 9006932046 9006932053 9006935002 9006935002 9006935003 9006935003
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-WA030

2WW..WWT271

 1
11401L - SEAL, ENGINE REAR OIL
90069-38023

1WW,2WW..WWT27#

 1
11409 - GUIDE SUB-ASSY, OIL LEVEL GAGE
11409-YV010

1WW,2WW..WWT27#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90069-31092

1WW,2WW..WWT27#

 10
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
90069-38029

1WW,2WW..WWT27#

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-WA010

1WW,2WW..WWT27#

 1
12101 - PAN SUB-ASSY, OIL
12101-WA010

1WW,2WW..WWT27#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90069-39020

1WW,2WW..WWT27#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90069-38021

1WW,2WW..WWT27#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-YV030

1WW,2WW..WWT27#

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
90069-38028

1WW,2WW..WWT27#

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-WA010

1WW,2WW..WWT27#

 4
15709 - NOZZLE SUB-ASSY, OIL, NO.2
15708-WA020

1WW,2WW..WWT27#

 1
Common parts
90069-31066
90069-31067
90069-31079
90069-31081
90069-31409
90069-32046
90069-32053
90069-35002
90069-35003
