WWT271R-AWFEYW (2015)

Toyota Avensis

Production May 2015 - May 2018
Engine 2WW
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )1WW,2WW

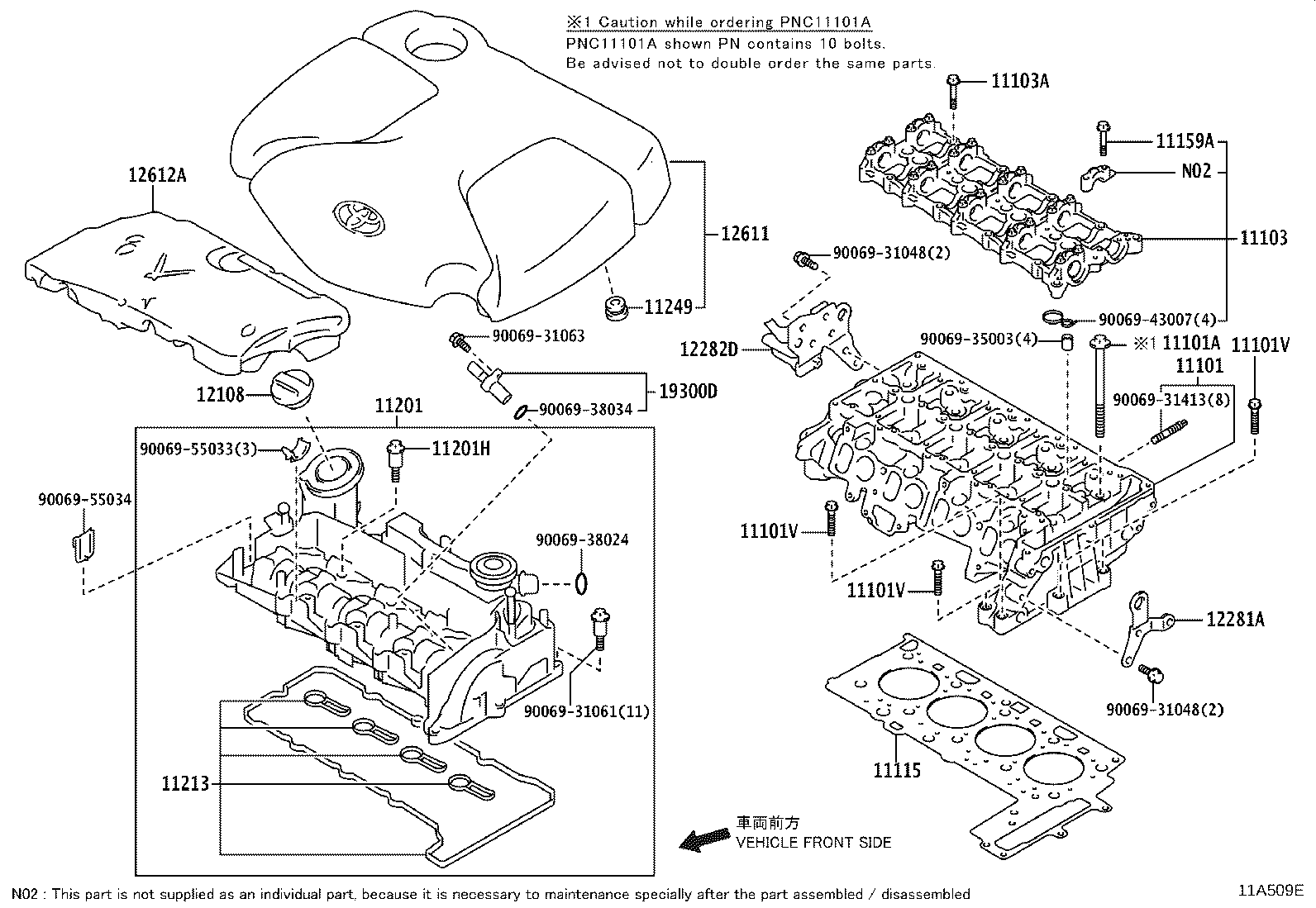

Click highlighted areas on diagram

diagram 11101 11101A 11101V 11101V 11101V 11103 11103A 11115 11159A 11201 11201H 11213 11249 12108 12281A 12282D 12611 12612A 19300D 9006931048 9006931048 9006931061 9006931063 9006931413 9006935003 9006938024 9006938034 9006943007 9006955033 9006955034
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-WA020

2WW..WWT271

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90069-31065

1WW,2WW..WWT27#

 1
11101V - BOLT(FOR CYLINDER HEAD SET SUB)
90069-31051

1WW,2WW..WWT27#

 5
11101V - BOLT(FOR CYLINDER HEAD SET SUB)
90069-31051

1WW,2WW..WWT27#

 5
11101V - BOLT(FOR CYLINDER HEAD SET SUB)
90069-31051

1WW,2WW..WWT27#

 5
11103 - HOUSING SUB-ASSY, CAMSHAFT
11103-WA010

1WW,2WW..WWT27#

 1
11103A - BOLT(FOR CAMSHAFT HOUSING SET)
90069-31070

1WW,2WW..WWT27#

 14
11115 - GASKET, CYLINDER HEAD
11115-WA02001

2WW..WWT271

1-LOCH

 1
11115-WA02003

2WW..WWT271

3-LOCH

 1
11115-WA02002

2WW..WWT271

2-LOCH

 1
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90069-31068

1WW,2WW..WWT27#

 20
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-WA011

1WW,2WW..WWT27#

 1
11201-WA012

1WW,2WW..WWT27#

 1
11201H - BOLT(FOR CYLINDER HEAD COVER)
90069-31062

1WW,2WW..WWT27#

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-WA010

1WW,2WW..WWT27#

 1
11249 - GROMMET, CYLINDER HEAD COVER
11249-0X010

1WW,2WW..WWT27#

 4
12108 - CAP SUB-ASSY, OIL FILLER
12180-WA010

1WW,2WW..WWT27#

 1
12281A - HANGER, ENGINE, NO.1
12281-WA010

1WW,2WW..WWT27#

 1
12282D - HANGER, ENGINE, NO.2
12281-0X030

1WW,2WW..WWT27#

 1
12281-0X031

1WW,2WW..WWT27#

 1
12611 - COVER, ENGINE, NO.1
12611-0X020

1WW,2WW..WWT27#

 1
12612A - COVER, ENGINE, NO.2
12611-WA010

1WW,2WW..WWT27#

 1
19300D - SENSOR ASSY, CAM POSITION
19300-WA010

1WW,2WW..WWT27#

 1
Common parts
90069-31048
90069-31061
90069-31063
90069-31413
90069-35003
90069-38024
90069-38034
90069-43007
90069-55033
90069-55034
