WWT271L-AWFGYW (2015)

Toyota Avensis

Production May 2015 - May 2018
Engine 2WW
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )

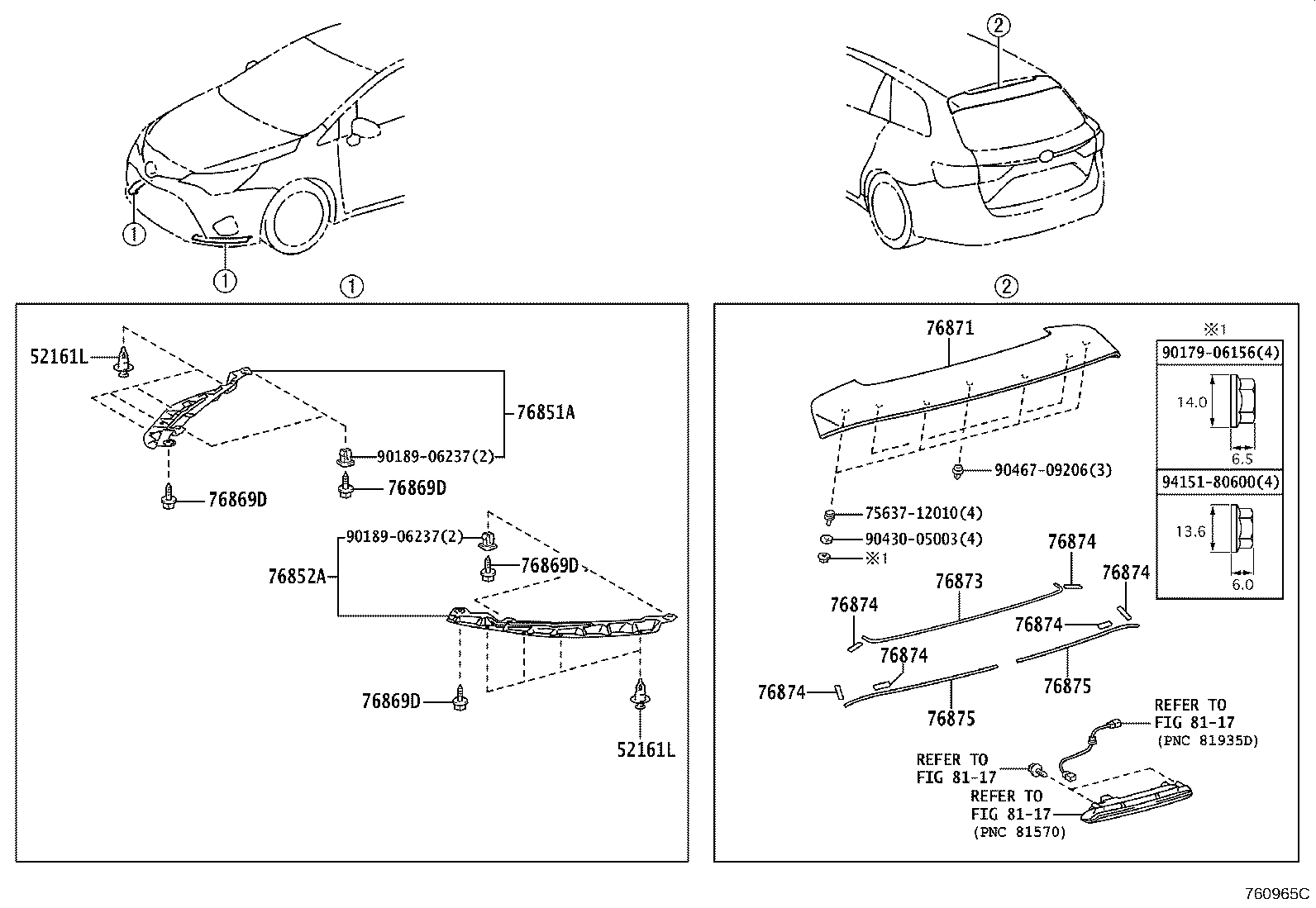

Click highlighted areas on diagram

diagram 52161L 52161L 7563712010 76851A 76852A 76869D 76869D 76869D 76869D 76871 76873 76874 76874 76874 76874 76874 76874 76875 76875 8117 8117 8117 9017906156 9018906237 9018906237 9043005003 9046709206 9415180600
Part # Description Qty Price
52161L - PIECE, FRONT SPOILER
52161-16010

WWT27#,ZRT27#

(J)

 8
52161-02030

WWT27#,ZRT27#

(L)

 8
52161L - PIECE, FRONT SPOILER
52161-16010

WWT27#,ZRT27#

(J)

 8
52161-02030

WWT27#,ZRT27#

(L)

 8
76851A - COVER, FRONT SPOILER, RH
76851-05060

WWT27#,ZRT27#

 1
76852A - COVER, FRONT SPOILER, LH
76852-05060

WWT27#,ZRT27#

 1
76871 - SPOILER, REAR
76871-05909

WWT27#,ZRT27#..WG

PAINT REQ.

 1
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-05030

WWT27#,ZRT27#..WG

 1
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-05030

WWT27#,ZRT27#..WG

 6
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-05030

WWT27#,ZRT27#..WG

 6
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-05030

WWT27#,ZRT27#..WG

 6
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-05030

WWT27#,ZRT27#..WG

 6
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-05030

WWT27#,ZRT27#..WG

 6
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-05030

WWT27#,ZRT27#..WG

 6
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-05030

WWT27#,ZRT27#..WG

 2
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-05030

WWT27#,ZRT27#..WG

 2
Common parts
75637-12010
90179-06156
90189-06237
90430-05003
90467-09206
94151-80600
Linked diagrams
8117
