WWT270R-AWFGYW (2015)

Toyota Avensis

Production May 2015 - May 2018
Engine 1WW
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )1WW,2WW

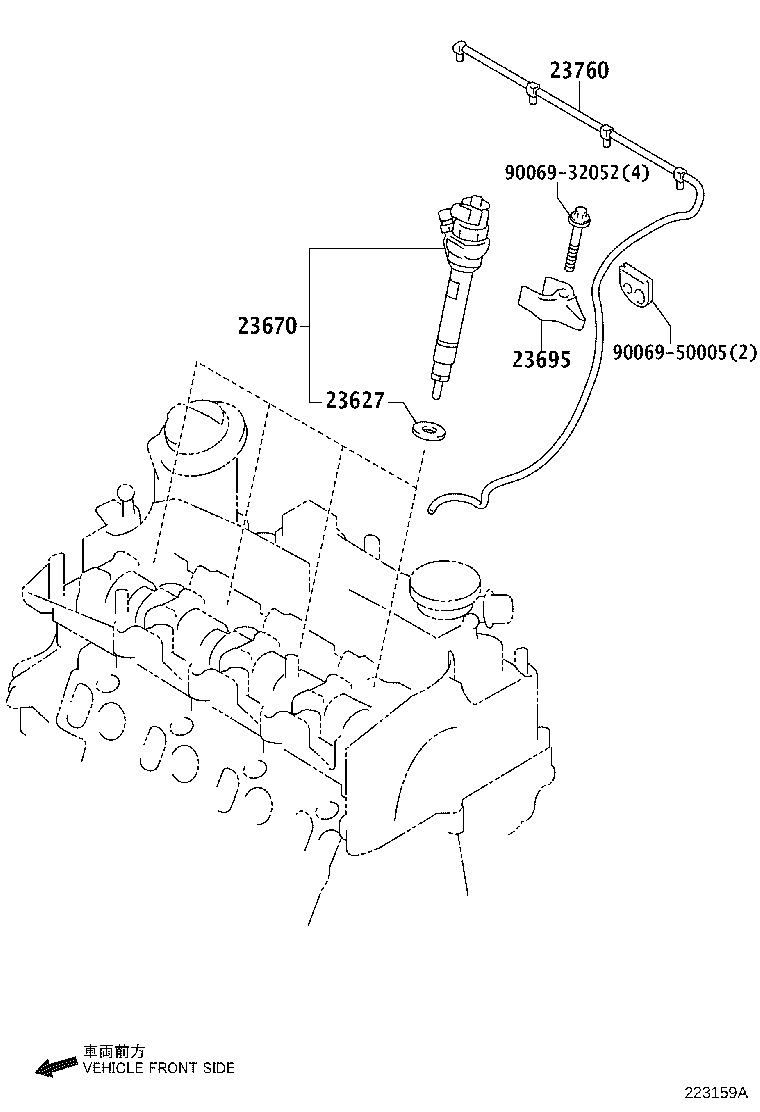

Click highlighted areas on diagram

diagram 23627 23670 23695 23760 9006932052 9006950005
Part # Description Qty Price
23627 - RING, PACKING, NO.1(FOR NOZZLE)
23291-WA010

1WW,2WW..WWT27#

 4
23670 - INJECTOR ASSY
23670-WA020

1WW..WWT270

 4
23695 - CLAMP, NOZZLE HOLDER, NO.1
23695-WA010

1WW,2WW..WWT27#

 4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23761-WA021

1WW,2WW..WWT27#

 1
Common parts
90069-32052
90069-50005
