WWT270R-AEFNYW (2015)

Toyota Avensis

Production May 2015 - May 2018
Engine 1WW
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

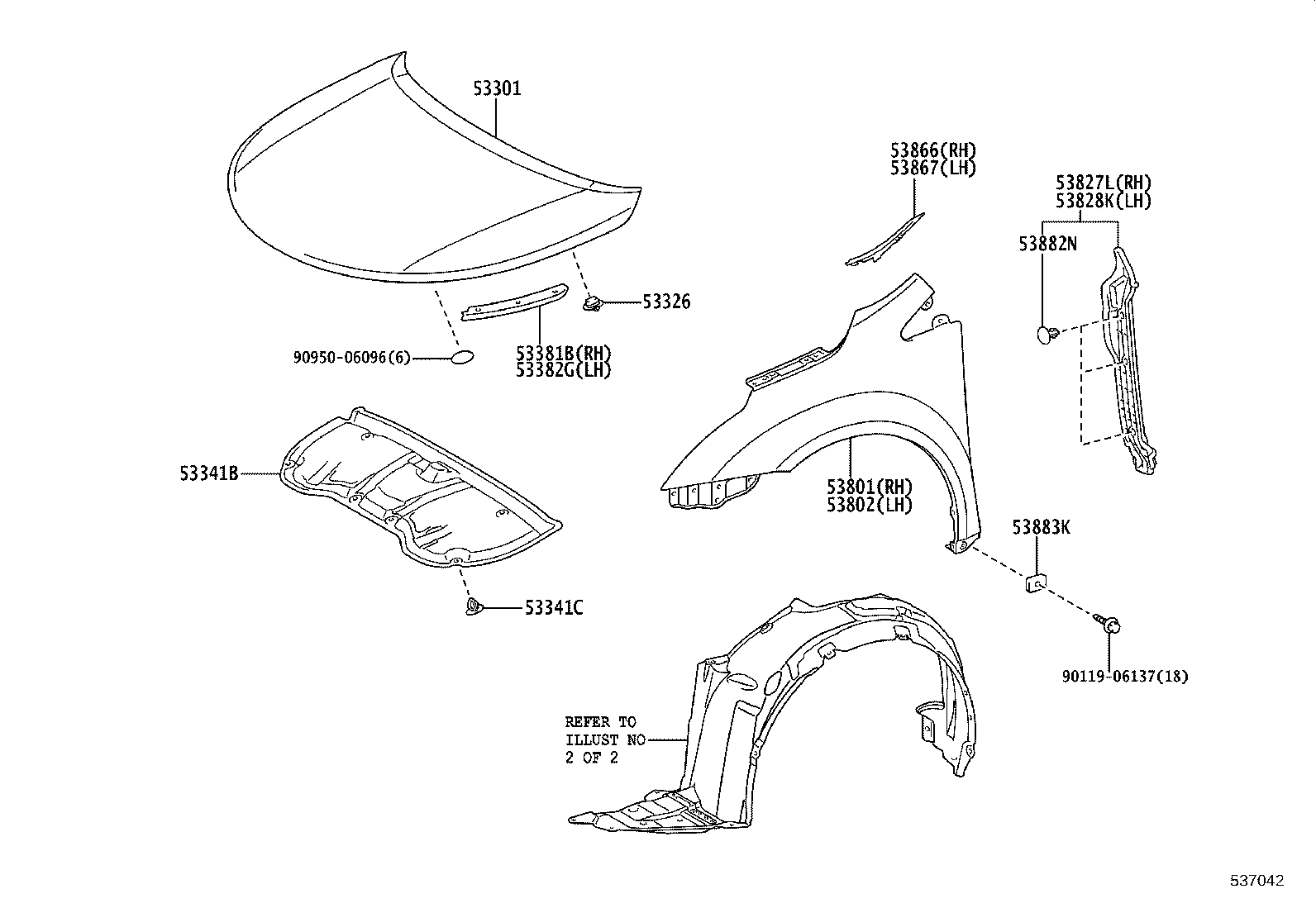

ILLUST NO. 1 OF 2(1508- )

Click highlighted areas on diagram

diagram 53301 53326 53341B 53341C 53381B 53382G 53801 53802 53827L 53828K 53866 53867 53882N 53883K 9011906137 9095006096
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-05050

WWT27#,ZRT27#

 1
53326 - CLIP, HOOD PROTECTOR
53326-52010

WWT27#,ZRT27#

 1
53341B - INSULATOR, HOOD
53341-05050

WWT27#,ZRT27#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-W0003

WWT27#,ZRT27#

 6
53381B - SEAL, HOOD TO RADIATOR SUPPORT, RH
53381-05090

WWT27#,ZRT27#

 1
53382G - SEAL, HOOD TO RADIATOR SUPPORT, LH
53382-05010

WWT27#,ZRT27#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-05030

WWT27#,ZRT27#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-05030

WWT27#,ZRT27#

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-05030

WWT27#,ZRT27#

 1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-05030

WWT27#,ZRT27#

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-05050

WWT27#,ZRT27#

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-05050

WWT27#,ZRT27#

 1
53882N - CLIP(FOR FRONT FENDER SEAL)
90467-06205C0

WWT27#,ZRT27#

BLACK

 6
53883K - SEAL, FRONT FENDER, LH
53882-16030

WWT27#,ZRT27#

 4
Common parts
90119-06137
90950-06096

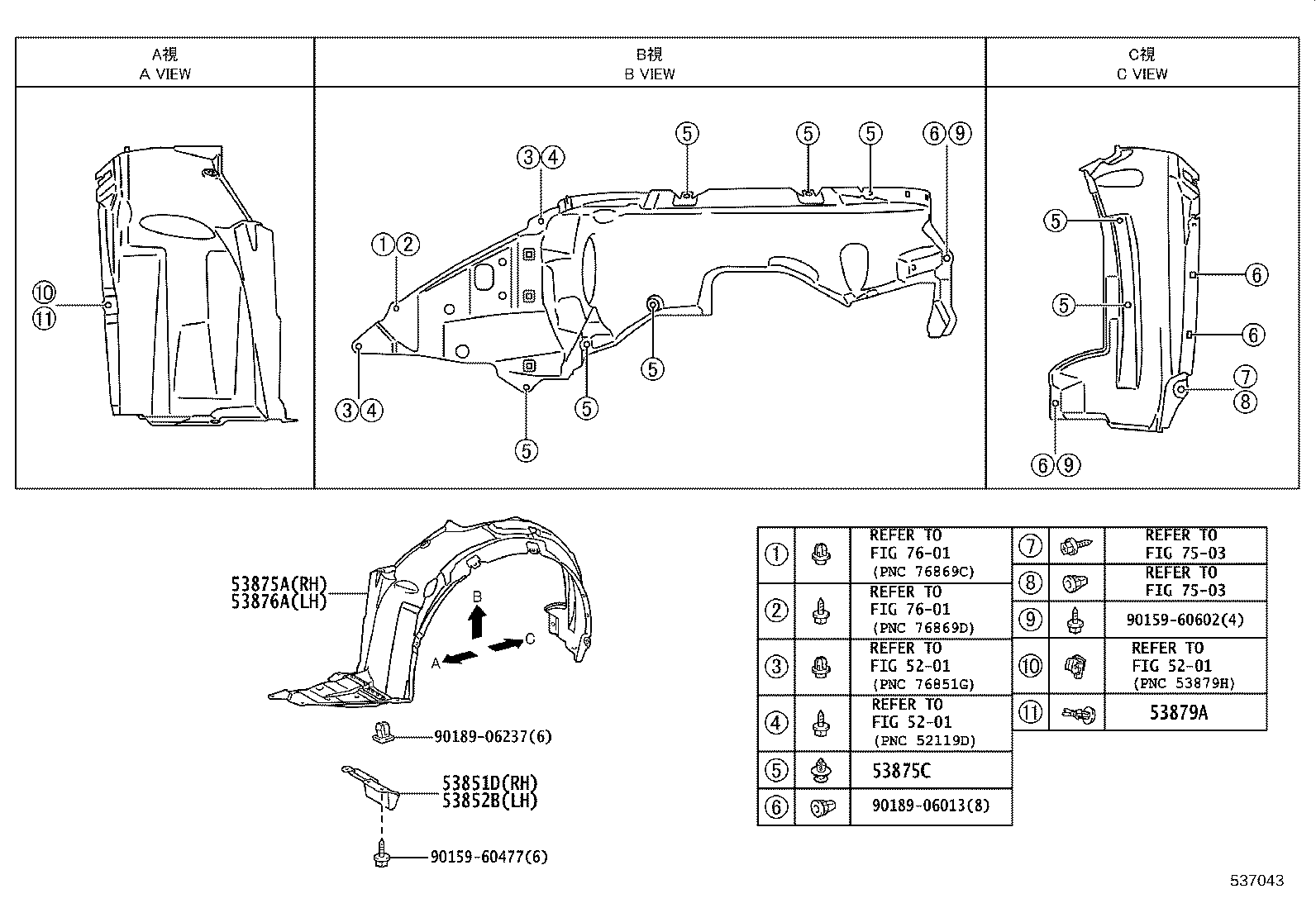

ILLUST NO. 2 OF 2(1508- )

Click highlighted areas on diagram

FENDER LINER

diagram 5201 5201 5201 53851D 53852B 53875A 53875C 53876A 53879A 7503 7503 7601 7601 9015960477 9015960602 9018906013 9018906237
Part # Description Qty Price
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-05020

WWT27#,ZRT271

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-05020

WWT27#,ZRT271

 1
53875A - LINER, FRONT FENDER, RH
53805-05012

WWT27#,ZRT27#

 1
53805-05011

WWT27#,ZRT27#

 1
53876A - LINER, FRONT FENDER, LH
53806-05011

WWT27#,ZRT27#

 1
53806-05012

WWT27#,ZRT27#

 1
53879A - RETAINER, FRONT FENDER LINER
47749-50090

WWT27#,ZRT27#

 2
Common parts
90159-60477
90159-60602
90189-06013
90189-06237
Linked diagrams
5201
7503
7601

ILLUST NO. 1 OF 2(0811-1508)

Click highlighted areas on diagram

diagram 53301 53326 53341B 53341C 53381B 53382G 53801 53802 53827L 53828K 53866 53867 53882N 53883K 9011906137 9095006096 9095006096 9095006124
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-05050

WWT27#,ZRT27#

 1
53326 - CLIP, HOOD PROTECTOR
53326-52010

WWT27#,ZRT27#

 1
53341B - INSULATOR, HOOD
53341-05050

WWT27#,ZRT27#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-W0003

WWT27#,ZRT27#

 6
53381B - SEAL, HOOD TO RADIATOR SUPPORT, RH
53381-05090

WWT27#,ZRT27#

 1
53382G - SEAL, HOOD TO RADIATOR SUPPORT, LH
53382-05010

WWT27#,ZRT27#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-05030

WWT27#,ZRT27#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-05030

WWT27#,ZRT27#

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-05030

WWT27#,ZRT27#

 1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-05030

WWT27#,ZRT27#

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-05050

WWT27#,ZRT27#

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-05050

WWT27#,ZRT27#

 1
53882N - CLIP(FOR FRONT FENDER SEAL)
90467-06205C0

WWT27#,ZRT27#

BLACK

 6
53883K - SEAL, FRONT FENDER, LH
53882-16030

WWT27#,ZRT27#

 4
Common parts
90119-06137
90950-06096
90950-06124

ILLUST NO. 2 OF 2(0811-1508)

Click highlighted areas on diagram

FENDER LINER

diagram 5201 5201 5201 53851D 53852B 53875A 53875C 53876A 53879A 7503 7503 7601 7601 9015960477 9015960602 9018906013 9018906237
Part # Description Qty Price
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-05020

WWT27#,ZRT271

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-05020

WWT27#,ZRT271

 1
53875A - LINER, FRONT FENDER, RH
53805-05012

WWT27#,ZRT27#

 1
53805-05011

WWT27#,ZRT27#

 1
53876A - LINER, FRONT FENDER, LH
53806-05011

WWT27#,ZRT27#

 1
53806-05012

WWT27#,ZRT27#

 1
53879A - RETAINER, FRONT FENDER LINER
47749-50090

WWT27#,ZRT27#

 2
Common parts
90159-60477
90159-60602
90189-06013
90189-06237
Linked diagrams
5201
7503
7601
