WWT270R-AEFGYW (2015)

Toyota Avensis

Production May 2015 - May 2018
Engine 1WW
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )SED

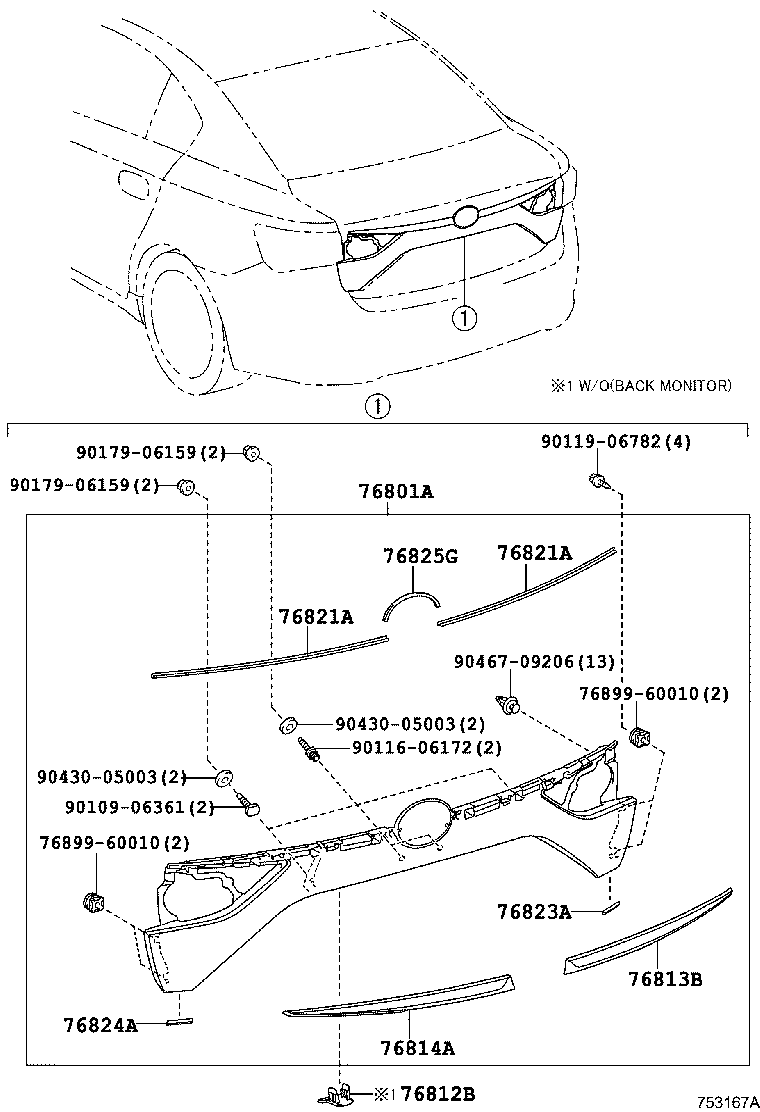

Click highlighted areas on diagram

diagram 76801A 76812B 76813B 76814A 76821A 76821A 76823A 76824A 76825G 7689960010 7689960010 9010906361 9011606172 9011906782 9017906159 9017906159 9043005003 9043005003 9046709206
Part # Description Qty Price
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-05913

WWT27#,ZRT27#..SED

PAINT REQ.

 1
76801-05904

WWT27#,ZRT27#..SED

PAINT REQ.

 1
76812B - GARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE NO.2
76812-05010

WWT270..SED..E

BASE PACKAGE&AUDIO-REAR SPEAKER LESS&WITH(AUDIO LESS COVER

 1
76812-05010

WWT27#,ZRT27#..SED..E..(DCR,HTWVM)

AUDIO-FM(50KHZ STEP) & CD & *BT & 6SPEAKER

 1
76812-05010

ZRT272..SED..E..HTWVM;WWT27#,ZRT270,271..SED..(E,G)

AUDIO-6PEAKER & WITH(AUDIO LESS COVER)

 1
76812-05010

WWT27#,ZRT27#..SED..E..(DCR,HTWVM)

AUDIO-FM & CD & 6SPEAKER

 1
76813B - GARNISH, LUGGAGE COMPARTMENT DOOR OUTSIDE, UPPER RH
76813-05010

WWT27#,ZRT27#..SED

 1
76814A - GARNISH, LUGGAGE COMPARTMENT DOOR OUTSIDE, UPPER LH
76814-05010

WWT27#,ZRT27#..SED

 1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76821-05060

WWT27#,ZRT27#..SED

 2
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76821-05060

WWT27#,ZRT27#..SED

 2
76823A - PROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE RH
76822-05030

WWT27#,ZRT27#..SED

 1
76824A - PROTECTOR, LUGGAGE COMPT DOOR GARNISH, OUTSIDE LH
76822-05030

WWT27#,ZRT27#..SED

 1
76825G - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH, NO
76825-05060

WWT27#,ZRT27#..SED

 1
Common parts
76899-60010
90109-06361
90116-06172
90119-06782
90179-06159
90430-05003
90467-09206
