ST220R-AWMEKW (1997)
Toyota Avensis

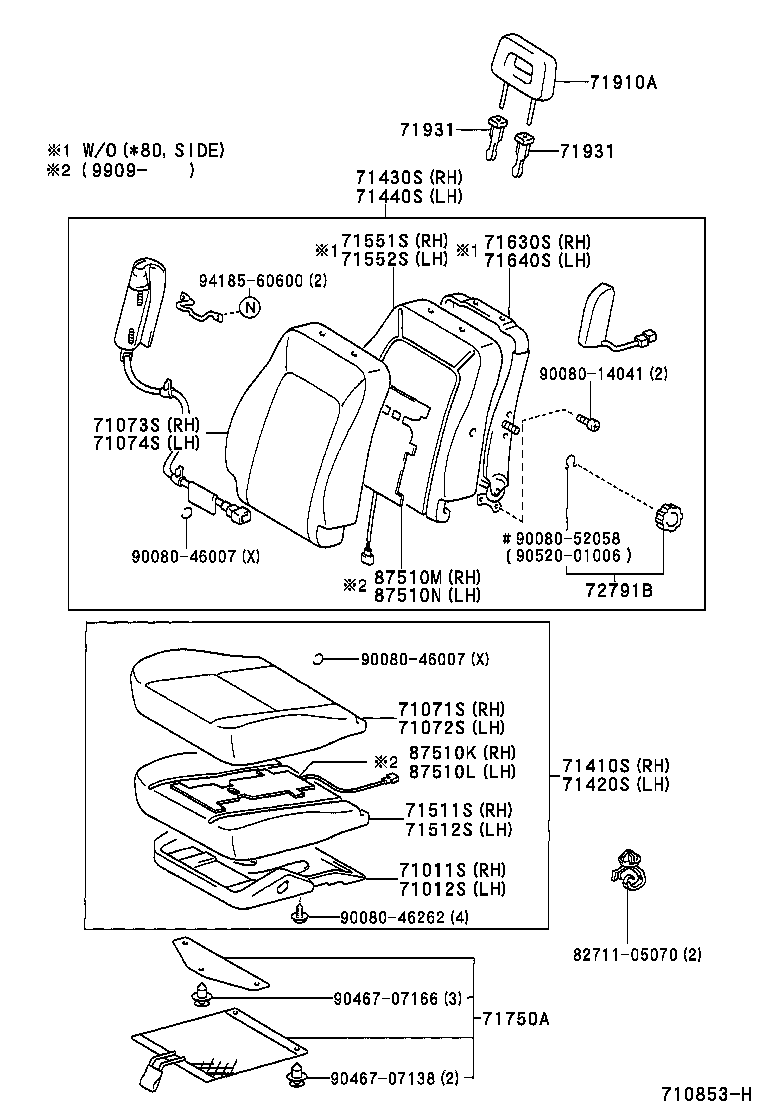

ILLUST NO. 1 OF 2(9710- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-05380B0 |
AT221,ST220..RHD..SOL SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-05380G0 |
AT221,ST220..RHD..SOL SEAT = TYPE A-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71071-05410B0 |
AT221,ST220..RHD..SOL SEAT = TYPE B-*104,ME. GRAY,TRIM1# |
1 | ||
| 71071-05460B1 |
AT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-05370G0 |
AT221,ST220..RHD..SOL SEAT = TYPE A-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71071-05400B0 |
AT221,ST220..RHD..SOL SEAT = TYPE B-*104,ME. GRAY,TRIM1# |
1 | ||
| 71071-05470B1 |
AT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-05370B0 |
AT221,ST220..RHD..SOL SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-05400G0 |
AT221,ST220..RHD..SOL W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71073-05430B1 |
AT221,ST220..RHD..SOL SEAT = TYPE B-*104,ME. GRAY,TRIM1# |
1 | ||
| 71073-05530B0 |
AT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD W(*80,SIDE) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-05340B0 |
AT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-05400B0 |
AT221,ST220..RHD..SOL W(*80,SIDE) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-05350B0 |
AT221,ST220..RHD..SOL W(*80,SIDE) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-05360B0 |
AT221,ST220..RHD..SOL W(*80,SIDE) & SEAT = TYPE B-*104,ME. GRAY,TRIM1# |
1 | ||
| 71073-05380B0 |
AT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-05390B0 |
AT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD W(*80,SIDE) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-05350G0 |
AT221,ST220..RHD..SOL W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-05350B0 |
AT221,ST220..RHD..SOL SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-05380B0 |
AT221,ST220..RHD..SOL SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-05400B0 |
AT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-05350G0 |
AT221,ST220..RHD..SOL SEAT = TYPE A-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-05440B0 |
AT221,ST220..RHD..SOL SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71420-05450B0 |
AT221,ST220..RHD..SOL SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71420-05400B0 |
AT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71420-05440G0 |
AT221,ST220..RHD..SOL SEAT = TYPE A-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-05420G0 |
AT221,ST220..RHD..SOL W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71430-05440B0 |
AT221,ST220..RHD..SOL W(*80,SIDE) & SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-05420B0 |
AT221,ST220..RHD..SOL W(*80,SIDE) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-05320B0 |
AT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-05500B0 |
AT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD W(*80,SIDE) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-05321B0 |
AT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-05441B0 |
AT221,ST220..RHD..SOL W(*80,SIDE & SEAT HEATER) & SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-05421B0 |
AT221,ST220..RHD..SOL W(*80,SIDE) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-05421G0 |
AT221,ST220..RHD..SOL W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71430-05501B0 |
AT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD W(*80,SIDE) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-05300B0 |
AT221,ST220..RHD..SOL W(*80,SIDE) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-05330B0 |
AT221,ST220..RHD..SOL W(*80,SIDE) & SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-05300G0 |
AT221,ST220..RHD..SOL W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71440-05280B0 |
AT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-05390B0 |
AT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD W(*80,SIDE) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-05301G0 |
AT221,ST220..RHD..SOL W(*80,SIDE) & SEAT = TYPE A-*104,SLATE GREEN,TRIM6# |
1 | ||
| 71440-05301B0 |
AT221,ST220..RHD..SOL W(*80,SIDE) & SEAT = TYPE A-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-05281B0 |
AT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-05331B0 |
AT221,ST220..RHD..SOL W(*80,SIDE) & SEAT = TYPE B-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-05391B0 |
AT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD W(*80,SIDE) & SEAT = TYPE D-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-05010 |
AT220,CT220,ST220,ZZT220..RHD;AT221,AZT220,CDT220,ZZT221..RHD..TERRA |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-05040 |
AT220,CT220,ST220,ZZT220..RHD;AT221,AZT220,CDT220,ZZT221..RHD..TERRA |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-05030 |
AT22#,CT220,ST220..RHD |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-05030 |
AT22#,CDT220,CT220,ST220..RHD |
1 | ||
| 71750A - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-20030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-05120B0 |
AT22#,CT220,ST220..SOL W(LEATHER SEAT),ME. GRAY,TRIM1# |
2 | ||
| 71910-05110B1 |
AT22#,CDT220,CT220,ST220..SOL MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-05120B1 |
AT22#,CDT220,CT220,ST220..SOL W(LEATHER SEAT),ME. GRAY,TRIM1# |
2 | ||
| 71910-05090B1 |
ST220..RHD;AT22#,CDT220,CT220..TERRA LINEA LUNA,MEDIUM GRAY,TRIM1# |
2 | ||
| 71910-05110G1 |
AT22#,CDT220,CT220,ST220..SOL SLATE GREEN,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-05010B1 |
AT22#,CDT220,CT220,ST220 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W/O(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71930-05010B1 |
AT22#,CDT220,CT220,ST220 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-05010B1 |
AT22#,CDT220,CT220,ST220 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W/O(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 71930-05010B1 |
AT22#,CDT220,CT220,ST220 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(LOCK),SLATE GREEN,TRIM6# |
2 | ||
| 72791B - KNOB, LUMBAR SUPPORT, LH | ||||
| 72791-05020B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 72791-05020G0 |
AT22#,CDT220,CT220,ST220 SLATE GREEN,TRIM6# |
1 | ||
| Common parts | ||||
| 82711-05070 | ||||
| 90080-14041 | ||||
| 90080-46007 | ||||
| 90080-46262 | ||||
| 90080-52058 | ||||
| 90467-07138 | ||||
| 90467-07166 | ||||
| 90520-01006 | ||||
| 94185-60600 | ||||

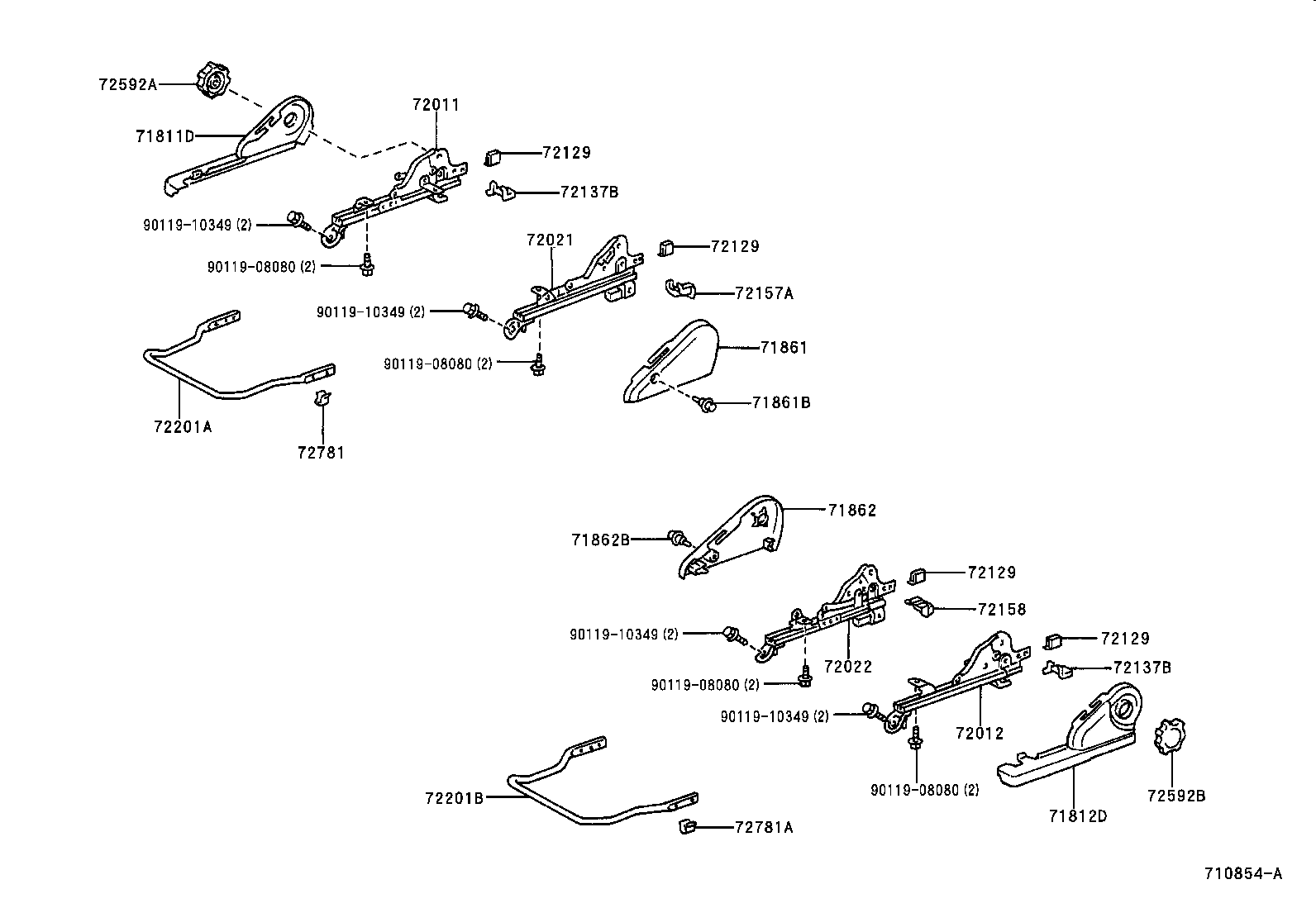

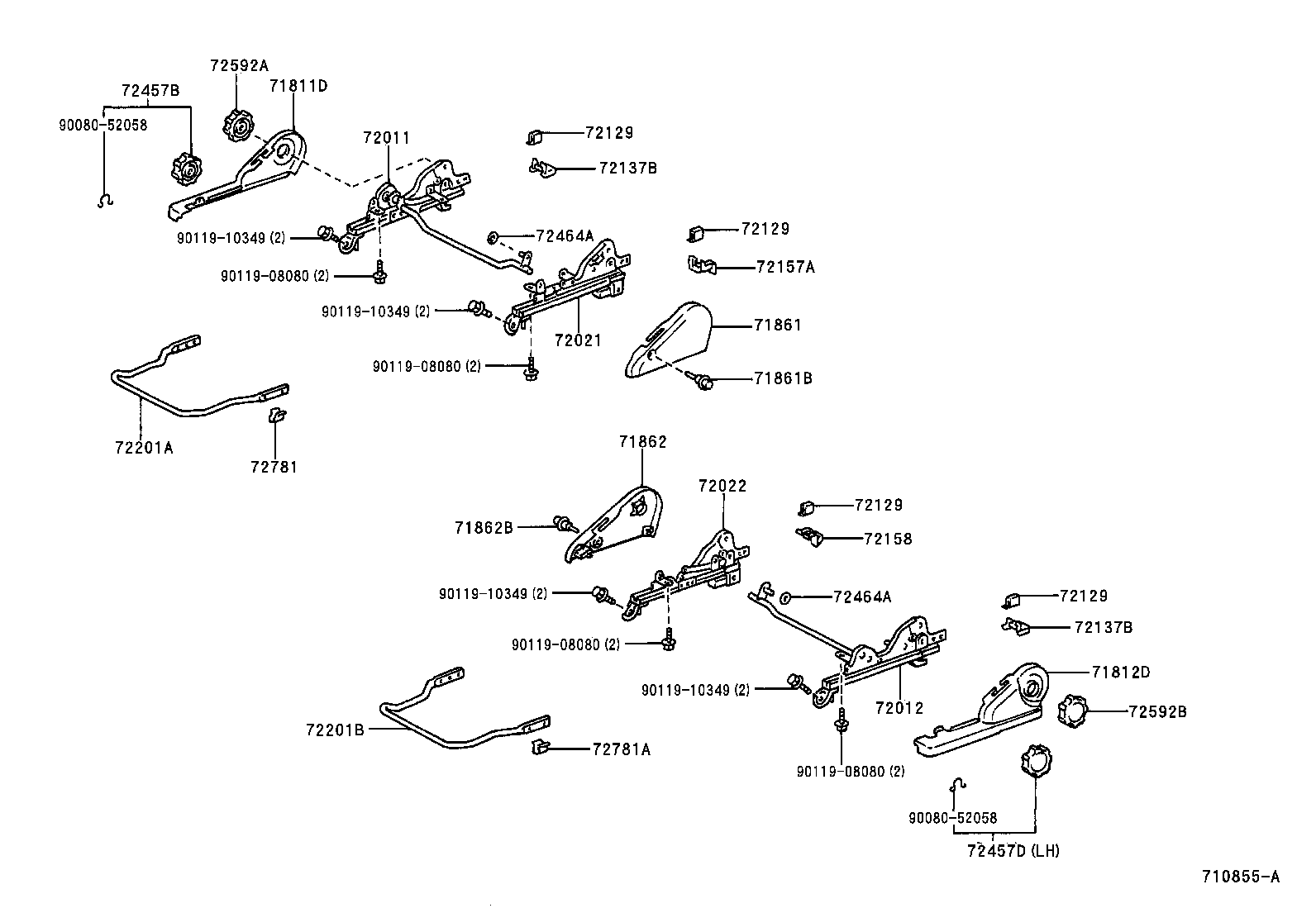

ILLUST NO. 2 OF 2(9710- )
NORMAL ADJUSTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-05030B0 |
AT22#,CDT220,CT220,ST220 W(*80,SIDE),MD.GRAY,TRIM1# |
1 | ||
| 71811-05040G0 |
ST220..RHD;AT22#,AZT220,CDT220,CT220,ZZT22#..TERRA W/O(*80,SIDE),SLATE GREEN,TRIM6# |
1 | ||
| 71811-05040B0 |
ST220..RHD;AT22#,CDT220,CT220..TERRA MD.GRAY,TRIM1# |
1 | ||
| 71811-05030G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(SIDE AIR BAG),SLATE GREEN,TRIM6# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-05040B0 |
ST220..RHD;AT22#,CDT220,CT220..TERRA MD.GRAY,TRIM1# |
1 | ||
| 71812-05030B0 |
AT22#,CDT220,CT220,ST220 W(*80,SIDE),MD.GRAY,TRIM1# |
1 | ||
| 71812-05040G0 |
ST220..RHD;AT22#,AZT220,CDT220,CT220,ZZT22#..TERRA W/O(*80,SIDE),SLATE GREEN,TRIM6# |
1 | ||
| 71812-05030G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(*80,SIDE),SLATE GREEN,TRIM6# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-05030B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 71861-05030G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 90467-07071B1 |
AT22#,CDT220,CT220,ST220 GRAY,TRIM1# |
1 | ||
| 90467-07071G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-05030G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 71862-05030B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 90467-07071G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 90467-07071B1 |
AT22#,CDT220,CT220,ST220 GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-05061 |
AT22#,CDT220,CT220,ST220..RHD |
1 | ||
| 72011-05060 |
AT22#,CT220,ST220..RHD |
1 | ||
| 72011-05062 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-05051 |
AT22#,CDT220,CT220,ST220..RHD |
1 | ||
| 72012-05050 |
AT22#,CT220,ST220..RHD |
1 | ||
| 72012-05052 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-05061 |
AT22#,CDT220,CT220,ST220..RHD |
1 | ||
| 72021-05060 |
AT22#,CT220,ST220..RHD |
1 | ||
| 72021-05062 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-05050 |
AT22#,CT220,ST220..RHD |
1 | ||
| 72022-05051 |
AT22#,CDT220,CT220,ST220..RHD |
1 | ||
| 72022-05052 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-05020B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
2 | ||
| 72137-05020G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-05020B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
2 | ||
| 72137-05020G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
2 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-05020B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 72157-05020G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-05020G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 72158-05020B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 72592A - KNOB,RECLINING ADJUSTER, RH | ||||
| 72592-05030B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 72592-05030G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-05030B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 72592-05030G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 72781 - SPRING, FRONT SEAT PLATE, RH | ||||
| 72781-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 72781A - SPRING, FRONT SEAT PLATE, LH | ||||
| 72781-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10349 | ||||
ILLUST NO. 2 OF 2(9710- )
VERTICAL ADJUSTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-05030B0 |
AT22#,CDT220,CT220,ST220 W(*80,SIDE),MD.GRAY,TRIM1# |
1 | ||
| 71811-05040G0 |
ST220..RHD;AT22#,AZT220,CDT220,CT220,ZZT22#..TERRA W/O(*80,SIDE),SLATE GREEN,TRIM6# |
1 | ||
| 71811-05040B0 |
ST220..RHD;AT22#,CDT220,CT220..TERRA MD.GRAY,TRIM1# |
1 | ||
| 71811-05030G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(SIDE AIR BAG),SLATE GREEN,TRIM6# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-05040B0 |
ST220..RHD;AT22#,CDT220,CT220..TERRA MD.GRAY,TRIM1# |
1 | ||
| 71812-05030B0 |
AT22#,CDT220,CT220,ST220 W(*80,SIDE),MD.GRAY,TRIM1# |
1 | ||
| 71812-05040G0 |
ST220..RHD;AT22#,AZT220,CDT220,CT220,ZZT22#..TERRA W/O(*80,SIDE),SLATE GREEN,TRIM6# |
1 | ||
| 71812-05030G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(*80,SIDE),SLATE GREEN,TRIM6# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-05030B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 71861-05030G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 90467-07071B1 |
AT22#,CDT220,CT220,ST220 GRAY,TRIM1# |
1 | ||
| 90467-07071G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-05030G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 71862-05030B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 90467-07071G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 90467-07071B1 |
AT22#,CDT220,CT220,ST220 GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-05061 |
AT22#,CDT220,CT220,ST220..RHD |
1 | ||
| 72011-05060 |
AT22#,CT220,ST220..RHD |
1 | ||
| 72011-05062 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-05051 |
AT22#,CDT220,CT220,ST220..RHD |
1 | ||
| 72012-05050 |
AT22#,CT220,ST220..RHD |
1 | ||
| 72012-05052 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-05061 |
AT22#,CDT220,CT220,ST220..RHD |
1 | ||
| 72021-05060 |
AT22#,CT220,ST220..RHD |
1 | ||
| 72021-05062 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-05050 |
AT22#,CT220,ST220..RHD |
1 | ||
| 72022-05051 |
AT22#,CDT220,CT220,ST220..RHD |
1 | ||
| 72022-05052 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-05020B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
2 | ||
| 72137-05020G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-05020B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
2 | ||
| 72137-05020G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
2 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-05020B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 72157-05020G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-05020G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 72158-05020B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-05010B1 |
AT22#,CDT220,CT220,ST220..RHD MD.GRAY,TRIM1# |
1 | ||
| 72457-05010G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD SLATE GREEN,TRIM6# |
1 | ||
| 72464A - RING, VERTICAL ADJUSTER | ||||
| 72464-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 72464A - RING, VERTICAL ADJUSTER | ||||
| 72464-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 72592A - KNOB,RECLINING ADJUSTER, RH | ||||
| 72592-05030B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 72592-05030G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-05030B0 |
AT22#,CDT220,CT220,ST220 MD.GRAY,TRIM1# |
1 | ||
| 72592-05030G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# SLATE GREEN,TRIM6# |
1 | ||
| 72781 - SPRING, FRONT SEAT PLATE, RH | ||||
| 72781-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 72781A - SPRING, FRONT SEAT PLATE, LH | ||||
| 72781-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| Common parts | ||||
| 90080-52058 | ||||
| 90119-08080 | ||||
| 90119-10349 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
