ST220R-AWMEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )3SFE

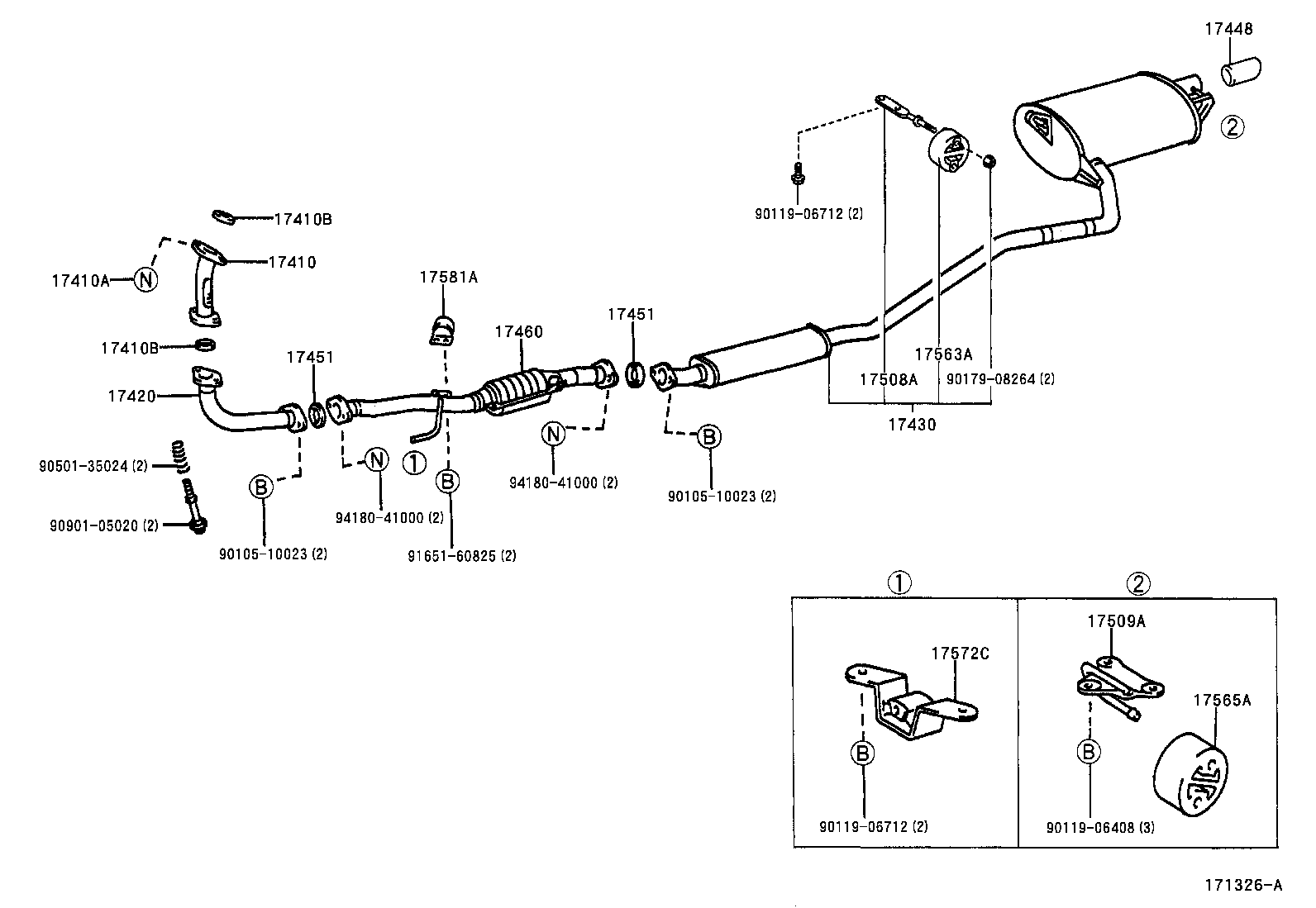

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17420 17430 17448 17451 17451 17460 17508A 17509A 17563A 17565A 17572C 17581A 9010510023 9010510023 9011906408 9011906712 9011906712 9017908264 9050135024 9090105020 9165160825 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-03250

3SFE..ST220

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AFE..AT220..RHD;7AFE,3SFE..AT221,ST220

 2
90179-10070

3SFE..ST220

 2
17410B - GASKET, EXHAUST PIPE
17451-02030

4AFE,7AFE,3SFE..AT22#,ST220

REAR

 1
90917-06065

4AFE..AT220..RHD;7AFE,3SFE..AT221,ST220

FRONT

 1
90917-06065

3SFE..ST220

FRONT

 1
17410B - GASKET, EXHAUST PIPE
17451-02030

4AFE,7AFE,3SFE..AT22#,ST220

REAR

 1
90917-06065

4AFE..AT220..RHD;7AFE,3SFE..AT221,ST220

FRONT

 1
90917-06065

3SFE..ST220

FRONT

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-03160

3SFE..ST220

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-02200

4AFE,7AFE,3SFE..AT22#,ST220..WG

 1
17430-02201

4AFE,7AFE,3SFE..AT22#,ST220..WG

 1
17451 - GASKET, EXHAUST PIPE
90917-06046

4AFE,7AFE,3SFE..AT22#,ST220

 2
17451 - GASKET, EXHAUST PIPE
90917-06046

4AFE,7AFE,3SFE..AT22#,ST220

 2
17460 - CONVERTER ASSY, CATALYTIC W/PIPE
17460-03030

3SFE..ST220

*115=TOYOTA/-00/N

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-02050

4AFE,7AFE,1CDFTV,2CT#,3SFE..AT22#,CDT220,CT220,ST220

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-02020

1AZFSE,4AFE,7AFE,1CDFTV,2CT#,3SFE,1ZZFE,3ZZFE..AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-16270

4AFE,7AFE,1CDFTV,2CT#,3SFE..AT22#,CDT220,CT220,ST220

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-16270

4AFE,7AFE,1CDFTV,2CT#,3SFE..AT22#,CDT220,CT220,ST220

 1
17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-74430

1AZFSE,4AFE,7AFE,3SFE,1ZZFE,3ZZFE..AT22#,AZT220,ST220,ZZT22#

 1
17581A - DAMPER, EXHAUST PIPE
17581-16020

1AZFSE,3SFE,3ZZFE..AZT220,ST220,ZZT220

 1
Common parts
90105-10023
90119-06408
90119-06712
90179-08264
90501-35024
90901-05020
91651-60825
94180-41000
