ST220R-ALPEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )3SFE

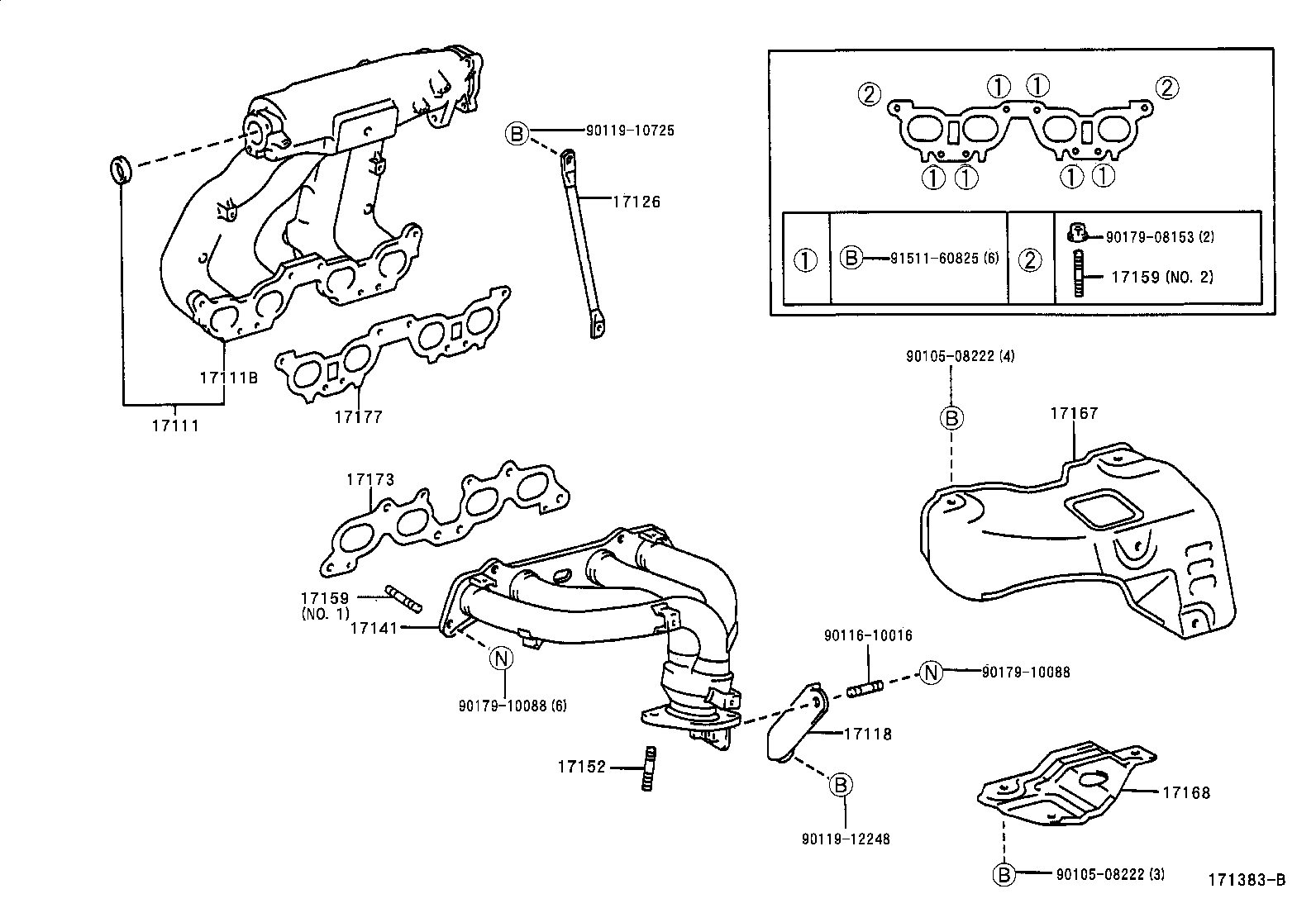

Click highlighted areas on diagram

diagram 17111 17111B 17118 17126 17141 17152 17159 17159 17167 17168 17173 17177 9010508222 9010508222 9011610016 9011910725 9011912248 9017908153 9017910088 9017910088 9151160825
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-74310

3SFE..ST220

 1
17101-74311

3SFE..ST220

 1
17111B - PLUG, NO.2
96411-44000

3SFE..ST220

 1
17118 - STAY, MANIFOLD
17118-74410

3SFE..ST220

 1
17126 - STAY, SURGE TANK, NO.2
17126-74100

3SFE..ST220

 1
17141 - MANIFOLD, EXHAUST
17141-74210

3SFE..ST220

 1
17141-74280

3SFE..ST220

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

3SFE..ST220

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

3SFE..ST220

NO.1

 6
92122-60822

3SFE..ST220

NO.2

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

3SFE..ST220

NO.1

 6
92122-60822

3SFE..ST220

NO.2

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-74250

3SFE..ST220

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-74150

3SFE..ST220

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-74040

3SFE..ST220

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-74070

3SFE..ST220

 1
Common parts
90105-08222
90116-10016
90119-10725
90119-12248
90179-08153
90179-10088
91511-60825
