ST220R-ALMEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

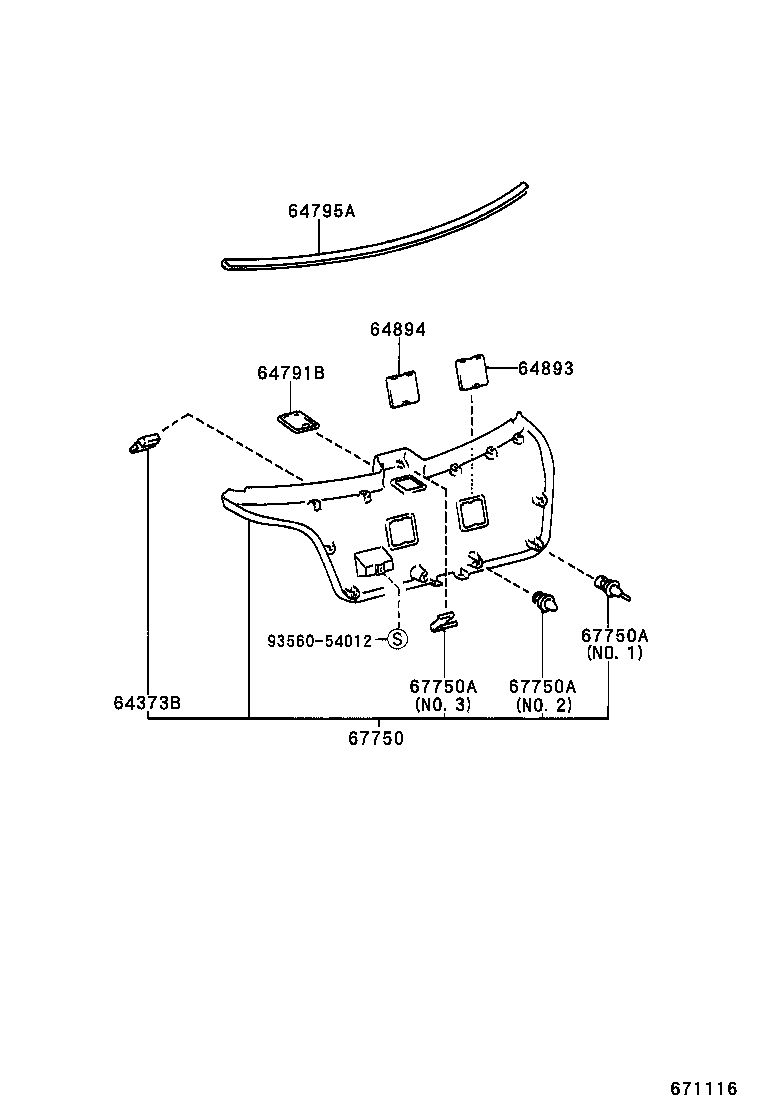

ILLUST NO. 1 OF 2(9710- )LB

Click highlighted areas on diagram

diagram 64373B 64791B 64795A 64893 64894 67750 67750A 67750A 67750A 9356054012
Part # Description Qty Price
64373B - STOPPER, PACKAGE TRAY TRIM
64373-20080

AT22#,CT220,ST220..LB

 2
64376-12020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 2
64791B - COVER, BACK DOOR TRIM
64791-05040B0

AT22#,CDT220,CT220,ST220..LB

MD.GRAY,TRIM1#

 1
64791-05040G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

SLATE GREEN,TRIM6#

 1
64795A - TRIM, BACK WINDOW OPENING
64795-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
64893 - COVER, BACK DOOR TRIM, UPPER, RH
64893-05011G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

SLATE GREEN,TRIM6#

 1
64893-05011B1

AT22#,CDT220,CT220,ST220..LB

MD.GRAY,TRIM1#

 1
64894 - COVER, BACK DOOR TRIM, UPPER, LH
64894-05011B1

AT22#,CDT220,CT220,ST220..LB

MD.GRAY,TRIM1#

 1
64894-05011G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

SLATE GREEN,TRIM6#

 1
67750 - BOARD ASSY, BACK DOOR TRIM
67750-05040G0

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

SLATE GREEN,TRIM6#

 1
67750-05040B0

AT22#,CDT220,CT220,ST220..LB

MD.GRAY,TRIM1#

 1
67750A - CLIP(FOR BACK DOOR TRIM)
90468-04098

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

NO.3

 2
90467-10151

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG

NO.1

 1
90467-10167

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

NO.2

 11
67750A - CLIP(FOR BACK DOOR TRIM)
90468-04098

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

NO.3

 2
90467-10151

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG

NO.1

 1
90467-10167

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

NO.2

 11
67750A - CLIP(FOR BACK DOOR TRIM)
90468-04098

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

NO.3

 2
90467-10151

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG

NO.1

 1
90467-10167

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

NO.2

 11
Common parts
93560-54012

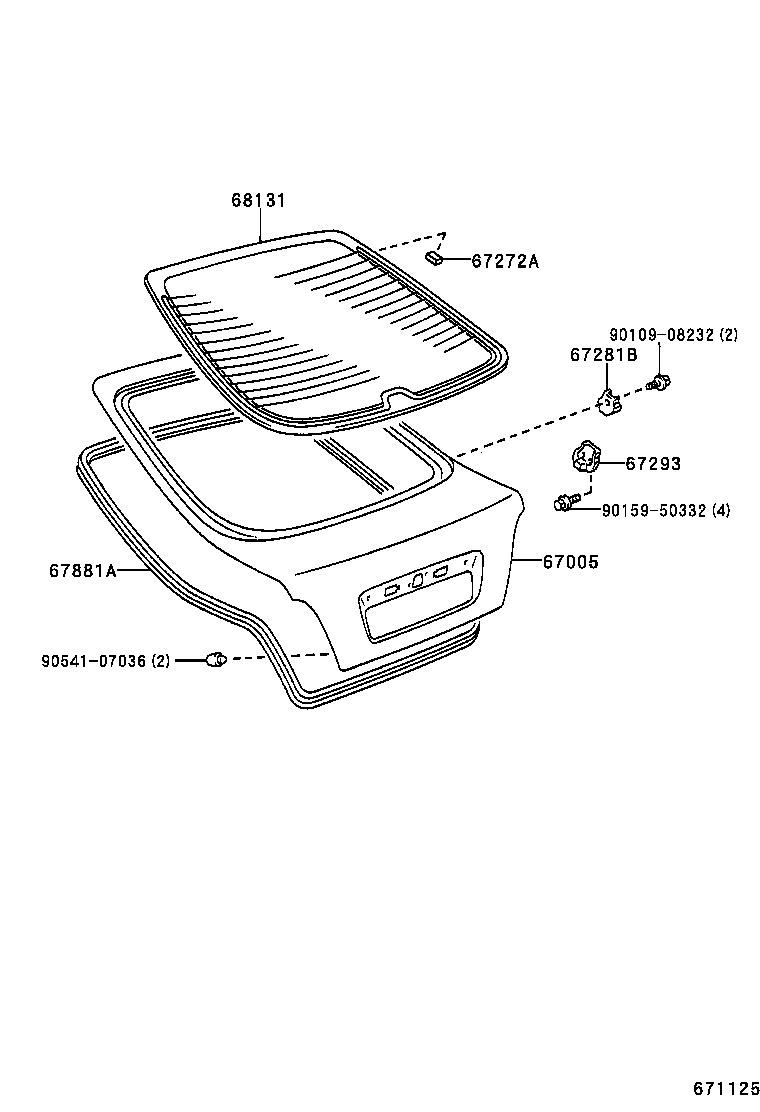

ILLUST NO. 2 OF 2(9710- )LB

Click highlighted areas on diagram

diagram 67005 67272A 67281B 67293 67881A 68131 9010908232 9015950332 9054107036
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-05060

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
67272A - CUSHION, BACK DOOR STOPPER, NO.2
67272-20010

AT22#,CT220,ST220..LB

 8
67272-32010

AT22#,CT220,ST220..LB

 8
67272-32010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 4
67281B - STOPPER, BACK DOOR, LOWER
67281-20040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-20030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

 1
68131 - GLASS, BACK DOOR
68131-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB

*TEM,T=4.0,GREEN

 1
Common parts
90109-08232
90159-50332
90541-07036
