ST220R-ALMEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9710- )

Click highlighted areas on diagram

diagram 43211K 43212D
Part # Description Qty Price
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15005

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

OD=13.3

 1
90105-15004

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

OD=13.9

 1
90105-15006

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

OD=12.4

 1
90105-15001

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

OD=15.0

 2
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15006

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

OD=12.4

 1
90105-15004

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

OD=13.9

 1
90105-15005

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

OD=13.3

 1
90105-15001

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

OD=15.0

 2

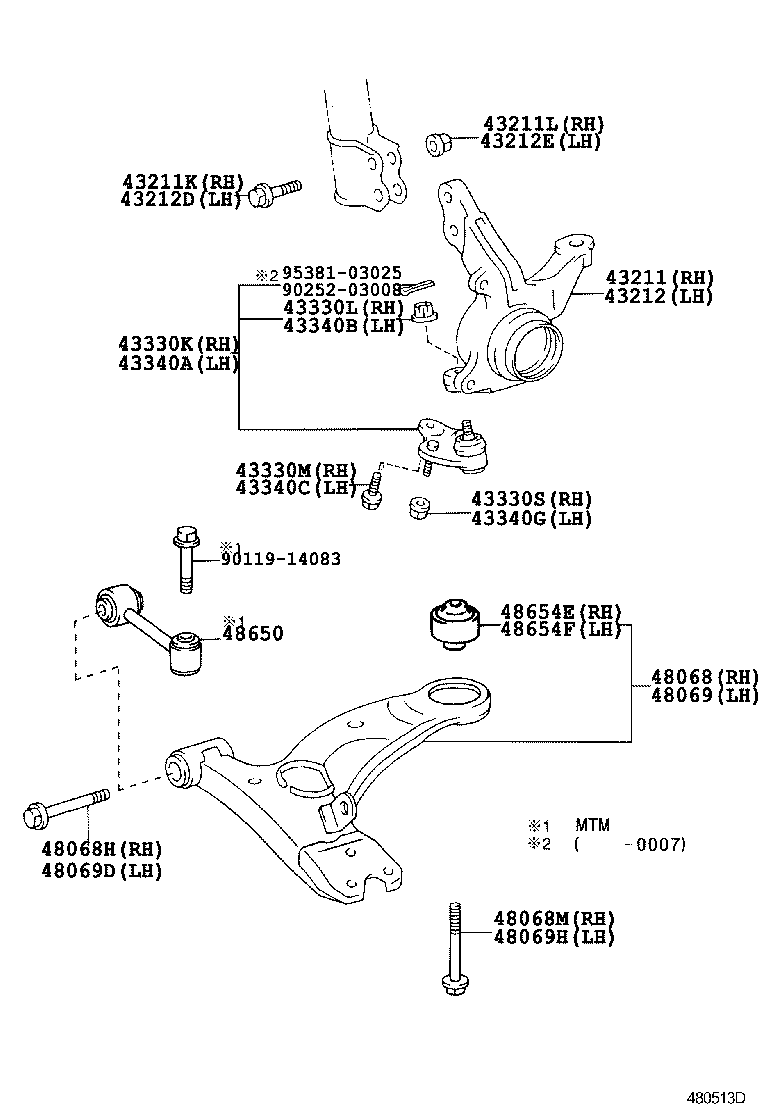

ILLUST NO. 1 OF 2(9710- )

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 48068 48068H 48068M 48069 48069D 48069H 48650 48654E 48654F 9011914083 9025203008 9538103025
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-05070

AT22#,CT220,ST220..EFI,TDEFI

W(ABS)

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15005

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

OD=13.3

 1
90105-15004

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

OD=13.9

 1
90105-15006

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

OD=12.4

 1
90105-15001

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

OD=15.0

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90179-15001

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
43212 - KNUCKLE, STEERING, LH
43212-05070

AT22#,CT220,ST220..EFI,TDEFI

W(ABS)

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15006

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

OD=12.4

 1
90105-15004

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

OD=13.9

 1
90105-15005

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

OD=13.3

 1
90105-15001

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

OD=15.0

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-15001

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09030

AT22#,CDT220,CT220,ST220

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12122

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90179-12052

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-09030

AT22#,CDT220,CT220,ST220

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12122

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90179-12052

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-05040

AT22#,CT220,ST220..MTM

 1
48068-05041

AT22#,CDT220,CT220,ST220..MTM

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14082

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-14081

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-05040

AT22#,CT220,ST220..MTM

 1
48069-05041

AT22#,CDT220,CT220,ST220..MTM

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14082

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-14081

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48650 - LINK ASSY, LOWER ARM CONTROL
48650-20020

AT22#,CDT220,CT220,ST220..MTM

 2
48654E - BUSH, FRONT LOWER ARM, NO.1 RH
48061-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48654F - BUSH, FRONT LOWER ARM, NO.1 LH
48061-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
Common parts
90119-14083
90252-03008
95381-03025
