ST220R-AEPEKW (1997)
Toyota Avensis

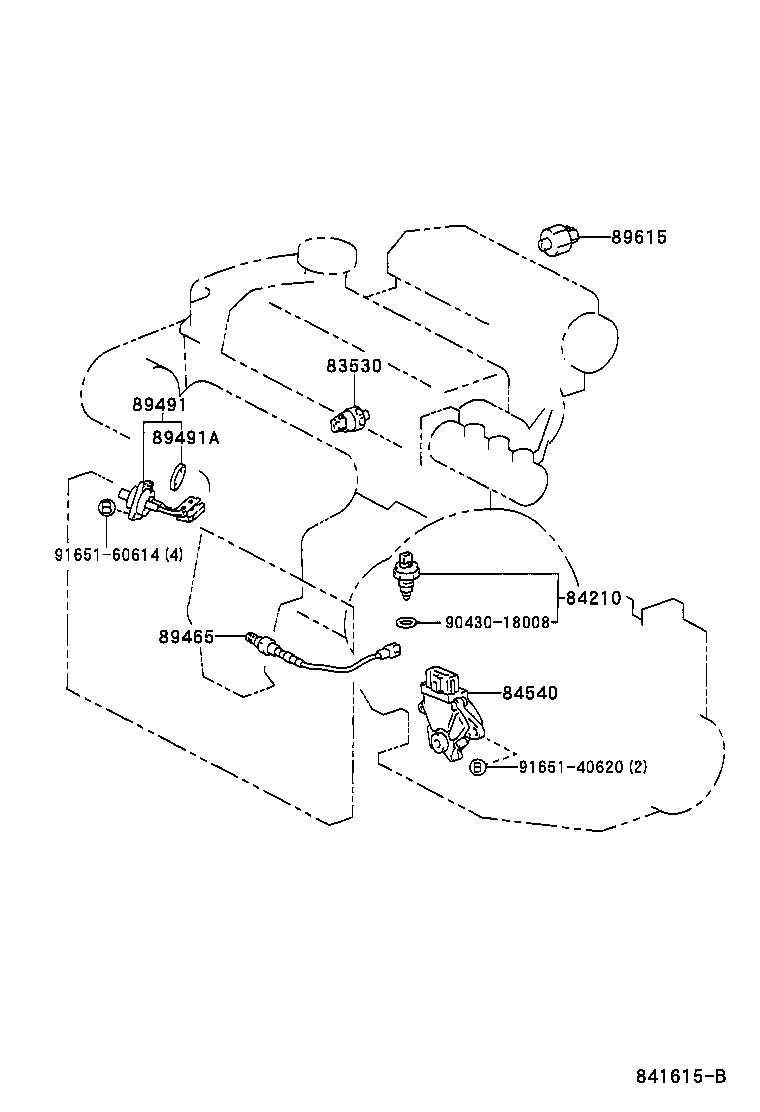

ILLUST NO. 1 OF 6(9710- )ST220
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
AZT220,ST220 DENSO |
1 | ||
| 83530-30090 |
ST220 |
1 | ||
| 83530-60020 |
AT22#,AZT220,ST220,ZZT22# YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16050 |
ST220..ATM |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-20430 |
ST220 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-20080 |
ST220 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-27001 |
CDT220,CT220,ST220 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-33020 |
ST220 DENSO |
1 | ||
| 89615-32040 |
ST220 TOYOTA |
1 | ||
| 89615-20030 |
ST220 TOYOTA |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
| 91651-60614 | ||||

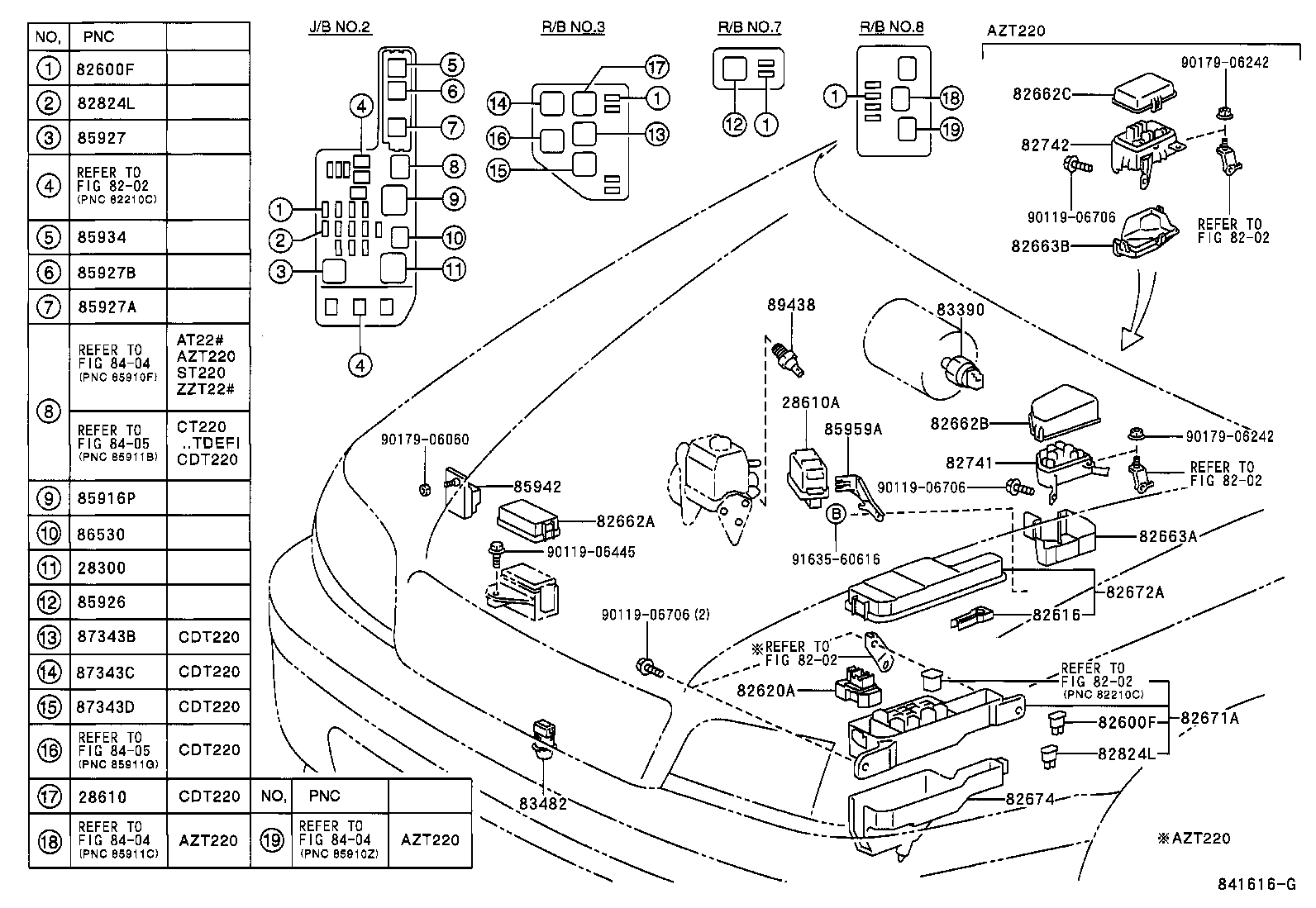

ILLUST NO. 2 OF 6(9710- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
1AZFSE,4AFE,7AFE,1CDFTV,2CT#,3SFE,1ZZFE,3ZZFE..AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82022 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82024 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82021 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 10A,MINI FUSE,RED |
1 | ||
| 90080-82023 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82031 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 5A,MINI FUSE,TAN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82022 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82024 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82021 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 10A,MINI FUSE,RED |
1 | ||
| 90080-82023 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82031 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 5A,MINI FUSE,TAN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82720-05010 |
AT22#,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-05050 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 83482-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87005 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90080-87012 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90080-87013 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90080-87013 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87013 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
AT22#,AZT220,ST220,ZZT22# |
1 | ||
| Common parts | ||||
| 90119-06445 | ||||
| 90119-06706 | ||||
| 90179-06060 | ||||
| 90179-06242 | ||||
| 91635-60616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||

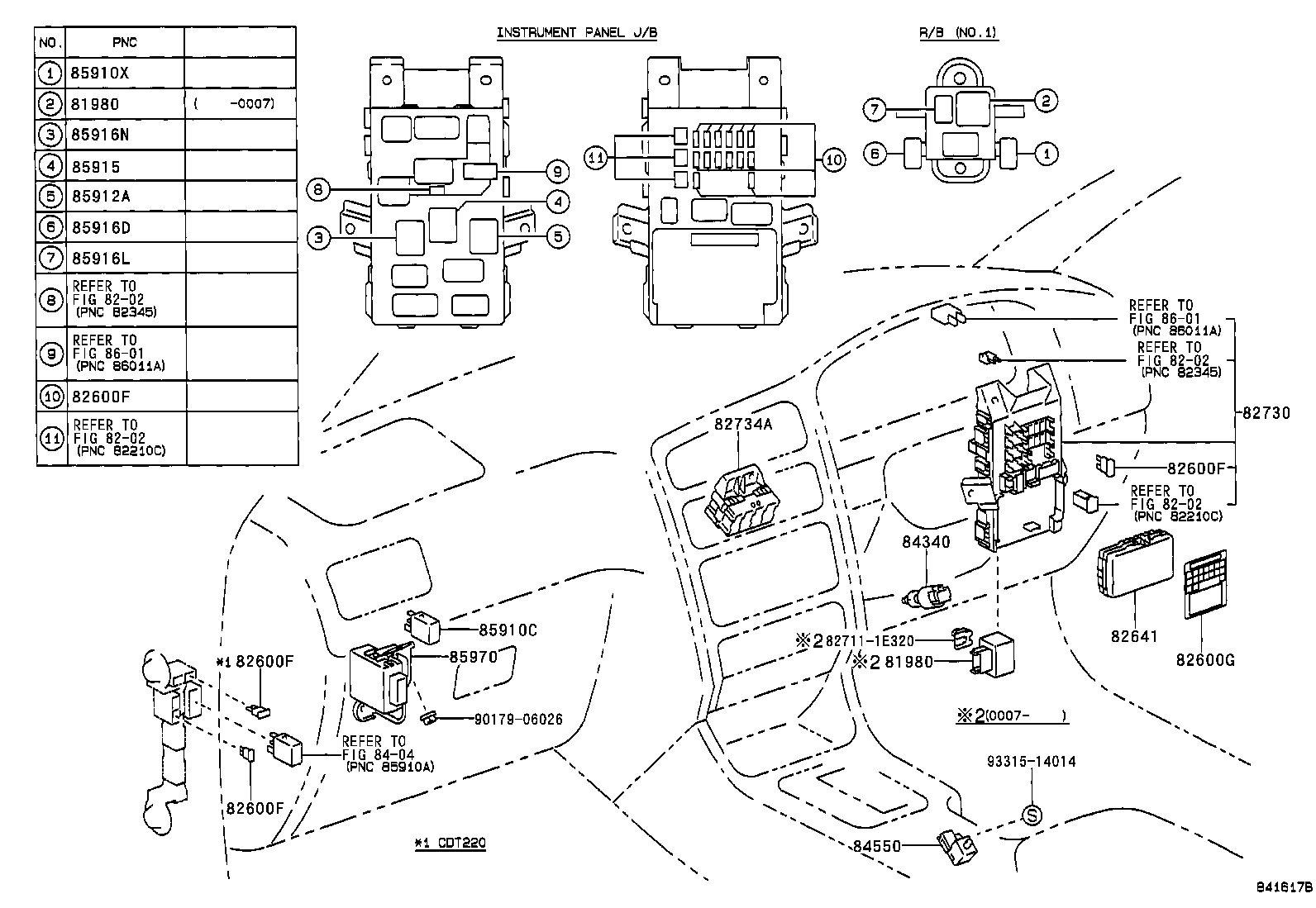

ILLUST NO. 3 OF 6(9710- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82022 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82024 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82021 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 10A,MINI FUSE,RED |
1 | ||
| 90080-82023 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82031 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 5A,MINI FUSE,TAN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82022 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82024 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82021 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 10A,MINI FUSE,RED |
1 | ||
| 90080-82023 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82031 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 5A,MINI FUSE,TAN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82022 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82024 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82021 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 10A,MINI FUSE,RED |
1 | ||
| 90080-82023 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82031 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 5A,MINI FUSE,TAN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90080-82022 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82024 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82021 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 10A,MINI FUSE,RED |
1 | ||
| 90080-82023 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82031 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 5A,MINI FUSE,TAN |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-05010 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-05011 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 82641-05010 |
AT22#,CT220,ST220 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-05010 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
AT22#,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90080-87013 |
AT221,ST220..RHD;AT221..LHD..TERRA;AT220,CDT220,CT220..TERRA |
1 | ||
| 85912A - RELAY, DEFOGGER TIMER | ||||
| 90080-87013 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90080-87013 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90080-87013 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90080-87013 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90080-87013 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 90179-06026 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8601 | ||||

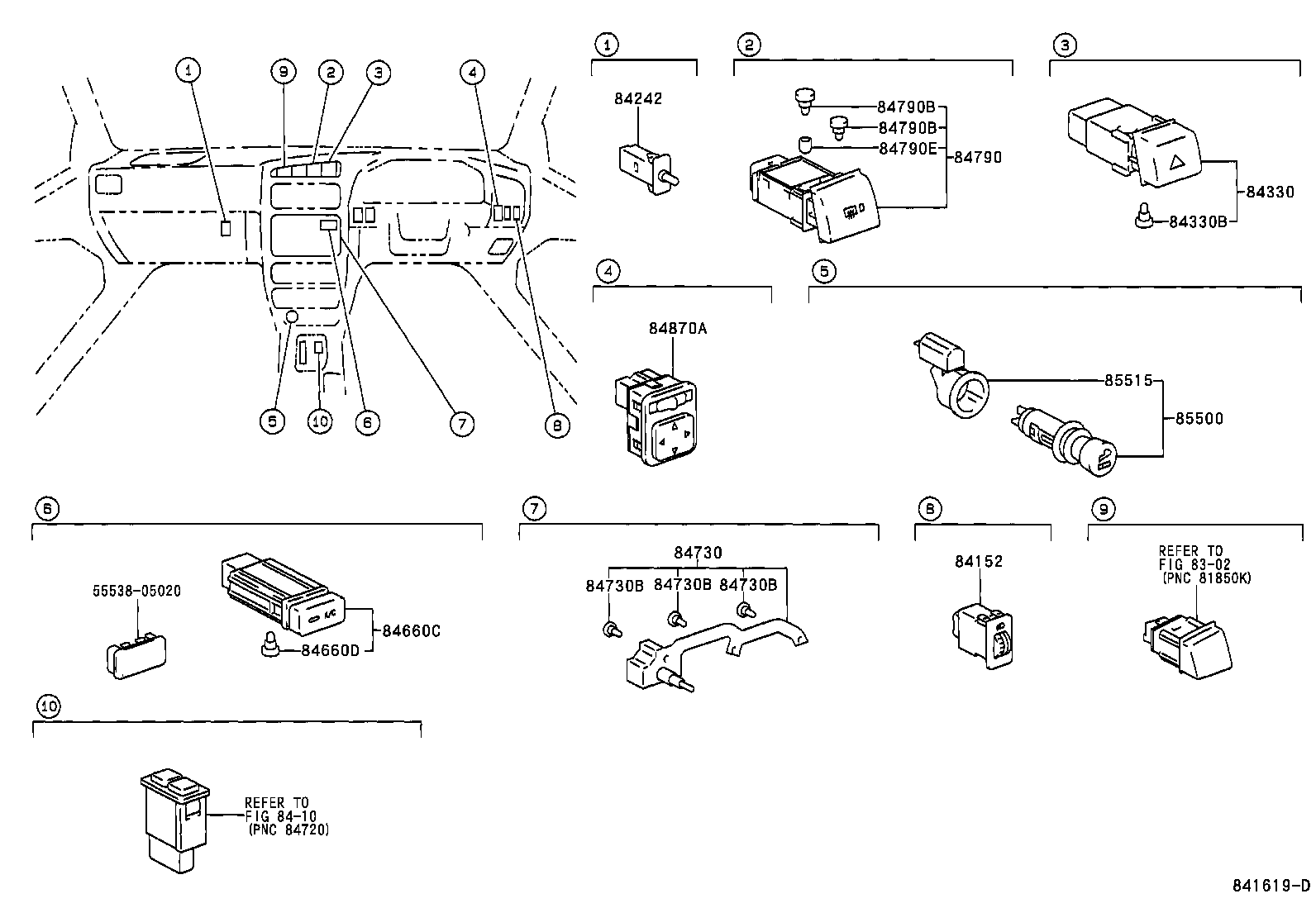

ILLUST NO. 4 OF 6(9710-0007)RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-05040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20360 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 14V 0.84W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-20200 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-10020 |
AT22#,CDT220,CT220,ST220 14V 0.08A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-05030 |
AT22#,CDT220,CT220,ST220..RHD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90069-98005 |
AT22#,CDT220,CT220,ST220 |
3 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90069-98005 |
AT22#,CDT220,CT220,ST220 |
3 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90069-98005 |
AT22#,CDT220,CT220,ST220 |
3 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20500 |
AT22#,CDT220,CT220,ST220..RHD |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90010-01018 |
AT22#,CDT220,CT220,ST220 14V 0.91W,W/O(CAP) |
1 | ||
| 84999-10310 |
AT22#,CDT220,CT220,ST220 14V 0.91W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90010-01018 |
AT22#,CDT220,CT220,ST220 14V 0.91W,W/O(CAP) |
1 | ||
| 84999-10310 |
AT22#,CDT220,CT220,ST220 14V 0.91W |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10180 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-09010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| Common parts | ||||
| 55538-05020 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8410 | ||||

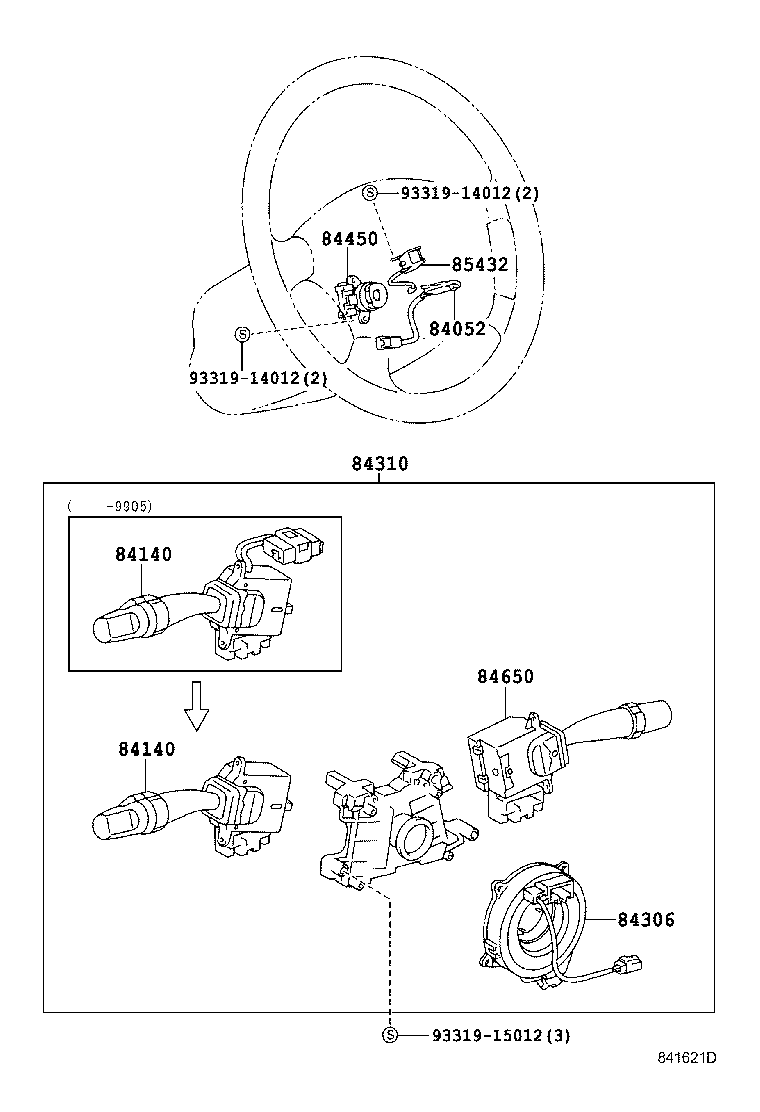

ILLUST NO. 5 OF 6(9710- )
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-05050 |
ST220..RHD;AT22#,CT220..TERRA |
1 | ||
| 84140-05060 |
AT22#,CT220,ST220 W(FRONT FOG LAMP) |
1 | ||
| 84140-05050 |
ST220;AT22#,CT220..TERRA |
1 | ||
| 84140-05090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(FRONT FOG LAMP) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-05050 |
ST220..RHD;AT22#,CT220..TERRA |
1 | ||
| 84140-05060 |
AT22#,CT220,ST220 W(FRONT FOG LAMP) |
1 | ||
| 84140-05050 |
ST220;AT22#,CT220..TERRA |
1 | ||
| 84140-05090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# W(FRONT FOG LAMP) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-05210 |
AT22#,CDT220,CT220,ST220..SED W(FRONT FOG LAMP) |
1 | ||
| 84310-05150 |
AT22#,CT220,ST220..SED W(FRONT FOG LAMP) |
1 | ||
| 84310-05140 |
ST220..RHD..SED;AT22#,CT220..SED..TERRA |
1 | ||
| 84310-05140 |
ST220..SED;AT22#,CT220..SED..TERRA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-05030 |
AT22#,CT220,ST220 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-05120 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

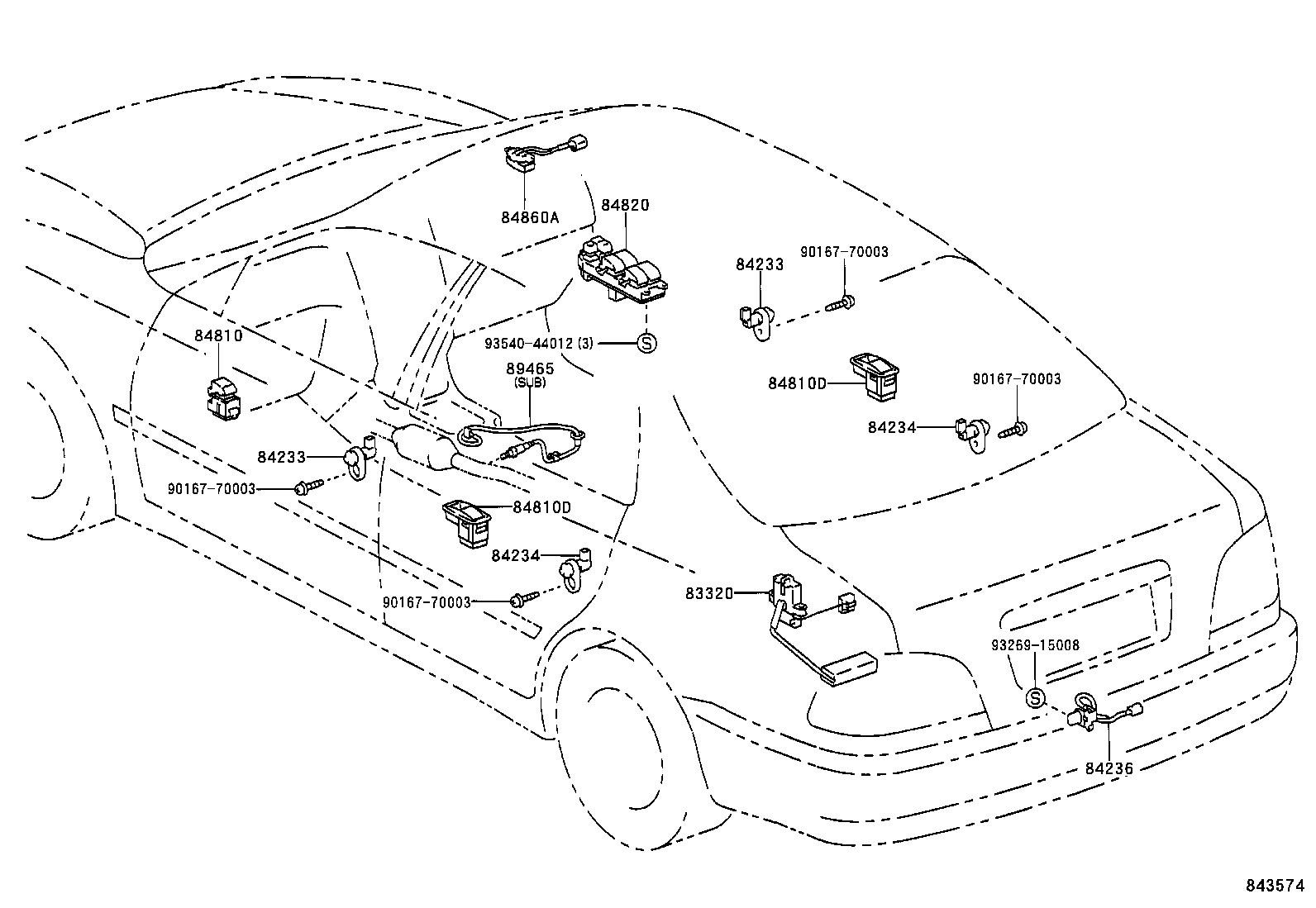

ILLUST NO. 6 OF 6(9710- )SED
ROOF,DOOR SEAT & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20200 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-05040 |
AT22#,CDT220,CT220,ST220 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-05040 |
AT22#,CDT220,CT220,ST220 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-05050 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD W(POWER WINDOW---FRONT & REAR) |
1 | ||
| 84860A - SWITCH ASSY, SLIDING ROOF | ||||
| 84860-05020G0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LT.GREEN,TRIM6# |
1 | ||
| 84860-05020B0 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# LT.GRAY,TRIM1# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-20430 |
ST220 |
1 | ||
| Common parts | ||||
| 90167-70003 | ||||
| 93269-15008 | ||||
| 93540-44012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
