ST220L-AWPEKW (1997)
Toyota Avensis

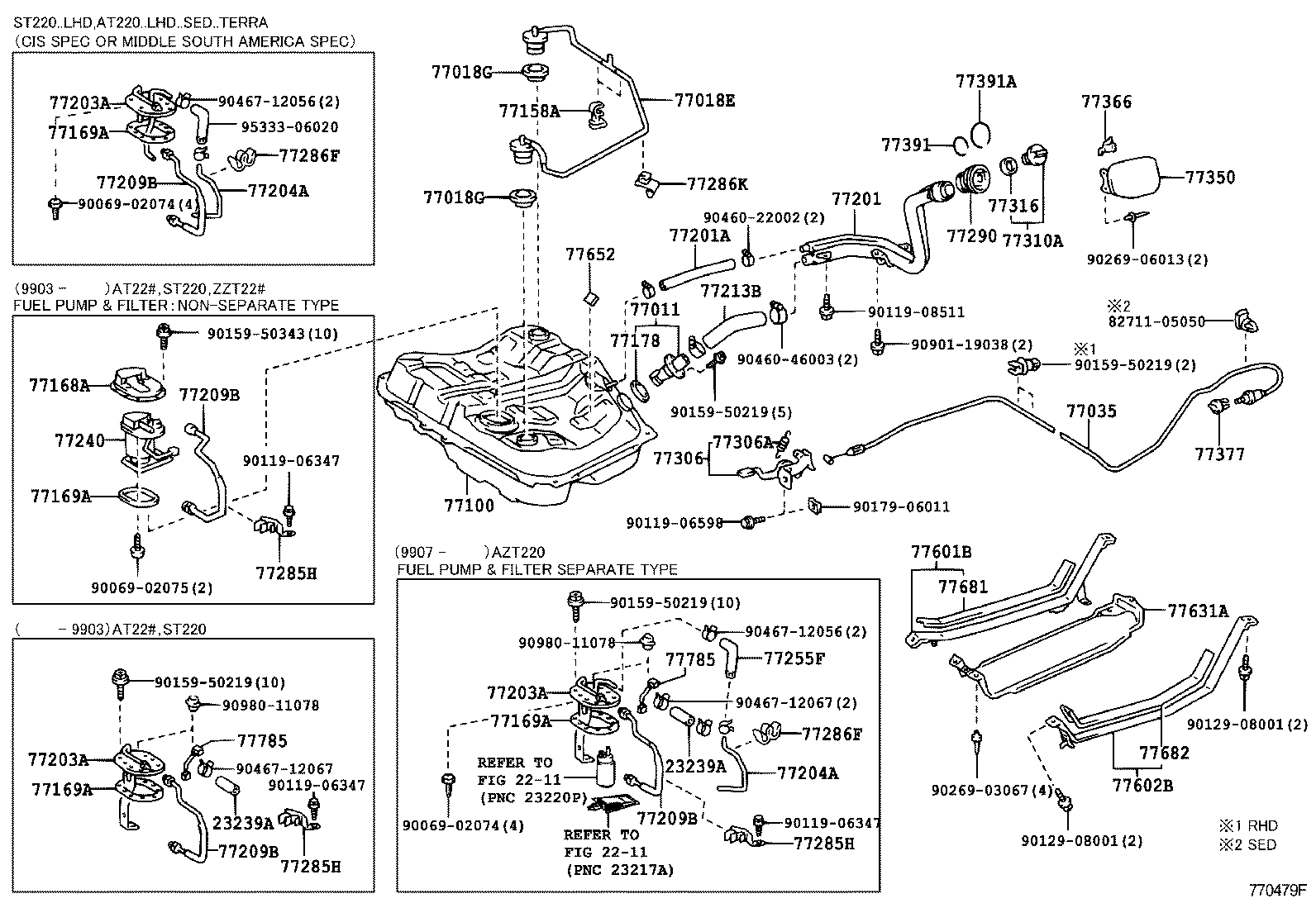

ILLUST NO. 1 OF 2(9710- )AT22#,AZT220,ST220,ZZT22#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23239A - HOSE | ||||
| 23239-11010 |
4AFE,7AFE,3SFE..AT22#,ST220 |
1 | ||
| 23239A - HOSE | ||||
| 23239-11010 |
4AFE,7AFE,3SFE..AT22#,ST220 |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-20140 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 77018G - GASKET, FUEL TANK EVAP/VENT TUBE | ||||
| 77179-33010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 77018G - GASKET, FUEL TANK EVAP/VENT TUBE | ||||
| 77179-33010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-05060 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-05030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-20020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
2 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-05010 |
AT22#,ST220 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-05030 |
AT22#,CT220,ST220 |
1 | ||
| 77169-05030 |
CT220;ST220..LHD;AT220..LHD..SED..TERRA CIS SPEC |
1 | ||
| 77169-20060 |
AT22#,ST220 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-05030 |
AT22#,CT220,ST220 |
1 | ||
| 77169-05030 |
CT220;ST220..LHD;AT220..LHD..SED..TERRA CIS SPEC |
1 | ||
| 77169-20060 |
AT22#,ST220 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-05030 |
AT22#,CT220,ST220 |
1 | ||
| 77169-05030 |
CT220;ST220..LHD;AT220..LHD..SED..TERRA CIS SPEC |
1 | ||
| 77169-20060 |
AT22#,ST220 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-05030 |
AT22#,CT220,ST220 |
1 | ||
| 77169-05030 |
CT220;ST220..LHD;AT220..LHD..SED..TERRA CIS SPEC |
1 | ||
| 77169-20060 |
AT22#,ST220 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-05010 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-05031 |
AT22#,ST220 |
1 | ||
| 77201-05030 |
AT22#,ST220 |
1 | ||
| 77201-05060 |
AZT220,ST220,ZZT22# |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90080-44084 |
AT22#,CDT220,CT220,ST220 L=220 |
1 | ||
| 90080-44118 |
AZT220,ST220,ZZT22# L=220 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-05040 |
ST220..LHD..(LB,WG) CIS SPEC & UNLEADED FUEL |
1 | ||
| 77203-20210 |
AT22#,ST220 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-05040 |
ST220..LHD..(LB,WG) CIS SPEC & UNLEADED FUEL |
1 | ||
| 77203-20210 |
AT22#,ST220 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-05040 |
ST220..LHD..(LB,WG) CIS SPEC & UNLEADED FUEL |
1 | ||
| 77203-20210 |
AT22#,ST220 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-05010 |
ST220..LHD;AT220..LHD..SED..TERRA CIS SPEC |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-05010 |
ST220..LHD;AT220..LHD..SED..TERRA CIS SPEC |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-05030 |
AT22#,ST220 |
1 | ||
| 77209-05030 |
ST220..LHD;AT220..LHD..SED..TERRA CIS SPEC |
1 | ||
| 77209-05020 |
AT22#,ST220 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-05030 |
AT22#,ST220 |
1 | ||
| 77209-05030 |
ST220..LHD;AT220..LHD..SED..TERRA CIS SPEC |
1 | ||
| 77209-05020 |
AT22#,ST220 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-05030 |
AT22#,ST220 |
1 | ||
| 77209-05030 |
ST220..LHD;AT220..LHD..SED..TERRA CIS SPEC |
1 | ||
| 77209-05020 |
AT22#,ST220 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-05030 |
AT22#,ST220 |
1 | ||
| 77209-05030 |
ST220..LHD;AT220..LHD..SED..TERRA CIS SPEC |
1 | ||
| 77209-05020 |
AT22#,ST220 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-05020 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 77213-05030 |
AZT220,ST220,ZZT22# |
1 | ||
| 77240 - TUBE ASSY, FUEL SUCTION | ||||
| 77240-05050 |
AT22#,ST220 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
AZT220;ST220..LHD;AT220..LHD..SED..TERRA *H,L=160 |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-20190 |
AT22#,ST220,ZZT22# |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-20190 |
AT22#,ST220,ZZT22# |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-20190 |
AT22#,ST220,ZZT22# |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-20140 |
AZT220;ST220..LHD;AT220..LHD..SED..TERRA |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-20140 |
AZT220;ST220..LHD;AT220..LHD..SED..TERRA |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-20040 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09004 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-05030 |
AT22#,ST220 |
1 | ||
| 77310-06011 |
AT22#,ST220 |
1 | ||
| 77300-28010 |
AZT220,ST220,ZZT22# |
1 | ||
| 77310-06011 |
AT22#,ST220 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-06010 |
AT22#,CT220,ST220 |
1 | ||
| 77316-06010 |
AT22#,ST220 |
1 | ||
| 77316-16010 |
AZT220,CDT220,ST220,ZZT22# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-20290 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED,WG |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12080 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-20030 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-20090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# (J) |
1 | ||
| 77631-05020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# (L) |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
6 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-02020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 77681-32060 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-02020 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22# |
1 | ||
| 77681-32060 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-20010 |
AT22#,ST220 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-20010 |
AT22#,ST220 |
1 | ||
| Common parts | ||||
| 82711-05050 | ||||
| 90069-02074 | ||||
| 90069-02075 | ||||
| 90119-06347 | ||||
| 90119-06598 | ||||
| 90119-08511 | ||||
| 90129-08001 | ||||
| 90159-50219 | ||||
| 90159-50343 | ||||
| 90179-06011 | ||||
| 90269-03067 | ||||
| 90269-06013 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90467-12056 | ||||
| 90467-12067 | ||||
| 90901-19038 | ||||
| 90980-11078 | ||||
| 95333-06020 | ||||
| Linked diagrams | ||||
| 2211 | ||||

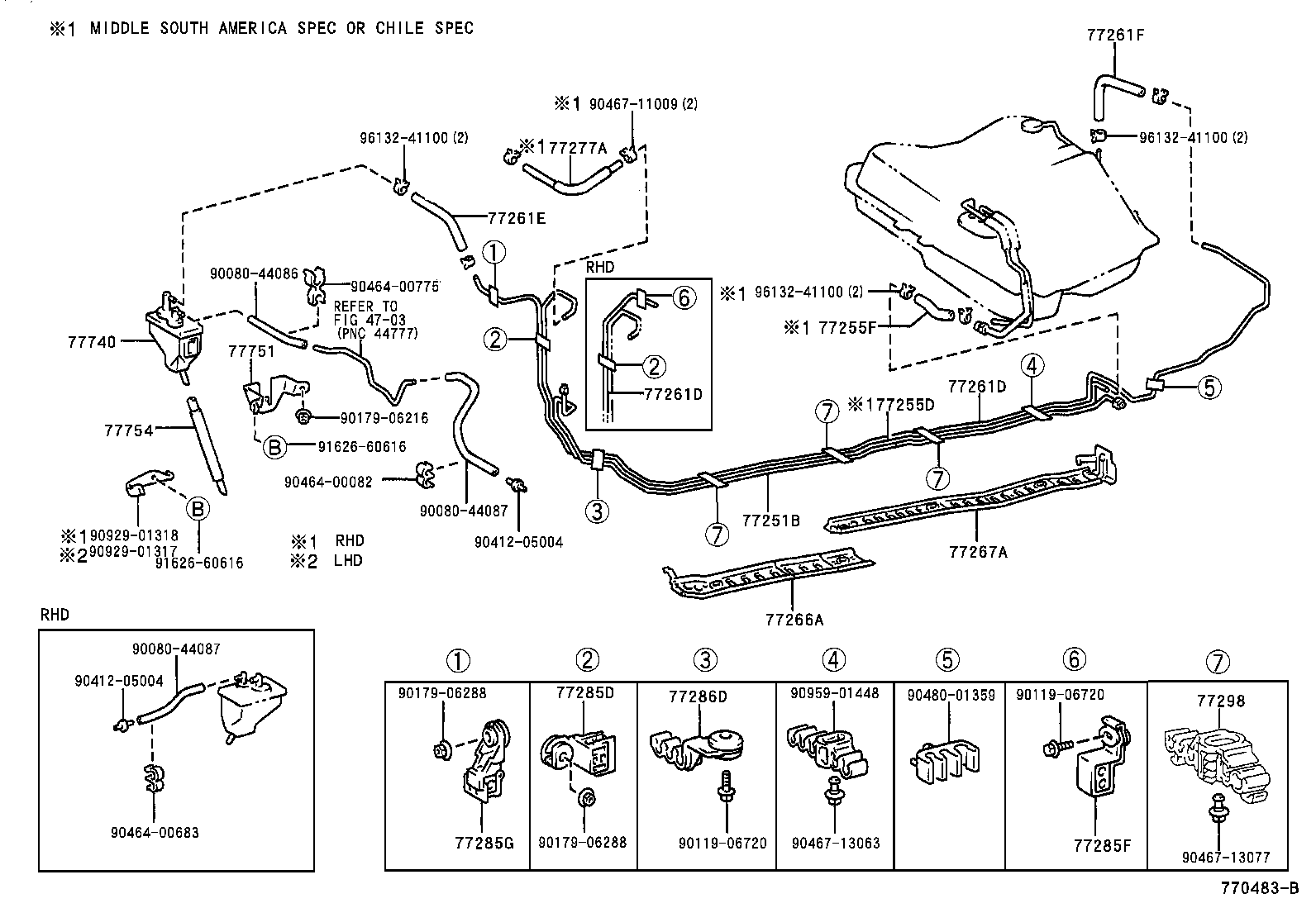

ILLUST NO. 2 OF 2(9710- )ST220
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-05100 |
AT22#,ST220..LHD |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-05080 |
ST220..LHD;AT220..LHD..SED..TERRA |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
AZT220;ST220..LHD;AT220..LHD..SED..TERRA *H,L=160 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-05060 |
AT22#,ST220..LHD |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-05060 |
AT22#,ST220..LHD |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 90447-12155 |
AT22#,ST220..LHD L=430 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
AT22#,ST220 *H,L=180 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-05010 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 77266-05010 |
ST220 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-05030 |
AT22#,CT220,ST220 ROUGH ROAD PACKAGE |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12153 |
ST220..LHD L=280 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-20170 |
AT22#,ST220 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-20180 |
AT22#,ST220..LHD |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-20151 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 77286-20151 |
ST220 |
1 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77298-20050 |
ST220 |
3 | ||
| 77298-20050 |
AT22#,CDT220,CT220,ST220 |
3 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-05010 |
AT22#,ST220 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-05030 |
AT22#,ST220..LHD |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-20300 |
AT22#,ST220..LHD L=475 |
1 | ||
| Common parts | ||||
| 90080-44086 | ||||
| 90080-44087 | ||||
| 90119-06720 | ||||
| 90179-06216 | ||||
| 90179-06288 | ||||
| 90412-05004 | ||||
| 90464-00082 | ||||
| 90464-00683 | ||||
| 90464-00775 | ||||
| 90467-11009 | ||||
| 90467-13063 | ||||
| 90467-13077 | ||||
| 90480-01359 | ||||
| 90929-01317 | ||||
| 90929-01318 | ||||
| 90959-01448 | ||||
| 91626-60616 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 4703 | ||||
