ST220L-AWMEKW (1997)

Toyota Avensis

Production Oct 1997 - Jan 2003
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )WG

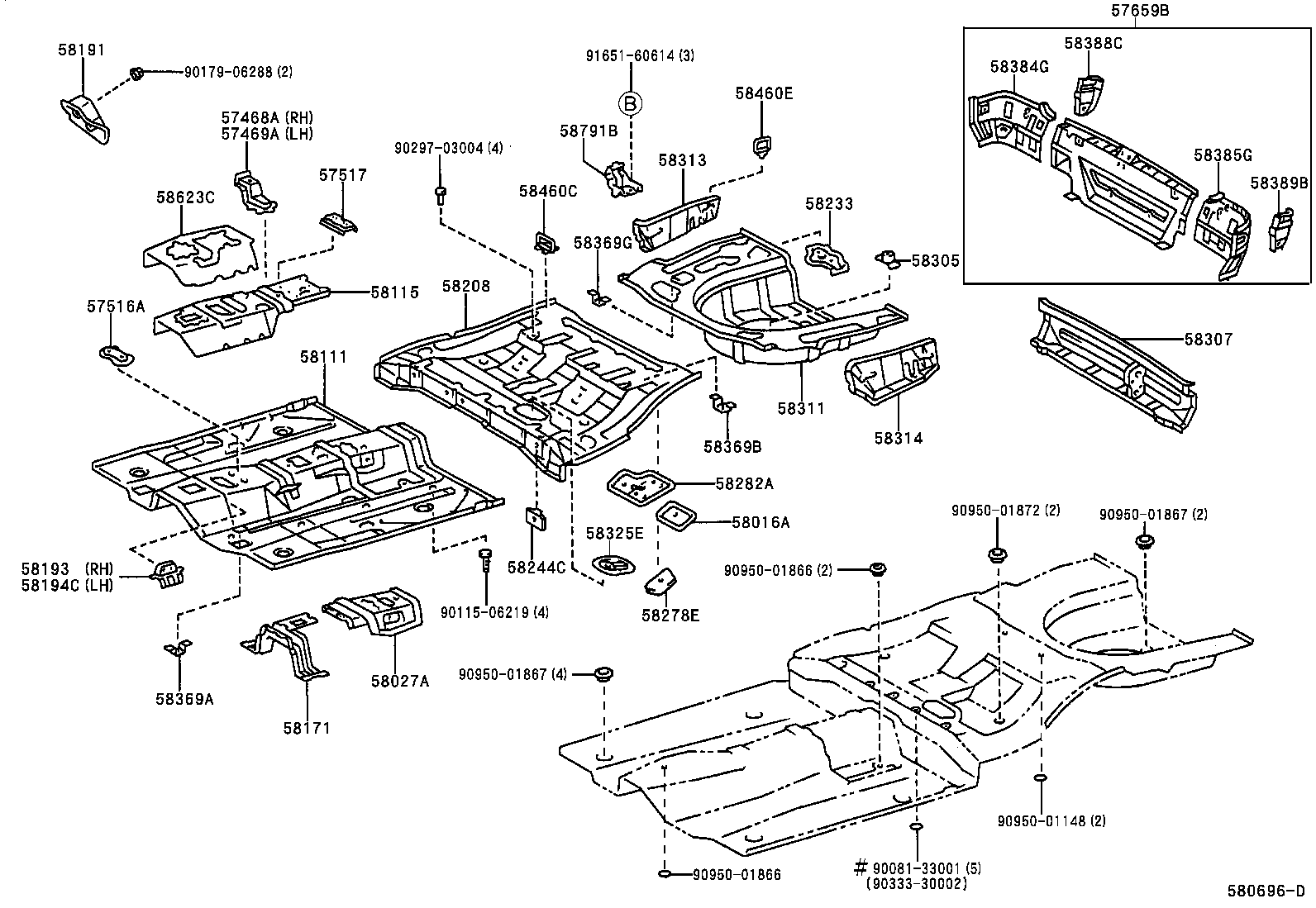

Click highlighted areas on diagram

diagram 57468A 57469A 57516A 57517 57659B 58016A 58027A 58111 58115 58171 58191 58193 58194C 58208 58233 58244C 58278E 58282A 58305 58307 58311 58313 58314 58325E 58369A 58369B 58369G 58384G 58385G 58388C 58389B 58460C 58460E 58623C 58791B 9008133001 9011506219 9017906288 9029703004 9033330002 9095001148 9095001866 9095001866 9095001867 9095001867 9095001872 9165160614
Part # Description Qty Price
57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH
57468-20090

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH
57469-20090

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
57516A - RETAINER, FRONT FLOOR REINFORCEMENT, FRONT
57516-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
57517 - RETAINER, FRONT FLOOR REINFORCEMENT, REAR
57517-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
57659B - MEMBER, REAR FLOOR CROSS, REAR INNER
57659-05900

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG

 1
58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58016-05020

AZT220,CDT220,ST220,ZZT22#

 1
58016-05011

AT22#,CDT220,CT220,ST220

 1
58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR
58027-05020

AZT220..LHD..TERRA;AT22#,CDT220,CT220,ST220,ZZT22#..LHD

 1
58111 - PAN, FRONT FLOOR
58111-05041

AZT220,CDT220,ST220,ZZT22#

 1
58111-05040

AT22#,CDT220,CT220,ST220

 1
58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58115-05030

AZT220..LHD..TERRA;AT22#,CDT220,CT220,ST220,ZZT22#..LHD

 1
58171 - REINFORCEMENT, PARKING BRAKE BASE
58107-05060

AT22#,AZT220,ST220,ZZT22#..LHD

 1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58193-20120

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
58194C - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, LH
58194-20040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
58208 - PAN, CENTER FLOOR
58211-05081

AZT220,CDT220,ST220,ZZT22#..LB,WG

 1
58211-05080

AT22#,CDT220,CT220,ST220..LB,WG

 1
58233 - BRACKET, EXHAUST PIPE MOUNTING
58233-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
58244C - BRACKET, REAR SEAT CUSHION MOUNTING, RH
58244-20020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,WG

 4
58278E - REINFORCEMENT, SIDE FLOOR, NO.2
58278-20050

AZT220,CDT220,ST220,ZZT22#

 2
58282A - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58282-05020

AT22#,CDT220,CT220,ST220

 1
58282-05030

AZT220,CDT220,ST220,ZZT22#

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58351-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-05060

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG

 1
58311 - PAN, REAR FLOOR
58311-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58305-05900

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58306-05900

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
58369A - BRACKET, FUEL TUBE, NO.3
58369-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
58369B - BRACKET, FUEL TUBE, NO.3
58369-32010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 4
58369G - BRACKET, FUEL TUBE, NO.3
58369-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
58384G - GUSSET, LOWER BACK, UPPER RH
58384-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG

 1
58385G - GUSSET, LOWER BACK, UPPER LH
58385-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG

 1
58388C - PLATE, BODY LOWER BACK REINFORCEMENT, RH
58388-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG

 1
58389B - PLATE, BODY LOWER BACK REINFORCEMENT, LH
58389-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG

 1
58460C - STRIKER ASSY, LUGGAGE HOLD BELT
58048-20020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
58460E - STRIKER ASSY, LUGGAGE HOLD BELT
58049-20010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG

 2
58623C - PAD, FRONT FLOOR SILENCER, CENTER
58623-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
58791B - CARRIER, JACK
58791-20110

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
Common parts
90081-33001
90115-06219
90179-06288
90297-03004
90333-30002
90950-01148
90950-01866
90950-01867
90950-01872
91651-60614
