ST220L-AWMEKW (1997)
Toyota Avensis
Production
Oct 1997
-
Jan 2003
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9710- )3SFE

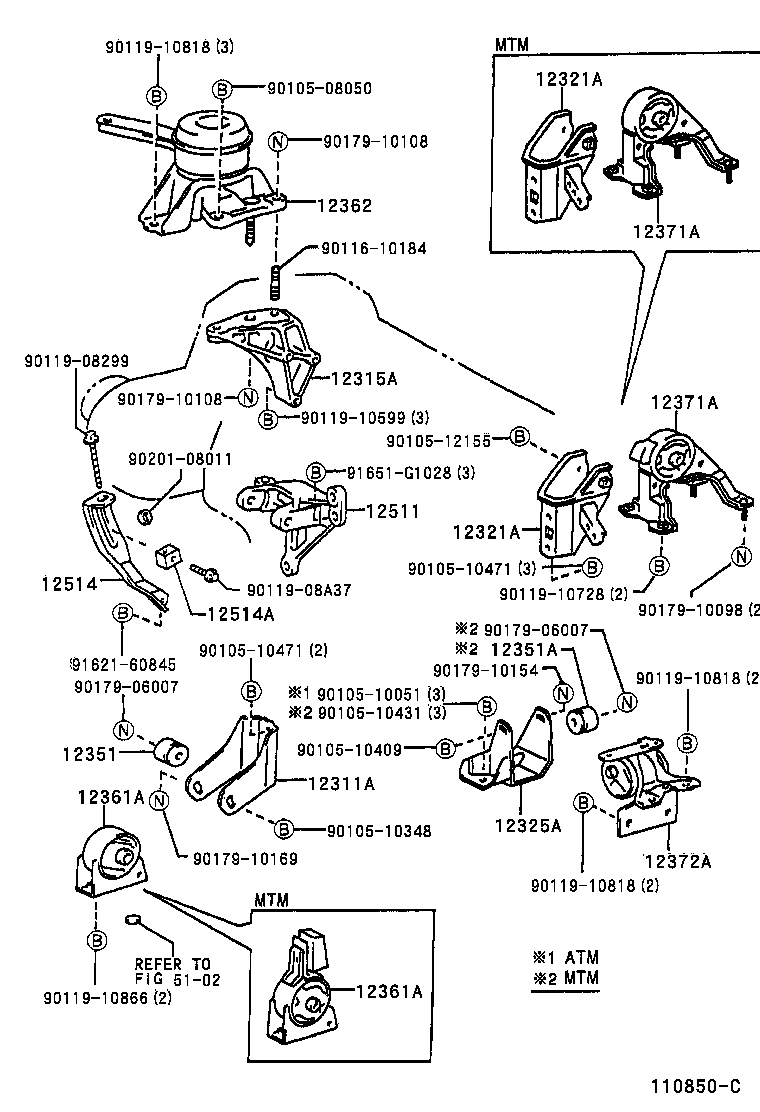

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-03040 |
3SFE..ST220 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-74140 |
3SFE..ST220 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-03030 |
3SFE..ST220..MTM |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-03030 |
3SFE..ST220..MTM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-74420 |
3SFE..ST220..MTM |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-02020 |
3SFE..ST220 |
1 | ||
| 12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR) | ||||
| 12351-74100 |
3SFE..ST220..MTM |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0B011 |
3SFE..ST220..MTM |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0B011 |
3SFE..ST220..MTM |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12305-74191 |
3SFE..ST220 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-03060 |
3SFE..ST220..MTM |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-03060 |
3SFE..ST220..MTM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-02140 |
3SFE..ST220 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-74051 |
3SFE..ST220 |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 12514-74051 |
3SFE..ST220 |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64011 |
3SFE..ST220 |
1 | ||
| Common parts | ||||
| 90105-08050 | ||||
| 90105-10051 | ||||
| 90105-10348 | ||||
| 90105-10409 | ||||
| 90105-10431 | ||||
| 90105-10471 | ||||
| 90105-12155 | ||||
| 90116-10184 | ||||
| 90119-08299 | ||||
| 90119-08A37 | ||||
| 90119-10599 | ||||
| 90119-10728 | ||||
| 90119-10818 | ||||
| 90119-10866 | ||||
| 90179-06007 | ||||
| 90179-10098 | ||||
| 90179-10108 | ||||
| 90179-10154 | ||||
| 90179-10169 | ||||
| 90201-08011 | ||||
| 91621-60845 | ||||
| 91651-G1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
