ST220L-ALPEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )ST220..LHD..ATM

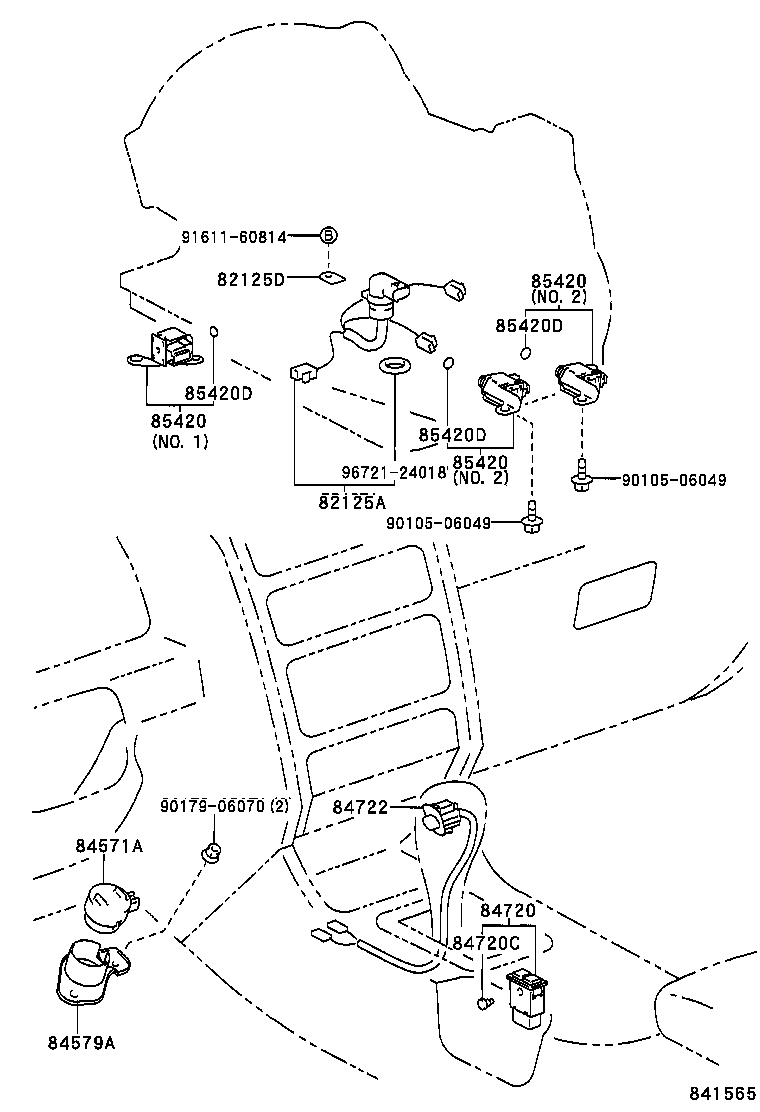

Click highlighted areas on diagram

diagram 82125A 82125D 84571A 84579A 84720 84720C 84722 85420 85420 85420 85420D 85420D 85420D 9010506049 9010506049 9017906070 9161160814 9672124018
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-20220

ST220..ATM

 1
82125D - PLATE, TRANSMISSION WIRE LOCK
33485-30020

ST220..ATM

 1
84571A - SWITCH, KICK DOWN
84571-24010

AT221,ST220,ZZT221..LHD..ATM

 1
84579A - BRACKET, KICK DOWN SWITCH
84579-20040

AT221,ST220,ZZT221..LHD..ATM

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-20150

AT221,AZT220,ST220,ZZT221..ATM

 1
84720C - BULB(FOR PATTERN SELECT SWITCH)
84999-20110

AT221,AZT220,ST220,ZZT221..ATM

14V 1.4W

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-12100C0

AT221,ST220..LHD..ATM

BLACK,TRIM1#,6#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-30200

ST220..ATM

NO.2

 2
85420-20140

ST220..ATM

NO.1

 1
85420-21080

ST220..ATM

NO.1,AISIN

 1
85420-21070

ST220..ATM

NO.1,DENSO

 1
85420-21100

ST220..ATM

NO.2,AISIN

 2
85420-21090

ST220..ATM

NO.2,DENSO

 2
85420 - SOLENOID ASSY, TRANSMISSION
85420-30200

ST220..ATM

NO.2

 2
85420-20140

ST220..ATM

NO.1

 1
85420-21080

ST220..ATM

NO.1,AISIN

 1
85420-21070

ST220..ATM

NO.1,DENSO

 1
85420-21100

ST220..ATM

NO.2,AISIN

 2
85420-21090

ST220..ATM

NO.2,DENSO

 2
85420 - SOLENOID ASSY, TRANSMISSION
85420-30200

ST220..ATM

NO.2

 2
85420-20140

ST220..ATM

NO.1

 1
85420-21080

ST220..ATM

NO.1,AISIN

 1
85420-21070

ST220..ATM

NO.1,DENSO

 1
85420-21100

ST220..ATM

NO.2,AISIN

 2
85420-21090

ST220..ATM

NO.2,DENSO

 2
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

AT221,ST220,ZZT221..ATM

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

AT221,ST220,ZZT221..ATM

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

AT221,ST220,ZZT221..ATM

 3
Common parts
90105-06049
90179-06070
91611-60814
96721-24018
