ST220L-ALPEKW (1997)
Toyota Avensis
(9710- )ST220
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-05080 |
ST220 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-05070 |

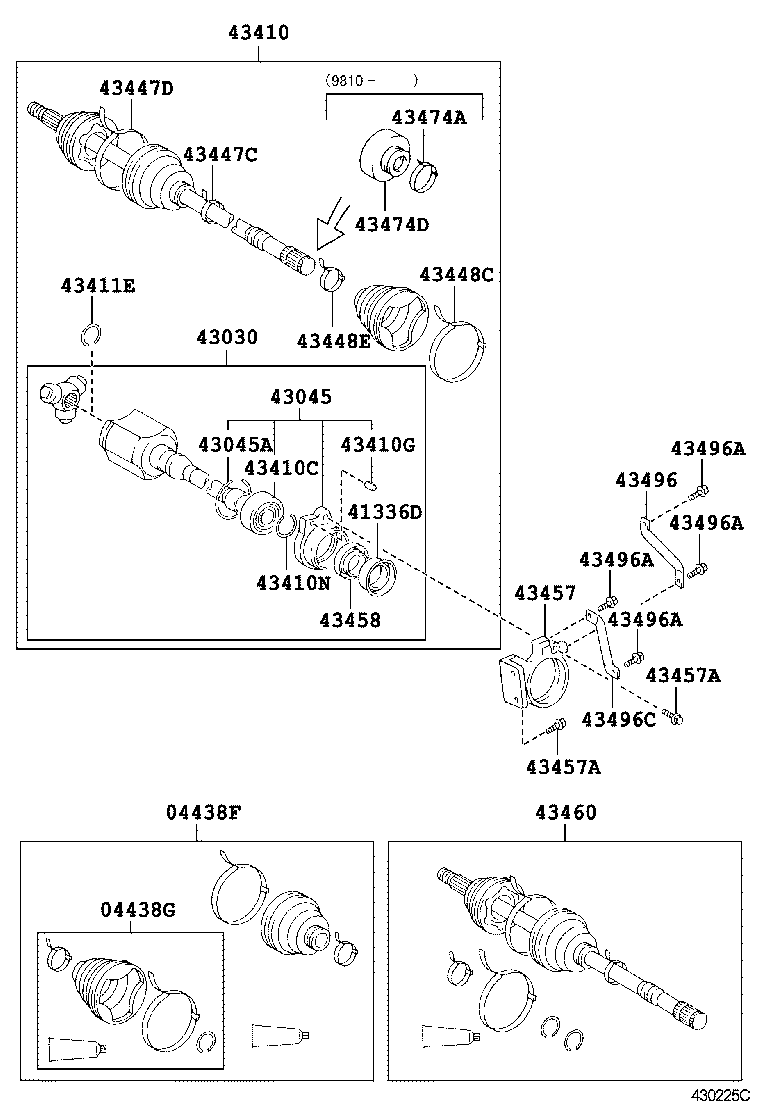

AT22#,ST220 REFER TO ILLUSTRATION |
1 | ||
| 04438-05070 |
ST220 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-05020 |
ZZT221..MTM;AZT220,CT220,ST220 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-05050 |
ST220 |
1 | ||
| 43045 - CASE SUB ASSY, DRIVE SHAFT BEARING | ||||
| 43045-20040 |
ST220 |
1 | ||
| 43045A - RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING) | ||||
| 96153-00680 |
AZT220,CT220,ST220,ZZT221 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-05221 |
ST220 |
1 | ||
| 43410-05220 |
ST220 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-36003 |
CT220,ST220 |
1 | ||
| 90363-36004 |
AZT220,CT220,ST220,ZZT221 |
1 | ||
| 43410G - PIN, STRAIGHT (FOR FRONT DRIVE SHAFT) | ||||
| 90250-06003 |
AZT220,CDT220,CT220,ST220,ZZT221 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90080-52054 |
AZT220,CT220,ST220,ZZT221 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90080-52093 |
AT22#,ST220 REFER TO ILLUSTRATION |
1 | ||
| 90080-52093 |
ST220,ZZT220 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-05070 |
CT220,ST220,ZZT22# ID=29.5 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-05080 |
CT220,ST220,ZZT22# ID=87.5 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-05030 |
ST220,ZZT220 |
1 | ||
| 42345-05030 |
AT22#,ST220 REFER TO ILLUSTRATION |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-05040 |
ST220,ZZT220 |
1 | ||
| 42345-05040 |
AT22#,ST220 REFER TO ILLUSTRATION |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43457-20030 |
ST220 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10285 |
ST220 *10-1.25PX22-19.5 |
4 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90105-10285 |
ST220 *10-1.25PX22-19.5 |
4 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-05010 |
AZT220,CT220,ST220,ZZT221 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-09400 |
ST220 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-05110 |
AZT220,CDT220,CT220,ST220,ZZT221 |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-20100 |
ST220 |
1 | ||
| 43496 - STAY, FRONT DRIVE SHAFT BEARING BRACKET, NO.1 | ||||
| 43496-20010 |
ST220 |
1 | ||
| 43496A - BOLT (FOR DRIVE SHAFT BEARING BRACKET STAY) | ||||
| 90105-10263 |
ST220 |
4 | ||
| 43496A - BOLT (FOR DRIVE SHAFT BEARING BRACKET STAY) | ||||
| 90105-10263 |
ST220 |
4 | ||
| 43496A - BOLT (FOR DRIVE SHAFT BEARING BRACKET STAY) | ||||
| 90105-10263 |
ST220 |
4 | ||
| 43496A - BOLT (FOR DRIVE SHAFT BEARING BRACKET STAY) | ||||
| 90105-10263 |
ST220 |
4 | ||
| 43496C - STAY, FRONT DRIVE SHAFT BEARING BRACKET, NO.2 | ||||
| 43496-20030 |
ST220 |
1 | ||
(9710- )AT22#,ST220,ZZT220
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-05080 |
ST220 |
1 | ||
| 04438-05080 |
AT22#,ST220 REFER TO ILLUSTRATION |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-05070 |
AT22#,ST220 REFER TO ILLUSTRATION |
1 | ||
| 04438-05070 |
ST220 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-05030 |
ZZT221..MTM;AZT220,CT220,ST220 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-05030 |
ST220 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90080-52093 |
AT22#,ST220 REFER TO ILLUSTRATION |
1 | ||
| 90080-52093 |
ST220,ZZT220 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-05220 |
ST220 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90080-52055 |
ZZT221..MTM;AZT220,CT220,ST220 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-05070 |
CT220,ST220,ZZT22# ID=29.5 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-05080 |
CT220,ST220,ZZT22# ID=87.5 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-05030 |
AT22#,ST220 REFER TO ILLUSTRATION |
1 | ||
| 42345-05030 |
ST220,ZZT220 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-05040 |
AT22#,ST220 REFER TO ILLUSTRATION |
1 | ||
| 42345-05040 |
ST220,ZZT220 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-09460 |
ST220 |
1 | ||
