ST220L-ALMEKW (1997)

Toyota Avensis

Production Oct 1997 - Jan 2003
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )ST220

Click highlighted areas on diagram

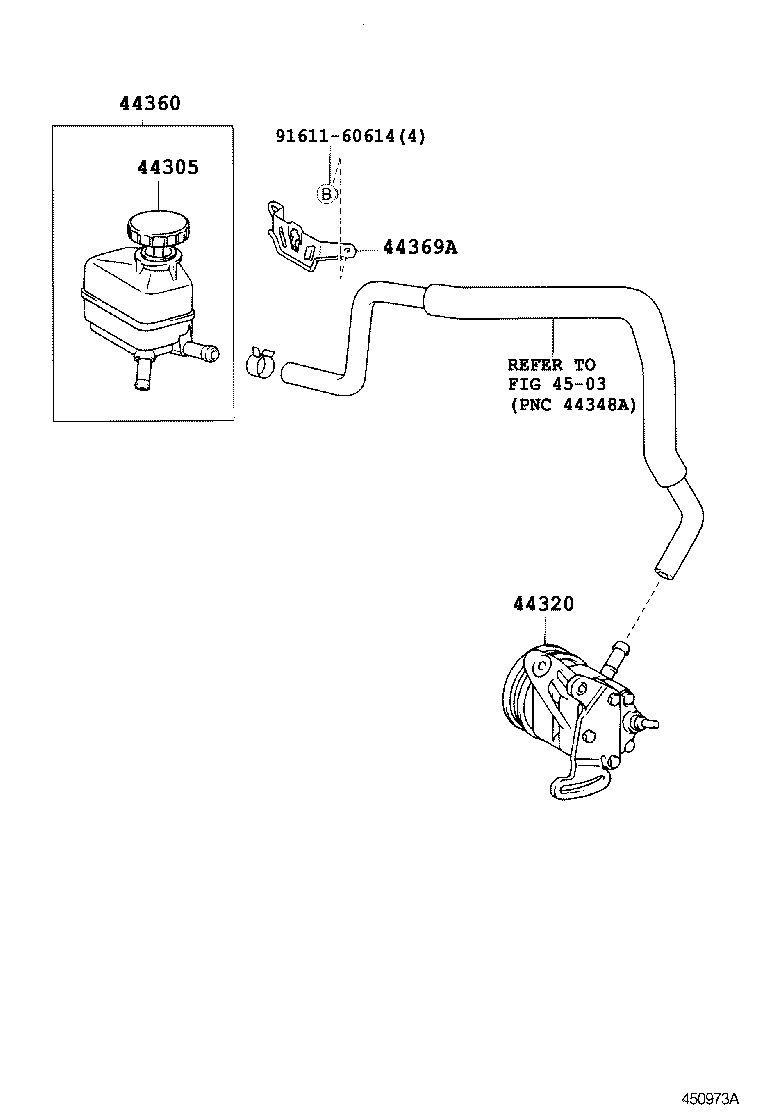

diagram 44305 44320 44360 44369A 4503 9161160614
Part # Description Qty Price
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-20041

AZT220,CDT220,CT220,ST220,ZZT22#

 1
44320 - PUMP ASSY, VANE
44310-05050

ST220

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-20150

ST220

 1
44369A - BRACKET, OIL RESERVOIR, NO.1
44390-20020

AZT220,CDT220,CT220,ST220,ZZT22#

 1
Common parts
91611-60614
Linked diagrams
4503
