ST220L-AEPEKW (1997)

Toyota Avensis

Production Oct 1997 - Jan 2003
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )ST220

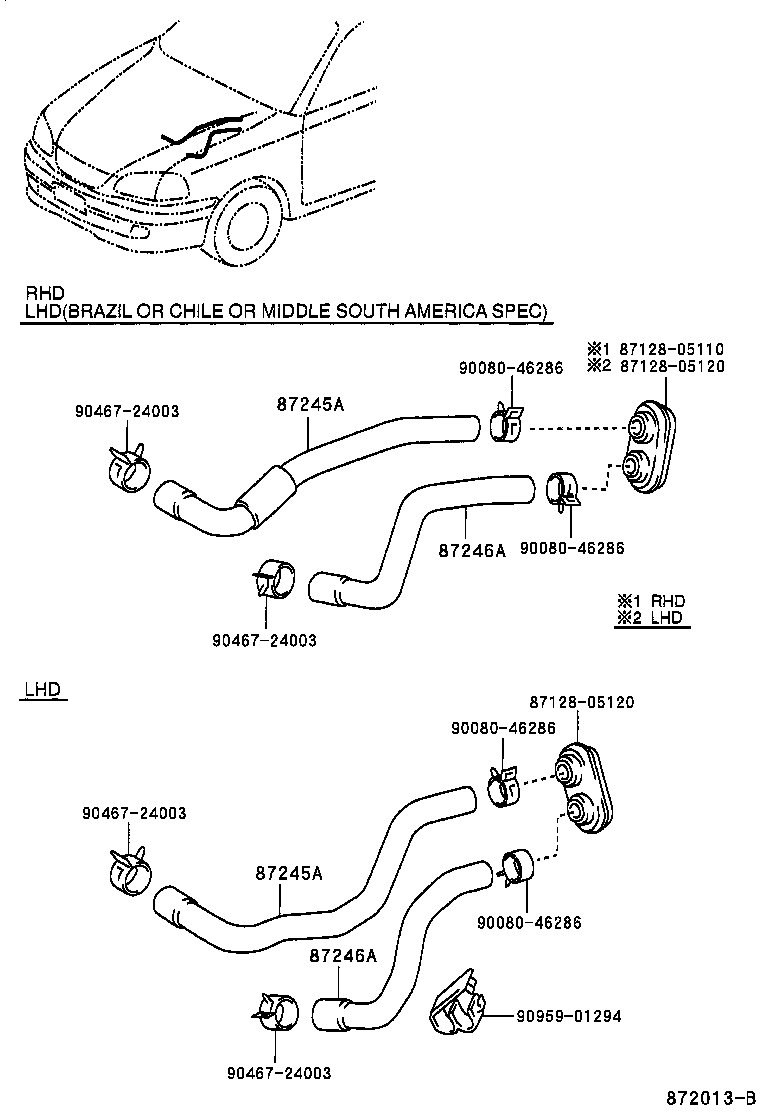

Click highlighted areas on diagram

diagram 8712805110 8712805120 8712805120 87245A 87245A 87246A 87246A 9008046286 9008046286 9008046286 9008046286 9046724003 9046724003 9046724003 9046724003 9095901294
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-05190

ST220..LHD

 1
87245-05230

ST220..LHD..SED

BRAZIL SPEC OR CHILE SPEC OR MIDDLE SOUTH AMERICA SPEC

 1
87245A - HOSE, HEATER WATER, INLET A
87245-05190

ST220..LHD

 1
87245-05230

ST220..LHD..SED

BRAZIL SPEC OR CHILE SPEC OR MIDDLE SOUTH AMERICA SPEC

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-05200

ST220..LHD

 1
87245-05240

ST220..LHD..SED

BRAZIL SPEC OR CHILE SPEC OR MIDDLE SOUTH AMERICA SPEC

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-05200

ST220..LHD

 1
87245-05240

ST220..LHD..SED

BRAZIL SPEC OR CHILE SPEC OR MIDDLE SOUTH AMERICA SPEC

 1
Common parts
87128-05110
87128-05120
90080-46286
90467-24003
90959-01294
