CT220R-AEMNTW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 2CTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )SED

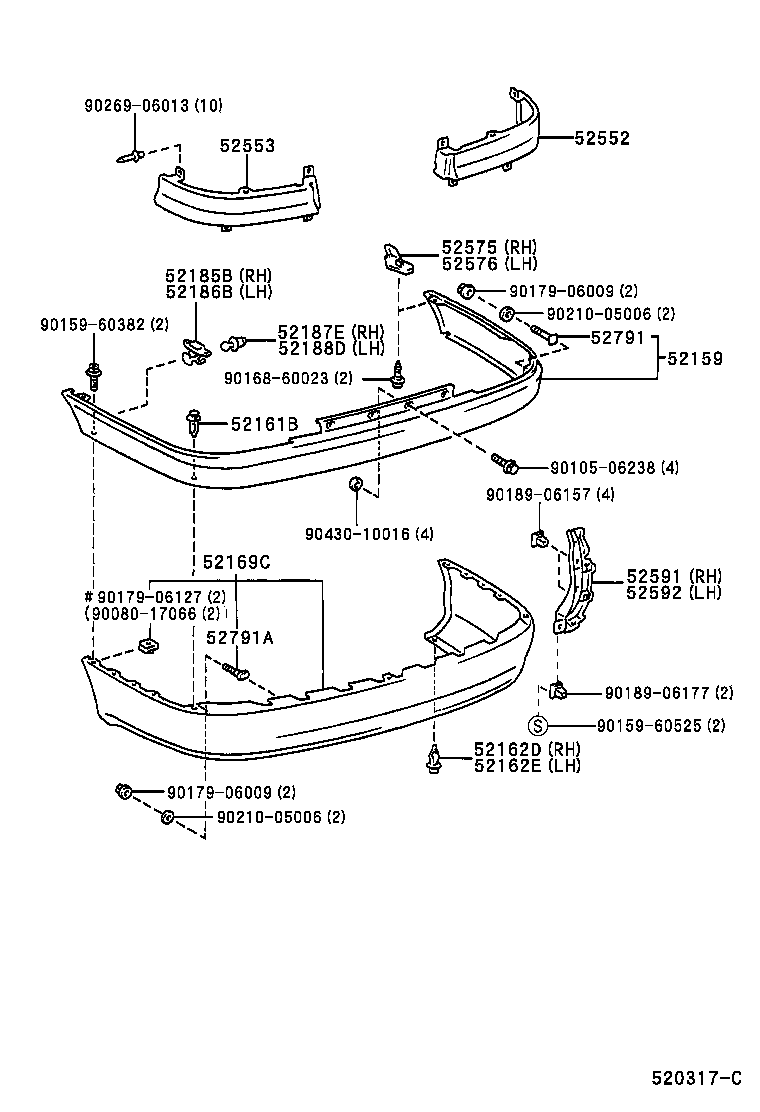

Click highlighted areas on diagram

diagram 52159 52161B 52162D 52162E 52169C 52185B 52186B 52187E 52188D 52552 52553 52575 52576 52591 52592 52791 52791A 9008017066 9010506238 9015960382 9015960525 9016860023 9017906009 9017906009 9017906127 9018906157 9018906177 9021005006 9021005006 9026906013 9043010016
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-05070

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED

 1
52161B - PIECE, REAR BUMPER
52161-20010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED

 3
52162D - PIECE, REAR BUMPER
52161-16010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
52162E - PIECE, REAR BUMPER
52161-16010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
52169C - COVER, REAR BUMPER, LOWER
52169-05900

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52185-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
52187E - GUIDE, REAR BUMPER LOCATION, RH
52187-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
52188D - GUIDE, REAR BUMPER LOCATION, LH
52187-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
52552 - FILLER, REAR BUMPER, RH
52552-20060

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
52553 - FILLER, REAR BUMPER, LH
52553-20060

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..SED

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-12010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 2
52791A - BOLT, BUMPER MOULDING SET, NO.2
52791-12010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LB,SED

 2
Common parts
90080-17066
90105-06238
90159-60382
90159-60525
90168-60023
90179-06009
90179-06127
90189-06157
90189-06177
90210-05006
90269-06013
90430-10016
