CT220R-AEMNTW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 2CTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )

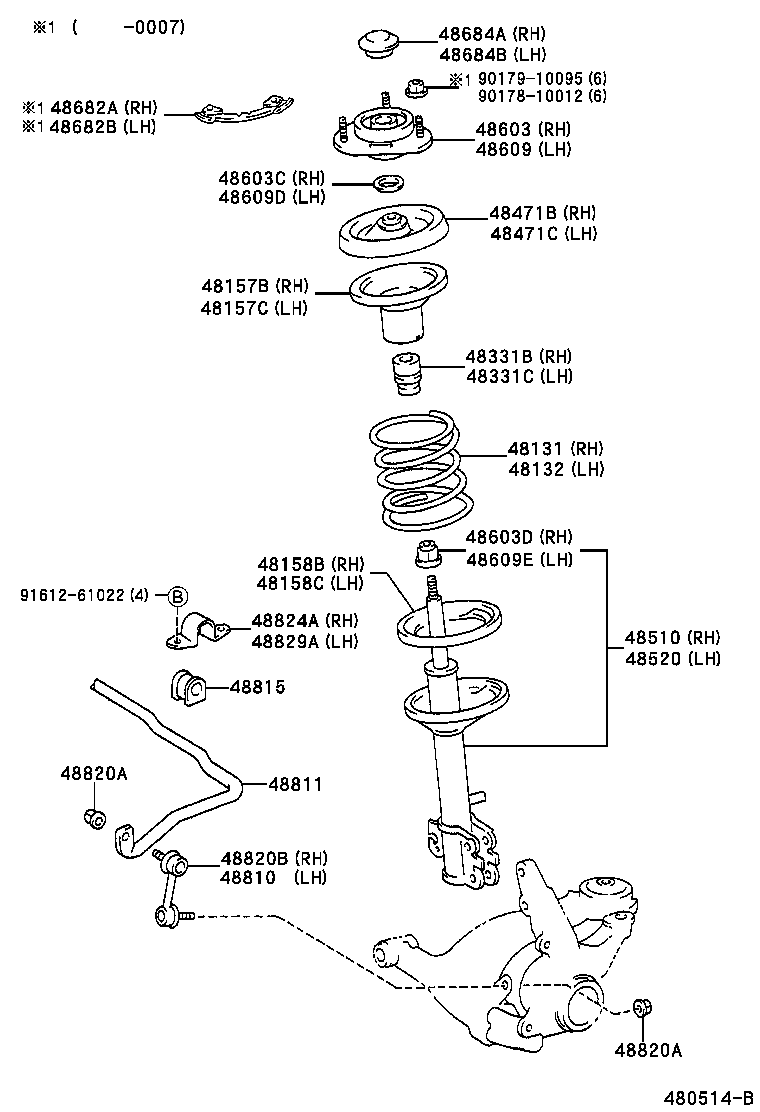

Click highlighted areas on diagram

diagram 48131 48132 48157B 48157C 48158B 48158C 48331B 48331C 48471B 48471C 48510 48520 48603 48603C 48603D 48609 48609D 48609E 48682A 48682B 48684A 48684B 48810 48811 48815 48820A 48820A 48820B 48824A 48829A 9017810012 9017910095 9161261022
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-05480

CT220..SED;CT220..RHD..LB;ST220..LHD..SED..ATM;ST220..RHD..(LB,SED)..ATM

ROUGH ROAD PACKAGE

 1
48131-05470

AT221..RHD..ATM;CT220,ST220..(LB,SED)..(EFI,TDEFI)

 1
48131-05480

CT220..SED;CT220..RHD..LB;ST220..(LB,SED)..ATM

ROUGH ROAD PACKAGE

 1
48131-05470

AT221..RHD..ATM;ST220..LHD..SED;ST220..LHD..LB..ATM;ST220..RHD..(LB,SED);CT220..(LB,SED)..TDEFI

 1
48131-05470

ST220..(LB,SED)..ATM;CT220..(LB,SED)..TDEFI;ST220..LHD..(LB,SED)..MTM

 1
48132 - SPRING, FRONT COIL, LH
48131-05470

AT221..RHD..ATM;ST220..LHD..SED;ST220..LHD..LB..ATM;ST220..RHD..(LB,SED);CT220..(LB,SED)..TDEFI

 1
48131-05480

CT220..SED;CT220..RHD..LB;ST220..LHD..SED..ATM;ST220..RHD..(LB,SED)..ATM

ROUGH ROAD PACKAGE

 1
48131-05480

CT220..SED;CT220..RHD..LB;ST220..(LB,SED)..ATM

ROUGH ROAD PACKAGE

 1
48131-05470

AT221..RHD..ATM;CT220,ST220..(LB,SED)..(EFI,TDEFI)

 1
48131-05470

ST220..(LB,SED)..ATM;CT220..(LB,SED)..TDEFI;ST220..LHD..(LB,SED)..MTM

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48331B - BUMPER, FRONT SPRING, RH
48331-05030

AT22#,CDT220,CT220,ST220

 1
48331C - BUMPER, FRONT SPRING, LH
48331-05030

AT22#,CDT220,CT220,ST220

 1
48471B - SEAT, FRONT COIL SPRING, UPPER RH
48044-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48471C - SEAT, FRONT COIL SPRING, UPPER LH
48044-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-09240

AT22#..RHD;CT220,ST220..RHD..(LB,SED)

IRELAND SPEC

 1
48510-09220

CT220,ST220..LB,SED

 1
48510-09220

CT220,ST220

 1
48510-09241

CT220,ST220..RHD..(LB,SED);AT22#,AZT220,CDT220,ZZT22#..RHD

MARK 48510-05081,IRELAND SPEC

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-09210

CT220,ST220

 1
48520-09210

CT220,ST220..LB,SED

 1
48520-09231

CT220,ST220..RHD..(LB,SED);AT22#,AZT220,CDT220,ZZT22#..RHD

MARK 48520-05081,IRELAND SPEC

 1
48520-09230

AT22#..RHD;CT220,ST220..RHD..(LB,SED)

IRELAND SPEC

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
90303-22049

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
94182-11400

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
90303-22049

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
94182-11400

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48682A - SUPPORT, FRONT SUSPENSION, NO.2 RH
48682-20020

AT22#,CDT220,CT220,ST220

 1
48682B - SUPPORT, FRONT SUSPENSION, NO.2 LH
48682-20020

AT22#,CDT220,CT220,ST220

 1
48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH
48684-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH
48684-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-05012

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48811 - BAR, STABILIZER, FRONT
48811-05040

AT22#,CDT220,CT220,ST220

 1
48811-05041

AT22#,CDT220,CT220,ST220

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-05050

AT22#,CDT220,CT220,ST220

 2
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-10183

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 4
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-10183

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 4
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-05012

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-20100

AT22#,CDT220,CT220,ST220

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-20100

AT22#,CDT220,CT220,ST220

 1
Common parts
90178-10012
90179-10095
91612-61022
