CT220L-AWMNTW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 2CTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9710- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

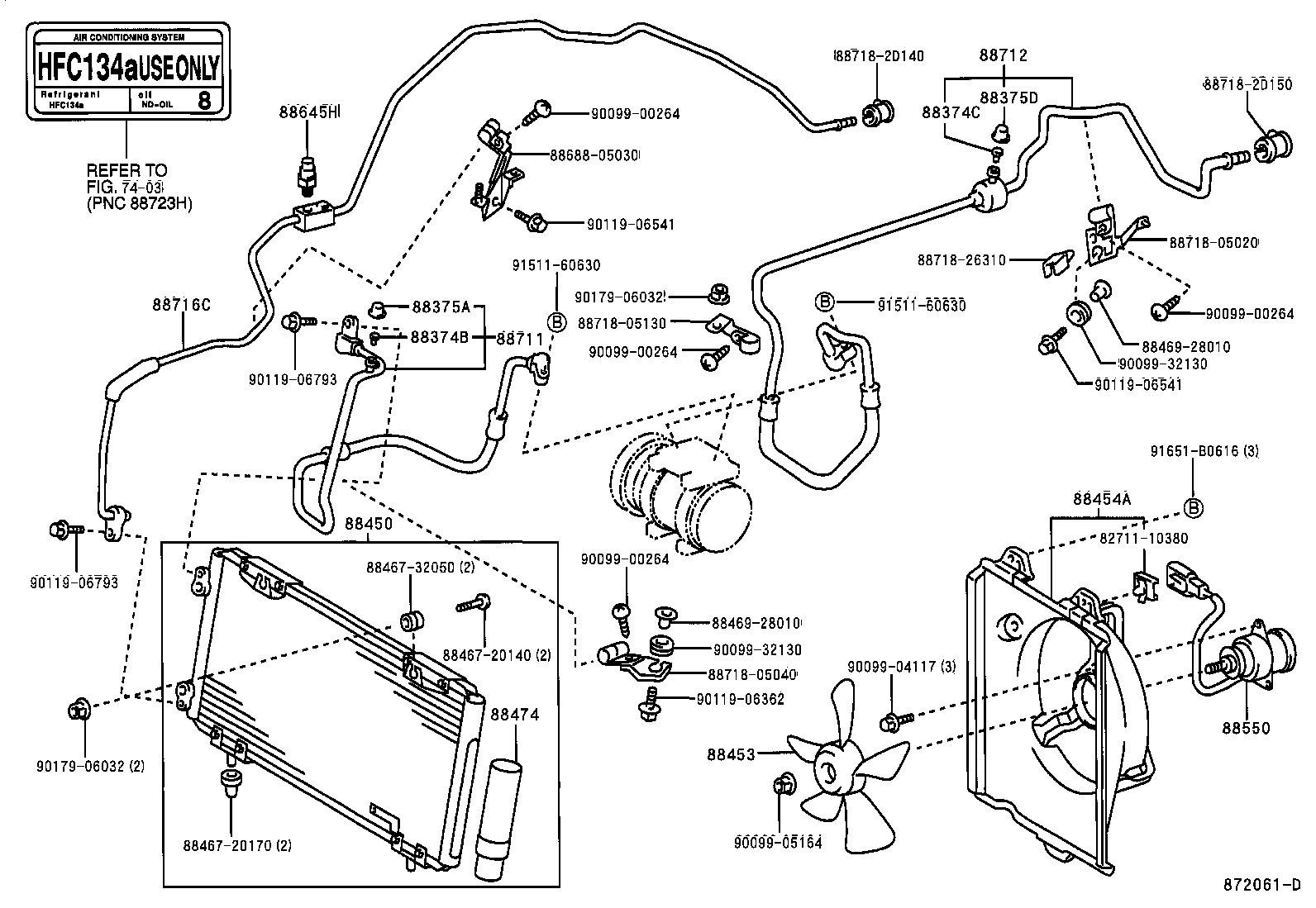

ILLUST NO. 1 OF 2(9710-0007)CT220..LHD

Click highlighted areas on diagram

MAKER OPTION

diagram 7403 8271110380 88374B 88374C 88375A 88375D 88450 88453 88454A 8846720140 8846720170 8846732050 8846928010 8846928010 88474 88550 88645H 8868805030 88711 88712 88716C 8871805020 8871805040 8871805130 8871826310 887182D140 887182D150 9009900264 9009900264 9009900264 9009900264 9009904117 9009905164 9009932130 9009932130 9011906362 9011906541 9011906541 9011906793 9011906793 9017906032 9017906032 9151160630 9151160630 91651B0616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88374-30010

CDT220,CT220..DCR,TD

DEALER OPTION

 2
88374C - VALVE, SERVICE, NO.2
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30290

AT22#,CT220,ST220

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-05010

AT22#,CDT220,CT220,ST220..LHD

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-74100

CT220

 1
16361-74110

CDT220,CT220

 1
88454A - SHROUD, FAN
16712-64170

CT220

 1
88474 - DRYER, COOLER
88474-47010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-11030

CDT220,CT220

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-05060

CT220..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-05060

CT220..LHD

 1
88712-05110

CT220..LHD

DEALER OPTION

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-05110

CT220..LHD

 1
Common parts
82711-10380
88467-20140
88467-20170
88467-32050
88469-28010
88688-05030
88718-05020
88718-05040
88718-05130
88718-26310
88718-2D140
88718-2D150
90099-00264
90099-04117
90099-05164
90099-32130
90119-06362
90119-06541
90119-06793
90179-06032
91511-60630
91651-B0616
Linked diagrams
7403

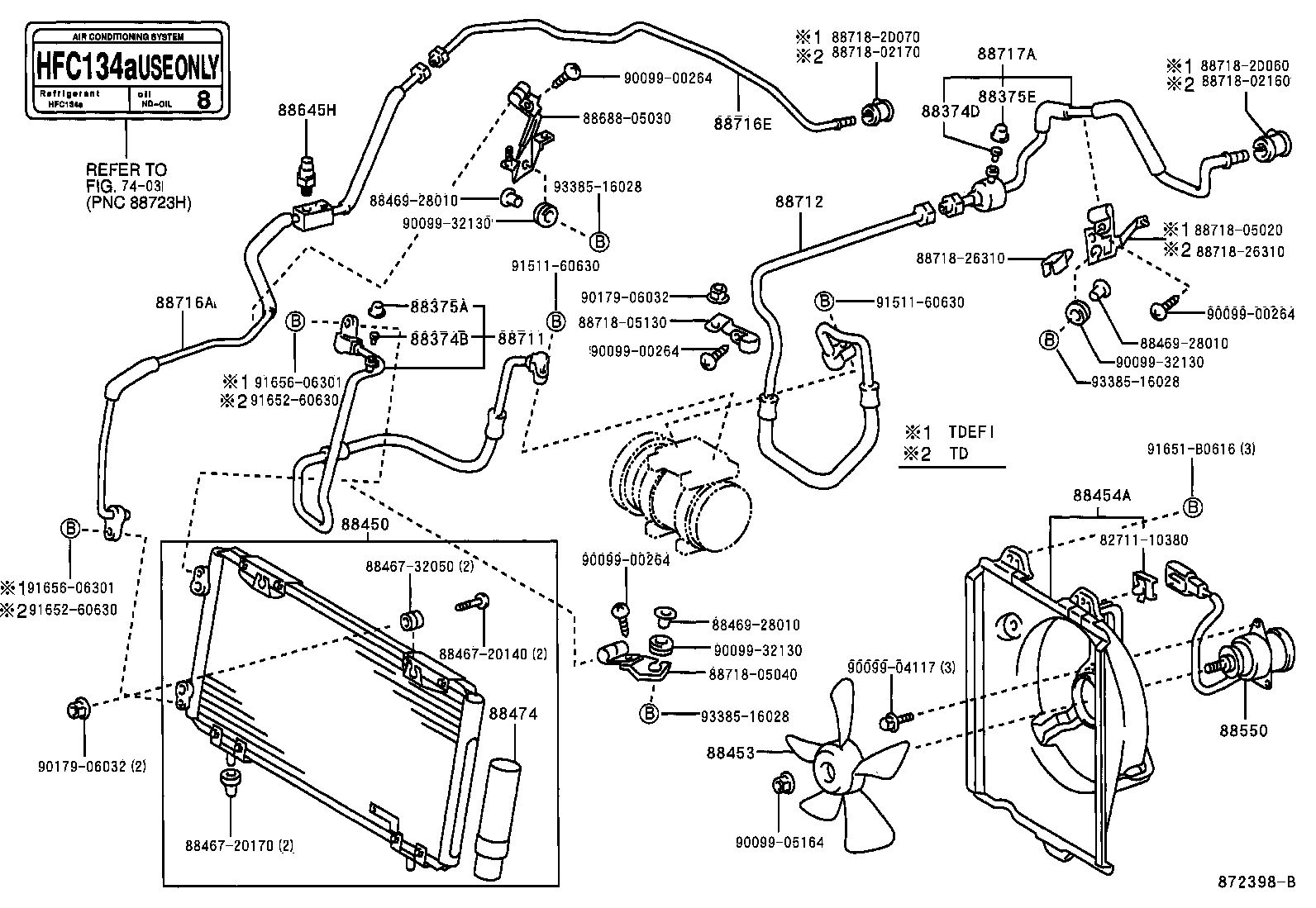

ILLUST NO. 1 OF 2(9710-0007)CT220..LHD

Click highlighted areas on diagram

DEALER OPTION

diagram 7403 8271110380 88374B 88374D 88375A 88375E 88450 88453 88454A 8846720140 8846720170 8846732050 8846928010 8846928010 8846928010 88474 88550 88645H 8868805030 88711 88712 88716A 88716E 88717A 8871802160 8871802170 8871805020 8871805040 8871805130 8871826310 8871826310 887182D060 887182D070 9009900264 9009900264 9009900264 9009900264 9009904117 9009905164 9009932130 9009932130 9009932130 9017906032 9017906032 9151160630 9151160630 91651B0616 9165260630 9165260630 9165606301 9165606301 9338516028 9338516028 9338516028
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88374-30010

CDT220,CT220..DCR,TD

DEALER OPTION

 2
88374D - VALVE, SERVICE NO.3
88374-30010

CT220..LHD

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30290

AT22#,CT220,ST220

 1
88375E - PLUG
88375-30290

CT220..TD

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-05010

AT22#,CDT220,CT220,ST220..LHD

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-74100

CT220

 1
16361-74110

CDT220,CT220

 1
88454A - SHROUD, FAN
16712-64170

CT220

 1
88474 - DRYER, COOLER
88474-47010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-11030

CDT220,CT220

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-05060

CT220..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-05060

CT220..LHD

 1
88712-05110

CT220..LHD

DEALER OPTION

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-05150

CT220..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-05140

CT220..LHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-05110

CT220..LHD

 1
Common parts
82711-10380
88467-20140
88467-20170
88467-32050
88469-28010
88688-05030
88718-02160
88718-02170
88718-05020
88718-05040
88718-05130
88718-26310
88718-2D060
88718-2D070
90099-00264
90099-04117
90099-05164
90099-32130
90179-06032
91511-60630
91651-B0616
91652-60630
91656-06301
93385-16028
Linked diagrams
7403
