CT220L-AWMNTW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 2CTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)2CT#

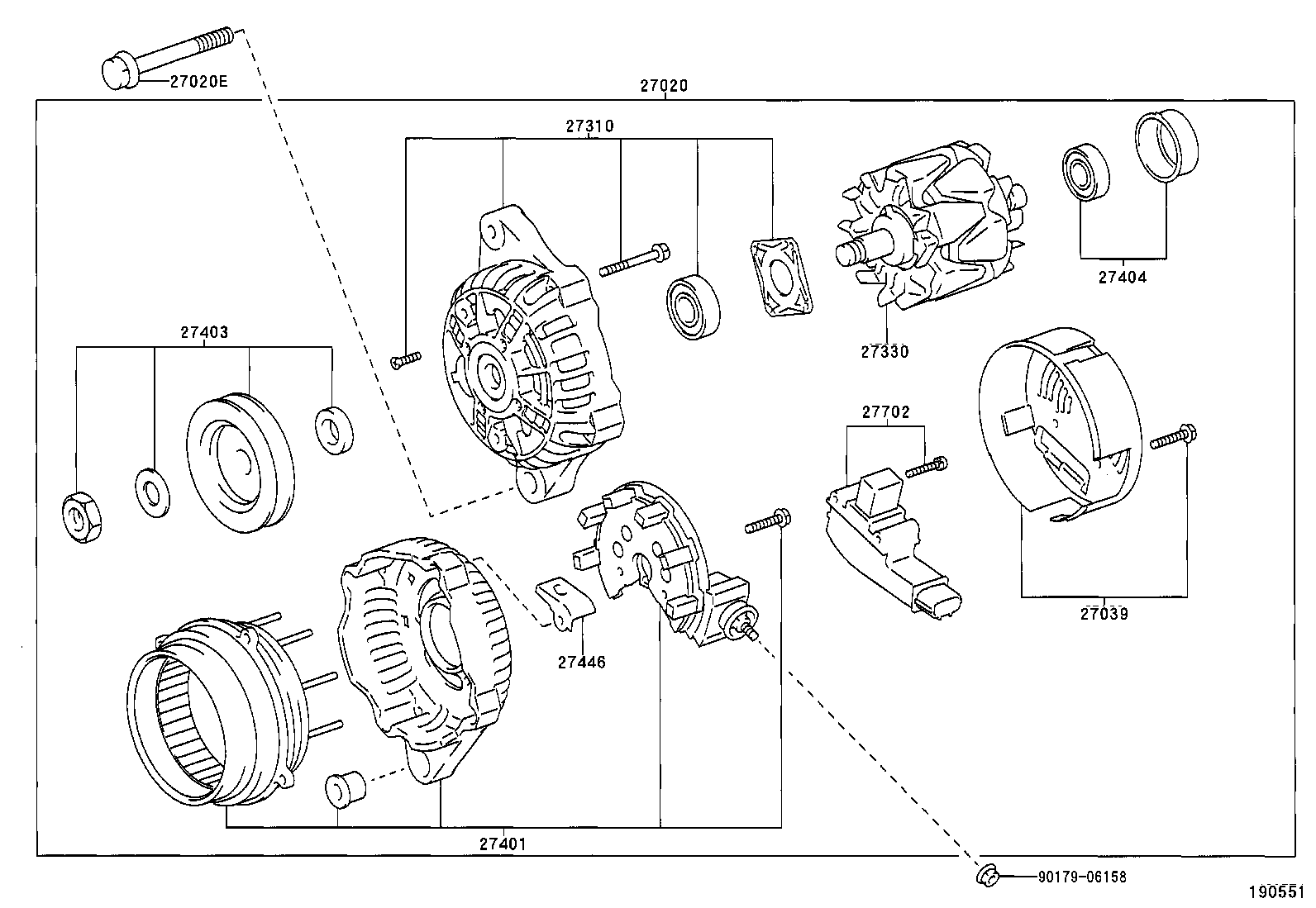

Click highlighted areas on diagram

14V 90A

diagram 27020 27020E 27039 27310 27330 27401 27403 27404 27446 27702 9017906158
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0B010

2CT#..CT220

14V 90A

 1
27020E - BOLT(FOR ALTERNATOR)
90901-05004

1CDFTV,2CT#..CDT220,CT220

 1
90901-05004

2CT..CT220;2CTE..CT220..RHD;2CTE..CT220..LHD..WG;2CTE..CT220..SED..SOL;2CTE..CT220..LHD..LB..TERRA

 1
27039 - COVER, ALTERNATOR REAR END
27039-0B010

2CT#..CT220

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0B010

2CT#..CT220

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0B010

2CT#..CT220

 1
27401 - STATOR SUB-ASSY ALTERNATOR W/RECTIFIER
27401-0B010

2CT#..CT220

 1
27403 - PULLEY SET, ALTERNATOR
27403-0B010

2CT#..CT220

 1
27404 - BEARING SET, ALTERNATOR
27404-0B010

2CT#..CT220

 1
27446 - CLIP, ALTERNATOR CORD
27446-0B010

2CT#..CT220

 1
27702 - REGULATOR SUB-ASSY GENERATOR W/BRUSH
27702-0B010

2CT#..CT220

 1
Common parts
90179-06158
